WM180 (used) (£60 Delivery)

WM180 (used) (£60 Delivery)

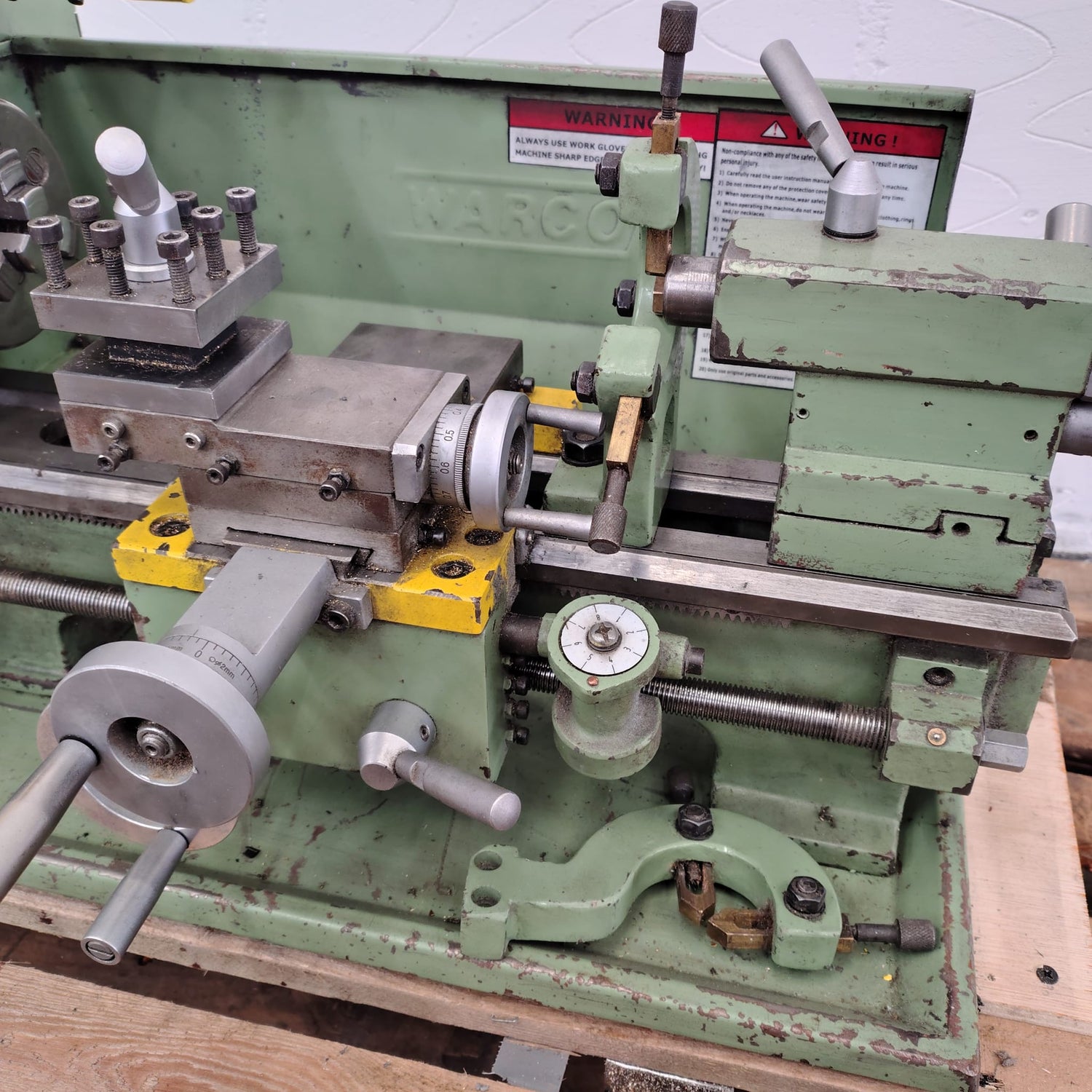

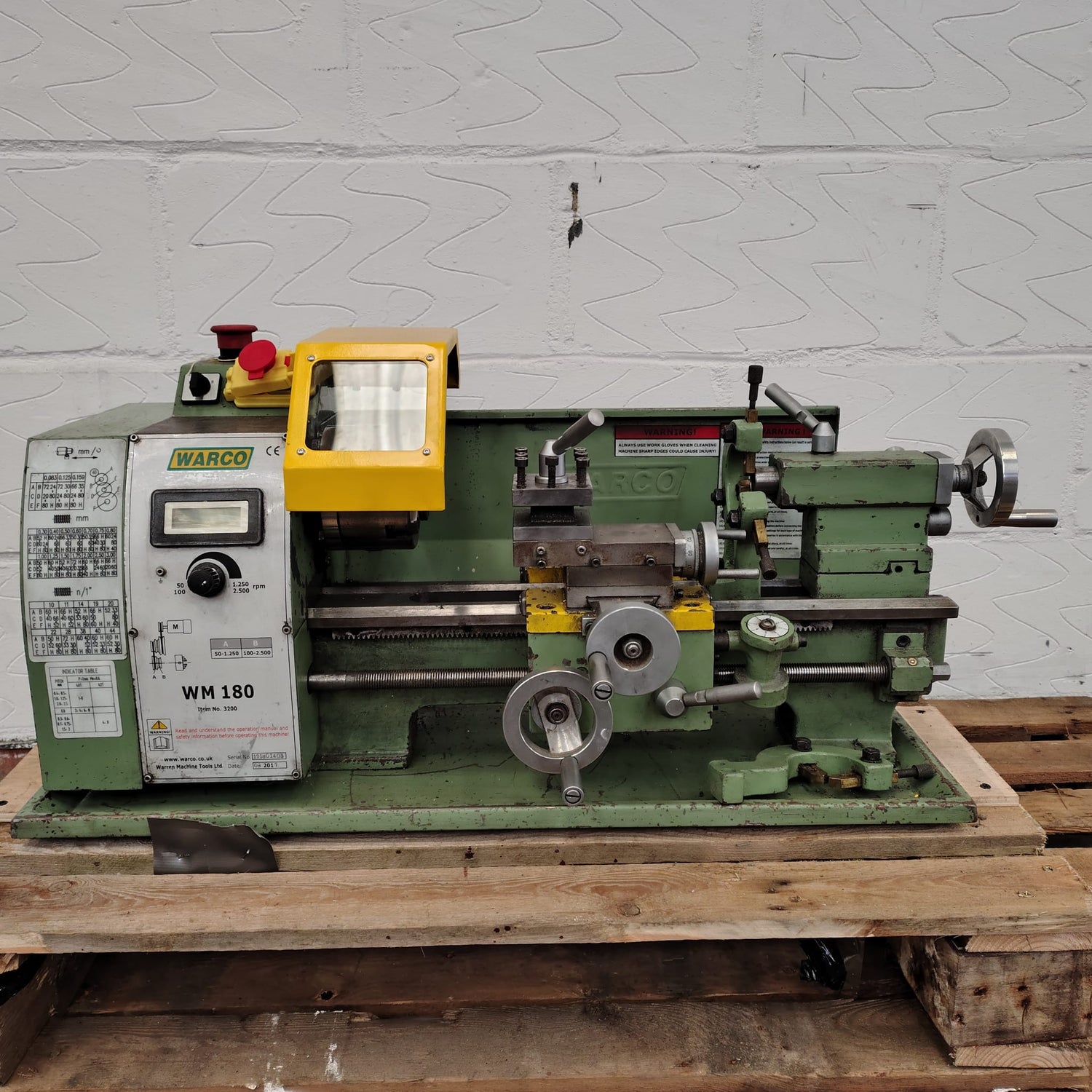

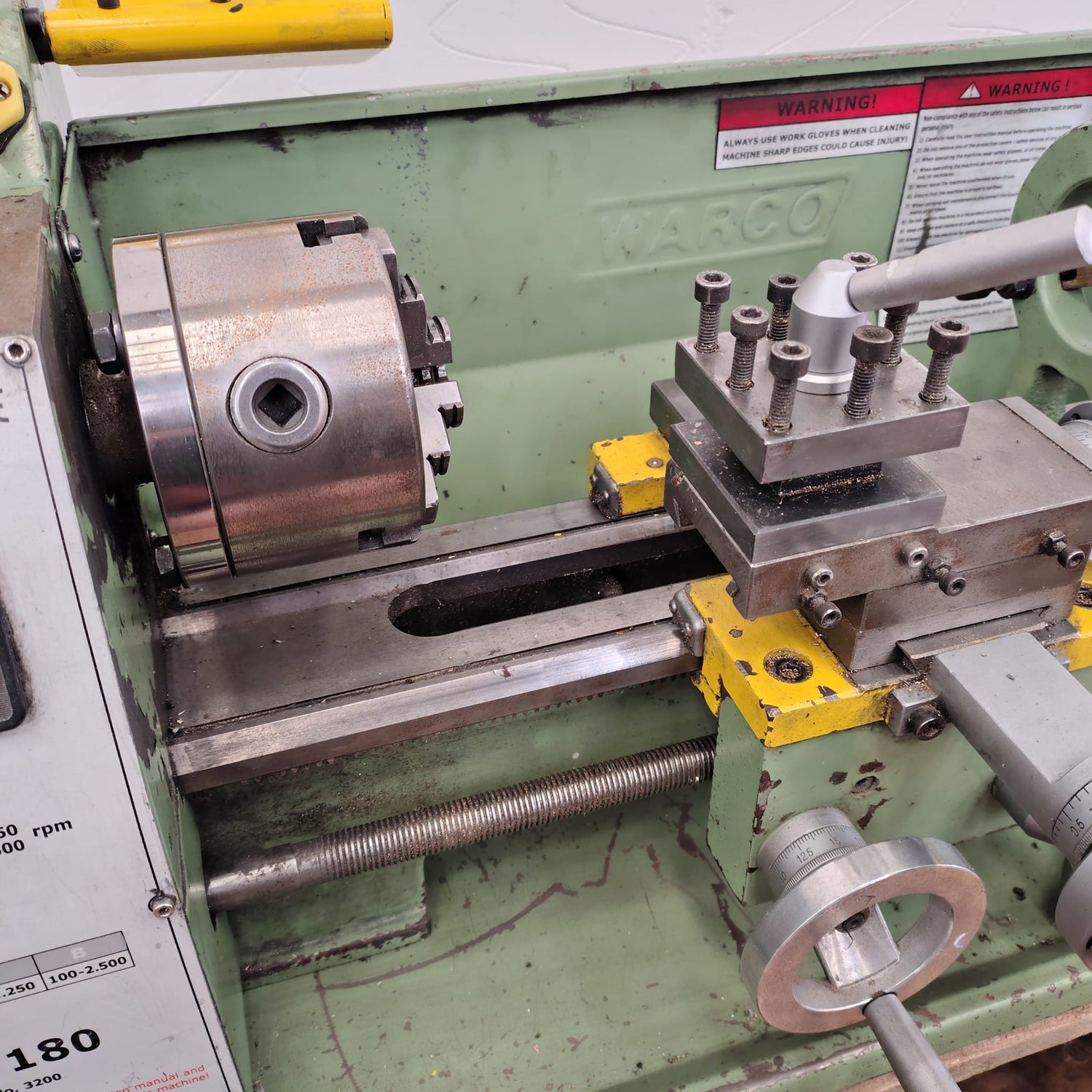

Mechanically in full working order, the lathe has been tested and is working as it should. As seen in the pictures the paint work is looking tired and has marks.

Full spec:

Model: WM180	Product Code: 3200B
Product Dimensions:
Weight	60kg
Length x Width x Height	840 x 440 x 375mm
Tray Length x Width	705 x 265mm
Shipping Dimensions
Length x Width x Height (no DRO)	810 x 465 x 445mm
Length x Width x Height (DRO version)	810 x 465 x 445mm
Power/Motor
Motor size	600w
Power Transfer (GH) gearbox or (VS) variable speed	(VS)
Spindle speeds (No: and achievable speeds)	50-1250 / 100-2500
Voltage (240v single) (440v 3 Phase)	240v single
Fitment (Plug connection type)	3 pin plug
Current	50hz 2.3A
Main Specifications
Maximum swing	180mm
Centre height	90mm
Distance between centres	300mm
Longitudinal travel (Z)	190mm
Cross slide travel (X)	90mm
Top slide travel (fine Z)	60mm
Spindle taper	Mt3
Tailstock Taper	Mt2
Tailstock quill travel	60mm
Spindle Bore	21mm
Tool shank size recommended for C/L	10mm
Metric and imperial threads	0.5-3MM / 10-44TPI
Chuck mount	Flange Fitting
Spindle Bearings /Drive	Taper roller / Belt drive
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 mins
CE approved Certificate	Yes, available upon request
Additional products
Optional stand	3206ND
Optional Digital Read Out Kit	4907
X scale	100MM
Z Scale	200MM
Chuck mount sizes	A=72 B=100 C=84PCD D=3MM
	Also has 4 holes for 4 jaw on flange
Base/tray fixing holes dimensions A-B-C-D	A= N/A
	B=560 C=113 D=70 mm
