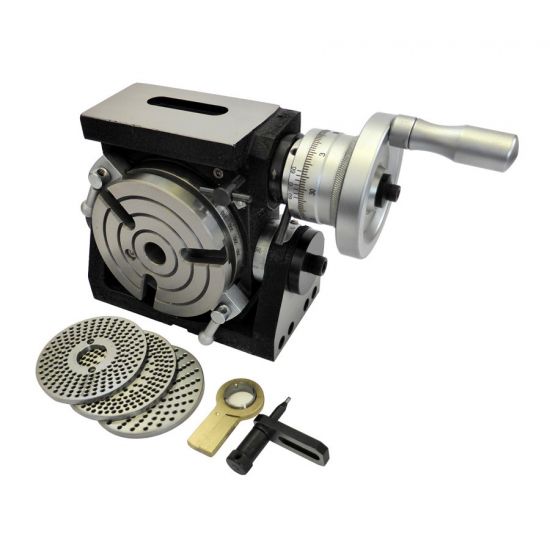

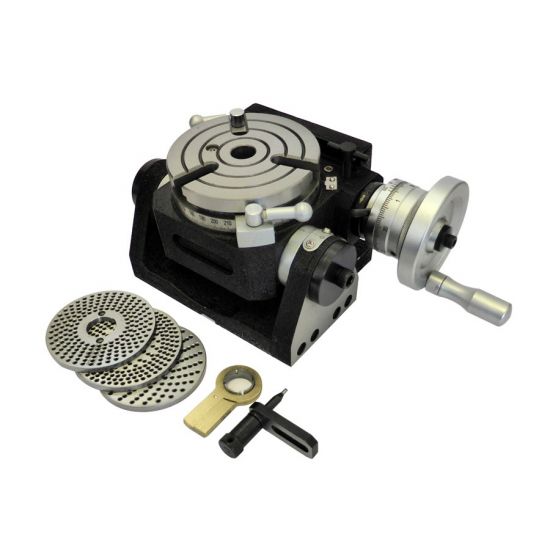

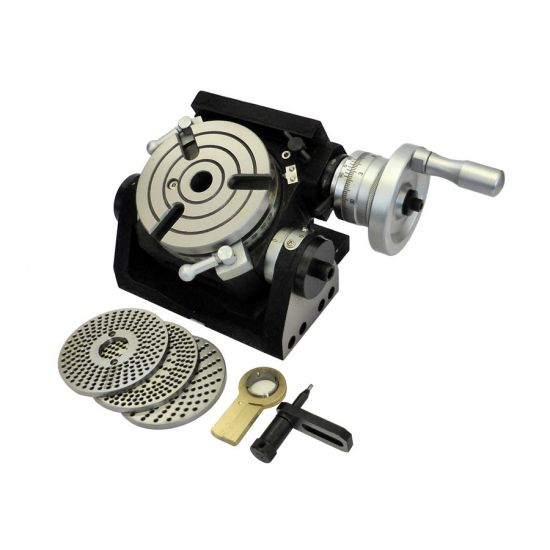

100mm (4") Tilting Rotary Table

HV4 4" (100mm) Tilting Horizontal & Vertical Rotary Table

Quality precision tilting rotary table in 4" size.

• Supplied with dividing plate set.

• Tilt calibrated 0-90°.

• Positive stops to locate horizontal / vertical positions.

• Disengageable handwheel for free table rotation.

• Lubrication points to worm and table rotation.

• Alloy steel worm.

• Cast iron gear.

• Micro collar graduated in steps of 2 min.

• One rotation of the handwheel rotates the table 4°.

• Supplied with user guide.

• 3 Slotted table

Specification

Table diameter	100mm
Base size	175 x 45mm
Height horizontal	120mm
Centre height in vertical position	80mm
Tee slot width	11mm
Centre bore	2MT
Worm gear ratio	1:90
Weight	12.5kg
