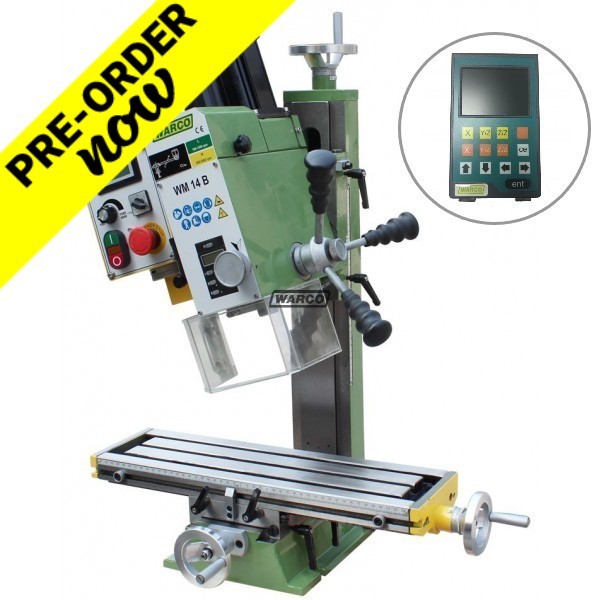

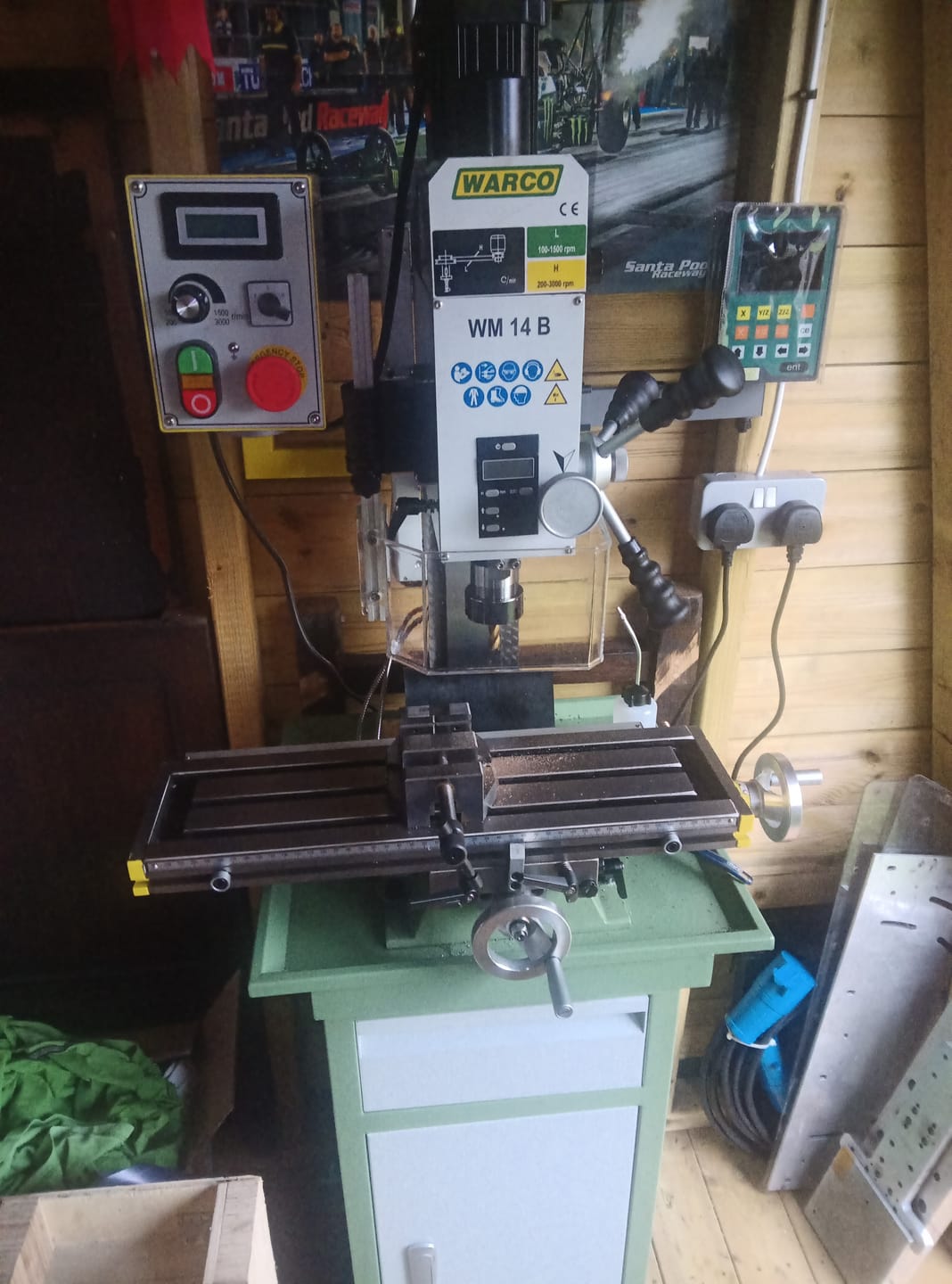

The WM14B with DRO is a belt drive version of our existing popular small milling machine, the WM14.
The WM14B belt drive system offers exceptionally quiet operation and the mill has a brushless motor.
In common with our best-selling WM14, this is compact size, has excellent accuracy levels and is very well engineered throughout.
Machine Features:
- Belt drive, poly vee, very quiet operation
- Brushless motor
- 3-axis DRO fitted
- Two step pulley ensures maximum torque in low speed setting
- Infinitely variable speeds from 100 - 3000 rpm
- Head tilts plus or minus 90°
- Dovetail column ensures positive head location
- Head elevates on two dovetail slideways
- Precision spindle supported on taper roller bearings
- Adjustable gibs to all slideways
- Rack and pinion drill feed
- Locks to head, column and slideways
- Fine feed
- Digital depth gauge with metric/imperial calibrations
- Illuminated digital rev counter
Includes the following FREE accessories:
- Drawbar - 10mm
- Drill chuck - 13mm
- Arbor for drill chuck
- Tool box and maintenance tools
- Operation manual and spare parts list
Full WM14 model list:
Full specification:
|
WM14B with DRO
(Product code: 3208DRO)
|
Product Dimensions:
|
|
| Weight |
65kg |
| Length x Width x Height |
610 x 465 x 820mm |
| Tray Length x Depth |
450 x 430mm |
Shipping Dimensions
|
|
| Length x Width x Height |
525 x 525 x 840mm |
Power/Motor
|
|
| Motor size |
750W |
| Power Transfer (GH) gearbox or (VS) variable speed |
VS |
| Voltage (240v single) (440v 3 Phase) |
240V 50HZ |
| Fitment (Plug connection type) |
3 Pin plug |
| Current |
3.2A |
| Spindle speeds (No: and achievable speeds) |
100-1500 / 200-3000rpm |
Main Specifications
|
|
| Table size |
500 X 140mm |
| Longitudinal travel (X) |
350mm |
| Cross Table travel (Y) |
140mm |
| Head Travel or Knee (Z) |
200mm |
| Quill/Spindle stroke |
52mm |
| Distance spindle to table |
275mm |
| Throat (Spindle middle to Column) |
170mm |
| Table height from base |
140mm |
| Spindle Taper size and thread |
MT2, 3/8 and 10mm drawbars |
| Head tilt left to right and Head tilt front to back |
Side only calibrated 45/-45 deg (90-90) |
| Drilling capacity |
13mm |
| Milling capacity |
16mm |
| Spindle Bearing type |
Taper Roller Bearing |
Other Specifications
|
|
| Country of origin |
China |
| Warranty |
12 Months |
| Approximated assembly and setup time |
30 mins |
| CE approved Certificate |
Available upon request |
Additional products
|
|
| Optional stand |
3220DL |
| Optional power feed |
N/A |
| Optional Digital Read Out Kit |
4906 |
| X axis scale (left to right) |
400MM |
| Y axis scale (forward to back) |
200MM |
| Z axis scale (head) |
300MM |
| Tee Nut size and no of slots |
A=9.7 B=15 C=6 D=6mm (3 SLOTS) 9522 M8 |
| Machine/Stand Hole positions |
A=165 B=200 C=100 D=125mm |
Please note that DC motors do not run at full speed in reverse.
