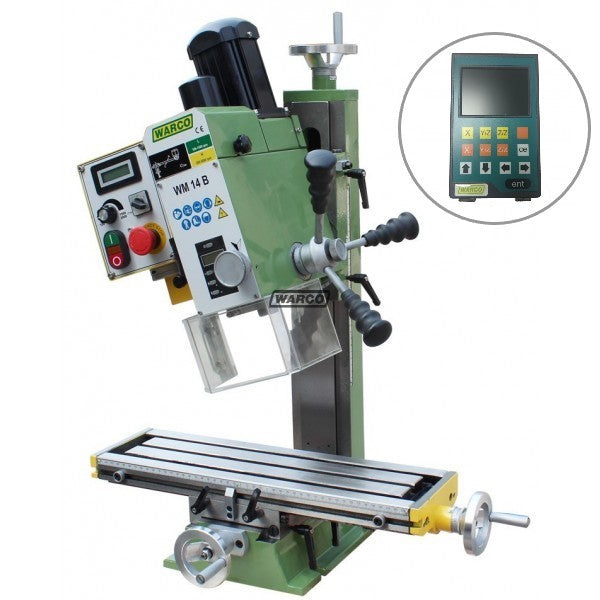

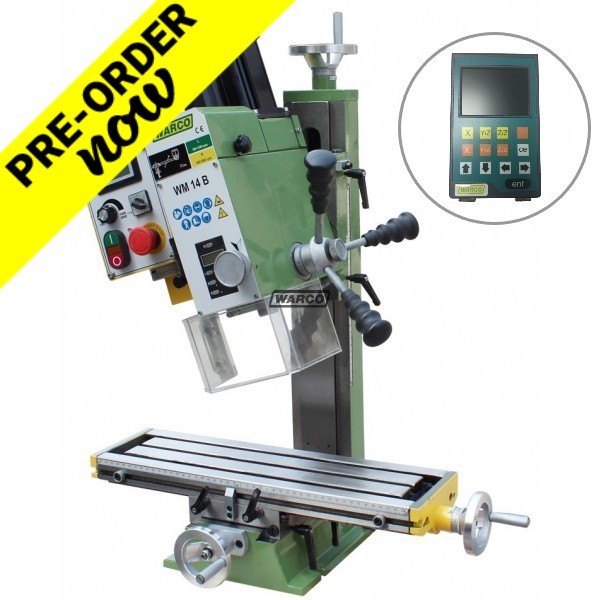

WM14B Belt Drive Mill with DRO

The WM14B with DRO is a belt drive version of our existing popular small milling machine, the WM14.

The WM14B belt drive system offers exceptionally quiet operation and the mill has a brushless motor.

In common with our best-selling WM14, this is compact size, has excellent accuracy levels and is very well engineered throughout.

Machine Features:

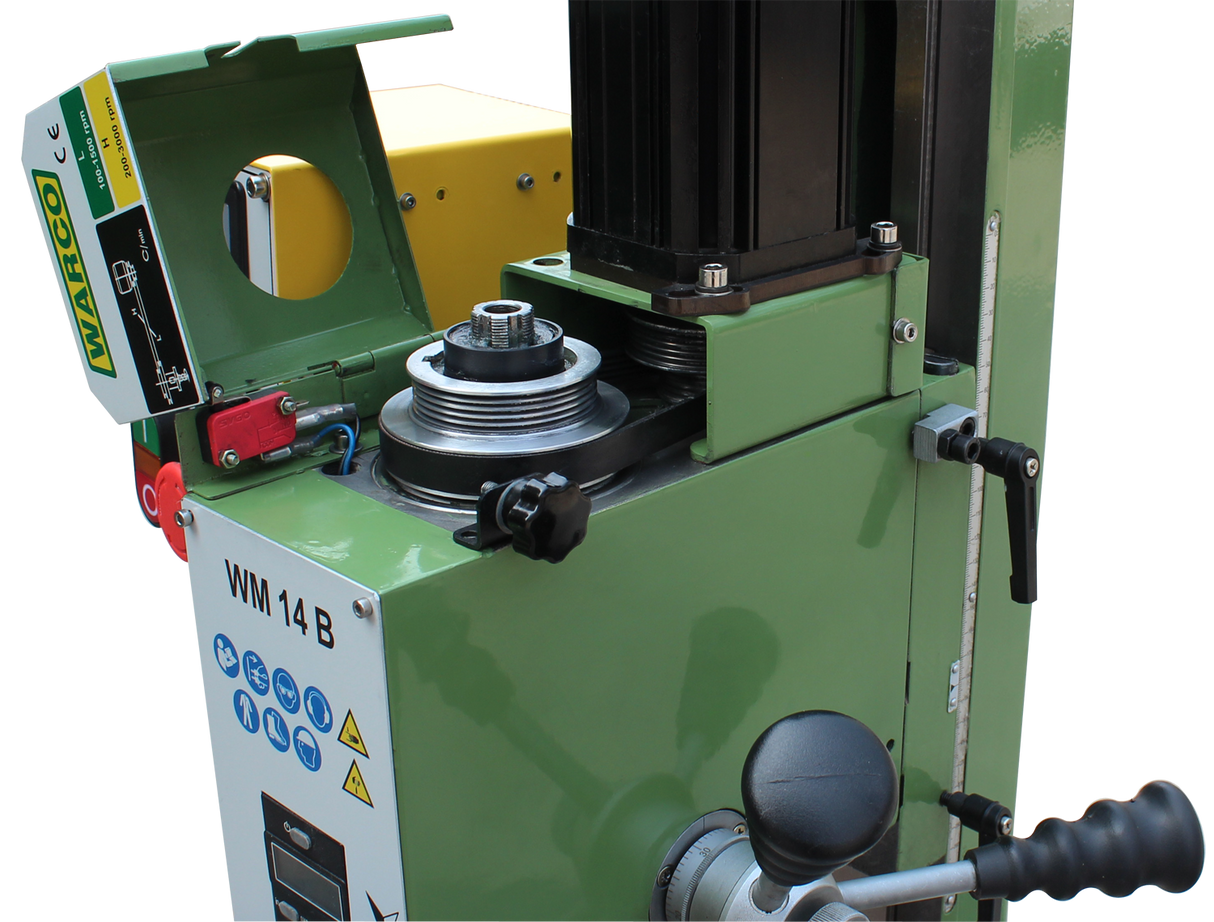

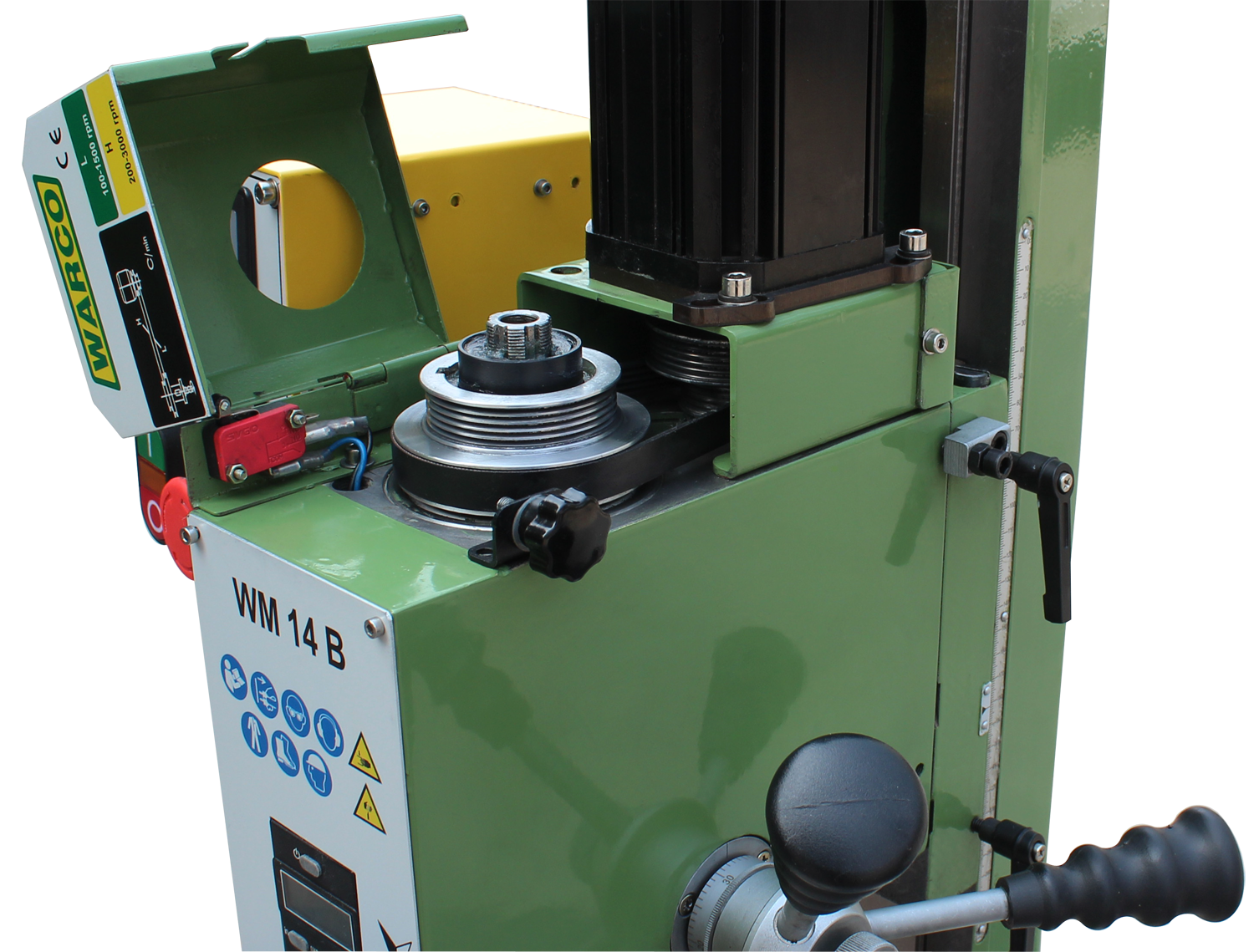

• Belt drive, poly vee, very quiet operation
• Brushless motor
• 3-axis DRO fitted
• Two step pulley ensures maximum torque in low speed setting
• Infinitely variable speeds from 100 - 3000 rpm
• Head tilts plus or minus 90°
• Dovetail column ensures positive head location
• Head elevates on two dovetail slideways
• Precision spindle supported on taper roller bearings
• Adjustable gibs to all slideways
• Rack and pinion drill feed
• Locks to head, column and slideways
• Fine feed
• Digital depth gauge with metric/imperial calibrations
• Illuminated digital rev counter

Includes the following FREE accessories:

• Drawbar - 10mm
• Drill chuck - 13mm
• Arbor for drill chuck
• Tool box and maintenance tools
• Operation manual and spare parts list

Full WM14 model list:

• WM14 - variable speed version (Item No. 3220YZ) - see here for details
• WM14 - variable speed with DRO fitted (Item No. 3220DRO) - see here for details

Full specification:

	WM14B with DRO (Product code: 3208DRO)
Product Dimensions:
Weight	65kg
Length x Width x Height	610 x 465 x 820mm
Tray Length x Depth	450 x 430mm
Shipping Dimensions
Length x Width x Height	525 x 525 x 840mm
Power/Motor
Motor size	750W
Power Transfer (GH) gearbox or (VS) variable speed	VS
Voltage (240v single) (440v 3 Phase)	240V 50HZ
Fitment (Plug connection type)	3 Pin plug
Current	3.2A
Spindle speeds (No: and achievable speeds)	100-1500 / 200-3000rpm
Main Specifications
Table size	500 X 140mm
Longitudinal travel (X)	350mm
Cross Table travel (Y)	140mm
Head Travel or Knee (Z)	200mm
Quill/Spindle stroke	52mm
Distance spindle to table	275mm
Throat (Spindle middle to Column)	170mm
Table height from base	140mm
Spindle Taper size and thread	MT2, 3/8 and 10mm drawbars
Head tilt left to right and Head tilt front to back	Side only calibrated 45/-45 deg (90-90)
Drilling capacity	13mm
Milling capacity	16mm
Spindle Bearing type	Taper Roller Bearing
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 mins
CE approved Certificate	Available upon request

Additional products
Optional stand	3220DL
Optional power feed	N/A
Optional Digital Read Out Kit	4906
X axis scale (left to right)	400MM
Y axis scale (forward to back)	200MM
Z axis scale (head)	300MM
Tee Nut size and no of slots	A=9.7 B=15 C=6 D=6mm (3 SLOTS) 9522 M8
Machine/Stand Hole positions	A=165 B=200 C=100 D=125mm

Please note that DC motors do not run at full speed in reverse.
