HV Universal Milling Machine with 3 axes Dro - ISO30

Warco HV Universal - Horizontal / Vertical Milling Machine

Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.

This mill has maximum flexibility, with full variable speed and the ability to take on horizontal as well as vertical milling.

Highest levels of accuracy assured, very robust construction offering highly precise performance for the long term.

With two high powered motors - one for horizontal and one for vertical milling.

The HV is a full size industrial mill which will operate from a single phase 240v supply.

Features include

• Supplied with 3 axis digital readout system pre-installed.
• Power feed to X-Y-Z axis
• Head tilts 45° - 0° - 45° - with dowel to locate vertical position
• Inverter drive
• Infinite speed range on both spindles
• Horizontal and vertical spindles
• Sturdy Meehanite cast iron construction
• Hardened and ground slideways
• Hardened table surface
• Wide cross slide allows maximum table support
• Tapered gibs to slideways
• Locks to X, Y and Z traverse
• New! Swivel table
• New! New support arm to accommodate DRO counter and milling machine controls, all in one pendant cabinet.
• New! Now with larger table - 1000mm width

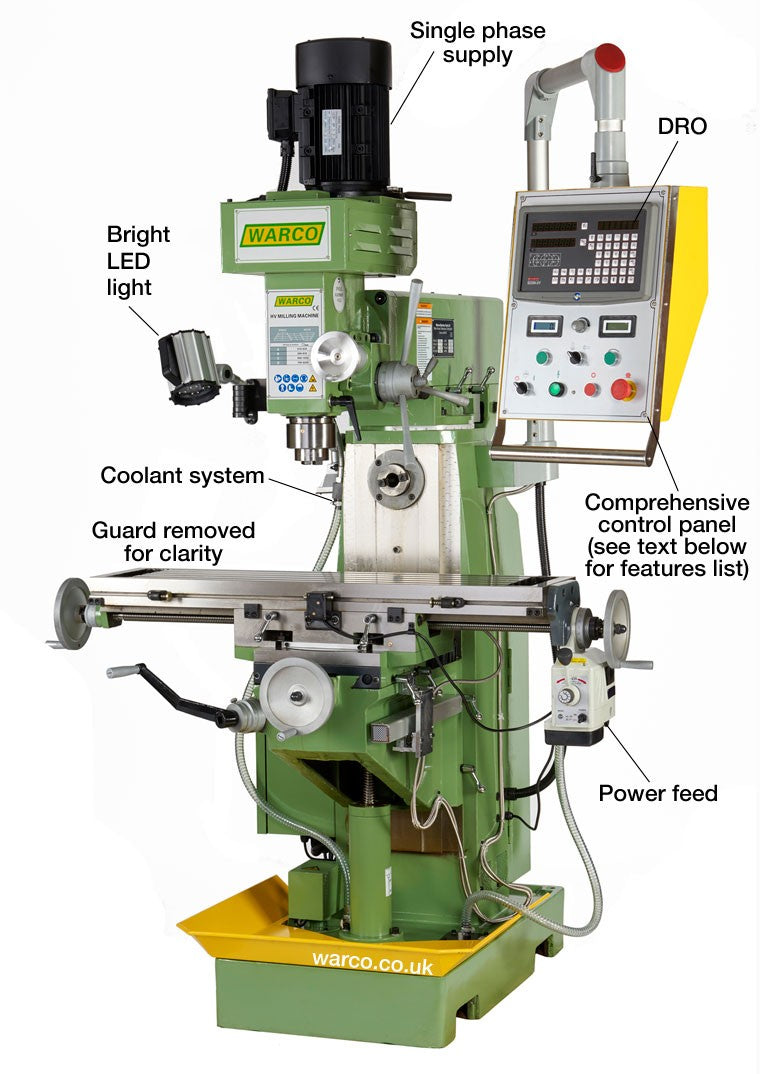

IMAGE OF 2 AXIS VERSION.

Standard equipment includes

• Power feed to X-Y-Z axis, infinitely variable
• Coolant system
• LED lighting
• Horizontal milling arbor
• Swarf tray
• DRO (resolution 0.005mm)
• Pendant support for DRO
• Toolbox with maintenance tools

Comprehensive control panel incorporates

• Digital readout
• Start/stop buttons
• Forward and reverse for vertical and horizontal spindles
• Rev counters
• Coolant switch
• ENEWncy lock on stop

Buying the Warco HV Universal

• Each machine is fully guaranteed.
• We have an extremely comprehensive range of spare parts available should you need them, as well as just about every accessory or additional tool you'll ever need.
• We've always prided ourselves on our after sales service, so rest assured when buying from Warco, you're in safe hands.
• Large range of standard equipment supplied for no extra charge including DRO, collet rack, coolant system, light, tool box, maintenance tools and power feed.
• Every milling machine we supply is fully checked and tested by a member of our qualified team, and is supplied with an individual accuracy test report.

Specification

Item No.	3042
Table size	1000 x 240mm
No. of tee slots	5
Longitudinal travel	580mm
Cross travel	220mm
Vertical (knee) travel	335mm
Spindle travel	130mm
Vertical distance spindle to table	180 - 670mm
Horizontal distance spindle to table	0 - 370mm
Vertical spindle taper	ISO 30
Horizontal spindle taper	ISO 30
Spindle speed range vertical	190-2200 rpm
Spindle speed range horizontal	25-1630 rpm
No. of speeds (vertical & horizontal)	Infinitely variable
Coolant system capacity	8 litres
Motor vertical	1.5kw (1500w)
Motor horizontal	1.1kw (1100w)
Power (both motors)	240v / 1PH
Dimensions W x D x H (Measurements taken to end of handle grips, with head at maximum elevation)	1150 x 1360 x 2080mm
Weight	900kg

Price includes UK VAT at 20%.
