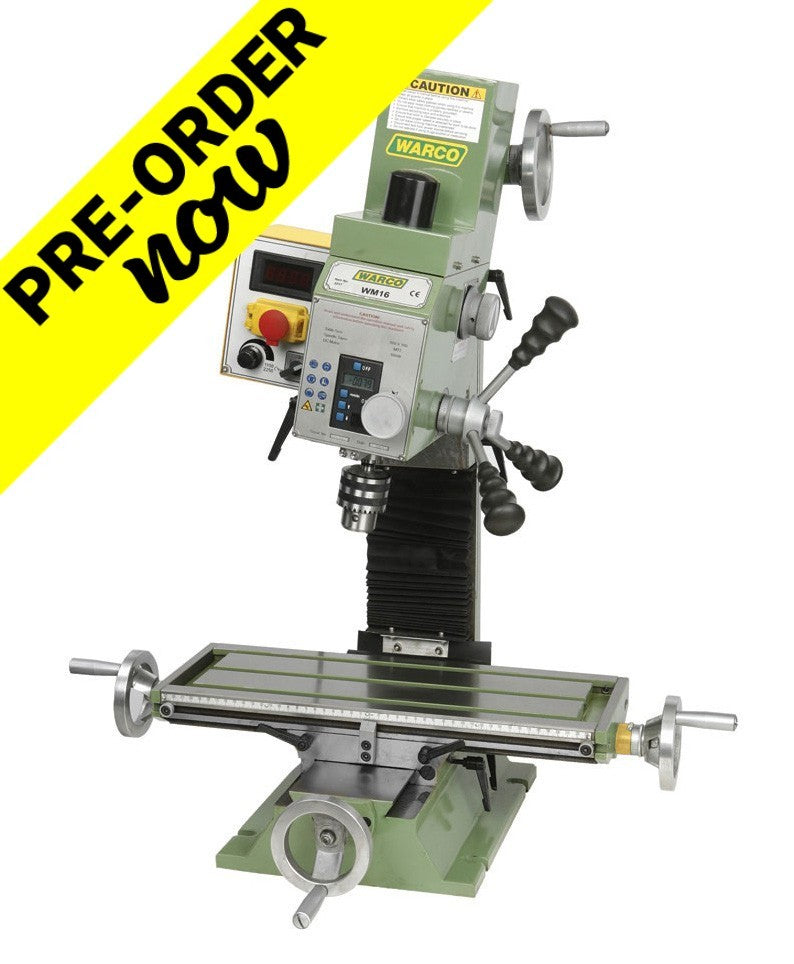

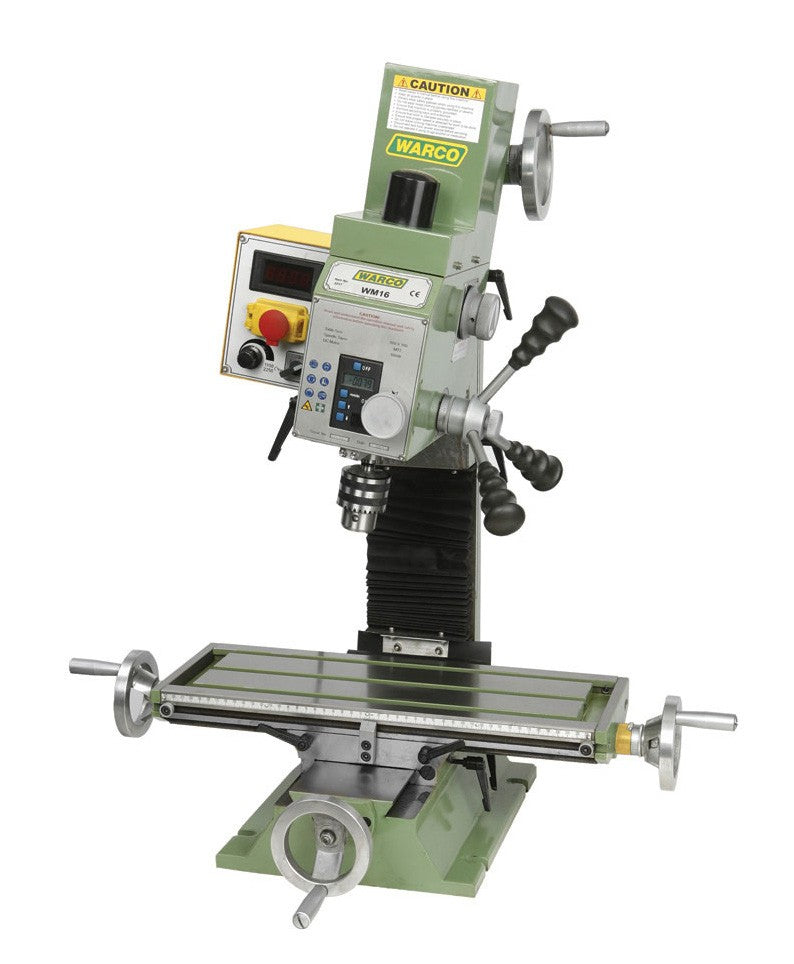

WM16 Milling Machine - Variable Speed - R8

The WM16 is a very well engineered machine, with variable speed and top quality throughout.

Very popular medium sized milling machine, offering many of the features of larger, more expensive machines at an affordable price.

Product features include:

• Infinitely variable from 50 - 3000 rpm
• Dovetail column ensures positive head location
• Precision spindle supported on taper roller bearings
• Adjustable gibs to slideways
• Reversible motor
• Head tilts plus or minus 90°
• Rack and pinion drill feed plus fine feed for extremely accurate machining
• Locks to head, column and slideways

Full Specification:

	WM16 Mills (Product code: 3217R)
Product Dimensions:
Weight	150KG
Length x Width x Height	1030 X 600 X 955mm
Tray Length x Depth	525 x 480
Shipping Dimensions
Length x Width x Height	705 x 705 x 890mm
Power/Motor
Motor size	900W
Power Transfer (GH) gearbox or (VS) variable speed	VS
Voltage (240v single) (440v 3 Phase)	240V
Fitment (Plug connection type)	3 Pin Plug
Current	50hz 3.9A
Spindle speeds (No: and achievable speeds)	50-1500 / 100-3000rpm
Main Specifications
Table size	700 x 180mm
Longitudinal travel (X)	500mm
Cross Table travel (Y)	183mm
Head Travel or Knee (Z)	255mm
Quill/Spindle stroke	50mm
Distance spindle to table	300mm
Throat (Spindle middle to Column)	160mm
Table height from base	185mm
Spindle Taper size and thread	R8 7/16 unf
Head tilt left to right and Head tilt front to back	90-90 (45-45 calibrated)
Drilling capacity	16mm
Milling capacity	20mm
Spindle Bearing type	Taper Roller
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 mins
CE approved Certificate	CE CERT No.6 07/02/23
Additional products
Optional stand	3207DL
Optional power feed	3205.16
Optional Digital Read Out Kit	8123 dro
X axis scale (left to right)	500mm
Y axis scale (forward to back)	200mm
Z axis scale (head)	300mm
Tee Nut size and no of slots	AA=12 B=17.5 C=6.5 D=7.5mm (3 SLOTS) 9523 M10
Machine/Stand Hole positions	A=320 B=22 C=75 D=30mm
