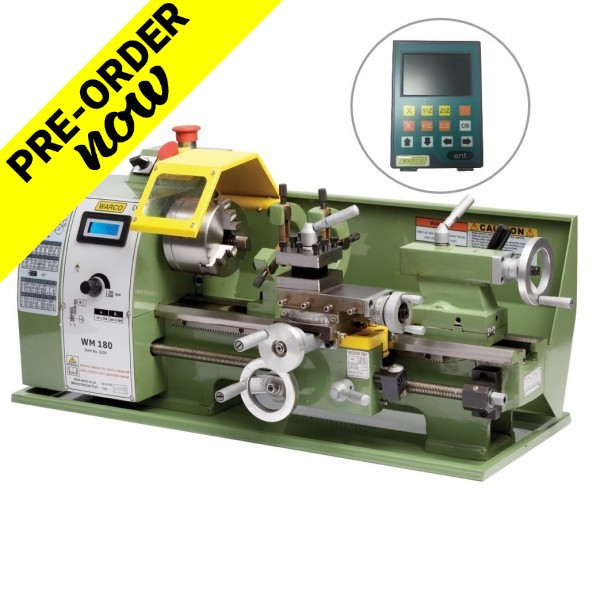

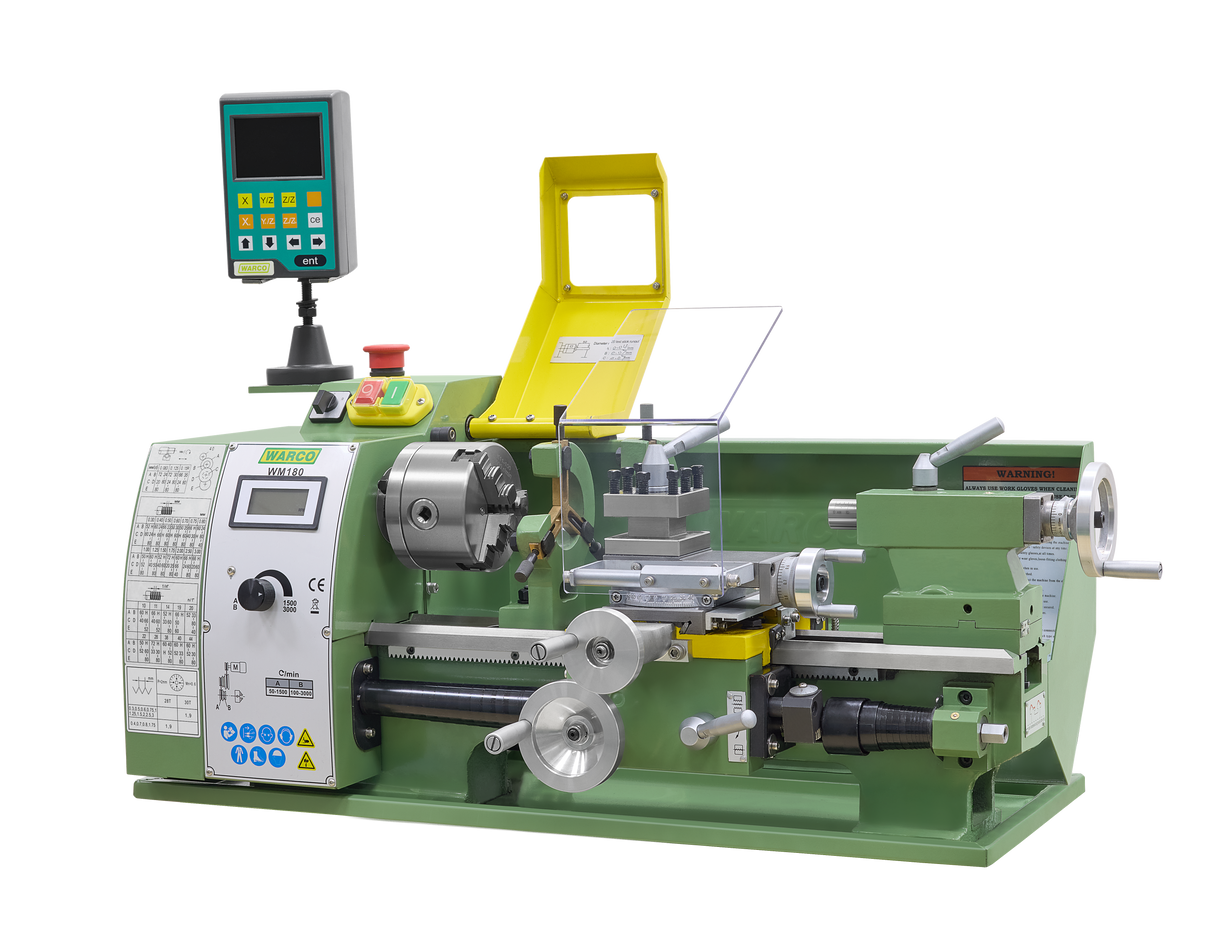

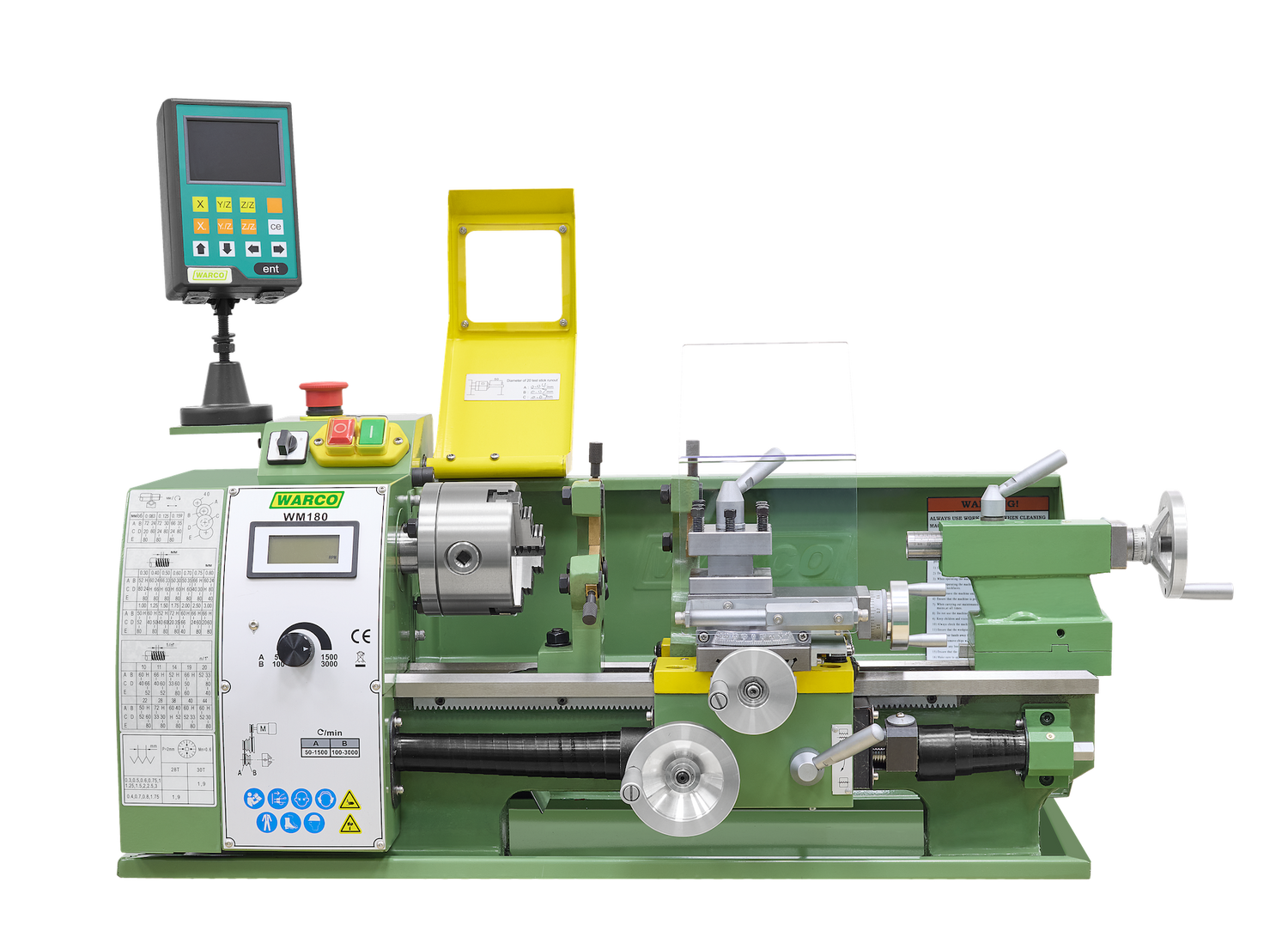

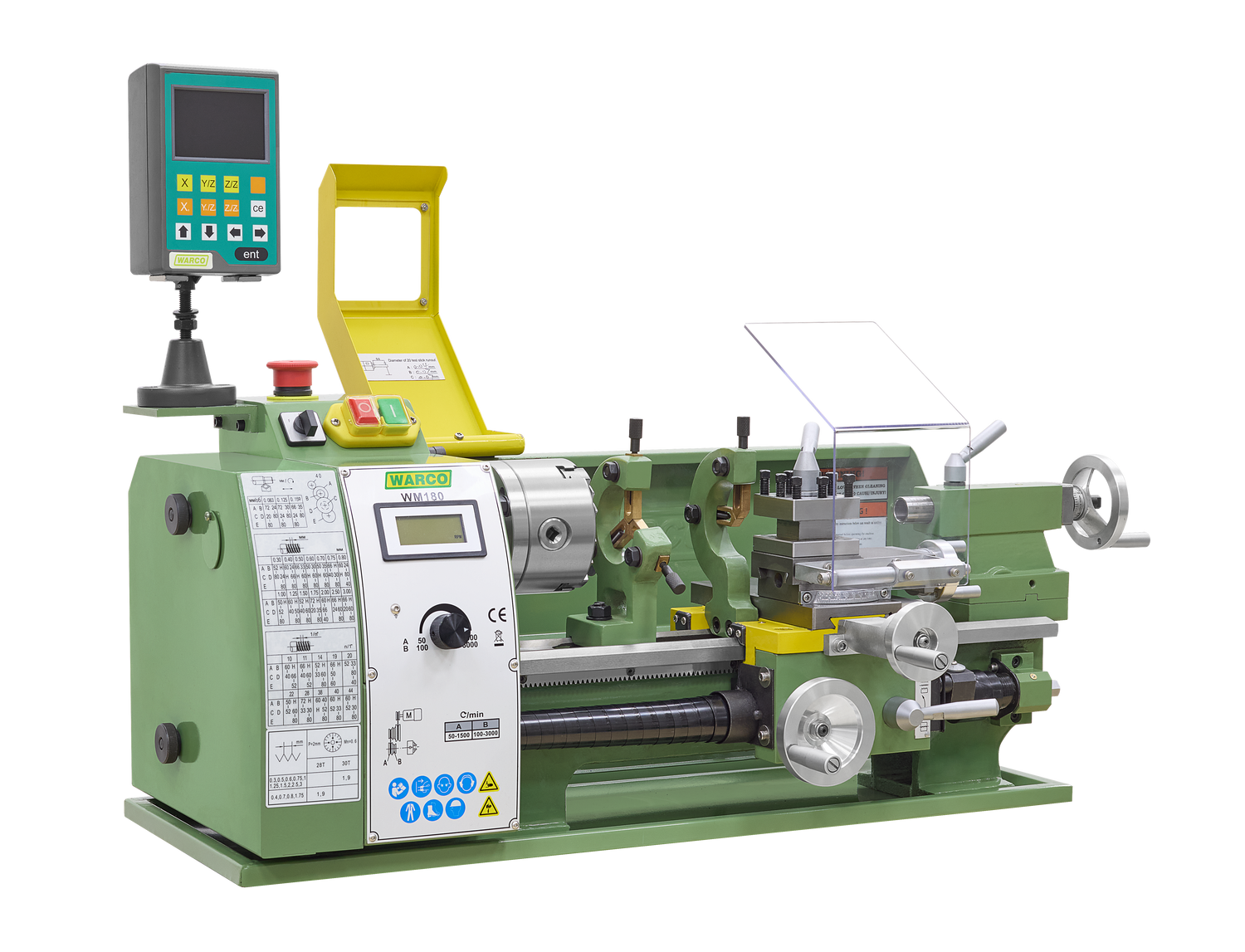

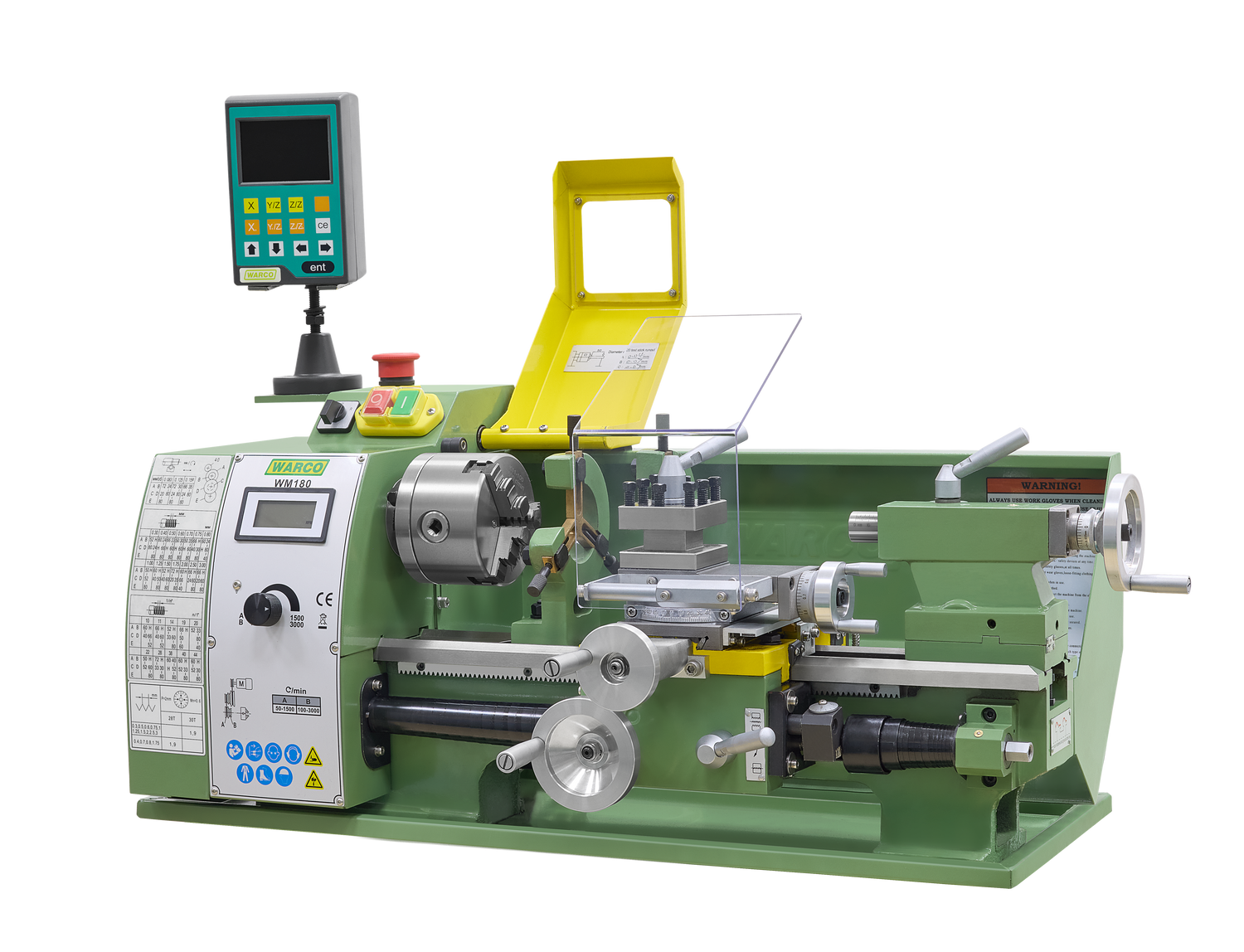

WM180 Lathe with DRO

This extremely popular, versatile, robust and compact variable-speed lathe offers superb reliability and build-quality at an affordable price. Ideal for bench mounting. Alternatively we also offer an additional stand. The Warco WM180 has made itself at home in many model engineers' workshops, with great feedback from our customers. Also available without DRO.

Lathe features include:

• Brushless motor
• Two speed bands allow maximum torque in the lower speeds
• Infinitely variable from 50-3000rpm
• Double vee bedway - hardened and ground
• Adjustable gibs to slideways
• Off set facility to tailstock
• Tailstock quill engraved metric and imperial
• Reversible motor
• Metric and imperial thread cutting
• Zero friction dials
• Steel gears
• Powerful 550w motor
• Steel gears

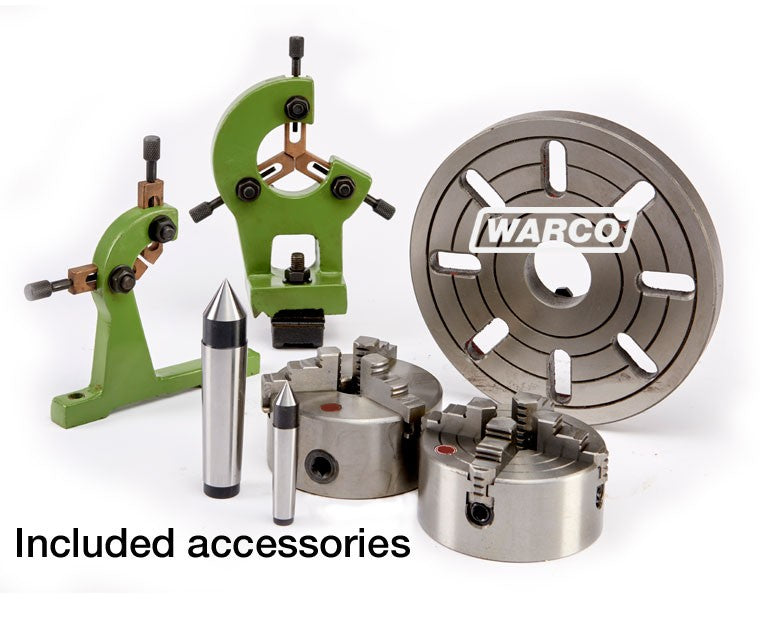

Includes the following FREE accessories:

• Swarf tray
• Rear splash guard
• Face plate
• 3 Jaw 100mm self centre chuck with inside and outside jaws
• 4 Jaw independent chuck 100mm
• Fixed steady
• Travelling steady
• Two dead centres - 2MT / 3MT
• Compound slide
• Thread dial indicator
• Toolbox with maintenance tools

Full spec:

	Model: WM180 DRO (Product Code: 3200BDRO)
Product Dimensions:
Weight	60kg
Length x Width x Height	840 x 440 x 375mm
Tray Length x Width	705 x 265mm
Shipping Dimensions
Length x Width x Height (no DRO)	810 x 465 x 445mm
Length x Width x Height (DRO version)	810 x 465 x 445mm
Power/Motor
Motor size	550w
Power Transfer (GH) gearbox or (VS) variable speed	(VS)
Spindle speeds (No: and achievable speeds)	50-1500 / 100-3000
Voltage (240v single) (440v 3 Phase)	240v single
Fitment (Plug connection type)	3 pin plug
Current	50hz 2.3A
Main Specifications
Maximum swing	180mm
Centre height	90mm
Distance between centre’s	300mm
Longitudinal travel (Z)	190mm
Cross slide travel (X)	90mm
Top slide travel (fine Z)	85mm
Spindle taper	Mt3
Tailstock Taper	Mt2
Tailstock quill travel	60mm
Spindle Bore	21mm
Tool shank size recommended for C/L	10mm
Metric and imperial threads	0.5-3MM / 10-44TPI
Chuck mount	Flange Fitting
Spindle Bearings  /Drive	Taper roller / Belt drive
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 mins
CE approved Certificate	Yes, available upon request
Additional products
Optional stand	3206ND
Optional Digital Read Out Kit	4907
X scale	100MM
Z Scale	200MM
Chuck mount sizes	A=72 B=100 C=84PCD D=3MM
	Also has 4 holes for 4 jaw on flange
Base/tray fixing holes dimensions A-B-C-D	A= N/A
	B=560 C=113 D=70 mm

Please note that DC motors do not run at full speed in reverse.
