GH1322 Lathe Gear Head With DRO (240V)

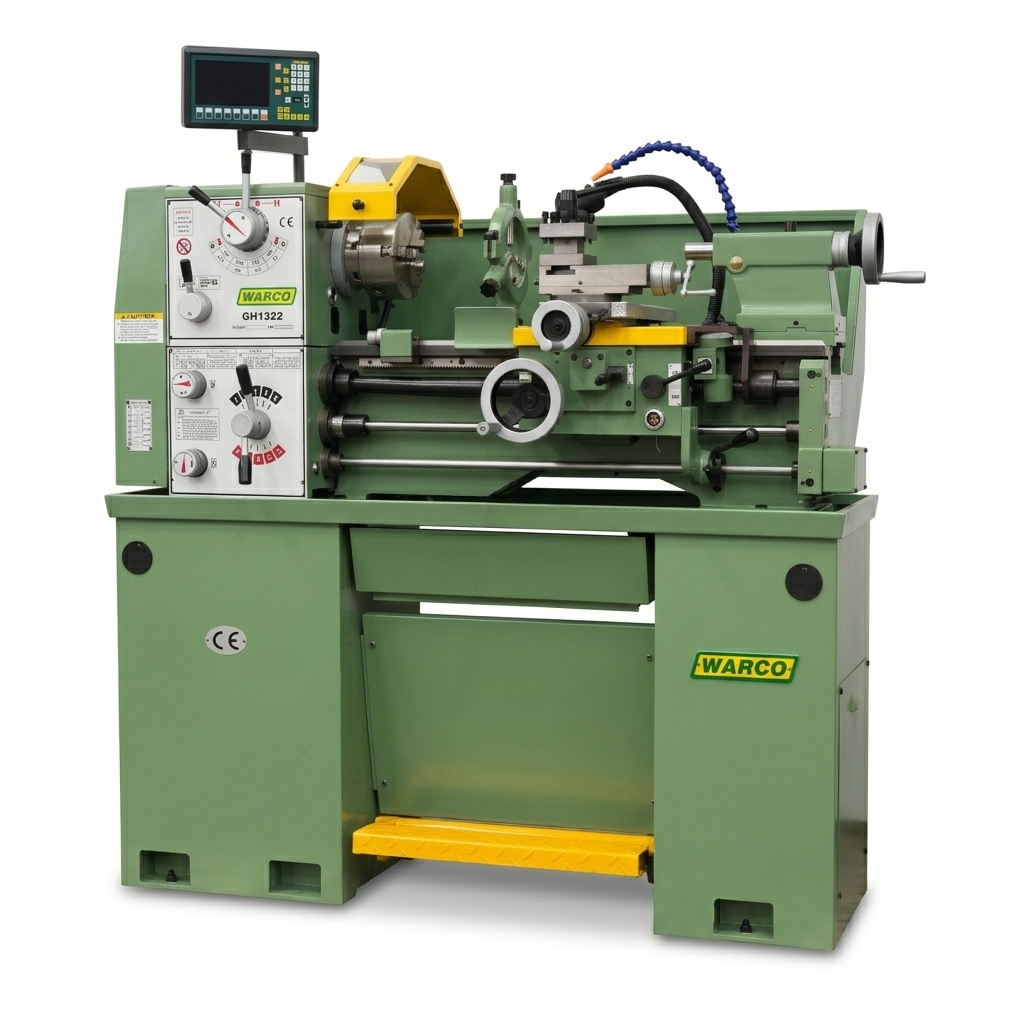

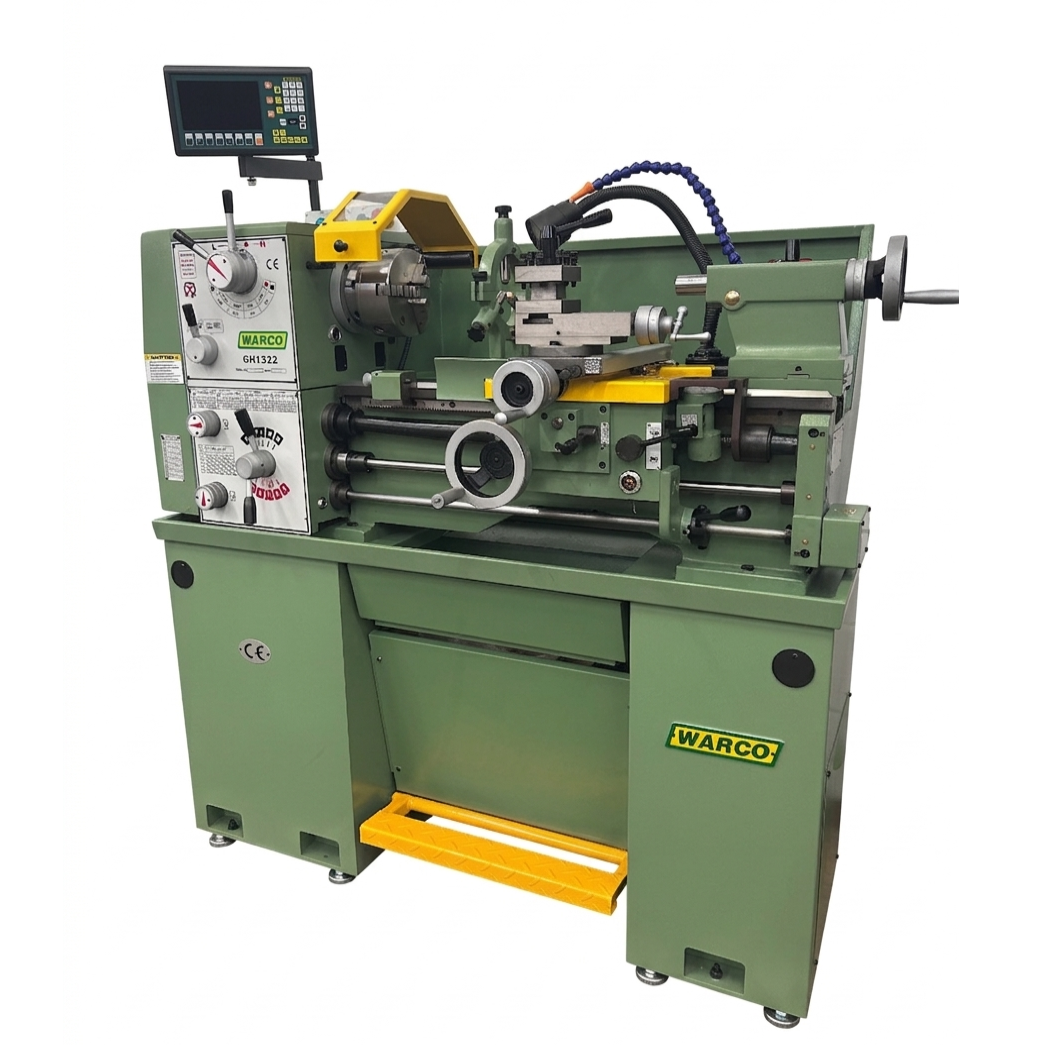

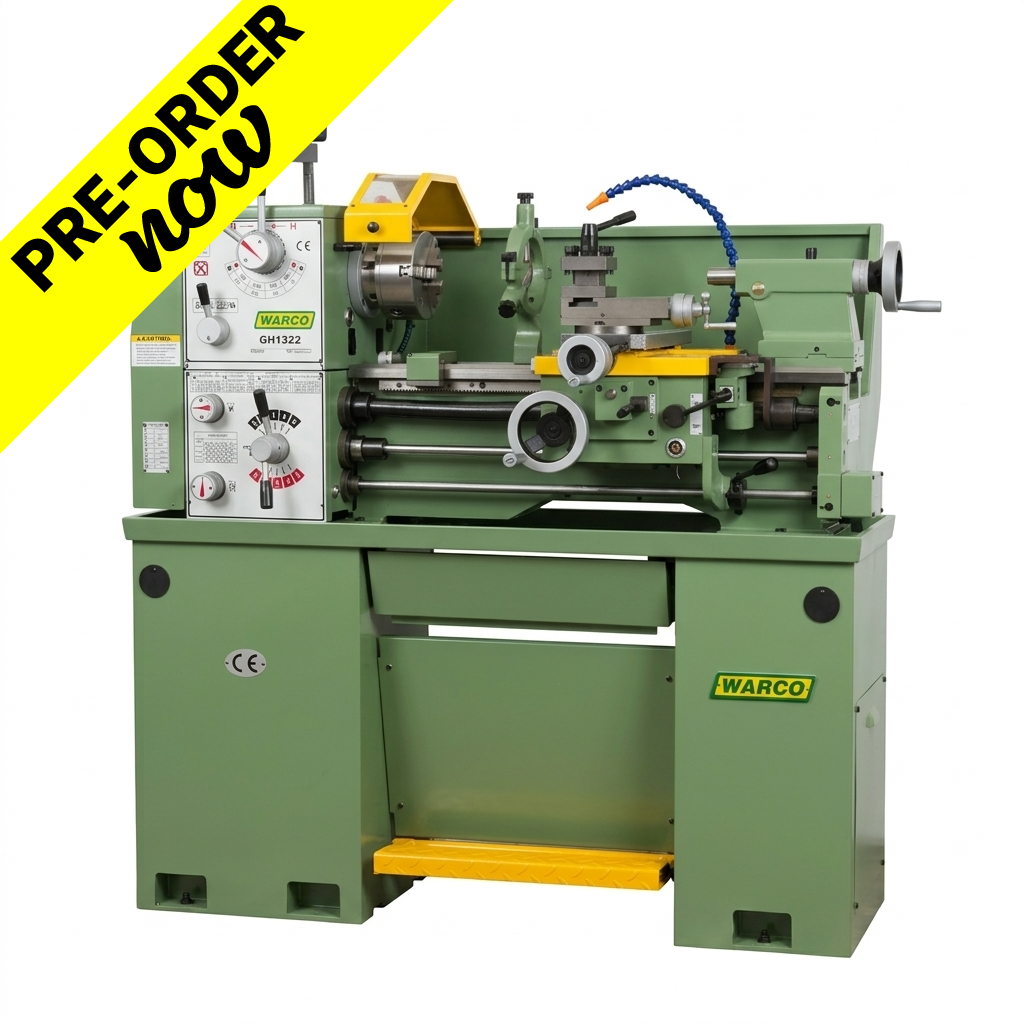

Warco GH1322 Gear Head Lathe With DRO (240V)

Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.

The Warco GH1300 series of lathes offers truly robust, durable construction, with excellent levels of build quality. Highly accurate, precise lathes with a wide range of metalworking applications.

Of all the lathes we supply to education and training establishments, the GH1322 is amongst our best selling models.

Available with a choice of 1 or 3 phase (240v or 440v).

• GH1322 - Metric 1 Phase fitted with DRO (Item No. 4009B DRO)
• GH1322 - Metric 3 Phase fitted with DRO (Item No. 4009A DRO)

Longer version also available

• GH1330 range here  - similar to the GH1322 shown on this page, with increased distance between centres and overall length.

  Features include

• Induction hardened and ground bedways
• Hardened, precision ground headstock gears ensure extremely quiet operation
• D1-4 spindle supported by taper roller bearings
• Overload clutch to saddle feed shaft

• Removable gap bed, dowelled for accurate relocation

• Safe, low voltage circuit with overload cut out
• Spindle brake, extremely effective, will immediately brake lathe from highest speed of 2000rpm
• In an emergency situation, the brake will also disconnect the electrical drive
• Slide out coolant / chip tray
• Telescopic leadscrew covers
• Accuracy test report is supplied with each individual machine
• European electrical components, Siemens or Telemachanique
• Emergency electric cut out switch
• Jogging button to assist chuck rotation throughout the speed range
• Offset tailstock facility
• Independent feed shaft to saddle for longitudinal and cross feed
• Adjustable gibs to top slide and cross slide
• Thread dial indicator
• Power longitudinal and cross feed, powered by a dedicated feed shaft
• Interlock chuck guard and gear train cover
• Optional glass optical digital readout system.

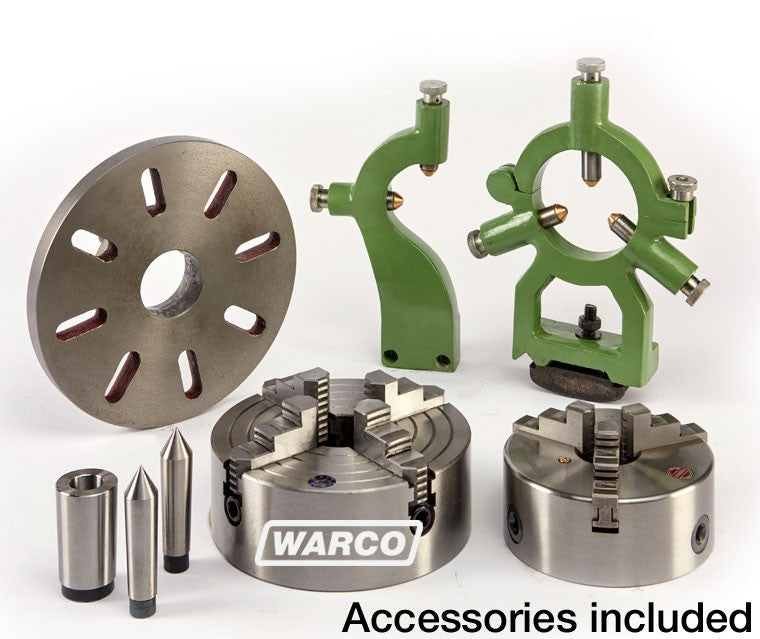

 Standard equipment included

• Cabinet stand
• Chuck 3 jaw 160mm with inside & outside jaws
• Chuck 4 Jaw 200mm independent
• Face plate 300mm
• 4 way indexable toolpost
• Fixed steady
• Travelling steady
• Coolant system
• Dead centre
• Micro adjustable bed stop
• Light
• Instruction manual and full spare parts list
• Tool box with maintenance tools

Specification

Machine: 4009BDRO	GH1322 240V
Product Dimensions:
Weight	500kg
Width x Depth x Height	1335 X 750 X 1330mm
Tray Length x Width	N/A
Shipping Dimensions
Length x Width x Height (no DRO)	1500 x 760 x 1500mm
Length x Width x Height (DRO version)	1500 x 760 x 1500mm
Power/Motor
Motor size	1.5kw
Power Transfer (GH) gearbox or (VS) variable speed	GH
Spindle speeds (No: and achievable speeds)	8 speeds, 70,115,190,300,460,755,1255,2000
Voltage (240v single) (440v 3 Phase)	240v and 3 Phase available
Fitment (Plug connection type)	3 pin plug or cables
Current	50hz, 3.2A
Main Specifications
Maximum swing over bed / gap	330mm / 450mm
Centre height	165mm
Distance between centre’s	525mm
Longitudinal travel (Z)	325mm
Cross slide travel (X)	165mm
Top slide travel (fine Z)	70mm
Spindle taper	MT5
Tailstock Taper	MT3
Tailstock quill travel	76mm
Spindle Bore	38mm
Tool shank size recommended for C/L	16mm
Metric and imperial threads	Yes
Chuck mount	D1-4 Camlock
Spindle Bearings  /Drive	Taper Roller Bearings
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	45 Mins
CE approved Certificate	Yes, available upon request
Additional products
Optional stand	N.A
Optional Digital Read Out Kit	8123
X scale	200mm
Z Scale	350mm
Chuck mount sizes	D1-4 Camlock
Base/tray fixing holes dimensions A-B-C-D	A=350 B=250  C=765 D= 90mm
