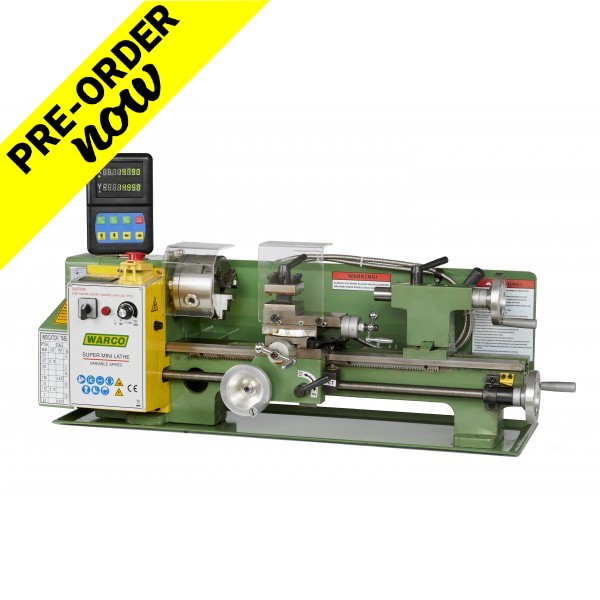

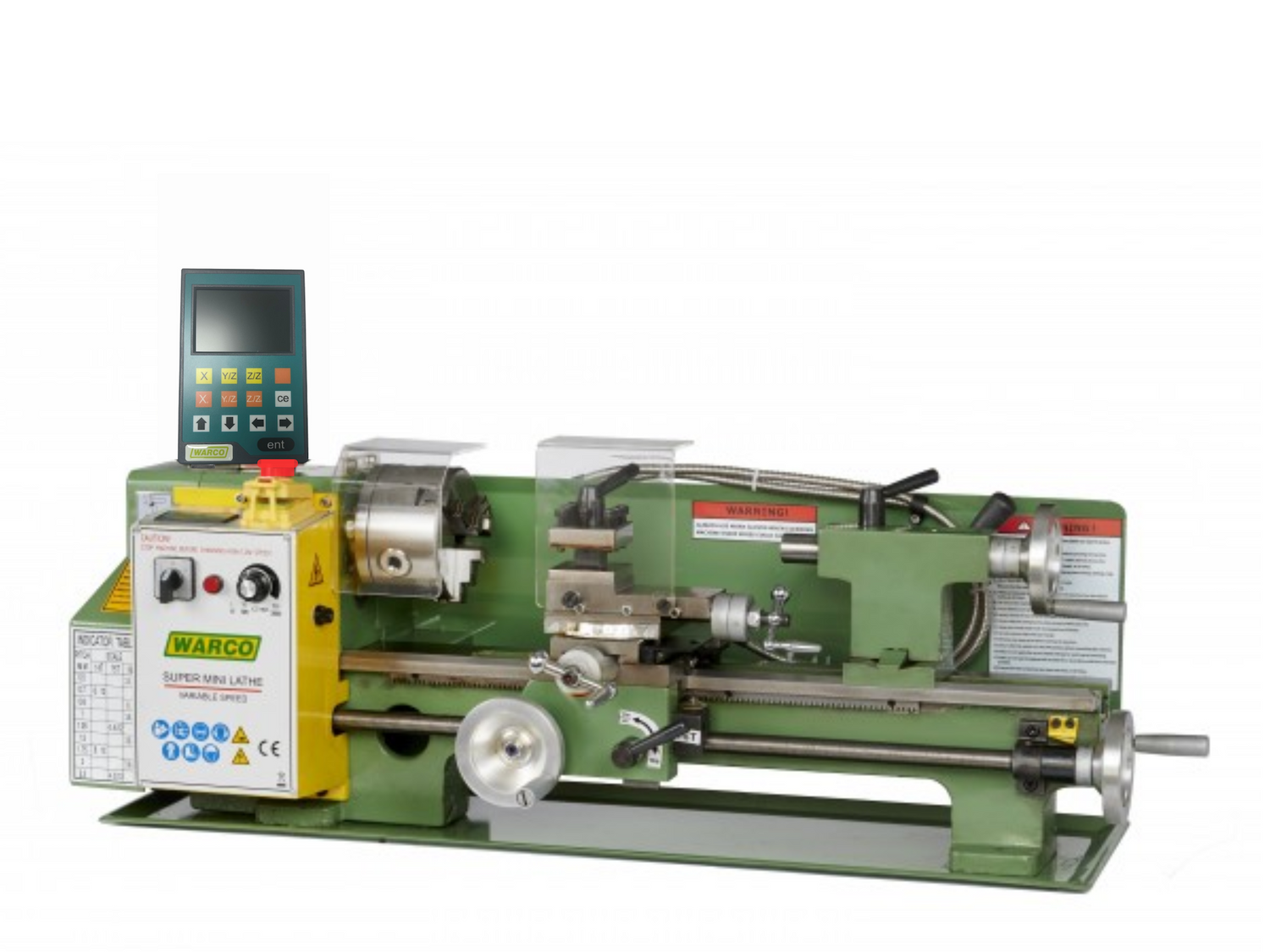

Super Mini Lathe with DRO

Warco is proud to have first invented the term 'Mini Lathe' in response to customers' needs.

Features:

• Induction hardened and ground bedways
• Larger 100mm three jaw chuck
• Distance between centres - 350mm
• Over centre clamp on tailstock - eliminating tedious nut clamping

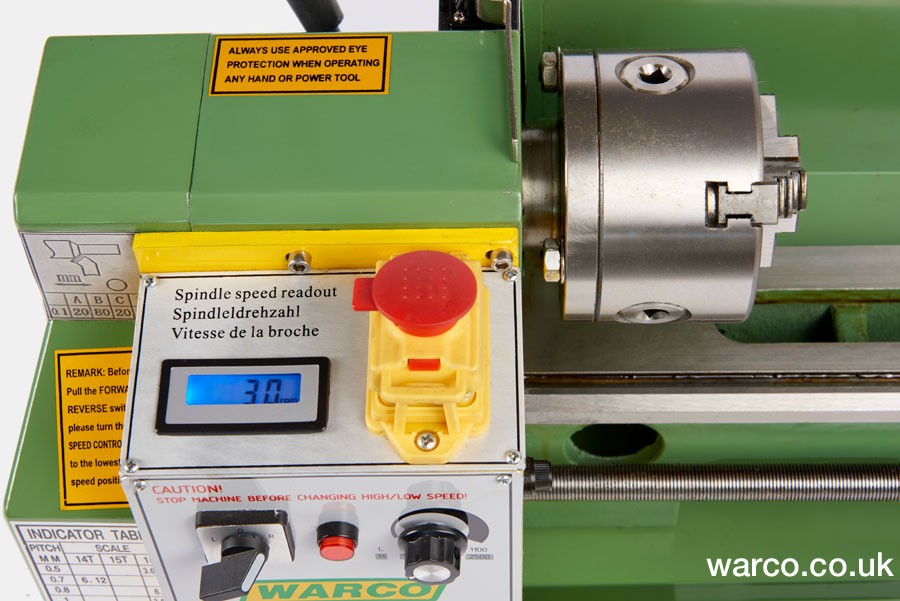

• Digital readout for spindle rpm
• Forward and reverse
• Back gear for maximum torque
• Rigid tailstock together with a cam locking mechanism
• Metric and imperial thread cutting

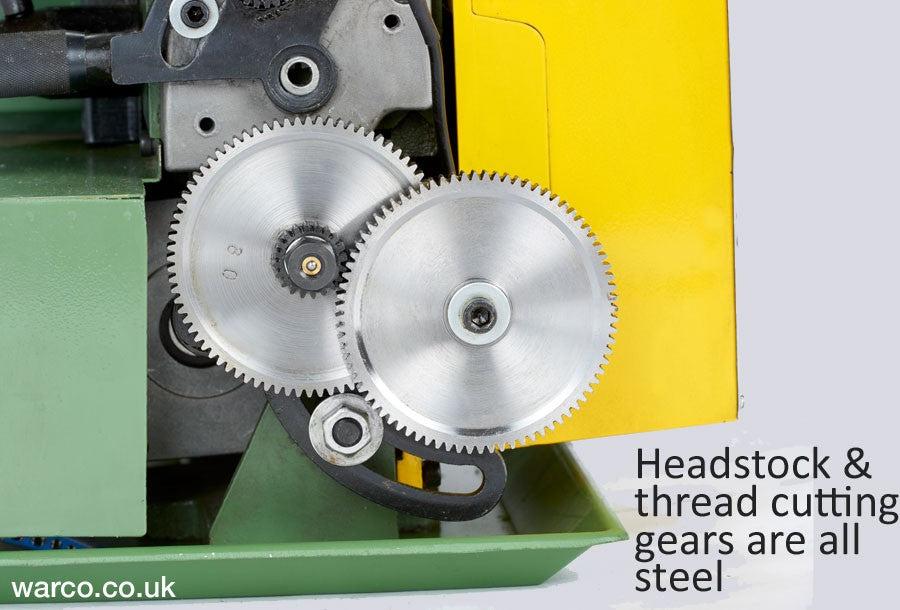

• All metal head stock and thread cutting steel gears
• Metal leadscrew handwheel with calibrated dial
• Brushless motor
• Metal leadscrew handwheel - an accurate, sensitive longitudinal feed
• Bare metal surfaces are protected by a thin layer of grease which is easily removed with a cloth

Includes the following FREE accessories:

• 100mm 3 jaw self-centring chuck with inside and outside jaws
• Dead centre for tailstock, 2MT
• 4 way tool post
• Threading facility
• Swarf tray
• Rear splash guard
• Thread dial indicator

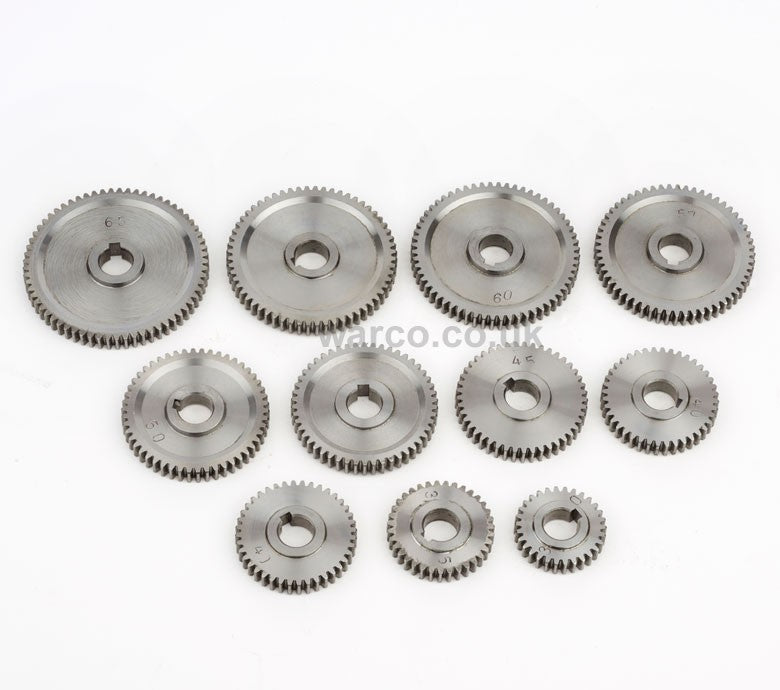

• Change gears for thread cutting
• Maintenance tools

Full Spec:

Product Dimensions:
Weight	45KG
Length x Width x Height	840 x 300 x 300mm
Tray Length x Width	740 x 220mm
Shipping Dimensions
Length x Width x Height (no DRO)	850 x380 x 380mm 46kg
Length x Width x Height (DRO version)	850 x380 x 380mm 50kg
Power/Motor
Motor size	450 Watts
Power Transfer (GH) gearbox or (VS) variable speed	Brushless DC
Spindle speeds (No: and achievable speeds)	50-2500 rpm
Voltage (240v single) (440v 3 Phase)	240v Single Phase
Fitment (Plug connection type)	3 pin plug
Current	2 amp
Main Specifications
Maximum swing	180mm
Centre height	90mm
Distance between center’s	350mm
Longitudinal travel (Z)	330mm
Cross slide travel (X)	70mm
Top slide travel (fine Z)	75mm
Spindle taper travel	3MT
Tailstock Taper	2MT
Tailstock quill travel	50mm
Spindle Bore	21.5mm
Tool shank size recommended for C/L	10mm
Metric and imperial threads	0.5-2.5mm / 12-52tpi
Chuck mount	Flange fitting
Chuck mount sizes	72 Dia x 3mm, 3 holes on 85mm PCD
Spindle Bearings / Drive	Tapered Bearings, final drive by belt
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	45 mins
CE approved Certificate	WST20070013M, WST20070013E
