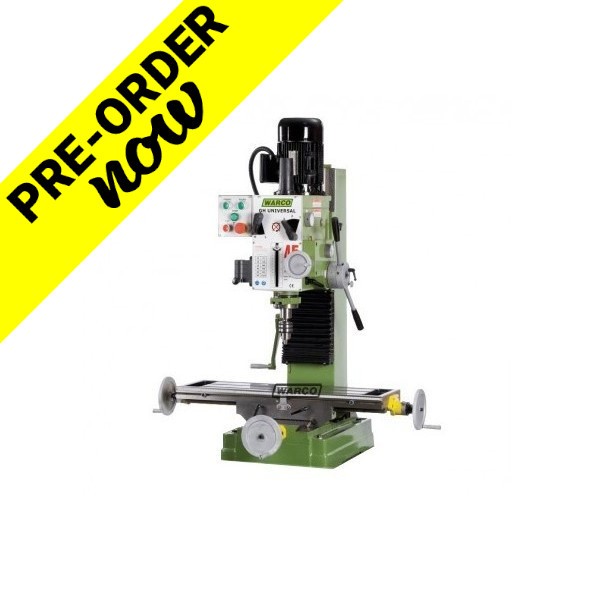

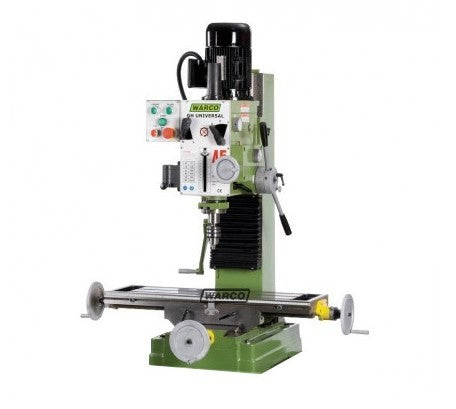

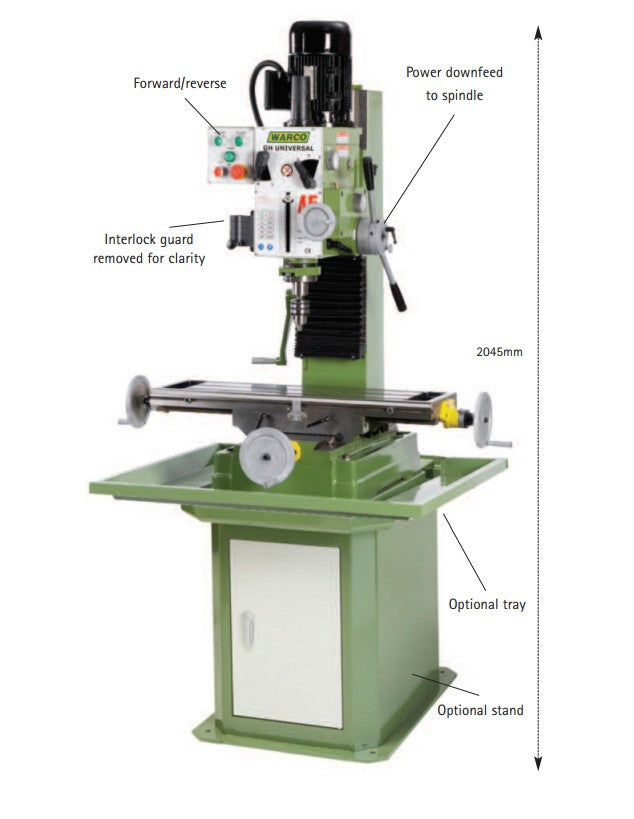

GH Universal Milling Machine - R8

Offering excellent versatility and very high levels of quality, the GH Universal is in a league of its own.

Gear head design, straightforward to use, offering precision and accuracy for a wide range of machining tasks.

Features include:

• Positive head elevation on machined dovetail slideways
• Large square column casting ensures maximum rigidity
• Head elevation by geared crank handle, requires very little effort
• Close tolerance headstock gears ensure very quiet operation
• Table locks to X and Y axes
• Tapered gibs on X, Y and Z axes
• Large diameter spindle supported by taper roller bearings
• Rack and pinion drilling feed
• Spindle depth lock
• Concertina dust covers to slideways
• Interlock chuck guard (not shown for clarity)
• As with all Warco milling machines, this machine uses metal gears.
• Available with factory fitted DRO system

Includes the following FREE accessories:

• Drawbar 7/16" UNF
• Drill chuck 13mm
• Arbor for drill chuck
• Tool box and maintenance tools
• Operation manual and spare parts list

Specification:

Specification:

Machine: 3033yz and dro	GH universal Machine
Product Dimensions:
Weight (machine only)	290KG
Weight (including stand)	350KG
Width x Depth x Height	1270 X 930 X 2134mm
Stand only Width x Depth x Height	570 x 780 x 622mm
Base Width x Depth	400 x 600mm
Shipping Dimensions
Length x Width x Height	900 x 880 x 2100mm
Power/Motor
Motor size	1.5kw
Power Transfer (GH) gearbox or (VS) variable speed	GH
Voltage (240v single) (440v 3 Phase)	240V
Fitment (Plug connection type)	3 Pin Plug
Current	50hz 7.2A
Spindle speeds (No: and achievable speeds)	6 Speed, 75, 180, 280, 600, 1000, 1600
Main Specifications
Table size	800 x 240mm
Longitudinal travel (X)	445mm
Cross Table travel (Y)	195mm
Head Travel or Knee (Z)	415mm
Quill/Spindle stroke	125mm
Distance spindle to table	450mm
Throat (Spindle middle to Column)	215mm
Table height from base	260mm
Spindle Taper size and thread	R8 7/16 unf
Head tilt left to right and Head tilt front to back	90-90 (45-45 calibrated)
Drilling capacity	16mm
Milling capacity	20mm
Spindle Bearing type	Taper Roller
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 mins
CE approved Certificate	Yes, available upon request
Additional products
Optional stand	3240
Optional power feed	3205
Optional Digital Read Out Kit	8123 dro
X axis scale (left to right)	450mm
Y axis scale (forward to back)	200mm
Z axis scale (head)	450mm
Tee Nut size and no of slots	3 Slots, 8013 Clamp set 12mm
Machine/Stand Hole positions	A=465 B=325 C=130 D=125mm
