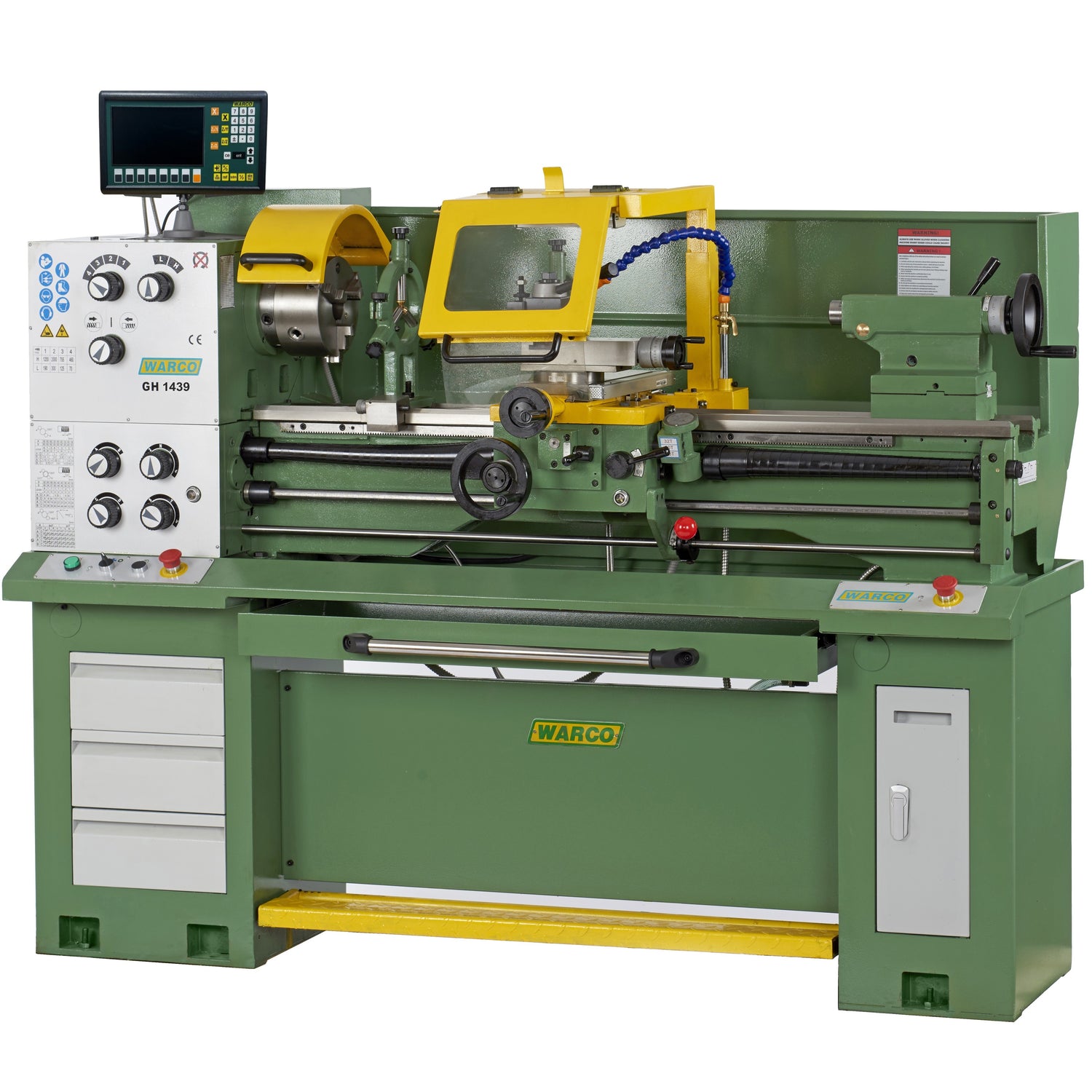

GH1439 Lathe Gear Head with Dro (240V)

Warco GH1439 Lathe 240V

Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.

The GH1439 is a large lathe with industrial specification available with single phase (240v) or three phase (440v).

With complete 2 axis DRO system supplied and fitted.

Large capacity machine with 1000mm between centres and 1825mm overall length.

Features include

• Easy to read linear and diametrical measurements on large illuminated screen.
• Massive 52mm spindle bore supported on taper roller bearings.
• Induction hardened and ground bedways.
• Ergonomic control panel including E stop switch and jogging button.
• Slide out tray for convenient removal of swarf.
• Spindle brake / emergency stop pedal - which will immediately brake from the highest speed. In an emergency situation, the brake will also disconnect the electrical drive.
• Bright LED light fitted to underside of saddle guard, traverses along workpiece allowing constant, focused illumination.
• Thoughtfully designed stand which allows for storage in roller bearing drawer.

Additional features

• Hardened and ground gears to headstock and gearbox to ensure long term reliable performance and extremely quiet operation.
• Precision ground D1-5 spindle supported on taper roller bearings.

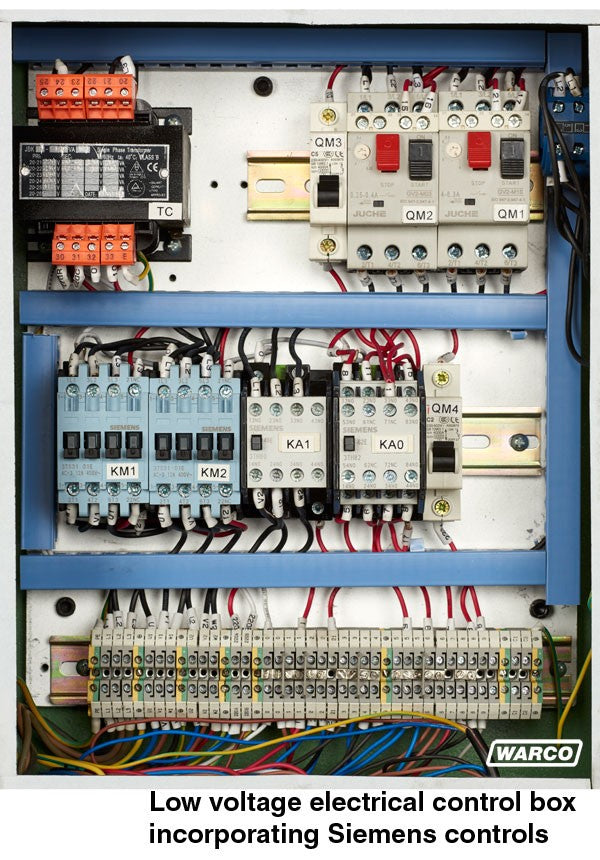

• Safe low voltage controls with overload cut out.
• Electrical components are quality European items throughout, by Siemens.
• Overload clutch to saddle feed shaft.
• Jogging button to assist chuck rotation throughout the speed range.
• Emergency electric cut out switch.
• Offset tailstock facility.
• Independent feed shaft to saddle for powered longitudinal and cross feed.
• Adjustable gibs to top slide and cross slide.
• Interlock chuck guard and gear train cover.

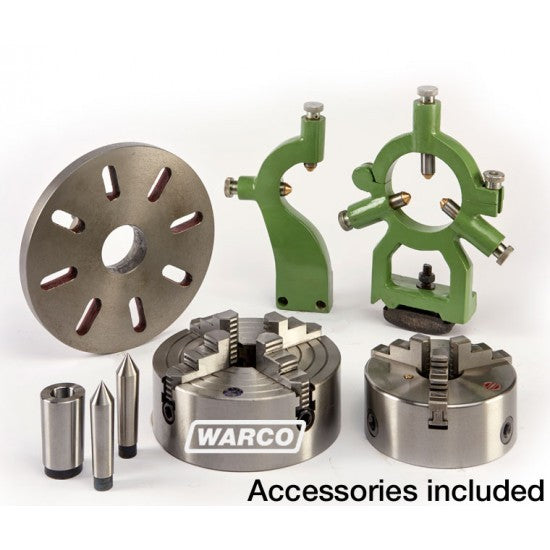

Standard equipment includes

• Digital readout system
• Chuck 3 jaw 180mm - self centering with inside & outside jaws
• Chuck 4 jaw 200mm - independent
• Face plate
• Fixed and travelling steadies
• Quick change toolpost
• Coolant system
• Headstock reducer with dead centre
• Tailstock dead centre
• Cabinet stand
• Full length rear splash guard
• Foot operated spindle brake
• Thread dial indicator
• Micro adjustable bed stop
• Telescopic leadscrew covers
• LED light
• Operation manual and spare parts list
• Toolbox and maintenance tools.

Each machine is also supplied with its own individual accuracy test report.

Specification

Machine: 4062 / 4062A	GH1439 VARIANTS
Product Dimensions:
Weight	700kg
Width x Depth x Height	1815 X 680 X 1485mm
Tray Length x Width	1815 X 505mm
Shipping Dimensions
Length x Width x Height (DRO version)	1930 X 755 X 1530mm
Power/Motor
Motor size	1.8kw
Power Transfer (GH) gearbox or (VS) variable speed	GH
Spindle speeds (No: and achievable speeds)	8 Speeds, 70,125,190,300,460,755,1255,2000
Voltage (240v single) (440v 3 Phase)	240v and 3 Phase available
Fitment (Plug connection type)	3 pin plug or cables
Current	50hz, 6A
Main Specifications
Maximum swing	340mm
Centre height	170mm
Distance between centre’s	1000mm
Longitudinal travel (Z)	775mm
Cross slide travel (X)	175mm
Top slide travel (fine Z)	95mm
Spindle taper	6MT
Tailstock Taper	3MT
Tailstock quill travel	100mm
Spindle Bore	52mm
Tool shank size recommended for C/L	16mm
Metric and imperial threads	0.4-7mm , 56-4TPI
Chuck mount	D1-5 Camlock
Spindle Bearings/Drive	Taper Roller
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	45 mins
CE approved Certificate	Yes, available upon request
Additional Products
Optional stand	N.A
Optional Digital Read Out Kit	8123
X scale	200mm
Z Scale	800mm
Chuck mount sizes	D1-5 Camlock
Base/tray fixing holes dimensions A-B-C-D	A= 350  B= 250  C= 1300  D= 85mm

Price includes VAT.
