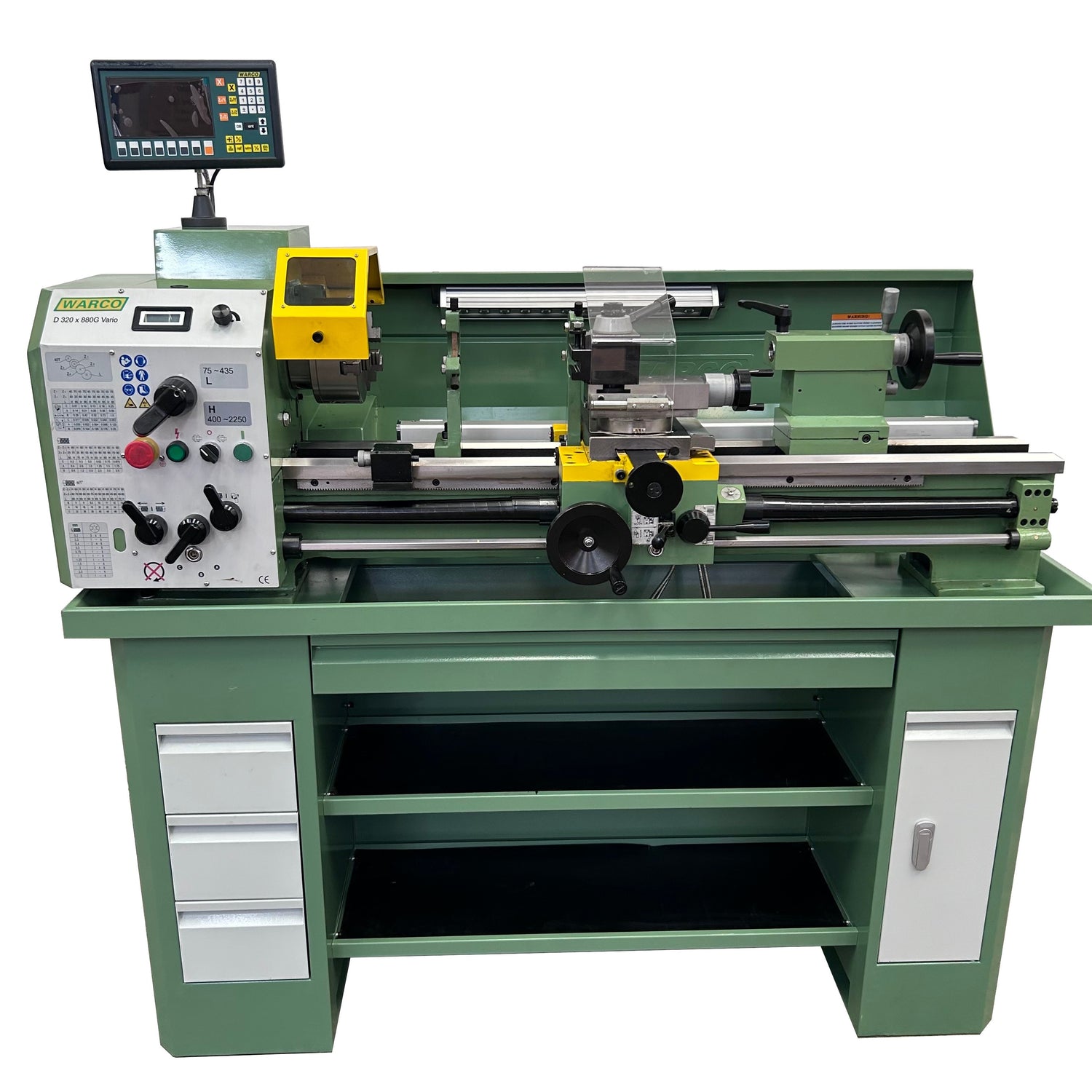

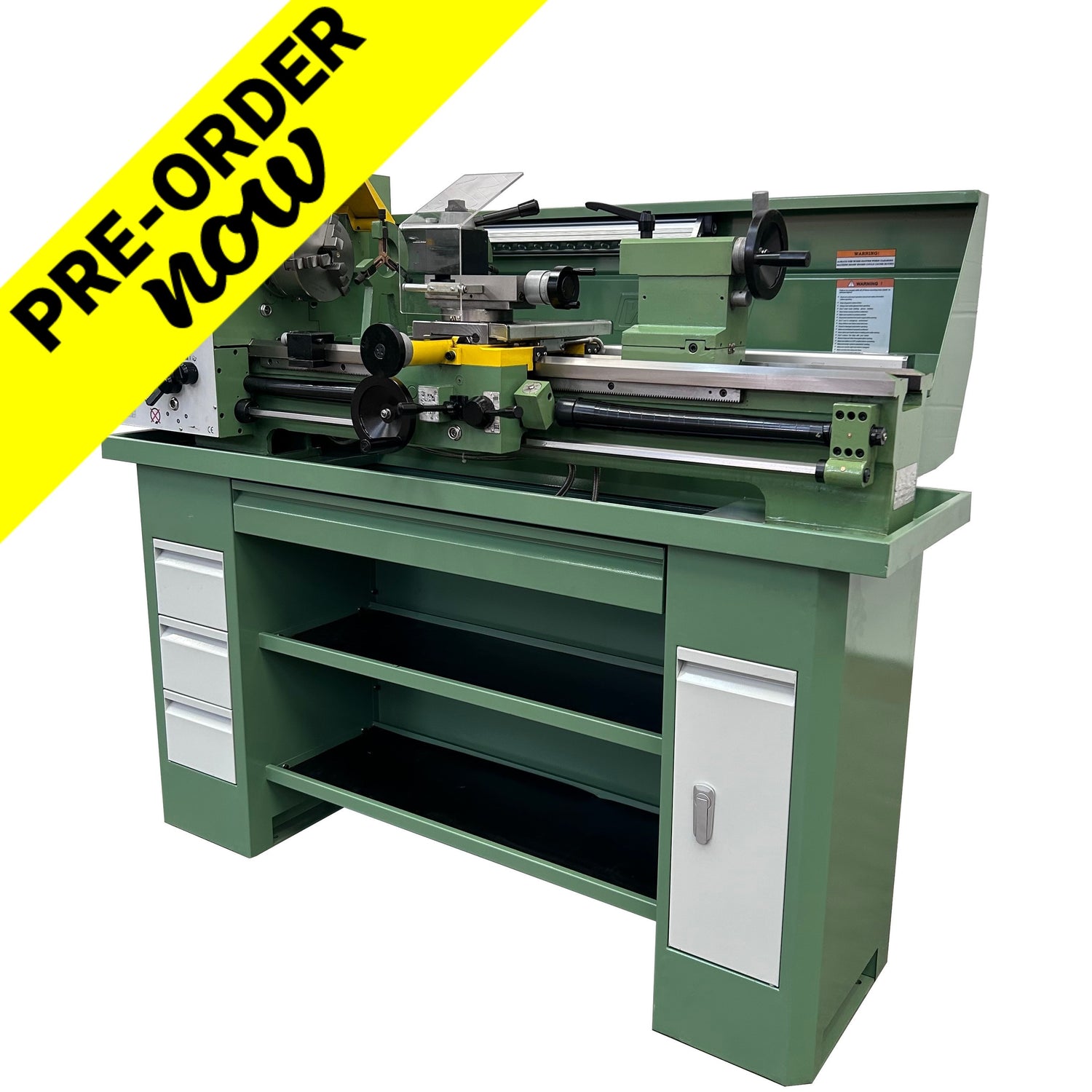

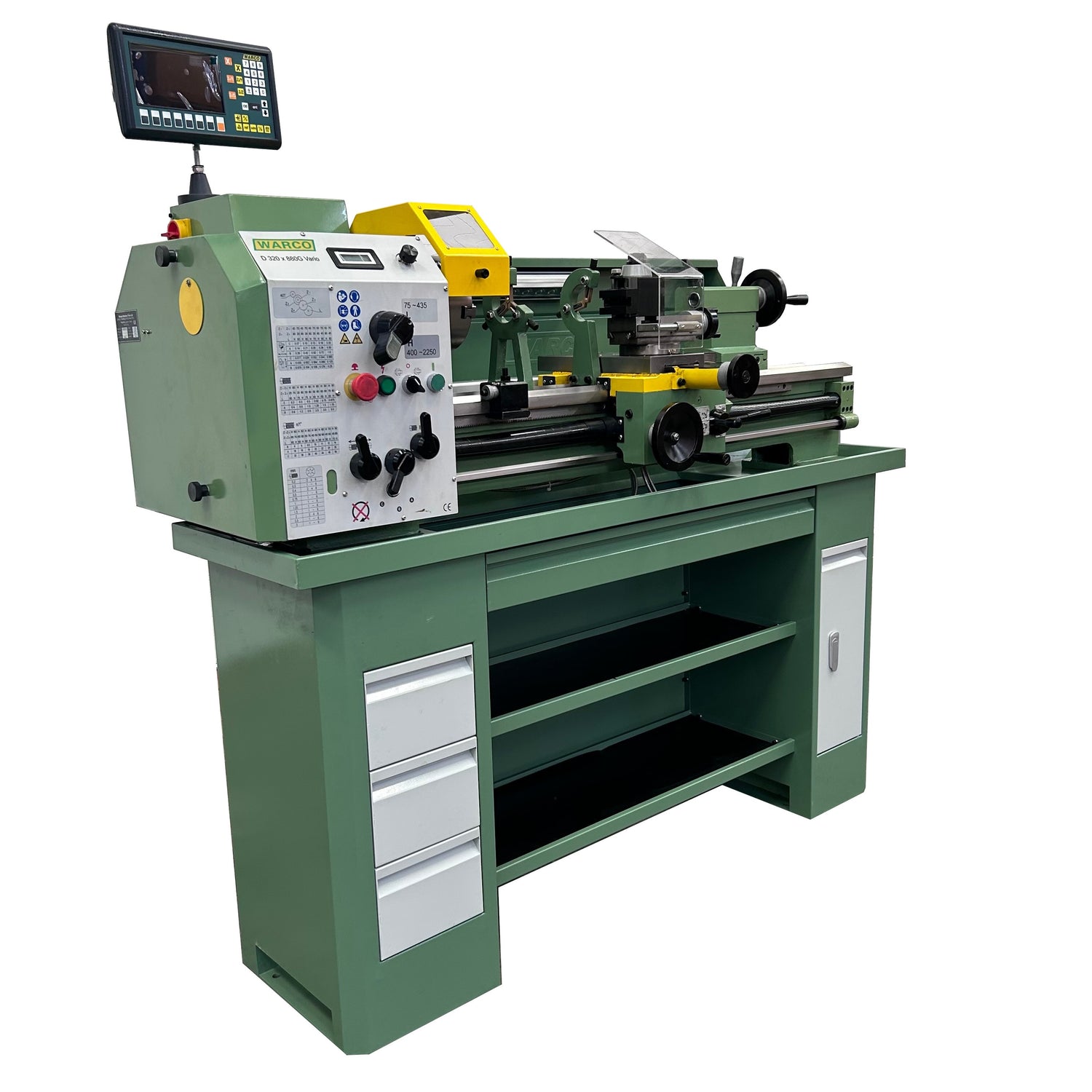

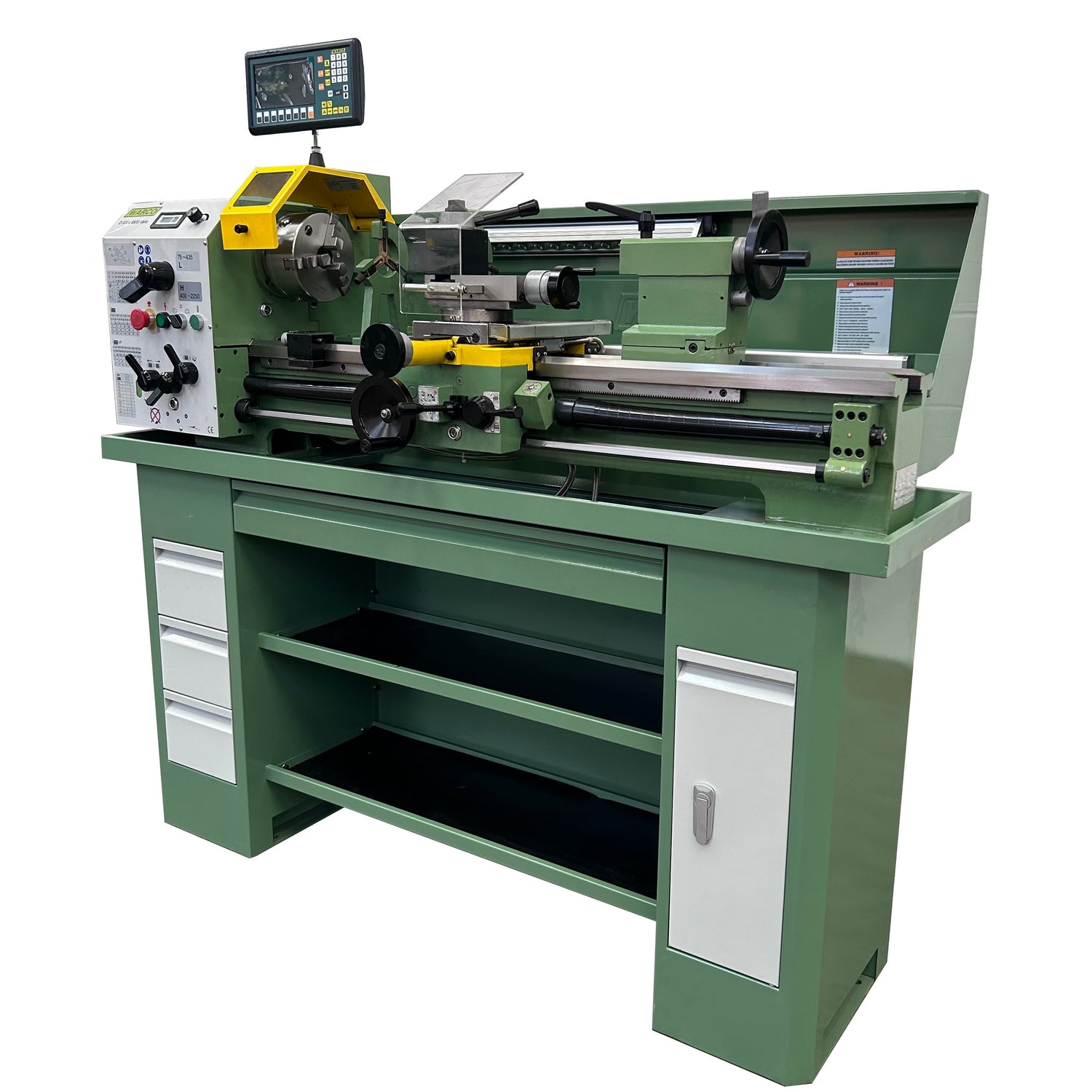

D320 Vario/Geared Lathe (with stand and DRO)
Incl. VAT
- Vario Geared hobby lathe
- Stand & DRO included!
- Powerful 1.5kw motor
- Includes FREE Accessories
- Tested for Accuracy - Report Supplied
- Excellent Spare-Parts Availability
- 12-Month Warranty
- Fast & FREE DELIVERY to UK mainland
- BUY NOW PAY LATER with PayPal (subject to terms)
- Questions & Support on Tel: 01428 682929
D320 Vario/Geared Lathe (with stand and DRO) is backordered and will ship as soon as it is back in stock.
Business/Education customer? Set up a free profile to build a quote
Contact our Technical Customer Support with any questions:
Description
Description
The D320 Vario is Designed for Large Hobby, with its mix of Variable speed gear head drive train and powerful 1.5kw motor it packs a punch whilst being compact and light.
- 880mm between centres but under 350kg so Free delivery is offered to mainland UK

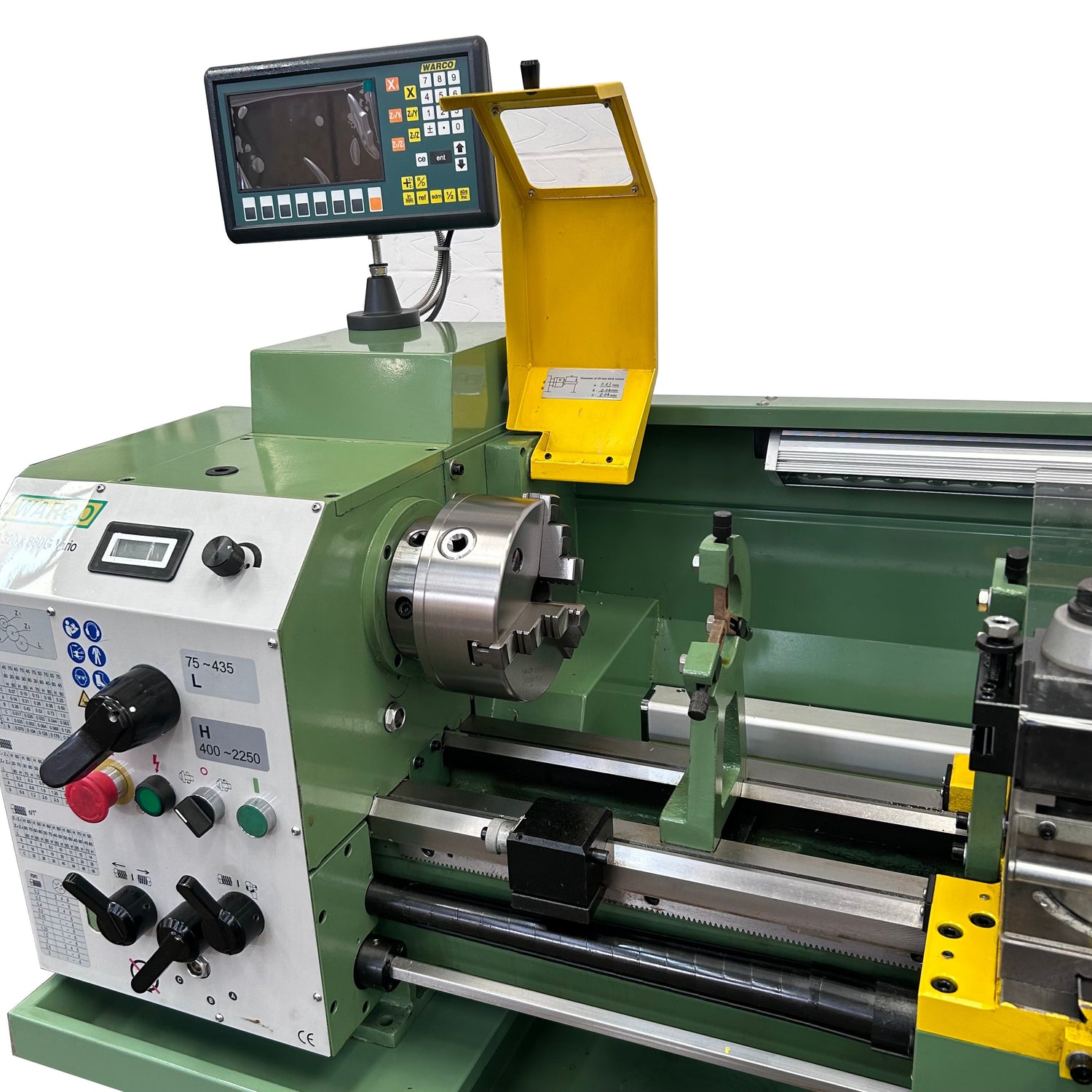

- safety features on chuck
- DRO and QCTP as standard
- Full Spec Below.
- Offered with the usual full support of the Warco team and 12 months warranty
Supplied with a large range of tools and accessories, including
- Cabinet stand
- Chuck 3 Jaw 160mm self centre
- Chuck 4 Jaw 160mm independent
- Face plate
- Fixed steady
- Travelling steady
- Dead centres x2
- Thread dial indicator
- Rear splash guard
- Sward tray
- Tool box and maintenance tools.
Full Specification
| Machine: 4064 | D320 x 880 Vario |
| Product Dimensions: | |
| Weight | 310kg |
| Length x Width x Height | 1650x760x1350mm |
| Tray Length x Width | 1570 x 420mm |
| Shipping Dimensions | |
| Length x Width x Height (no DRO) | |
| Length x Width x Height (DRO version) | 1650x750x1160mm |
| Power/Motor | |
| Motor size | 1.5kw |
| Power Transfer (GH) gearbox or (VS) variable speed | VS |

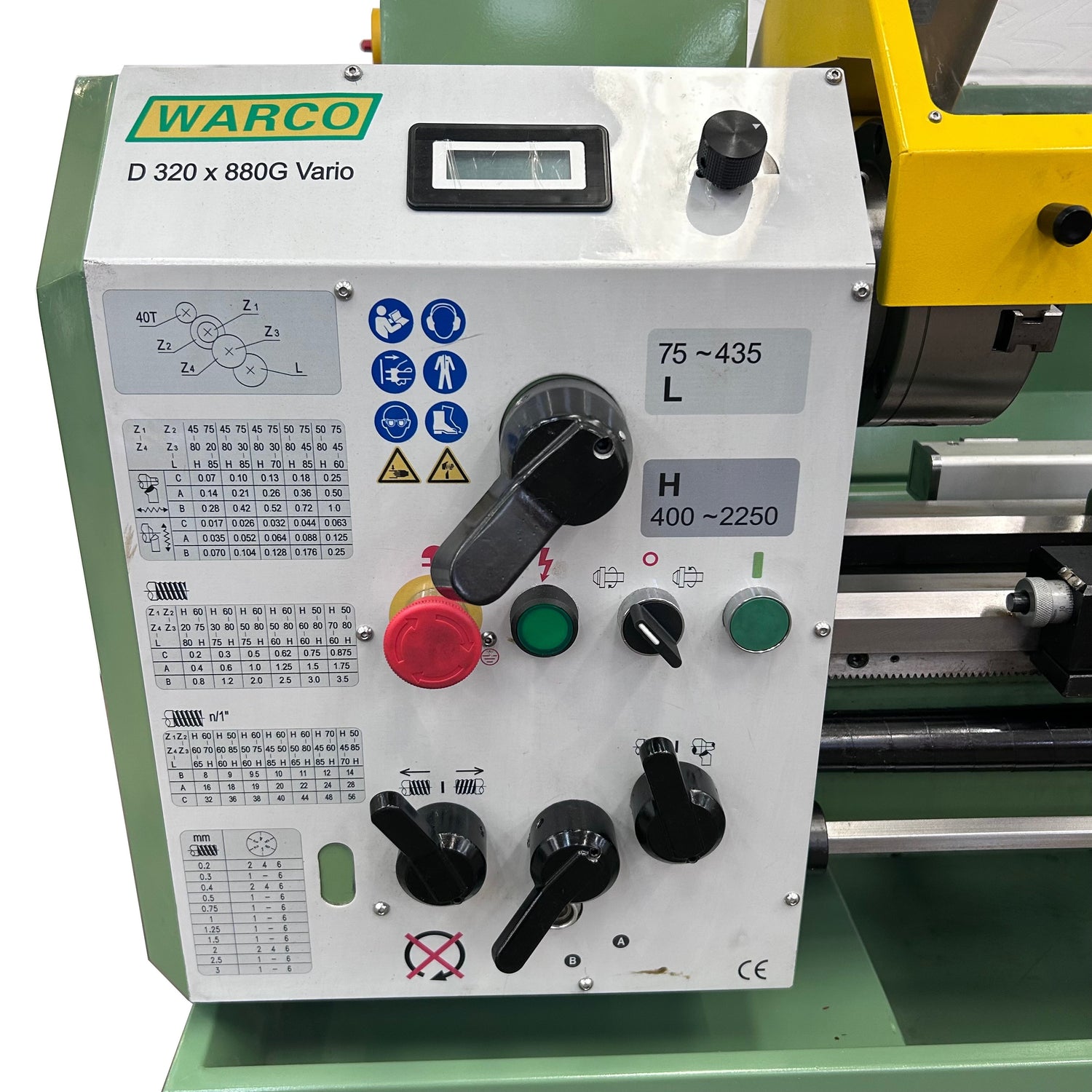

| Spindle speeds (No: and achievable speeds) | 75-435/400-2250rpm |
| Voltage (240v single) (440v 3 Phase) | 240V |
| Fitment (Plug connection type) | 3 Pin Plug |
| Current | 50HZ, 6.5A |
| Main Specifications | |
| Maximum swing | 320mm |
| Centre height | 160mm |
| Distance between centre’s | 900mm |
| Longitudinal travel (Z) | 720mm |
| Cross slide travel (X) | 190mm |
| Top slide travel (fine Z) | 90mm |
| Spindle taper | MT5 |
| Tailstock Taper | MT3 |
| Tailstock quill travel | 85mm |
| Spindle Bore | 38mm |
| Tool shank size recommended for C/L | 12mm |
| Metric and imperial threads | Yes |
| Chuck mount | D1-4 |
| Spindle Bearings/Drive | Roller Taper |
| Other Specifications | |
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 60 mins |
| CE approved Certificate | Yes, available upon request |
| Additional products | |
| Optional stand | Included, requires assembly |
| Optional Digital Read Out Kit | Included |
| X scale | |
| Z Scale | |
| Chuck mount sizes | D1-4 |
| Base/tray fixing holes dimensions A-B-C-D | A= 210 B=260 C= 960 D=20 E=210 mm |
