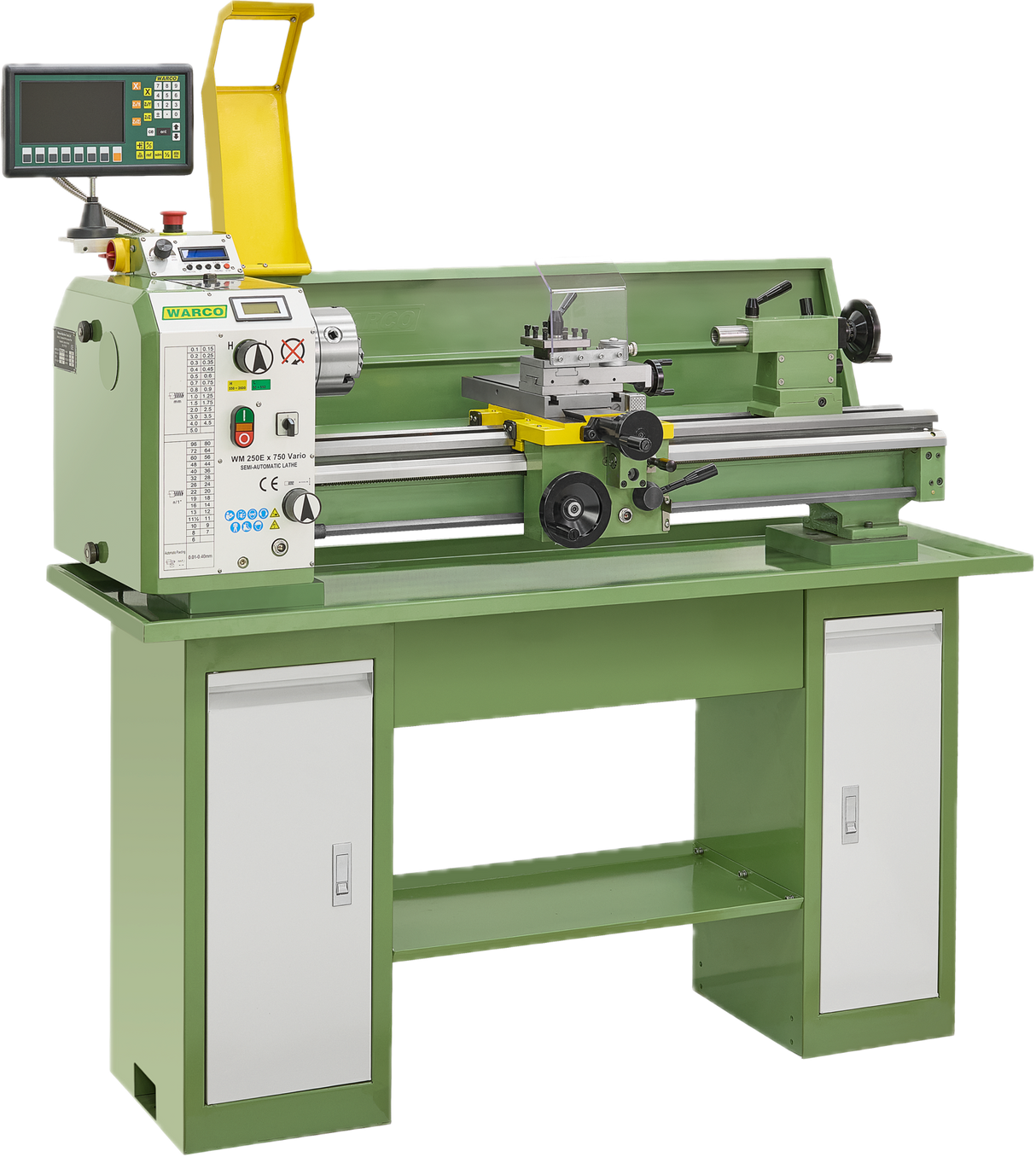

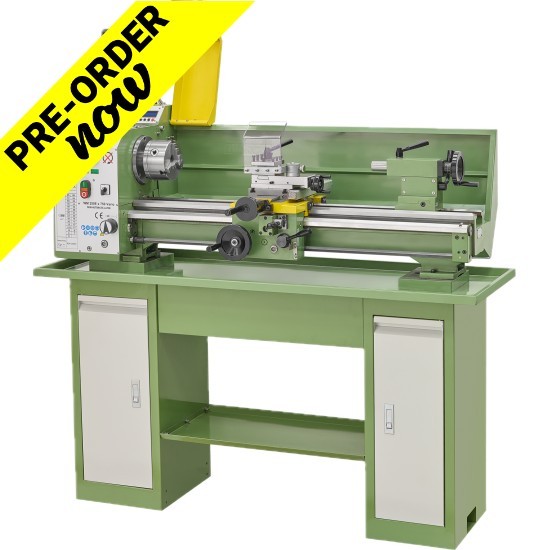

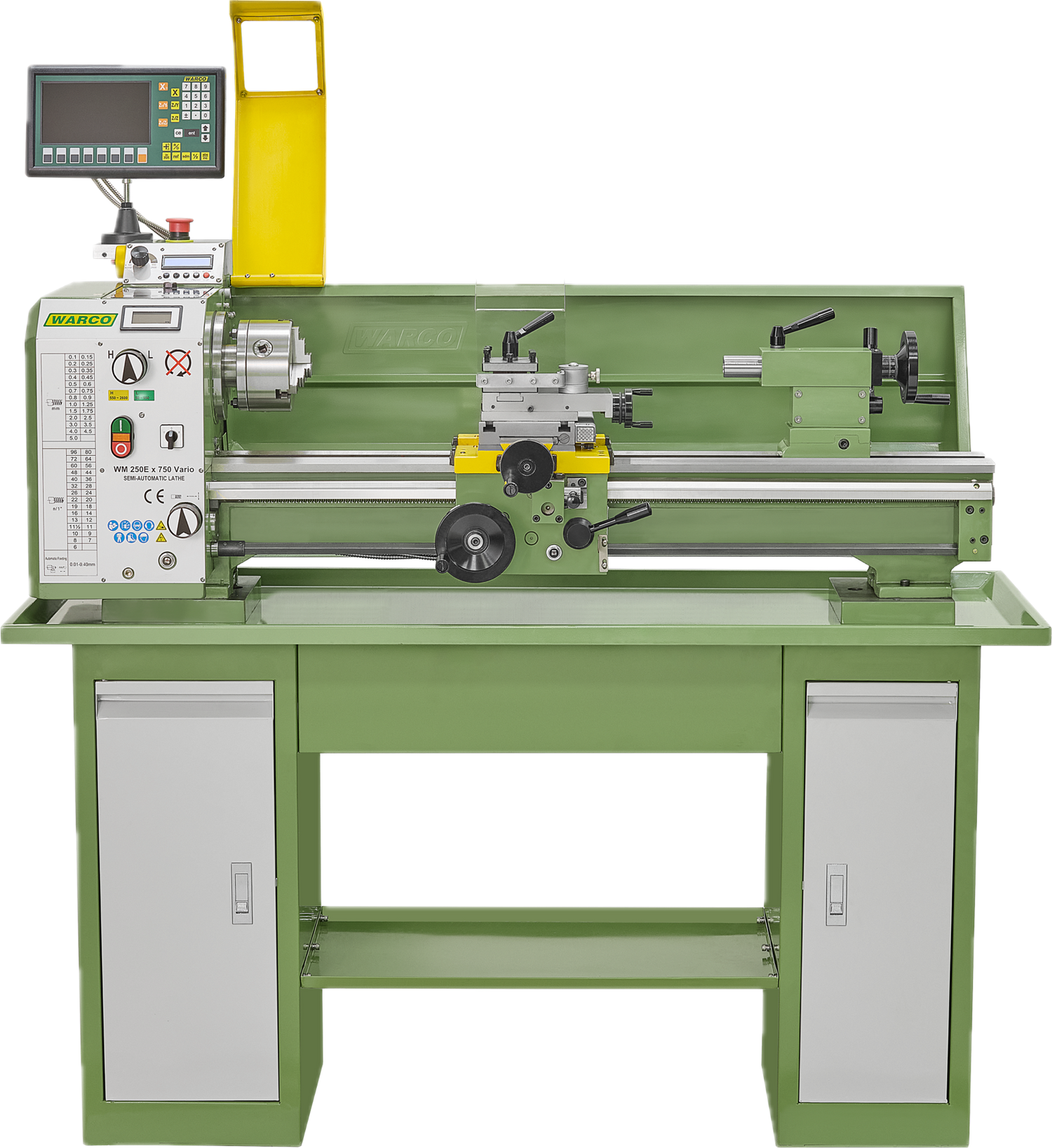

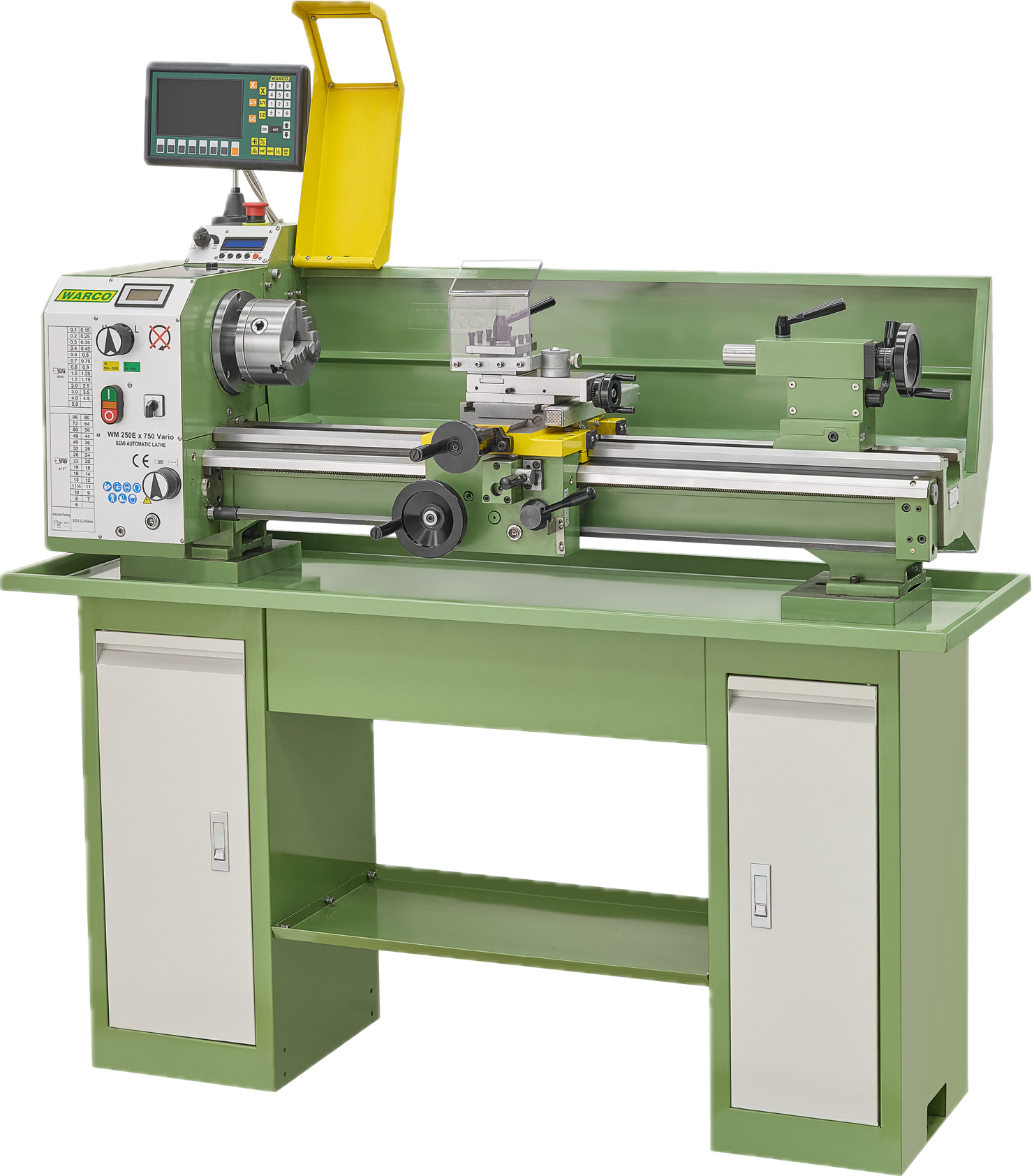

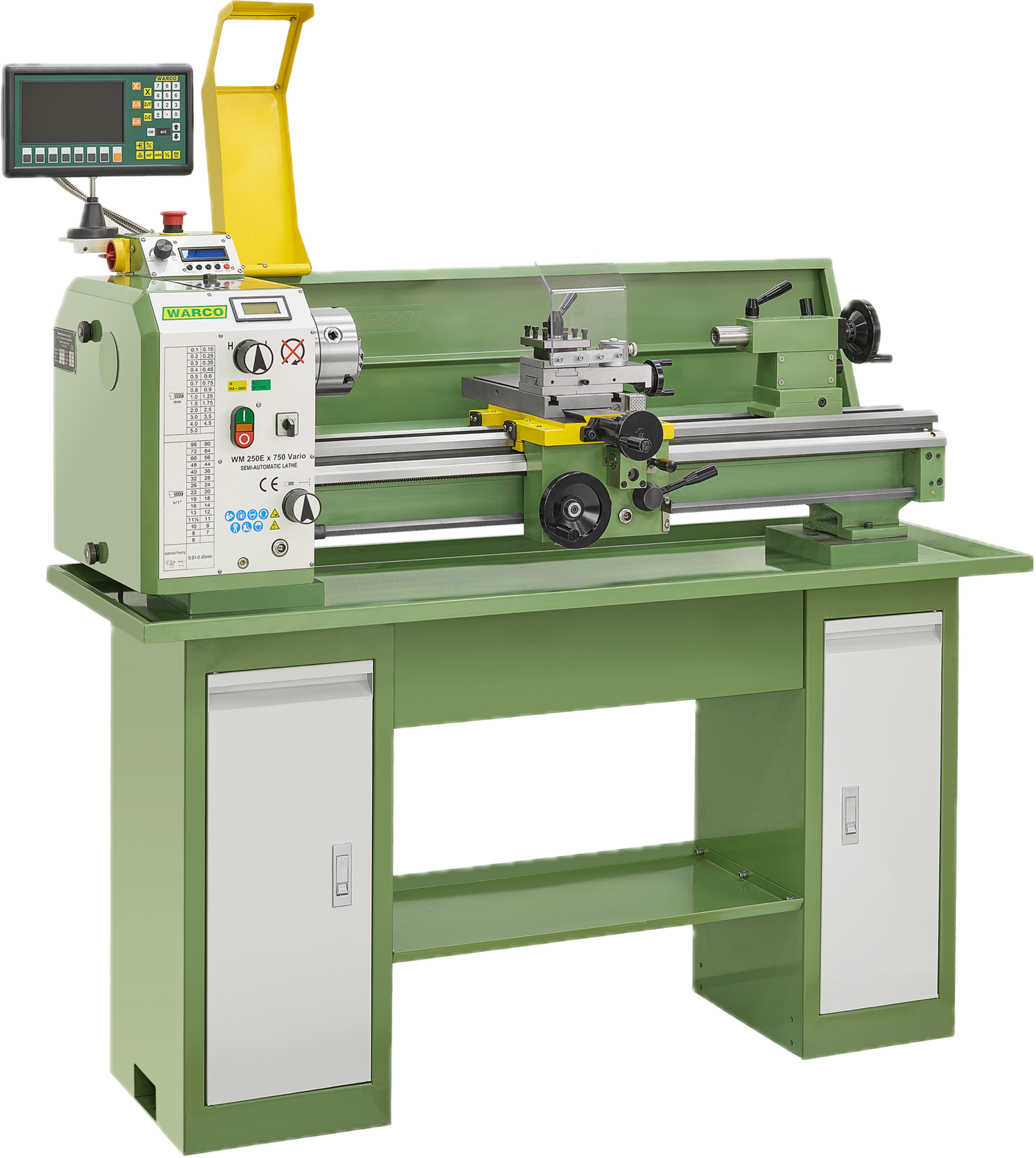

NEW! Electronic Leadscrew Lathe

Not supplied with stand this is optional

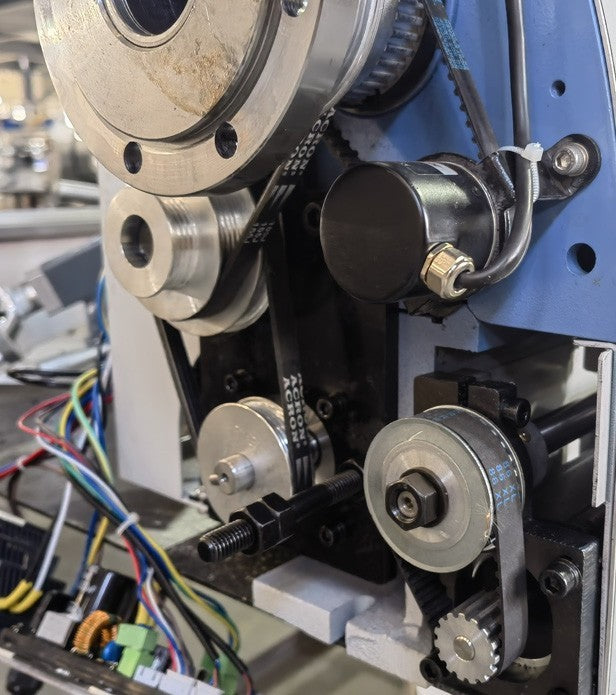

This variable-speed hobby lathe, with its electronic leadscrew means no more change gears to change and an amazing range of threads can be cut simply and easily.

• Electronically programmable leadscrew
• Pitch and depth settable, automated thread pass, depth control is still manual

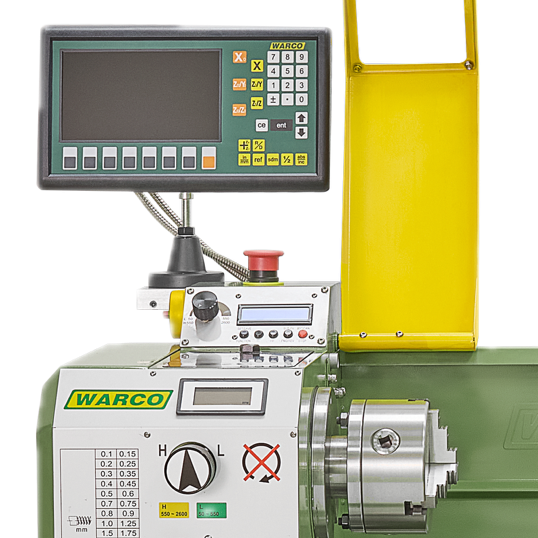

• Dro as standard
• 720mm between centres
• Large 38mm bore
• Under 170kg - Free delivery is offered to mainland UK
• Safety features on chuck
• Stand is item 6250ST

Includes the following FREE accessories:

• Swarf tray
• Rear splash guard
• Face plate
• 3 Jaw 125mm self centre chuck with inside and outside jaws
• 4 Jaw independent chuck 125mm
• Fixed steady
• Travelling steady
• Two dead centres - 2MT / 5MT
• Compound slide
• Toolbox with maintenance tools

Full Spec:

Machine: 6250EL with DRO	D250EL
Product Dimensions:
Weight	160kg
Length x Width x Height	1320 x 570 x 480mm
Tray Length x Width	1280 x 465mm
Shipping Dimensions
Length x Width x Height (no DRO)	n/a
Length x Width x Height (DRO version)	1410 x 610 x 660mm
Power/Motor
Motor size	1.5kw
Power Transfer (GH) gearbox or (VS) variable speed	high low (VS)
Spindle speeds (No: and achievable speeds)	50-2500 rpm
Voltage (240v single) (440v 3 Phase)	240v single
Fitment (Plug connection type)	3 pin plug
Current	50hz 6A
Main Specifications
Maximum swing	250mm
Centre height	125mm
Distance between centre’s	720mm
Longitudinal travel (Z)	680mm
Cross slide travel (X)	125mm
Top slide travel (fine Z)	75mm
Spindle taper	Mt5
Tailstock Taper	Mt2
Tailstock quill travel	60mm
Spindle Bore	38mm
Tool shank size recommended for C/L	12mm
Metric and imperial threads	0.2-5MM / 8-56TPI
Chuck mount	Flange Fitting
Spindle Bearings /Drive	Taper roller / Belt drive
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 mins
CE approved Certificate	Yes, available upon request
Additional products
Optional stand	6250ST
Base/tray fixing holes dimensions A-B-C-D
	tbc
