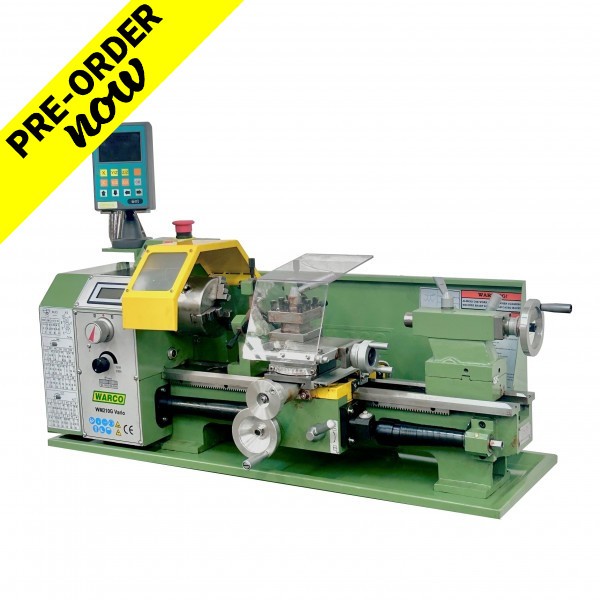

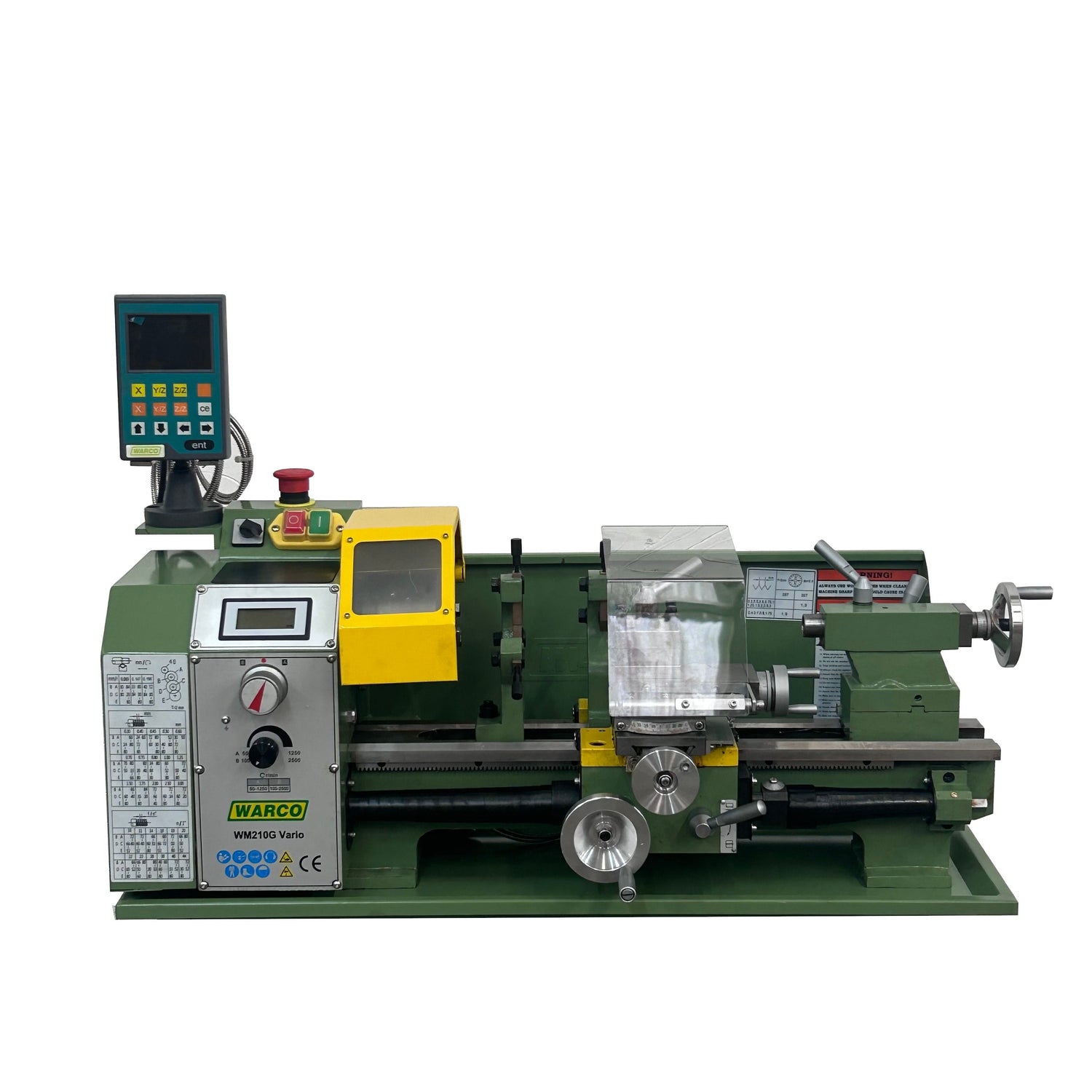

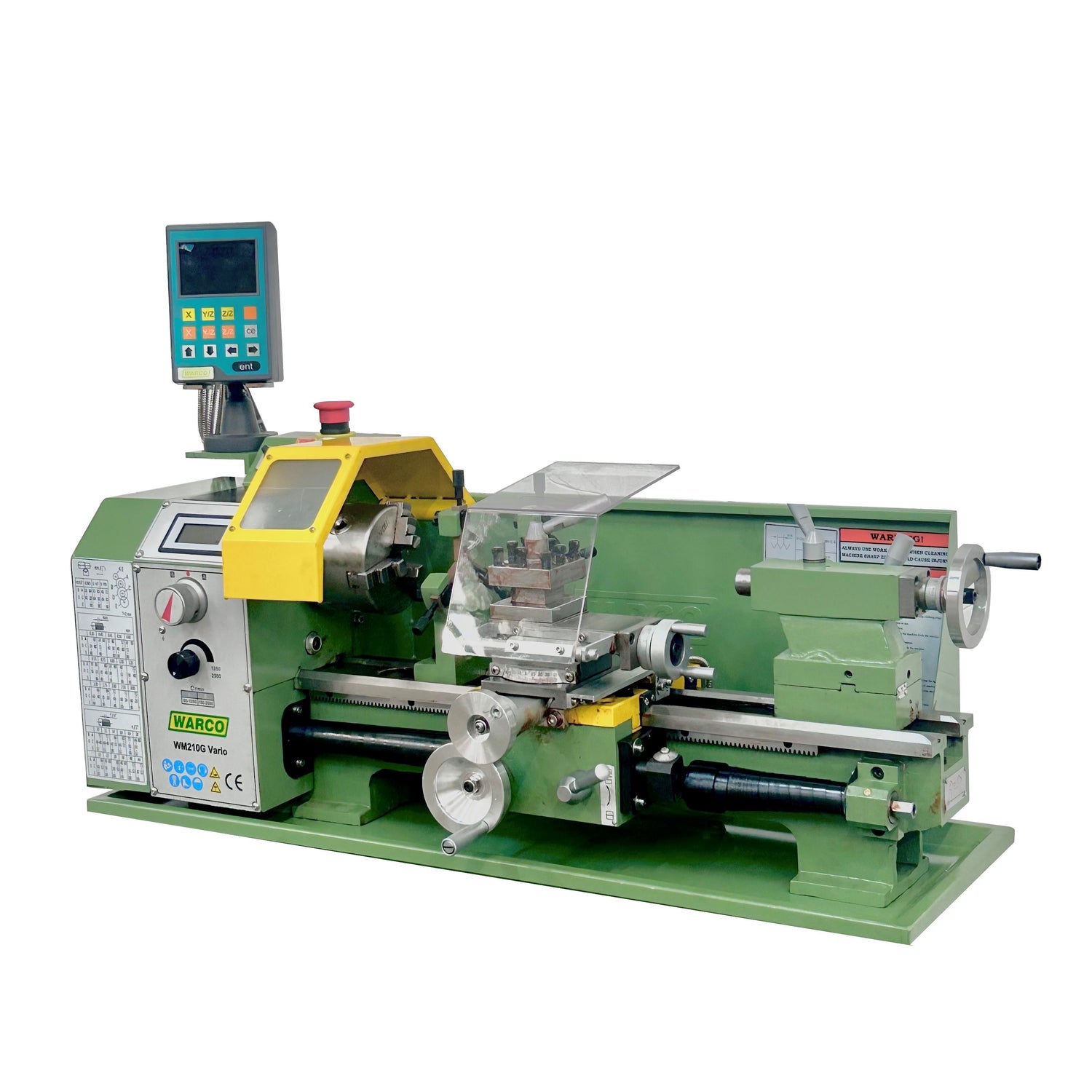

WM210G Variable Speed Lathe with DRO
Incl. VAT
- Perfect starter machine
- No more belt changes
- Stand sold separately
- 550w motor, light and compact
- Includes FREE Accessories
- Tested for Accuracy - Report Supplied
- Excellent Spare-Parts Availability
- 12-Month Warranty
- Fast & FREE DELIVERY to UK mainland
- Questions & Support on Tel: 01428 682929
WM210G Variable Speed Lathe with DRO is backordered and will ship as soon as it is back in stock.
Business/Education customer? Set up a free profile to build a quote
Contact our Technical Customer Support with any questions:
Description
Description
This compact variable-speed hobby lathe, with its high/low range gear and no belt changes, really packs a punch with its 550w motor.
- 400mm between centres
- Under 65kg - Free delivery is offered to mainland UK

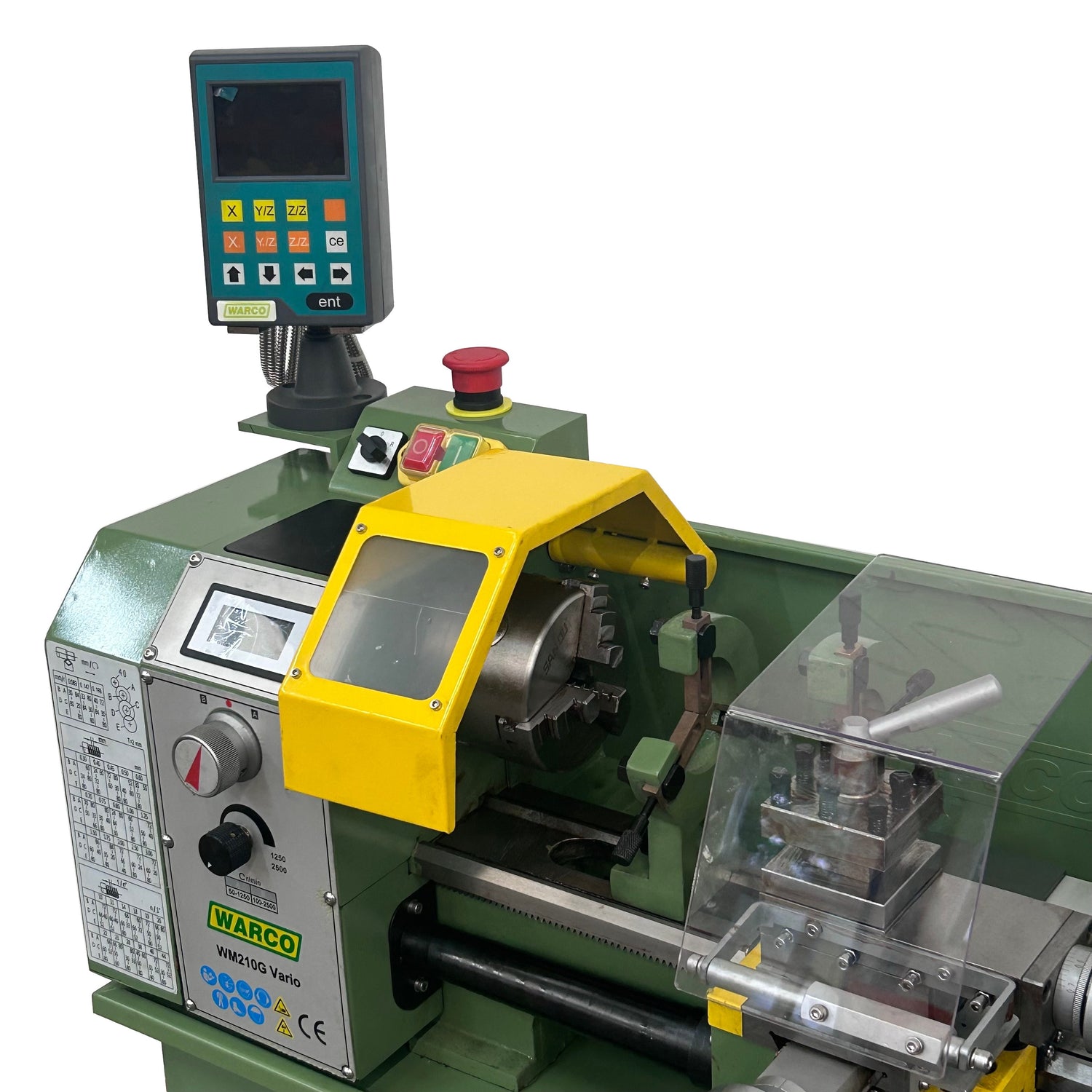

- Safety features on chuck
- DRO version also available >
- Stand is item 3210ST
Includes the following FREE accessories:
- Swarf tray
- Rear splash guard
- Face plate
- 3 Jaw 100mm self centre chuck with inside and outside jaws
- 4 Jaw independent chuck 100mm

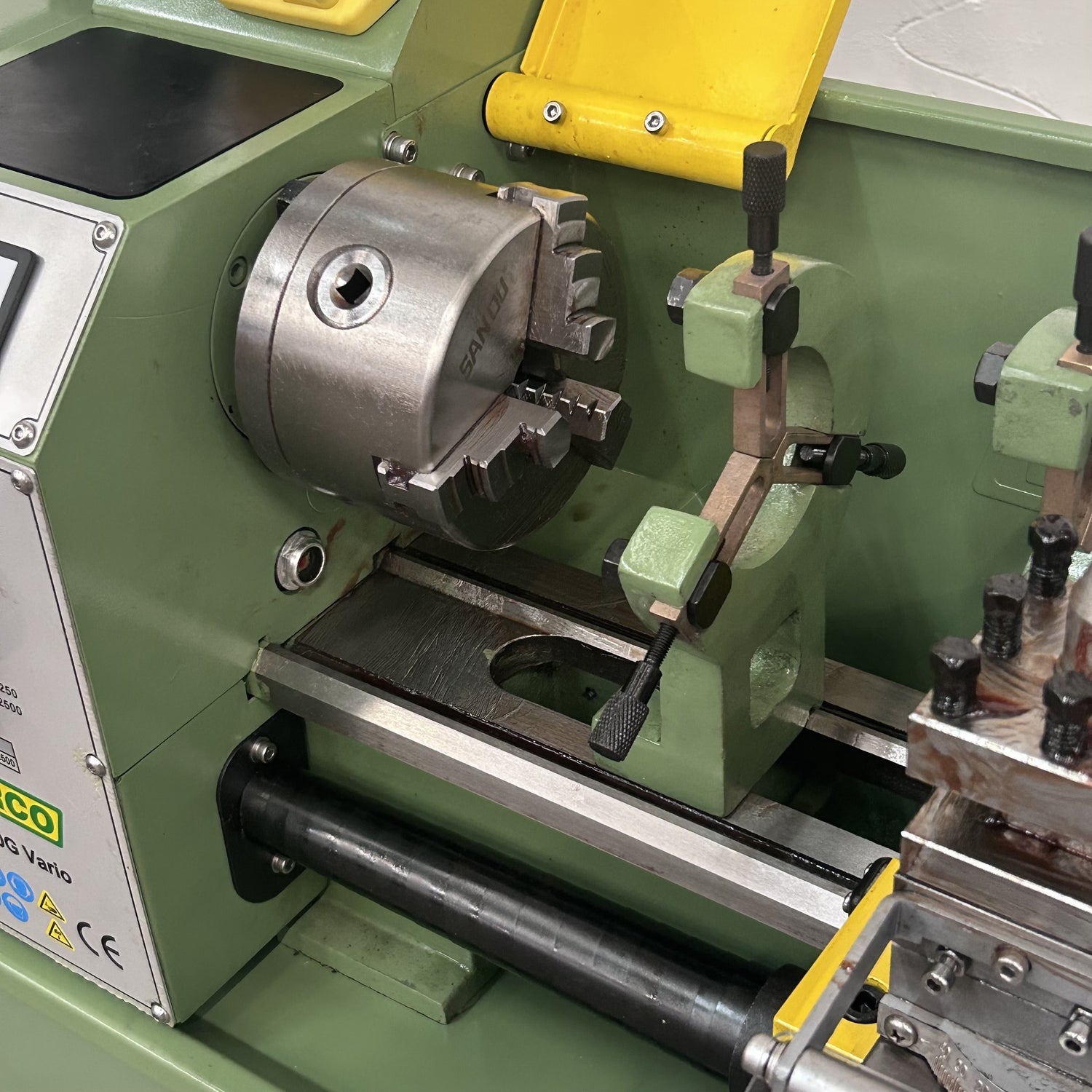

- Fixed steady
- Travelling steady
- Two dead centres - 2MT / 3MT
- Compound slide
- Thread dial indicator
- Toolbox with maintenance tools
Full Spec:
| Machine: 3210 and dro | WM210G |
| Product Dimensions: | |
| Weight | 65kg |
| Length x Width x Height | 900 x 380 x 370mm |
| Tray Length x Width | 805 x 265mm |
| Shipping Dimensions | |
| Length x Width x Height (no DRO) | 910 x 460 x 470mm |
| Length x Width x Height (DRO version) | 910 x 460 x 470mm |
| Power/Motor | |
| Motor size | 550w |
| Power Transfer (GH) gearbox or (VS) variable speed | Gear high low (VS) |
| Spindle speeds (No: and achievable speeds) | 50-1250 / 100-2500 |
| Voltage (240v single) (440v 3 Phase) | 240v single |
| Fitment (Plug connection type) | 3 pin plug |
| Current | 50hz 6A |
| Main Specifications | |
| Maximum swing | 210mm |
| Centre height | 105mm |
| Distance between centre’s | 400mm |
| Longitudinal travel (Z) | 275mm |
| Cross slide travel (X) | 85mm |
| Top slide travel (fine Z) | 60mm |
| Spindle taper | Mt3 |
| Tailstock Taper | Mt2 |
| Tailstock quill travel | 50mm |
| Spindle Bore | 21mm |
| Tool shank size recommended for C/L | 12mm |
| Metric and imperial threads | 0.3-3MM / 10-44TPI |
| Chuck mount | Flange Fitting |
| Spindle Bearings /Drive | Taper roller / Belt drive |
| Other Specifications | |
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 30 mins |
| CE approved Certificate | Yes, available upon request |
| Additional products | |
| Optional stand | 3210ST |
| Optional Digital Read Out Kit | 4909 |
| X scale | |
| Z Scale | |
| Chuck mount sizes | A=72 B=100 C=84PCD D=3MM |
| Also has 4 holes for 4 jaw on flange | |
| Base/tray fixing holes dimensions A-B-C-D | A= N/A |
B=655 C=125 D=70 mm |
