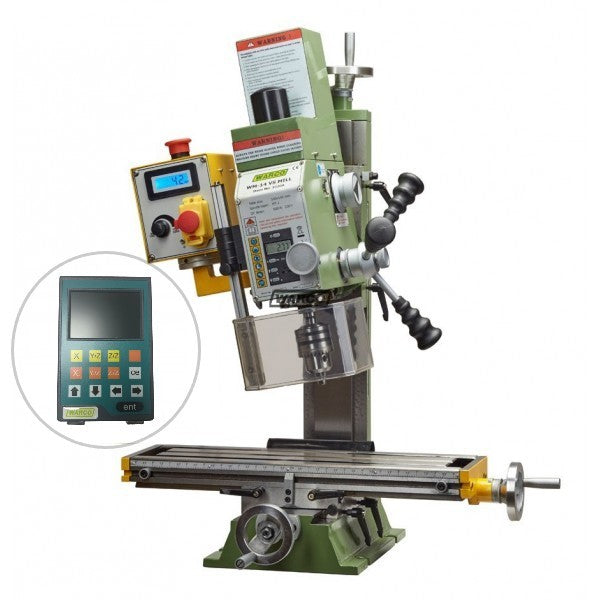

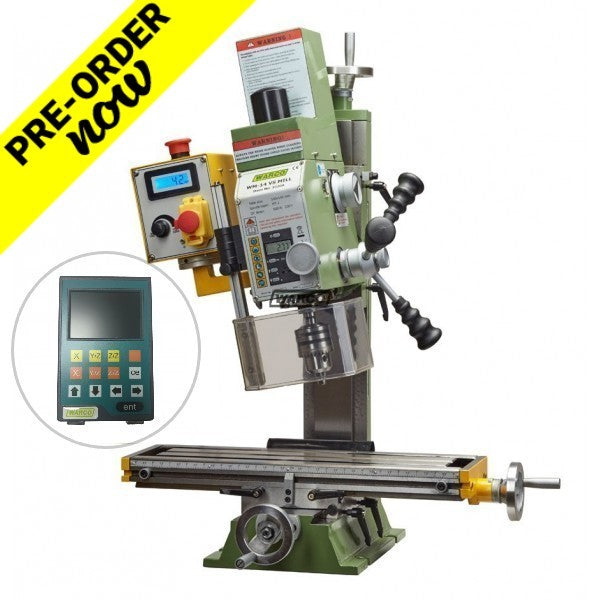

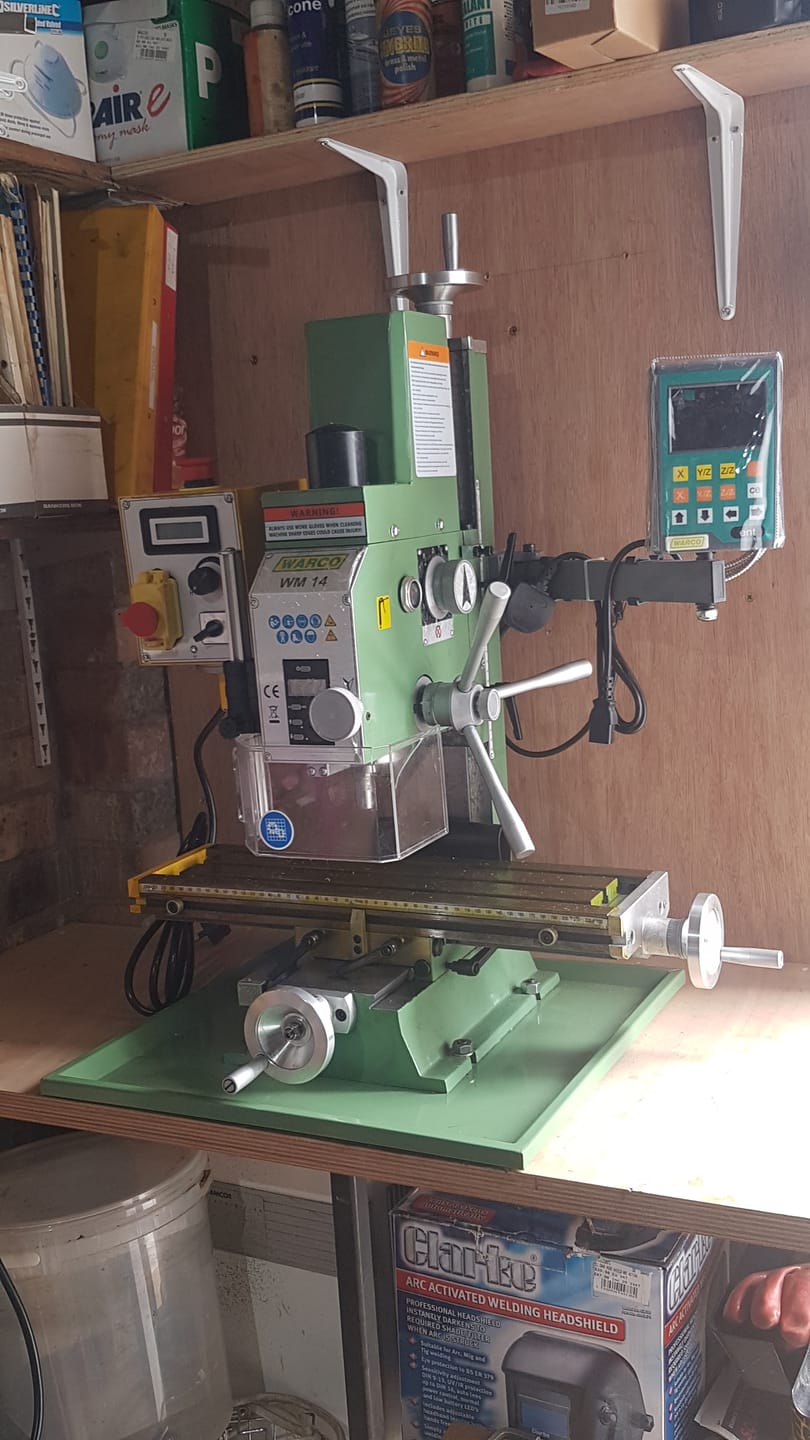

WM14 Milling Machine - Variable Speed with DRO - 2MT

Our best selling small milling machine. All the features as our established WM14, available here with 3 axis DRO pre-installed.

Machine Features:

• Infinitely variable speeds from 50 - 2250 rpm
• Head tilts plus or minus 90°
• Dovetail column ensures positive head location
• Head elevates on two dovetail slideways
• Precision spindle supported on taper roller bearings
• Adjustable gibs to all slideways
• Rack and pinion drill feed
• Locks to head, column and slideways
• Back gear for maximum torque
• Fine feed
• Digital depth gauge with metric/imperial calibrations
• KB of America electronics
• Illuminated digital rev counter

DRO features:

• Full 3 axis system - readout on X, Y and Z traverses.
• Magnetic scales.
• Switchable between metric and imperial.
• Compact illuminated digital counter.
• Counter has strong magnetic base to enable convenient positioning.
• Easy to use.
• No need to worry about installing the kit yourself.
• This machine comes with the full system installed.
• Save on buying DRO components separately.

Includes the following FREE accessories:

• Drawbars - in 10mm and 3/8" sizes
• Drill chuck - 13mm
• Arbor for drill chuck
• Tool box and maintenance tools
• Operation manual and spare parts list

Full spec:

Model: WM14 DRO (	Product Code: 3220DRO
Product Dimensions:
Weight	60kg
Length x Width x Height	610 x 520 x 790mm
Tray Length x Depth	450 x 430mm
Base Size Length x Depth	220 x 280mm
Shipping Dimensions
Length x Width x Height	545x 500 x 825mm
Power/Motor
Motor size	600W
Power Transfer (GH) gearbox or (VS) variable speed	VS
Voltage (240v single) (440v 3 Phase)	240V 50HZ 2.0A
Fitment (Plug connection type)	3 Pin plug
Current
Spindle speeds (No: and achievable speeds)	50-1125 / 100-2250rpm
Main Specifications
Table size	500 X 140mm
Longitudinal travel (X)	360mm
Cross Table travel (Y)	150mm
Head Travel or Knee (Z)	200mm
Quill/Spindle stroke	50mm
Distance spindle to table	280mm
Throat (Spindle middle to Column)	170mm
Table height from base	140mm
Spindle Taper size and thread	MT2, 3/8 and 10mm drawbars
Head tilt left to right and Head tilt front to back	Side only: Calibrated 45/-45 deg (90-90 full tilt)
Drilling capacity	13mm
Milling capacity	16mm
Spindle Bearing type	Taper Roller bearing
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 mins
CE approved Certificate	M.2016.201Y1869
Additional products
Optional stand	3220DL
Optional power feed	N/A
Optional Digital Read Out Kit	4906
X axis scale (left to right)	400MM
Y axis scale (forward to back)	200MM
Z axis scale (head)	300MM
Tee Nut size and no of slots (A-B-C-D) NO OF SLOTS	A=9.7 B=15 C=6 D=6mm (3 SLOTS) 9522 M8
Machine/Stand Hole positions	A=165 B=200 C=100 D=125mm

Please note that DC motors do not run at full speed in reverse.
