WM20 Milling Machine 3 axes DRO - R8

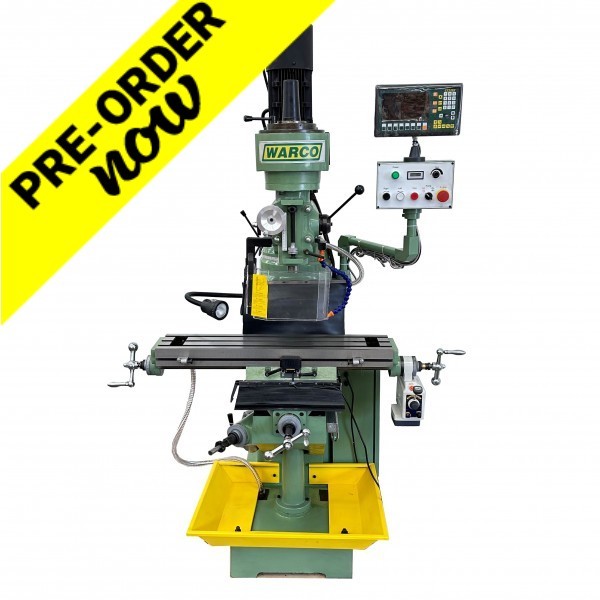

Warco WM 20 Milling Machine

Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.

A compact, rigid and accurate milling machine.

Very heavy duty, high precision with an incredibly quiet, smooth operation.

Features include

• Inverter drive system, allowing infinite speed control from 100rpm upwards
• Chrome hardened spindle supported on taper roller bearings
• NEW: Fitted with 3 Axis Digital Readout (DRO) - with glass optical scales fitted to (X,Y and Z) axis.
• One shot lubrication system to slideways and leadscrews
• Turcite coated slideways
• Fine feed
• Operates safely from a single phase 240V (13 amp) power supply
• Tapered gibs to X, Y and Z axes
• Locks to X, Y and Z axes
• Rack and pinion feed
• Quiet, smooth operation
• Calibrated fine feed to quill
• Longitudinal power feed now fitted as standard.

Standard equipment includes:

• Coolant system
• Power feed fitted to longitudinal axis
• DRO (resolution 0.005mm)
• Interlock chuck guard
• Halogen low voltage lighting
• Maintenance tools & tool box

Buying this machine:

• We've always prided ourselves on our after sales service, so rest assured when buying from Warco, you're in safe hands.
• Supplied complete with fully fitted DRO system, power feed, lighting, coolant system, tool box. maintenance tools and operation manual as standard.
• We've been supplying mills just like this for decades now, giving us unbeatable experience.
• Every milling machine we supply is fully checked and tested by a member of our qualified team, and is supplied with an individual accuracy test report.
• As with all Warco milling machines bought from us, the WM 20 is fully guaranteed.

Specification:

	WM20 (Produce code: 3009DRO)
Maximum drilling capacity	20mm
Maximum end milling capacity	20mm
Table size	910 x 226mm
No. of tee slots	3
Longitudinal traverse	580mm
Cross traverse	240mm
Distance spindle to table	365mm
Throat	134 / 400mm
Spindle taper	R8
Spindle stroke	127mm
Number of speeds	Infinitely variable
Speed range	25-2800 rpm
Head tilt left / right	90º - 0 - 90º
Coolant system capacity	8 litres
Motor	1.5kw (1500w) / 2HP
Power supply	240v / 1PH
Dimensions W x D x H (Measurements taken to end of handle grips, with head at maximum elevation)	1620 x 1170 x 2060mm
Weight	900kg
