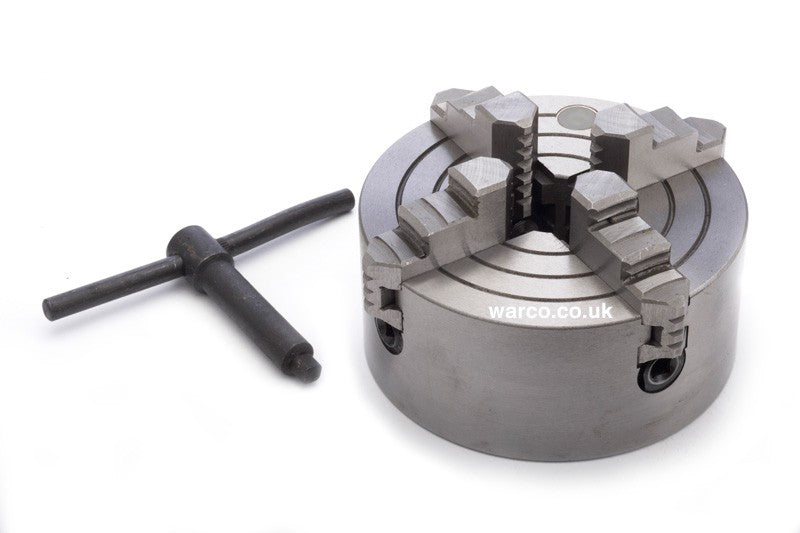

4 Jaw Independent Chuck Mini Lathe - 100mm Chuck

4 Jaw Independent Chuck for Mini Lathe - 80mm / 100mm

For Warco Mini Lathes.

• 4 Jaw independent chuck.

• Superb quality.

• Very well engineered throughout.

• With reversible jaws.

• Complete with chuck key.

• A direct fit to Warco Mini Lathes (please see size details below).

Types available

• 80mm (Item No. 4801)

For Mini Lathe (Item No. 3004) & previous specification Super Mini Lathe (Item No. 4800 / 4820)
This 80mm chuck is compatible with the regular Mini Lathe (with 300mm between centres) and previous version of the Super Mini Lathe. This version of the Super Mini Lathe was sold new up to 2017.

• 100mm (Item No. 4902)

For New Super Mini Lathe (Item No. 4900 / 4901)
This 100mm chuck is compatible with the New Super Mini Lathe, the updated specification machine sold from 2017 onwards. This is the type to select if you are buying a Super Mini Lathe today.

Size guidance

• As well as the information above, another quick way to tell which chuck to go for is to is to check the size of the 3 jaw chuck that originally came with your Mini Lathe - it will be either 80mm or 100mm. The compatible 4 jaw will be the same diameter.

• Still not sure? Check the table below, or feel free to contact us for assistance.

Chuck Item No.	Diameter	To fit lathe (Item No.)	which came with	and was purchased
4801	80mm	Mini (3004 / 3005) Super Mini (4800 / 4820)	80mm 3 jaw	Before 08/17
4902	100mm	New Super Mini (4900 / 4901)	100mm 3 jaw	After 08/17

You can select the type required from the drop down menu above.

Note about delivery

• Delivery times on this item might be slightly extended because it requires machining in our workshop in order for it to be a direct fit.
