GH1330 Lathe Gear Head with Dro (3 PHASE 440V)

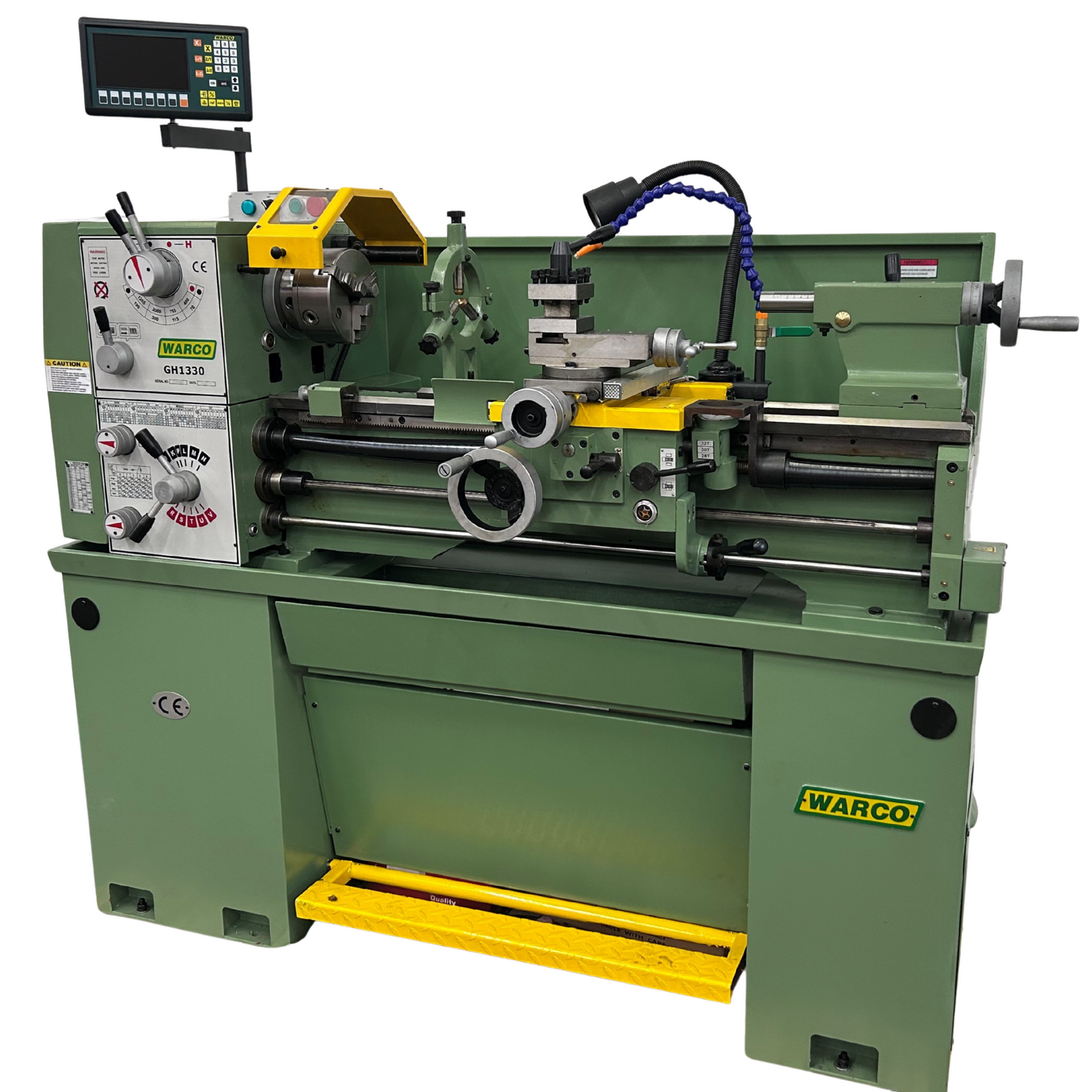

Warco GH1330 Gear Head Lathe with DRO

Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.

The Warco GH1300 series lathes are powerful gear head machines designed to be capable of a wide range metalworking applications. These lathe offer unbeatable robustness, precision and accuracy.

Available in a choice between single or three phase (240v or 440v), and with or without a very high quality glass optical digital readout system installed.

GH1330 types available

• GH1330 - Metric 1 Phase fitted with 3 Axis DRO, 2 scales (Item No. 4069B DRO)
• GH1330 - Metric 3 Phase fitted with 3 axis DRO, 2 scales (Item No. 4069A DRO)

Please note: if DRO version shows as unavailable above, we are always able to supply lathes with DRO fitted - stock comes and goes all the time so please feel free to contact us for availability.

Also available with a more compact length

• GH1322 range here - with similar specification to GH1330 but with shorter distance between centres.

Features include

• Induction hardened and ground bedways
• Hardened, precision ground headstock gears ensure extremely quiet operation
• D1-4 spindle supported by taper roller bearings

• Overload clutch to saddle feed shaft

• Removable gap bed, dowelled for accurate relocation

• Spindle brake, extremely effective, will immediately brake lathe from highest speed of 2000rpm
• Slide out coolant / chip tray
• Telescopic leadscrew covers
• Jogging button to assist chuck rotation throughout the speed range
• Offset tailstock facility
• Independent feed shaft to saddle for longitudinal and cross feed
• Thread dial indicator
• Power longitudinal and cross feed, powered by a dedicated feed shaft
• Interlock chuck guard and gear train cover

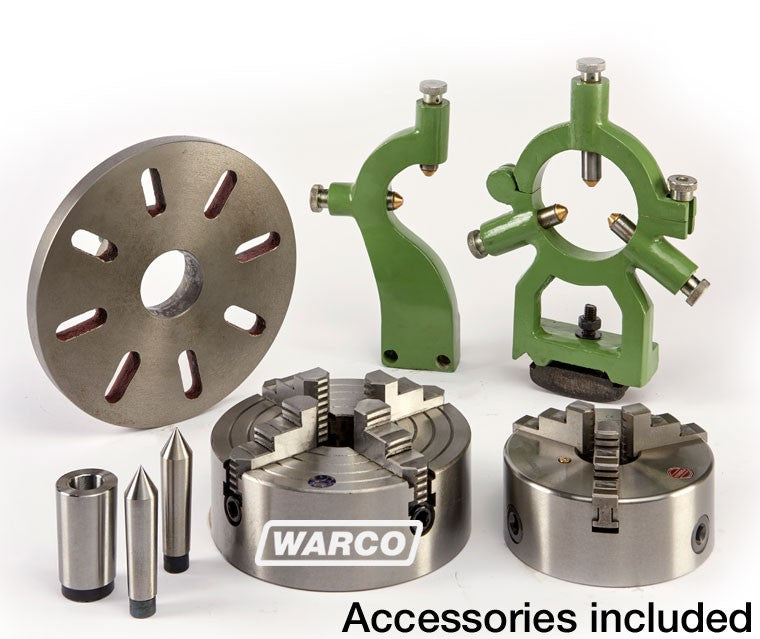

Standard equipment included

• Cabinet stand
• Chuck 3 jaw 160mm with inside & outside jaws
• Chuck 4 Jaw 200mm independent
• Face plate 300mm
• Fixed steady
• Travelling steady
• Coolant system
• Dead centre
• Light
• Tool box with maintenance tools

Full Specification

Order securely online, or call us on 01428 682929.

• This range of lathes is ideal for training / teaching establishments and industry alike, with a wealth of safety features and standard equipment.
• Long term reliability is assured by high levels of build quality and extremely robust construction.
• Every Warco lathe is tested by a qualified member of our team before leaving our premises, and is supplied with an individual accuracy test report.
• Buy with confidence from Warco - we've been selling lathes just like this for four decades now, and have always prided ourselves on our after sales service.
• We have a hugely comprehensive range of spare parts also available should you ever need them.
• Each lathe has a 12 month warranty for peace of mind.
