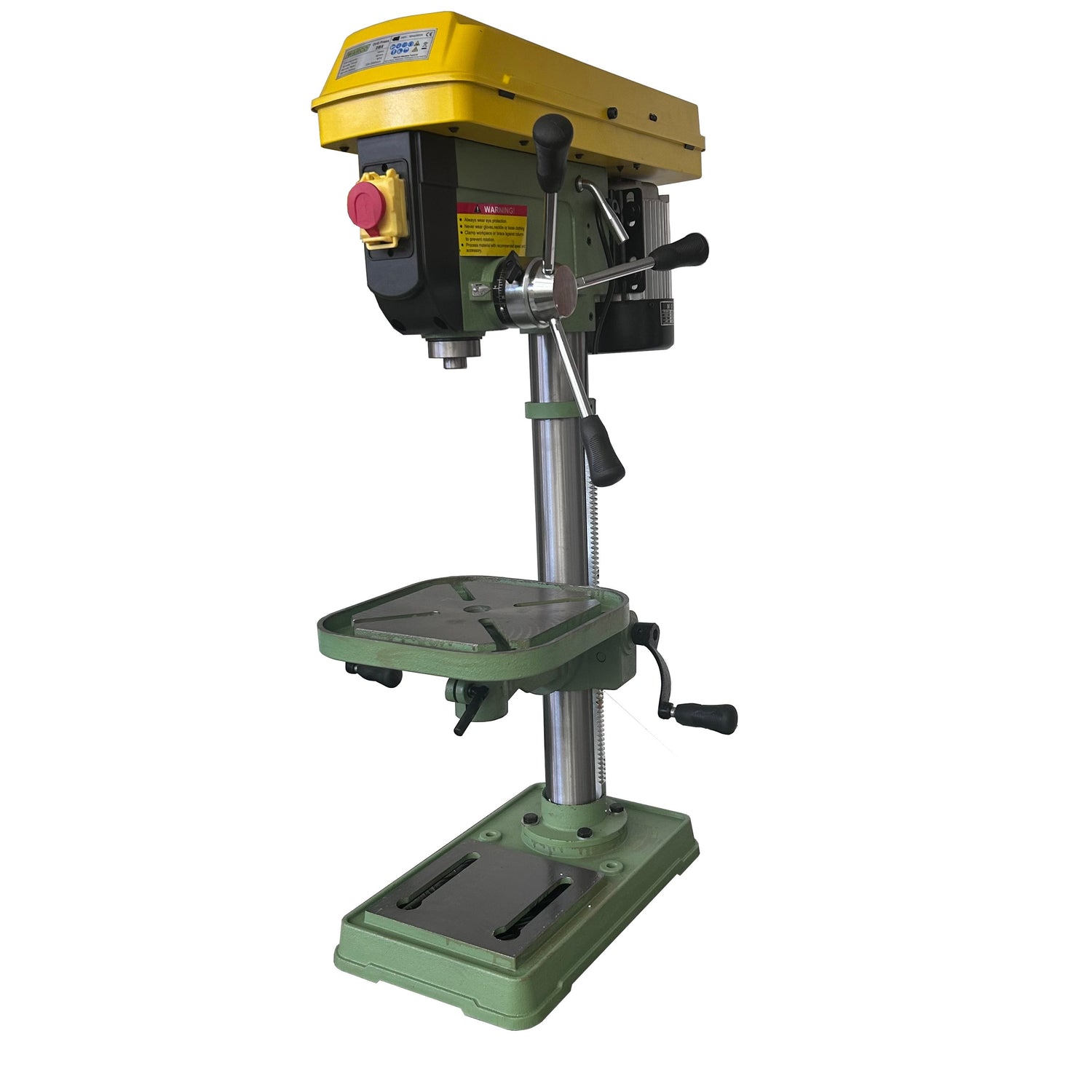

2B5 Bench Drill
Incl. VAT
- Powerful 550w motor
- Highly durable bench-mounted machine
- Excellent Spare-Parts Availability
- 12-Month Warranty
- Fast & FREE DELIVERY to UK mainland
- Questions & Support on Tel: 01428 682929
- [Optional Extra for Education: Foot-operated ENEWncy Stop]
2B5 Bench Drill est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Business/Education customer? Set up a free profile to build a quote
Contact our Technical Customer Support with any questions:
Description
Description
Very high quality, robust and durable bench mounted drilling machine.
- Part of the Warco range of well-engineered, workshop drilling machines.
- Trouble free, straightforward design.
- The Warco 2B5 features enhanced specification, with double the motor size of previous version and larger capacity all round.
Features include:
- Start / stop switch incorporates emergency stop
- Fitted with rotary / tilting table
- Positive quill depth stop
- Isolator switch fitted to belt cover
- Tee slotted tables fitted
Full Specification:
2B5(Product Code: 3052) |
|
Product Dimensions: |
|
| Weight | 55kg |
| Width x Depth x Height | 380 x 630 x 980mm |
| Base Width x depth | 270 x 460mm |
| Shipping Dimensions | |
| Length x Width x Height | 820 x 500 x 290mm |
| Package Type (Pallet or box) | Box |
Power/Motor |
|
| Motor size | 550W |
| Drive (GH) gearbox (VS) variable speed or (B) Belt | Belt |
| Voltage (240v single) (440v 3 Phase) | 240v Single |
| Fitment (Plug connection type) | 3 pin plug |
| Spindle Bearing type | Sealed Roller Bearing |
| Spindle speeds (No: and achievable speeds) | 16 speed 220-2840 |
Main Specifications |
|
| Type (Bench top or floor) | Bench Top |
| Table size (Length x Width x Thickness) | 285 x 285 x 30mm |
| Table Travel Vertical | 355mm |
| Maximum size spindle to Table | 380mm |
| Maximum size spindle to Base | 600mm |
| Throat (Spindle middle to Column face) | 180mm |
| Column diameter | 72mm |
| Spindle Taper size | 2MT |
| Head tilt left to right | n/a |
| Table tilt | 90-90° (45-45° calibrated) |
| Drill chuck capacity and recommended max drill | 16mm max |
| Quill diameter | 47mm |
| Quill/Spindle stroke | 85mm |
| Features | |
| Laser centre? | X |
| Work light? | x |
| Digital speed counter? | X |
| Depth stop? | x |
| Safety interlock guard? | X |
Other Specifications |
|
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 30 mins |
| CE approved Certificate | CERT-20210823 TA 385213770(1) |
| Tee slot size and no of slots (A-B-C-D) no: of slots | A=16 B=26 C=9 D=12m 4 slots |
