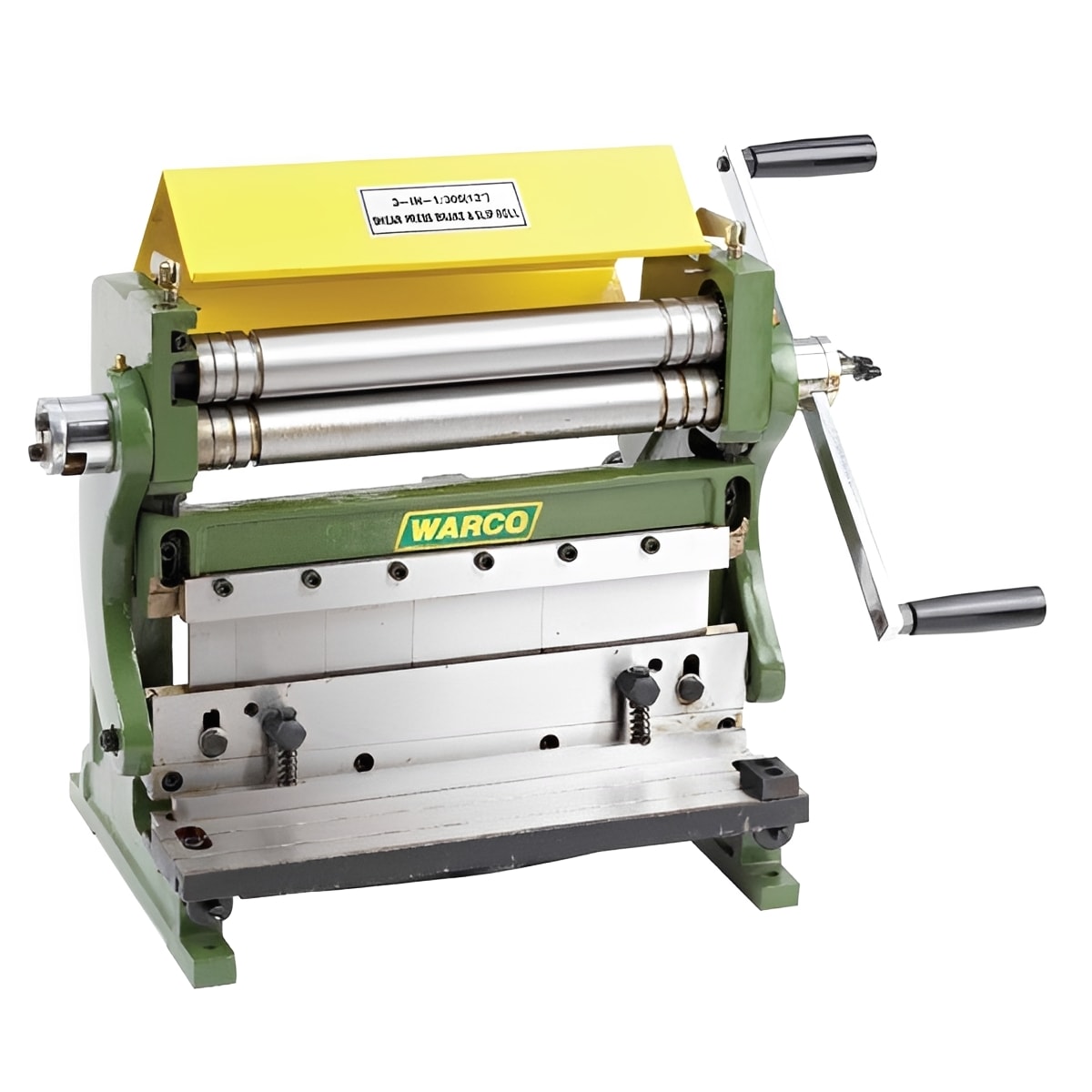

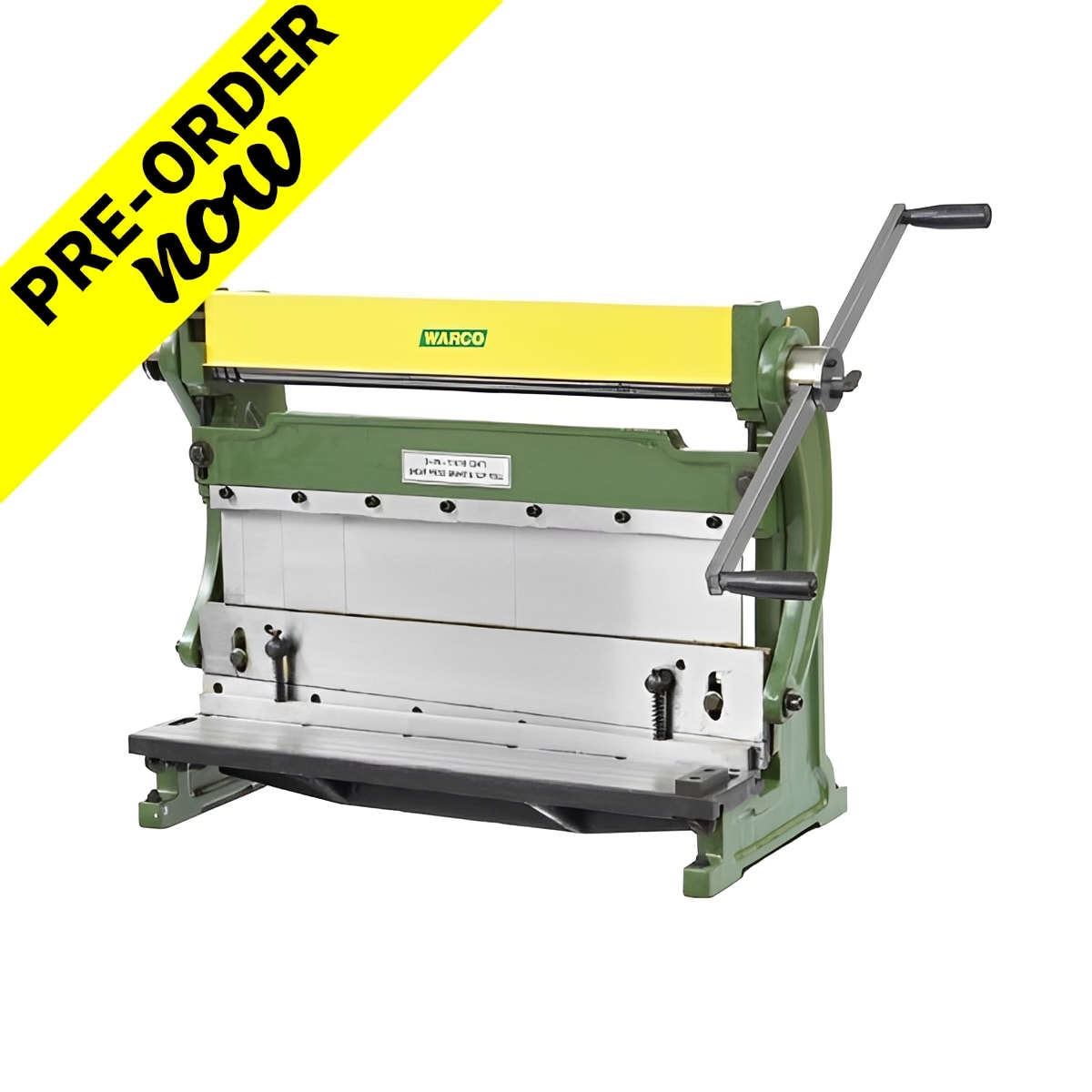

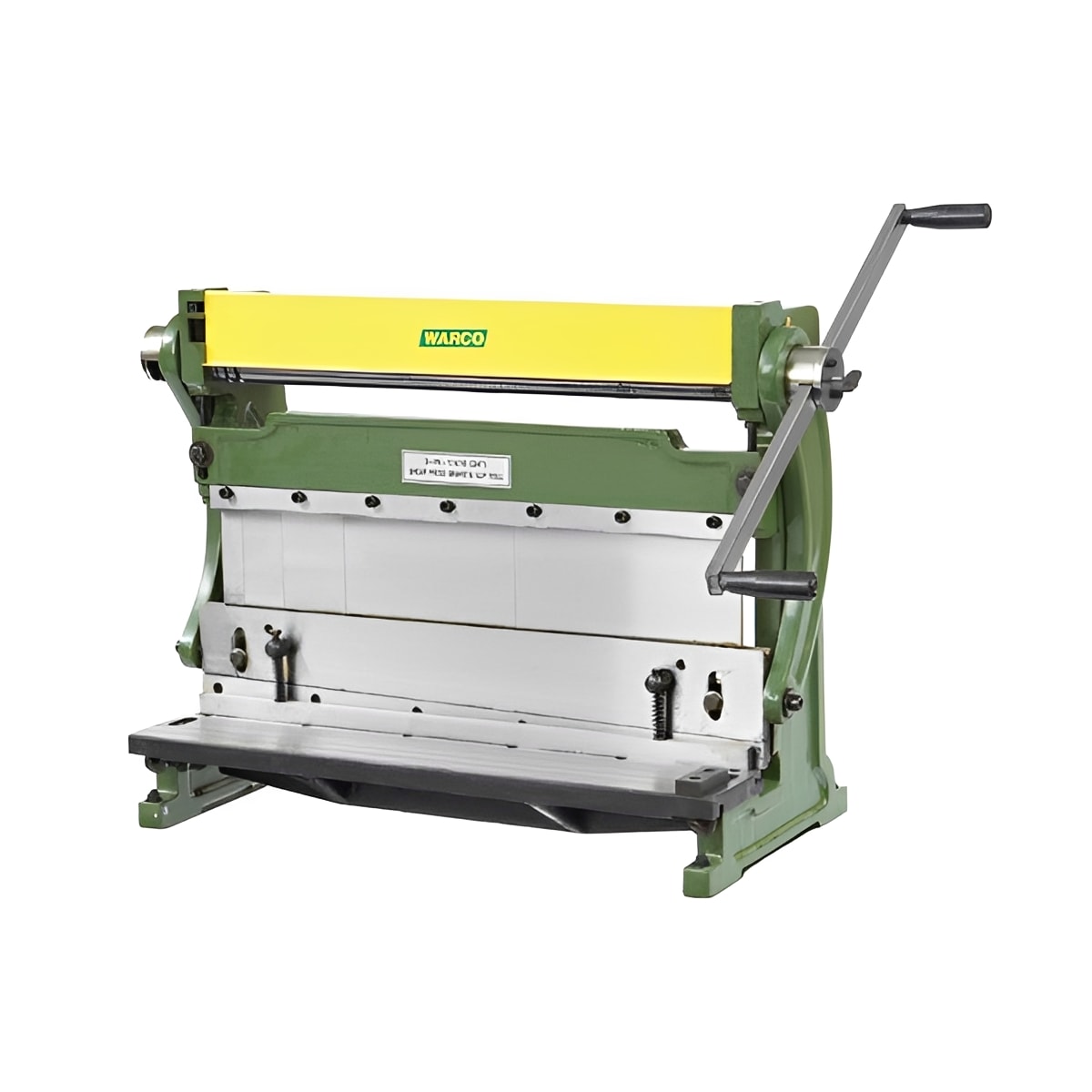

40" Formit - Universal Sheet Metal Machine

Warco Formit - Guillotine, Roller and Bender

Universal Sheet Metal Machine

Sheet metal machine for rolling, cutting and bending sheet metal.

• Very useful workshop multi purpose machine.

• All in one sheet metal guillotine, bender and roller.

• 3 rolls feature on these machines, including rear pinch roll and top slip out roll.

• Bend sheet metal up to 90°.

• Range of different sizes available.

• At home in the professional metalworking environment.

• Heavy duty, sturdy and reliable metalworking machines.

Features include

• Segmented press brake tooling for box and pan work.

• Hardened and ground reversible shear blade.

• Front squaring block.

• Rear adjustable back stops.

Maximum material capacity (thickness) for bending, rolling and shearing

Sizes available (max material length)

• 305mm / 12"

• 610mm / 24"

• 750mm / 30"

IF ORDERING A STAND ON ITS OWN (without a Formit, at the same time), THERE WILL BE A SEPERATE DELIVERY CHARGE OF £50, TO BE ADDED TO YOUR ORDER.

Specification

Item No.	7026
Formit size	1150mm / 40"
Max. capacity (thickness) for mild steel *	1mm / 20swg
Max. capacity (thickness) for aluminium, copper *	1.2mm / 18swg
Bending angle	90°
Min. rolling diameter	42mm
Dimensions L x W x H (ex handle grips)	1120 x 580 x 860mm
Weight	200kg
Stand Item No. **	7018

* Please note that this machine is not suitable for stainless steel. Exceeding the maximum recommended material thickness will invalidate your warranty.

** If ordering a stand separately (without a Formit at the same time), please note that an additional delivery charge applies. If you would like to order the stand separately, please call us to process your order on 01428 682929. If ordering just a Formit or Formit with stand together the delivery cost is included.

Formit price includes VAT and mainland UK delivery.

Also available

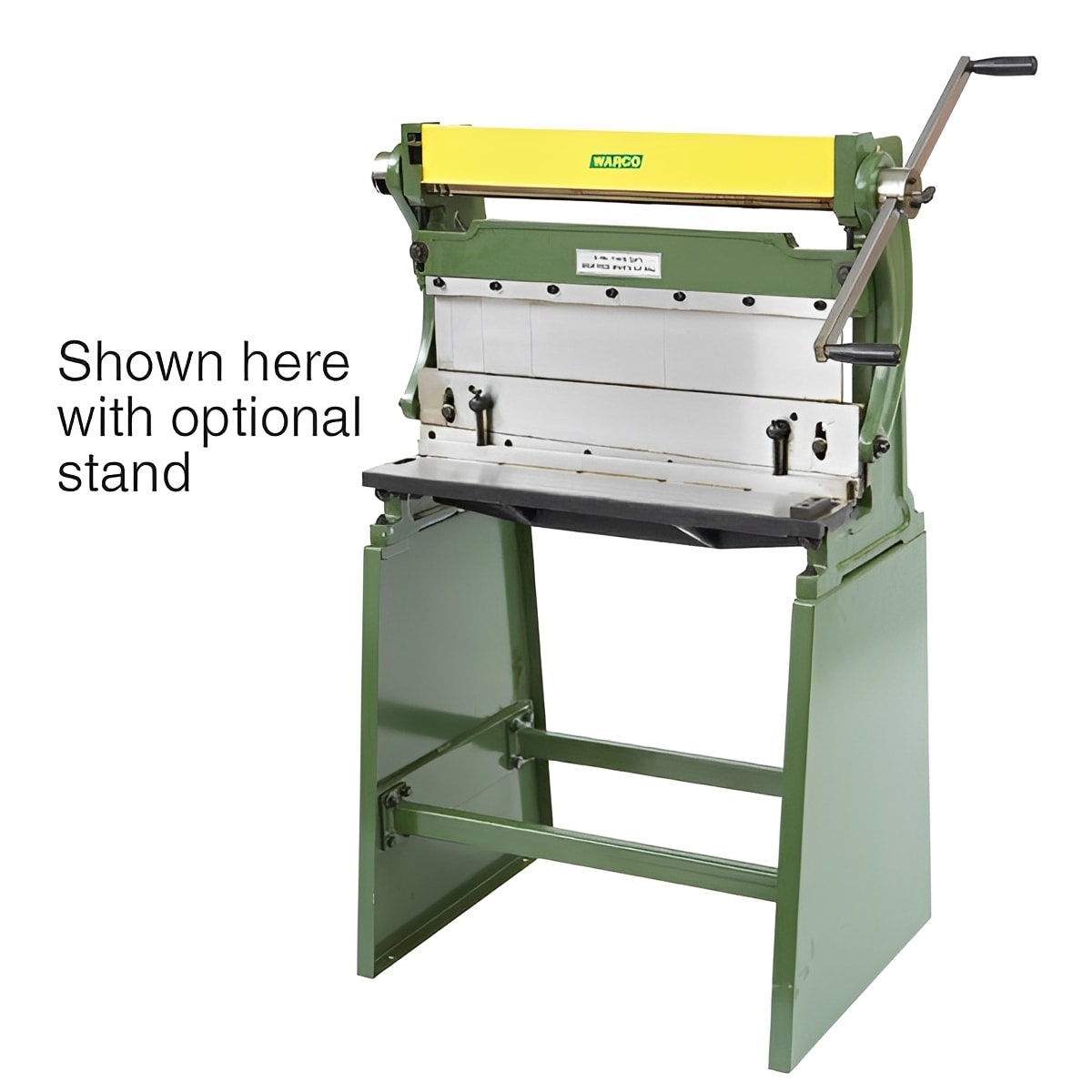

• Optional stand for 24" / 30" / 39" models - can be selected from the drop down menu above.

• Smaller more compact version - Warco Mini Formit.
