Base Plate for Lathe Cross Slide - WM 240, WM 250V

Base Plate for Lathe Rear Tool Post & Vertical Slide

WM 240 / WM 250 / WM 250V

Designed in house by Warco engineers and made exclusively for Warco

Details

• This base plate mounts to the lathe cross slide.

• Once fitted, this will allow you to add a milling / vertical slide to your lathe.

• Will also allow a Warco designed rigid rear tool post to fit to your lathe - with machined slot which engages with a tenon on the underside of the tool post to avoid rotation.

• Transform the capabilities of your lathe with this simple effective add on.

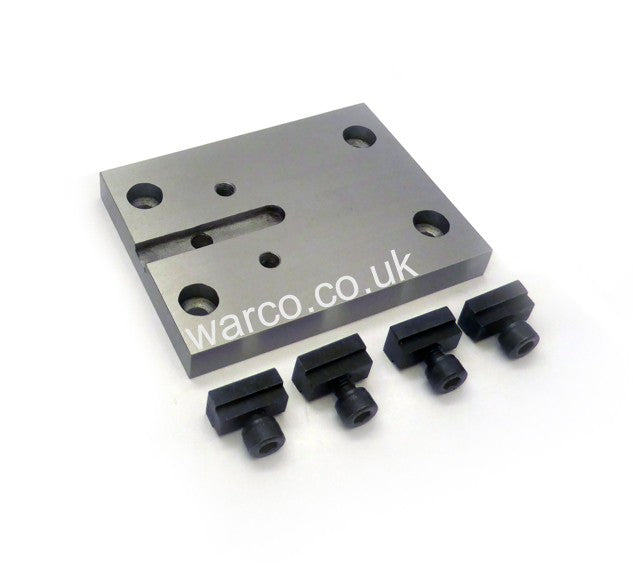

• Supplied with four tee nuts and allen screws for secure fitment.

Designed to fit these Warco lathes

• WM 240

• WM 250

• WM 250V

(For the WM 240B, please note that for this base plate to be compatible, it is necessary for the lathe to have slots on the cross slide. Please feel free to ask us about compatibility if you're unsure.)

Dimensions

• Tee nut width - 9.82mm / 14.07mm

• Base plate dimensions (approx) - 126 x 95 x 15mm

• Vertical slide mounting holes - 40mm

• Fixing hole centres - 55 x 100mm

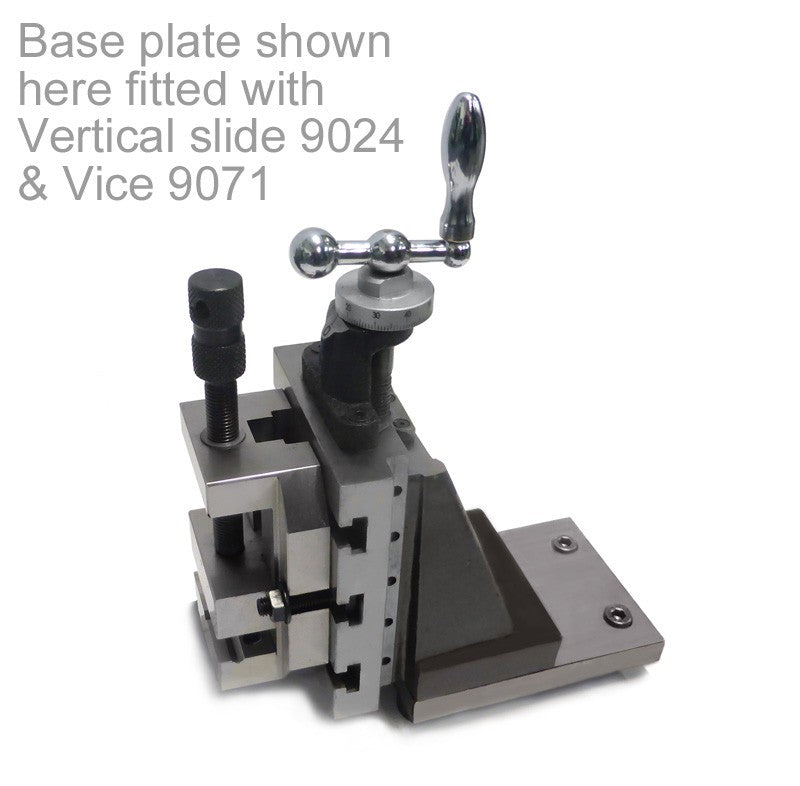

Base plate enables the following to mount on the lathe

• Rear Tool Post (Item No. 9574)

• Vertical Milling Slide (Item No. 9024) - which works well in combination with Milling Slide Vice (Item No. 9071)
