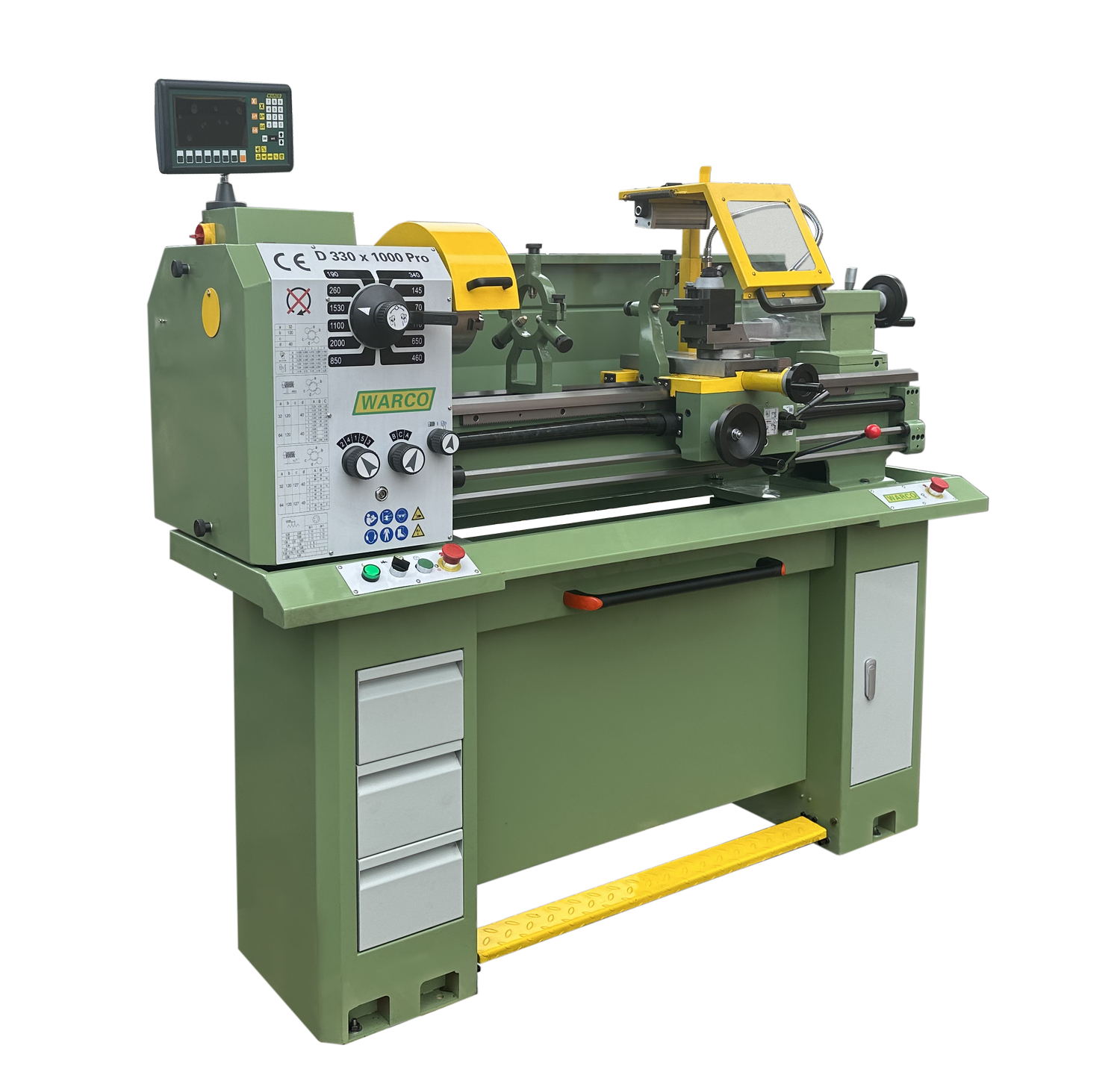

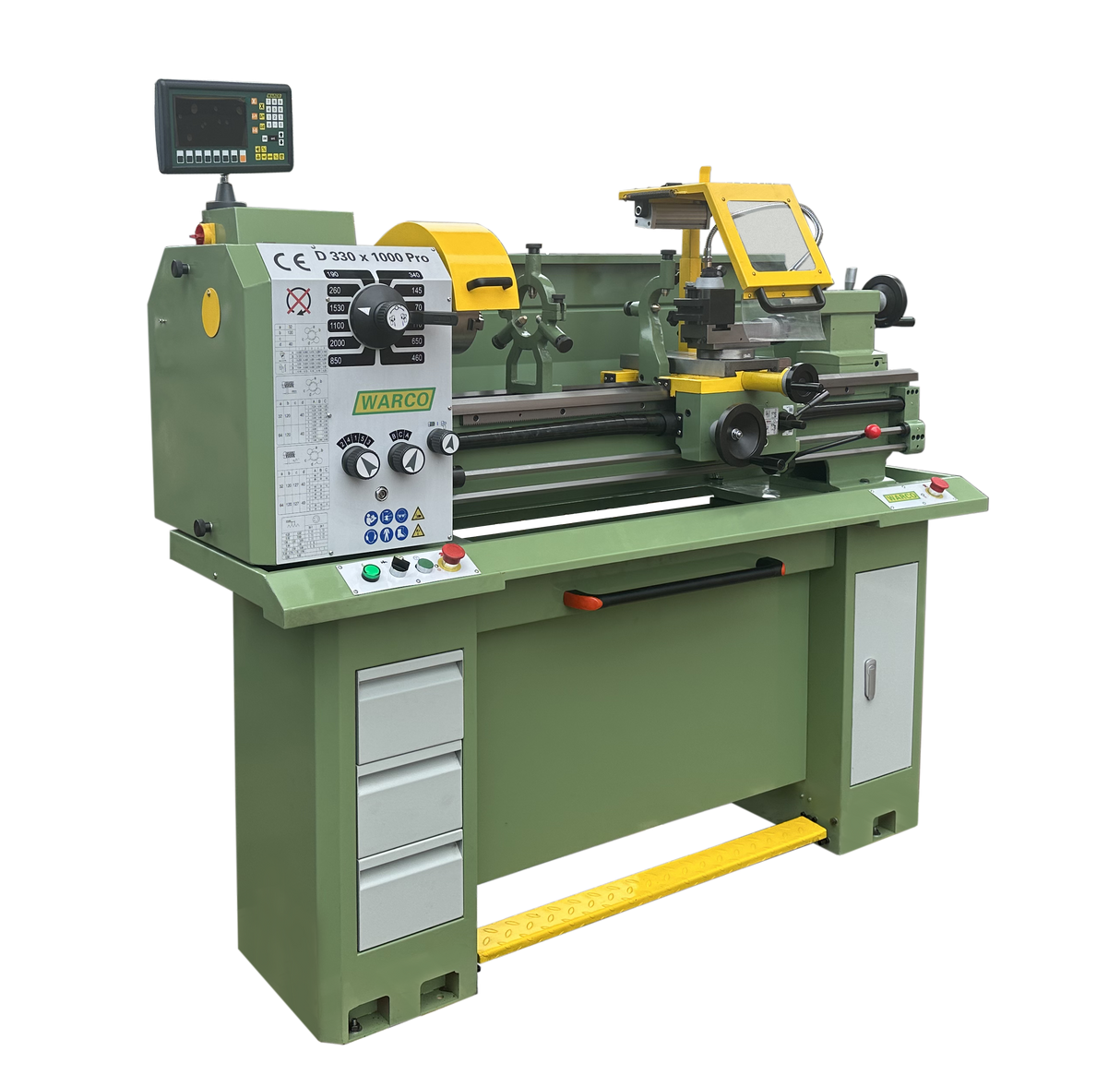

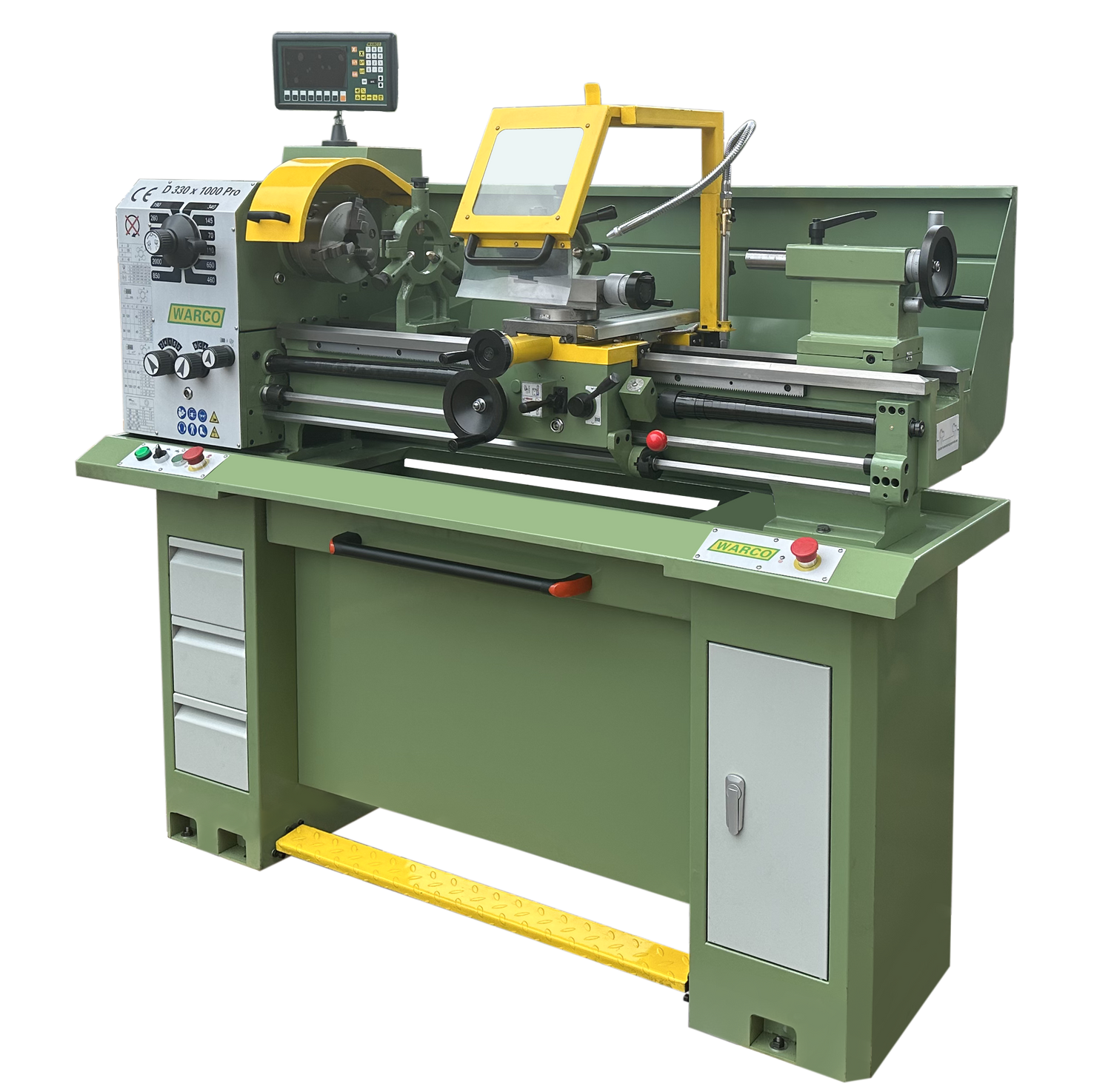

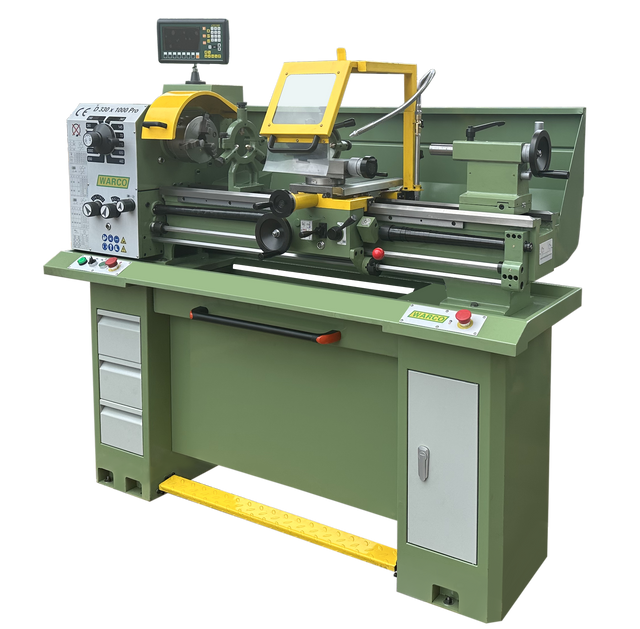

D330 Pro Gear Head Lathe (with stand & DRO)
Incl. VAT
- Gear head lathe with stand & DRO
- Multiple Safety Features
- Powerful 1.8kw motor
- Includes FREE Accessories
- Tested for Accuracy - Report Supplied
- Excellent Spare-Parts Availability
- 12-Month Warranty
- Fast delivery to UK mainland
- Finance/Leasing Options available >
- Questions & Support on Tel: 01428 682929
D330 Pro Gear Head Lathe (with stand & DRO) is backordered and will ship as soon as it is back in stock.
Business/Education customer? Set up a free profile to build a quote
Contact our Technical Customer Support with any questions:
Description
Description
The D330 Pro is designed for education, light industry and hobby. With its gear head drive train and powerful 1.8kw motor it packs a punch whilst being compact and light.
- 1000mm between centres but under 530kg
- Safety features on chuck and tools, 2 E-stops and brake pedal
- 3 jaw
- 4 jaw

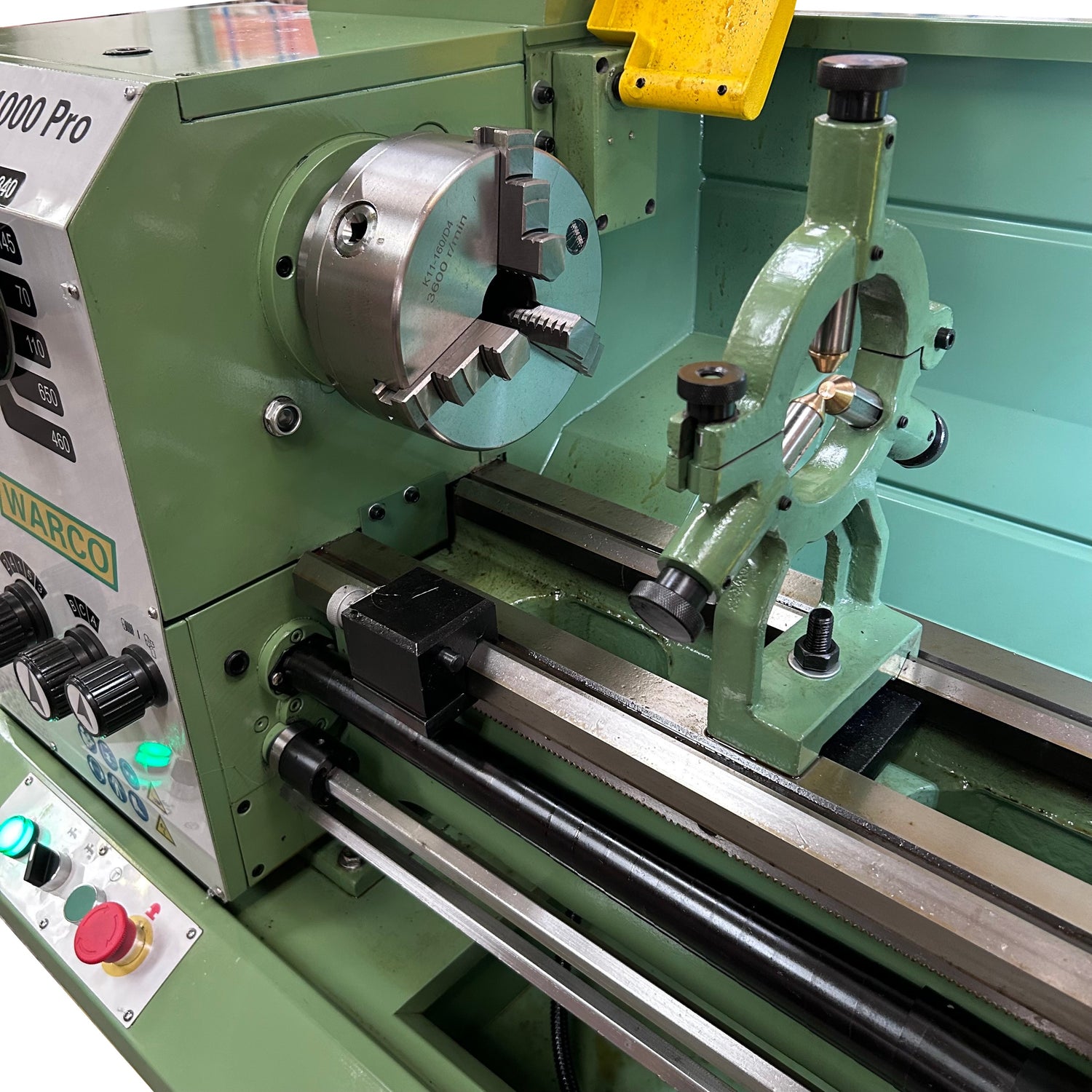

- Fixed and traveling steadies

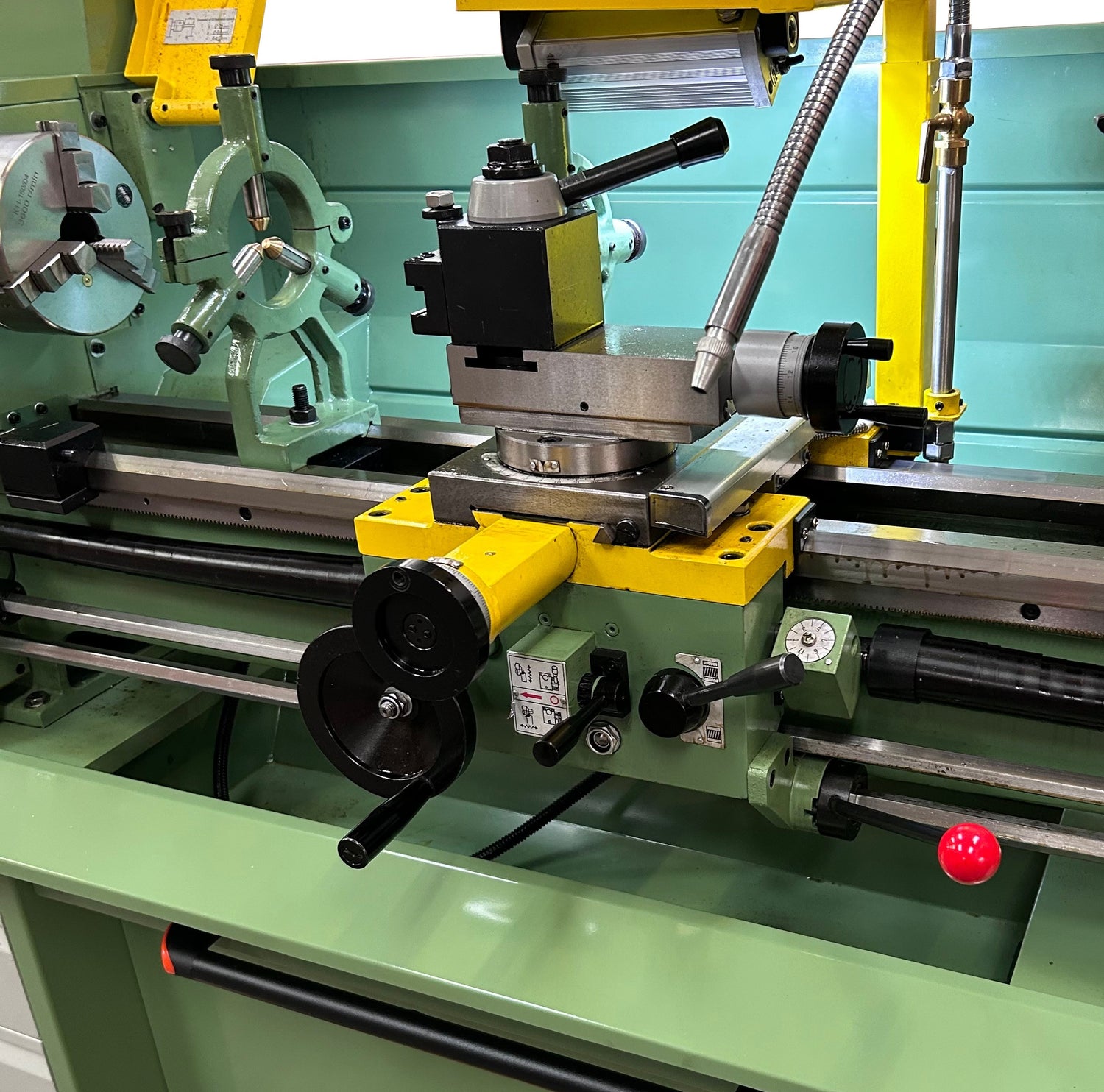

- QCTP with 3 standard and 1 vee holder
- Faceplate
- Toolbox and basic tools
Please note: Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.
Full Specification
| Machine: 4067 | D330 PRO |
| Product Dimensions: | |
| Weight | 520kg |
| Length x Width x Height | 1830 x 760 x 1660mm |
| Tray Length x Width | |
| Shipping Dimensions | |
| Length x Width x Height (no DRO) | |
| Length x Width x Height (DRO version) | 1830x760x1660mm |
| Power/Motor | |
| Motor size | 1.8kw |
| Power Transfer (GH) gearbox or (VS) variable speed | GH |

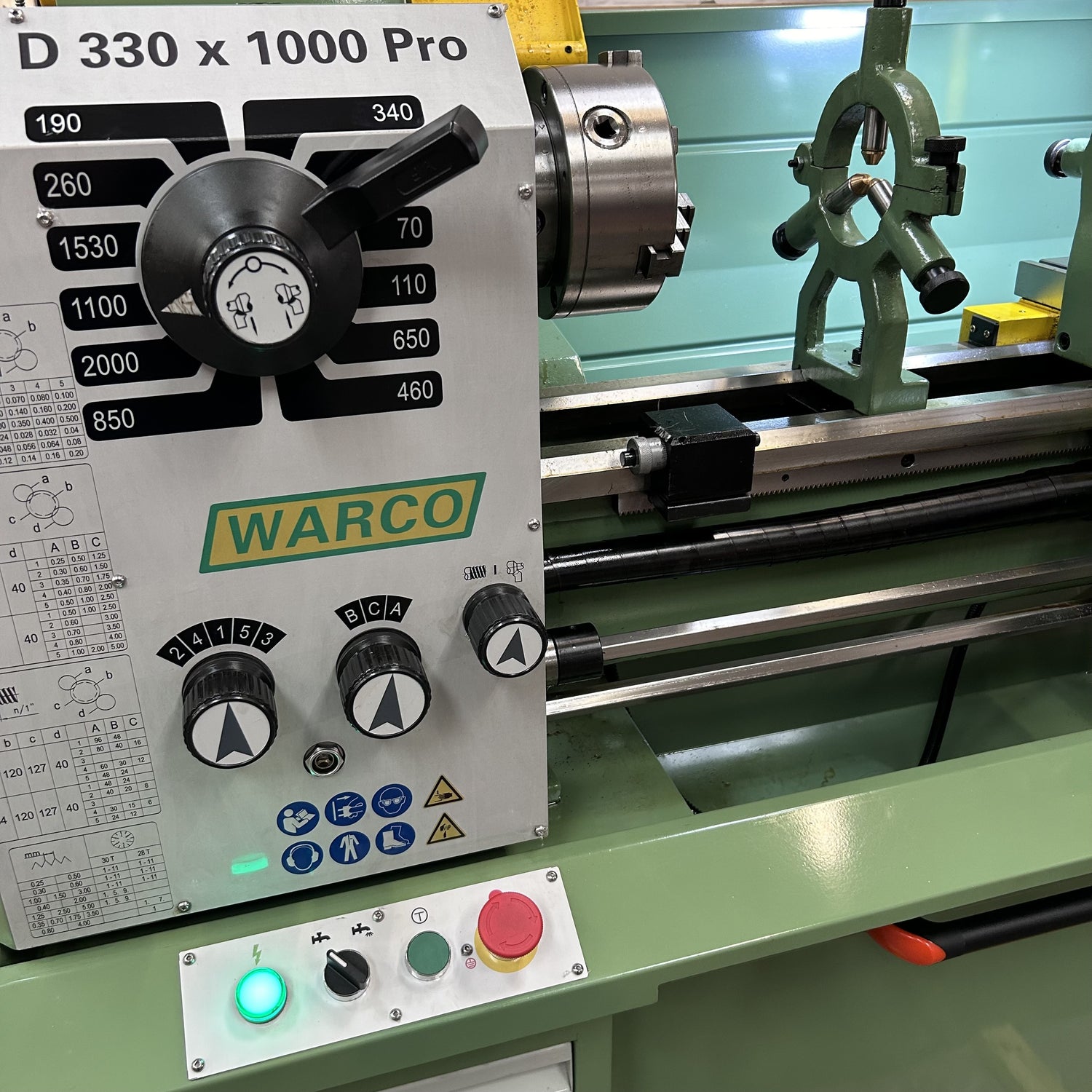

| Spindle speeds (No: and achievable speeds) | 70-2000RPM |
| Voltage (240v single) (440v 3 Phase) | 240V |
| Fitment (Plug connection type) | 3 Pin Plug |
| Current | |
| Main Specifications | |
| Maximum swing | 330mm |
| Centre height | 165mm |
| Distance between centre’s | 1000mm |
| Longitudinal travel (Z) | 800mm |
| Cross slide travel (X) | 210mm |
| Top slide travel (fine Z) | 85mm |
| Spindle taper | MT5 |
| Tailstock Taper | MT3 |
| Tailstock quill travel | 85mm |
| Spindle Bore | 38mm |
| Tool shank size recommended for C/L | 12mm |
| Metric and imperial threads | Yes 0.25-5mm/6-96tpi |
| Chuck mount | D1-4 |
| Spindle Bearings/Drive | Roller Taper |
| Other Specifications | |
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 60 mins |
| CE approved Certificate | Yes, available upon request |
| Additional products | |
| Optional stand | Included |
| Optional Digital Read Out Kit | Included |
| X scale | 250mm |
| Z Scale | 800mm |
| Chuck mount sizes | D1-4 |
| Base/tray fixing holes dimensions A-B-C-D | A= 330 B=170 C=1170 D= 65 mm |
