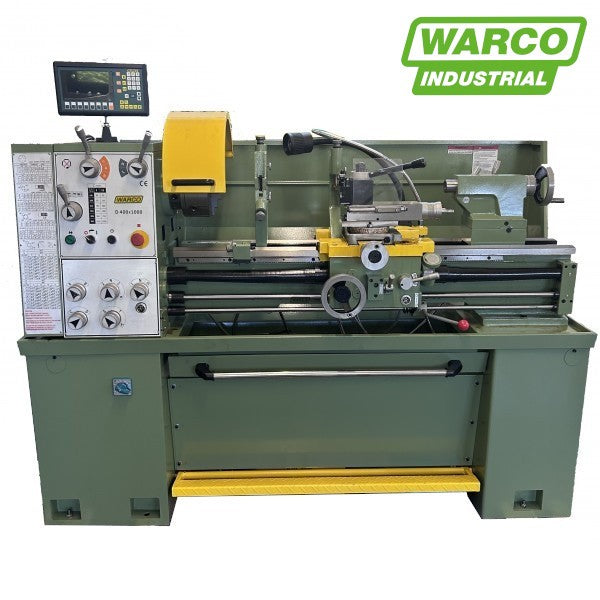

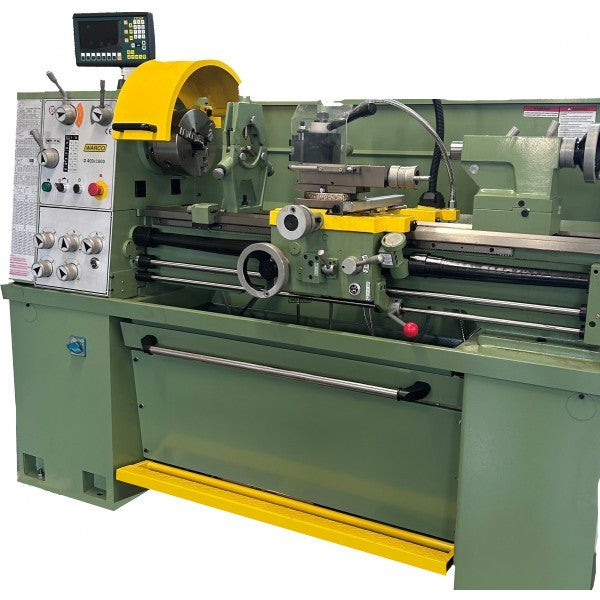

D400 x 1000 (gear head with stand and DRO)

The D400 is a large-capacity, industrial-spec lathe with 1000mm between centres and 1960mm overall length.

Features include:

• Hardened and ground gears to headstock and gearbox to ensure long term reliable performance and extremely quiet operation
• Precision ground D1-5 spindle supported on taper roller bearings
• Safe low voltage controls with overload cut out
• Overload clutch to saddle feed shaft
• ENEWncy electric cut out switch
• Offset tailstock facility
• Independent feed shaft to saddle for powered longitudinal and cross feed
• Adjustable gibs to top slide and cross slide
• Interlock chuck guard and gear train cover
• Easy to read linear and diametrical measurements on large illuminated screen
• Massive 52mm spindle bore supported on taper roller bearings
• Induction hardened and ground bedways

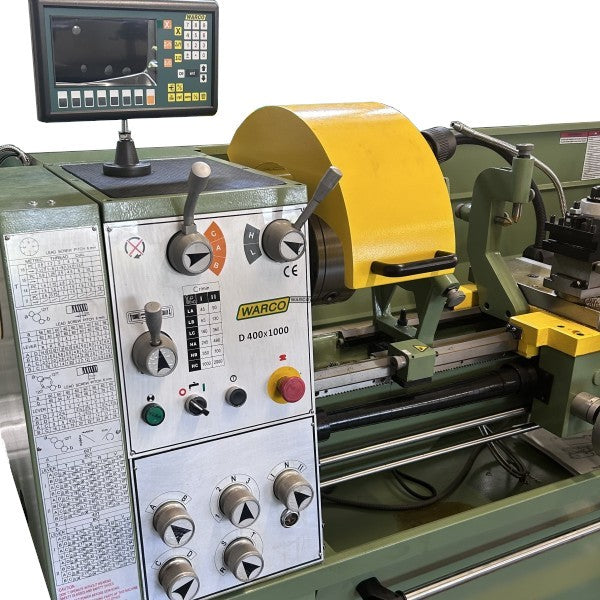

• Ergonomic control panel including E stop switch and jogging button
• Spindle brake / eNEWncy stop pedal - which will immediately brake from the highest speed. In an eNEWncy situation, the brake will also disconnect the electrical drive.
• Bright LED light fitted
• Thoughtfully designed stand which allows for storage
• Gap Bed
• QCTP

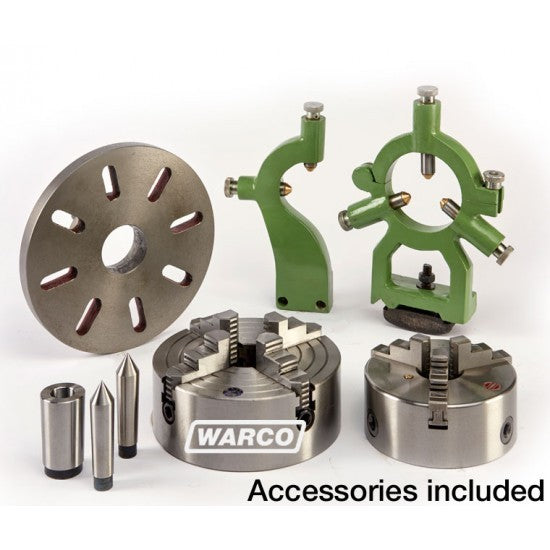

• 200mm 3 Jaw Self Centering Chuck
• 200mm 4 Jaw Independent Chuck

Machinery weighing 500kg or more - delivery price varies according to size, weight and location; subject to quote.

Technical Data
	Model: D400×1000 (Product code: 4068)
Distance between centres	1000mm
Swing over bed	400mm
Width of bed	210mm
Spindle nose fixture	DIN 55029 D1-5
Spindle bore	52
Range of spindle speed	45-2000rpm
Range of longitudinal feeds	0.06-2.7mm/r
Range of cross feeds	0.016-0.72mm/r
Range of inch threads	2-28tpi
Range of metric threads	0.8-14mm
Top slide travel	105mm
Cross slide travel	180mm
Tailstock quill travel	100mm
Tailstock quill taper	MT4
Net weight	810kg
Gross weight	860kg
Motor power	2.0/2.4KW
Voltage	440V
Diamesion of machine	1960x760x1560 mm
