GH Universal Milling Machine with DRO - R8

Warco GH Universal Milling Drilling Machine

Offering excellent versatility and very high levels of quality, the GH Universal is in a league of its own.

Gear head design, straightforward to use, offering precision and accuracy for a wide range of machining tasks.

Types available

• GH Universal Metric (Item No. 3033YZ)

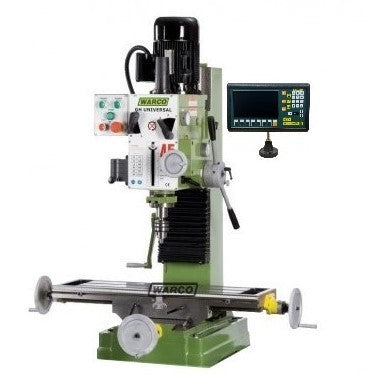

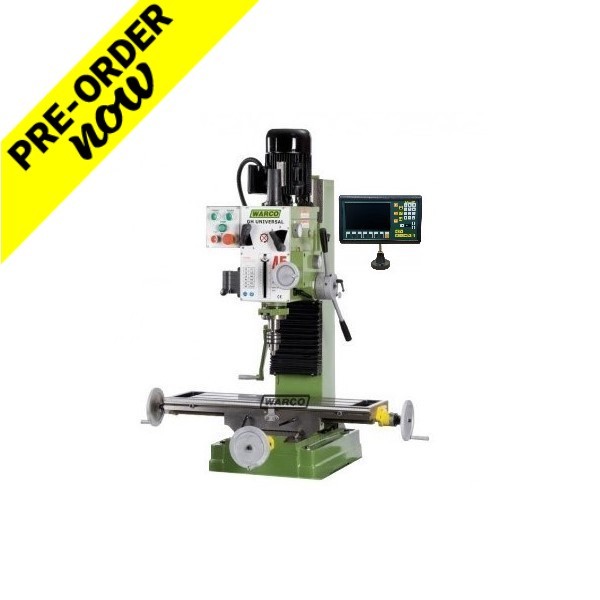

• GH Universal Metric with 2 axis DRO (Item No. 3033DRO)

Features include

• Positive head elevation on machined dovetail slideways
• Large square column casting ensures maximum rigidity
• Head elevation by geared crank handle, requires very little effort
• Close tolerance headstock gears ensure very quiet operation
• Table locks to X and Y axes
• Tapered gibs on X, Y and Z axes
• Large diameter spindle supported by taper roller bearings
• Rack and pinion drilling feed
• Spindle depth lock
• Concertina dust covers to slideways
• Interlock chuck guard (not shown for clarity)
• As with all Warco milling machines, this machine uses metal gears.
• Available with factory fitted DRO system

Standard equipment supplied with each machine for no extra charge includes

• Drawbar 7/16" UNF
• Drill chuck 13mm
• Arbor for drill chuck
• Tool box and maintenance tools
• Operation manual and spare parts list

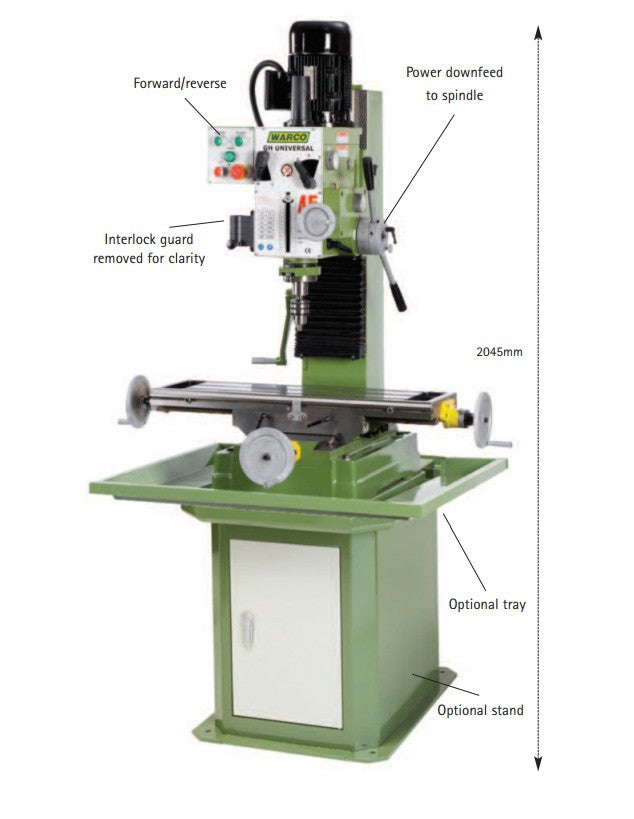

(Stand & wide coolant tray optional on this machine)

The Warco GH Universal

• Each machine is fully checked and tested by us is supplied with an individual accuracy test report.
• Every new Warco machine bought from us is fully guaranteed.
• Standard equipment that comes with each mill for no additional cost includes a 13mm drill chuck.
• We have a large range of accessories for the GH Universal, including digital readouts, which we can supply and fit.
• Warco GH Universal Mills are supplied fully assembled and ready to go - once it arrives, simply plug in and its ready to start metalworking.
• UK mainland delivery included.

Specification

Item No. (Metric / Metric DRO)	3033YZ / 3033DRO
Maximum drilling capacity	30mm
Maximum end milling capacity	20mm
Table size	800 x 240mm
No. of tee slots	3
Longitudinal traverse	585mm
Cross traverse	245mm
Distance spindle to table	450mm
Throat	280mm
Spindle taper	R8
Spindle stroke	130mm
Number of speeds	6
Speed range	75-1600 rpm
Head tilt left and right	90º - 0 - 90º
Motor	1.5kw (1500w) / 2HP
Power supply	240v / 1PH
Dimensions W x D x H (Measurements taken to end of handle grips, with head at maximum elevation)	1117 x 787 x 1410mm
Weight	320kg

Price includes VAT and UK mainland delivery.

We have nearly 50 years experience and expertise supplying milling machines worldwide, buy with confidence.

Order a GH Universal securely online, or call us on 01428 682929.
