Super Major Milling Machine - R8

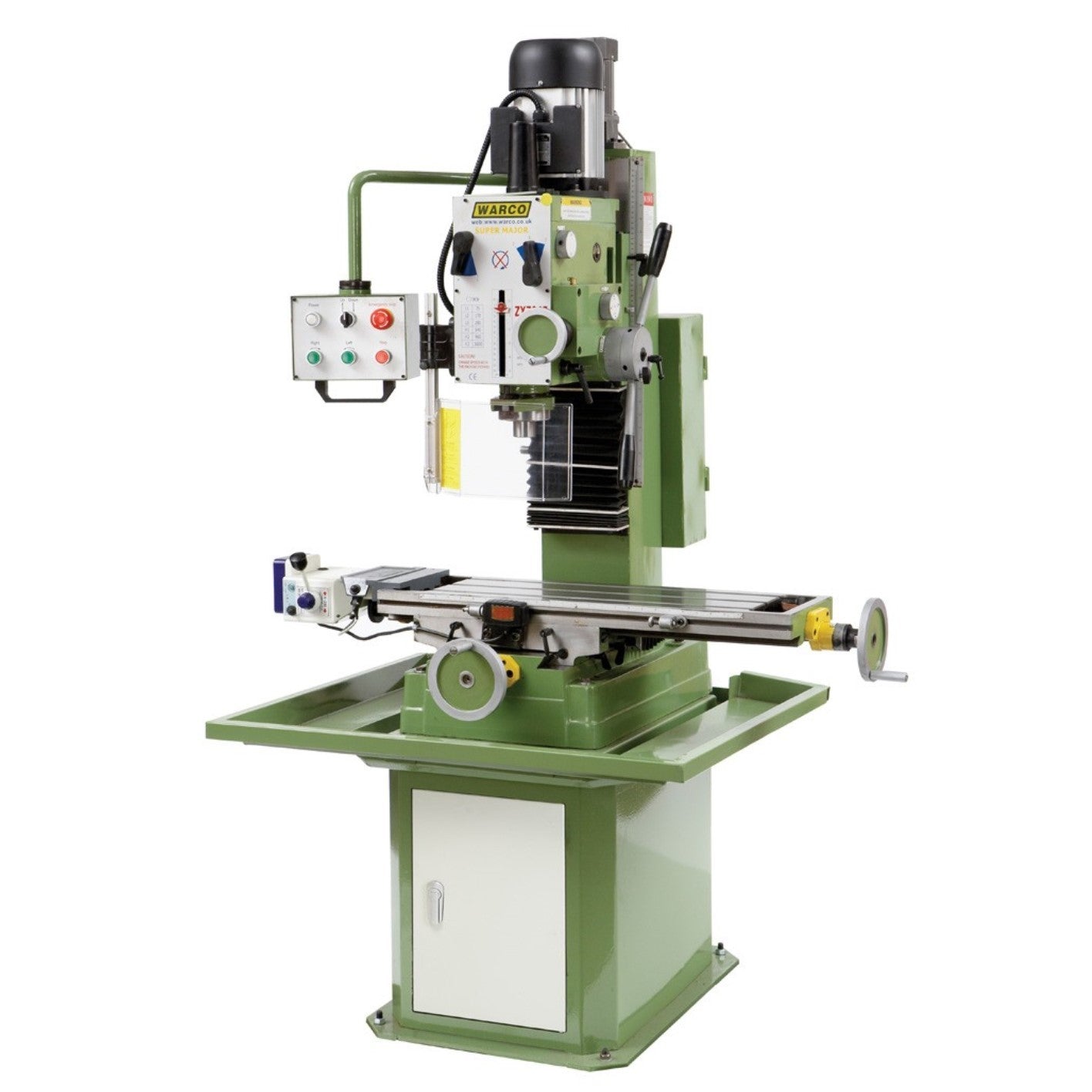

Warco Super Major Milling Machine

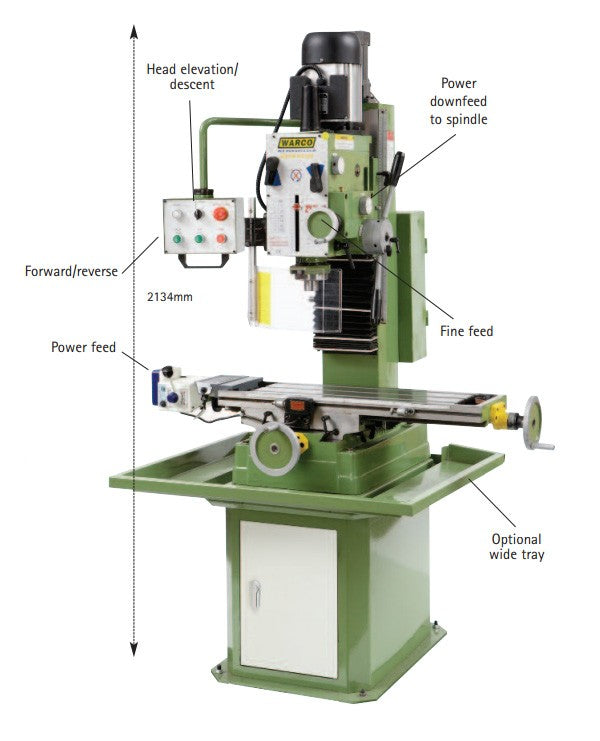

Fully equipped Heavy Duty gear head machine, the Super Major includes a stand and pre-fitted longitudinal power feed.

The powered head completely eliminates the need to manually crank the head for elevation and descent.

Features include:

• Power elevation and descent to head on machined dovetail slideways
• Large square column casting ensures maximum rigidity
• Close tolerance headstock gears ensures quiet operation
• Fitted with a longitudinal power feed
• Interlock chuck guard
• Table locks to X and Y axes
• Large diameter spindle supported by roller bearings
• Rack and pinion drilling feed
• Spindle depth lock
• Available with factory fitted DRO installed

Includes the following FREE accessories:

• Integrated LED light
• Cabinet stand
• Power down feed to spindle
• Power feed to longitudinal axis
• Drawbar
• Drill chuck 13mm
• Arbor for drill chuck
• Tool box and maintenance tools

Specification:

	Super Major Milling Machine (Product code: 3034YZ)
Product Dimensions:
Weight	420KG
Width x Depth x Height	1270 X 930 X 2134mm
Stand only Width x Depth x Height	570 x 780 x 622mm
Base Width x Depth	400 x 600mm
Shipping Dimensions
Length x Width x Height	900x 880 x 2100mm
Power/Motor
Motor size	1.5kw
Power Transfer (GH) gearbox or (VS) variable speed	GH
Voltage (240v single) (440v 3 Phase)	240V
Fitment (Plug connection type)	3 Pin Plug
Current	50hz 7.2A
Spindle speeds (No: and achievable speeds)	6 Speed, 75, 180, 280, 600, 1000, 1600
Main Specifications
Table size	800 x 240mm
Longitudinal travel (X)	445mm
Cross Table travel (Y)	195mm
Head Travel or Knee (Z)	415mm
Quill/Spindle stroke	125mm
Distance spindle to table	450mm
Throat (Spindle middle to Column)	215mm
Table height from base	260mm
Spindle Taper size and thread	R8 7/16 unf
Head tilt left to right and Head tilt front to back	90-90 (45-45 calibrated)
Drilling capacity	16mm
Milling capacity	20mm
Spindle Bearing type	Taper Roller
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 mins
CE approved Certificate	Yes, available upon request
Additional products
Optional stand	Included
Optional power feed	X axis included
Optional Digital Read Out Kit	8123 dro
X axis scale (left to right)	450mm
Y axis scale (forward to back)	200mm
Z axis scale (head)	450mm
Tee Nut size and no of slots	3 Slots, 8013 Clamp set 12mm
Machine/Stand Hole positions	A=465 B=325 C=130 D=125mm
