VMC Vario Turret Mill - R8

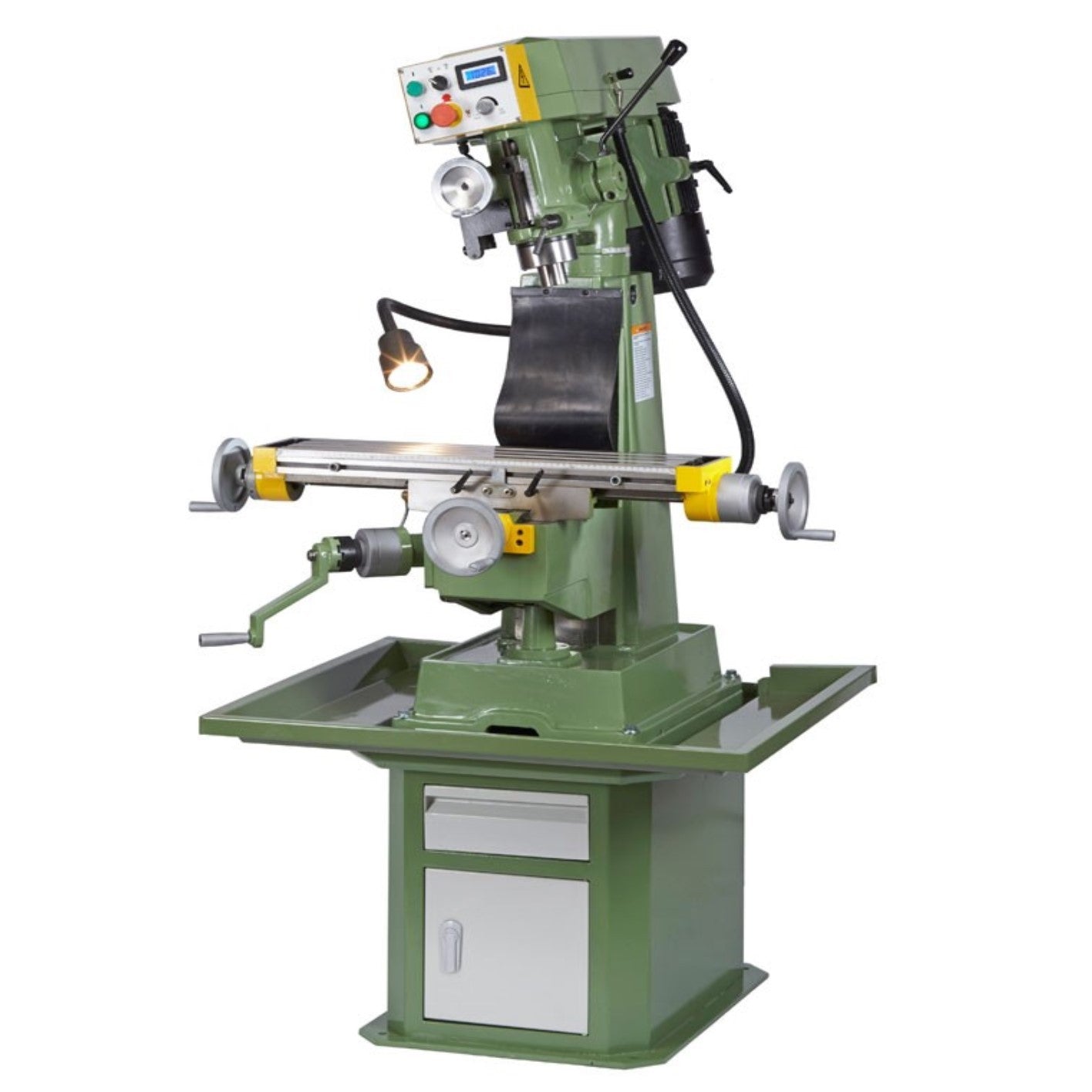

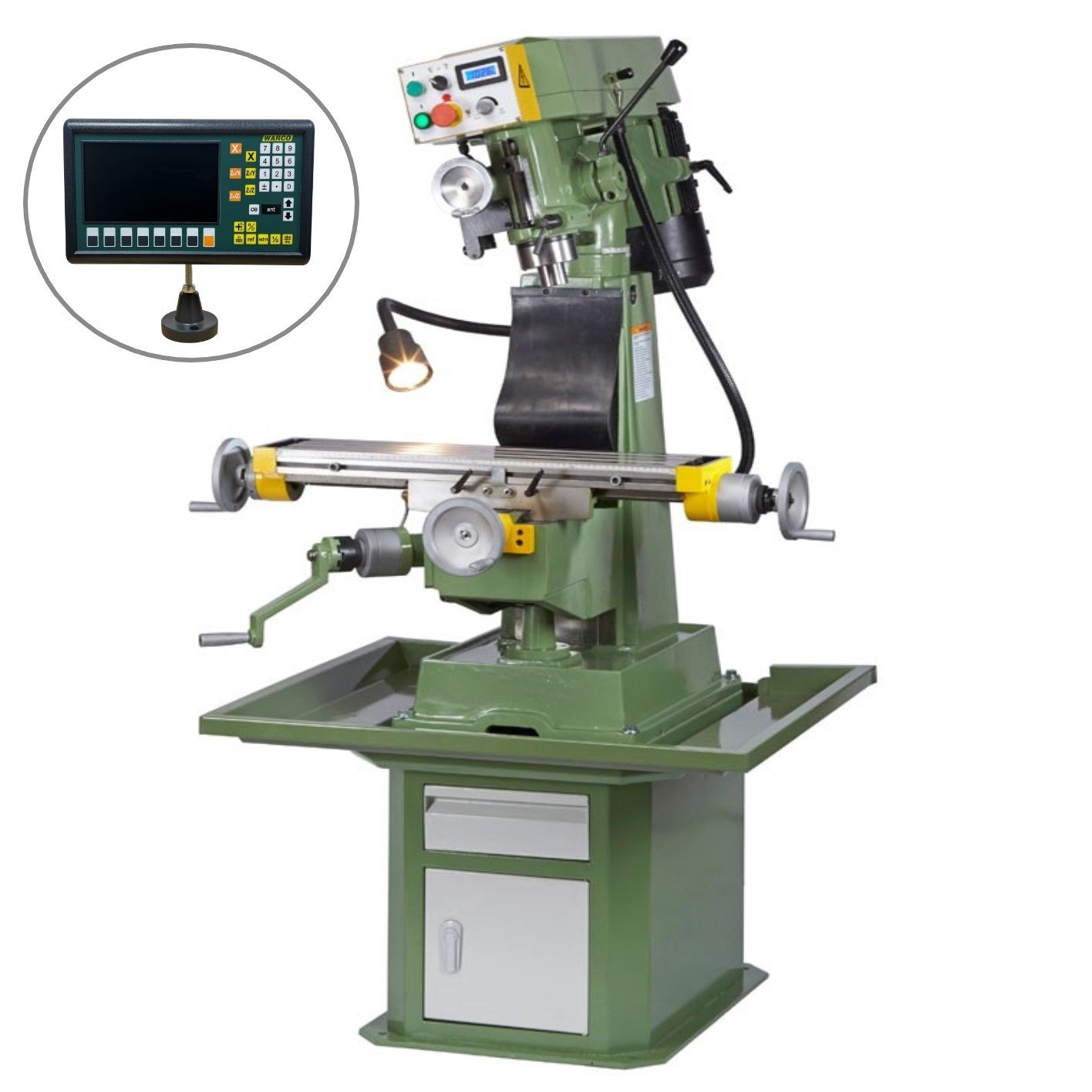

Warco VMC Vario Turret Milling Machine with Dro

Traditional design, all new inverter drive system

We introduced the original VMC more than forty years ago as a belt change machine. Now we are offering this upgraded version, with infinite speed control. A traditional design, now future-proofed with modern electronics.

The VMC has long had robust, heavy duty construction, giving dependable and highly precise long term performance. Now, the VMC Vario benefits from the maximum flexibility offered by the inverter drive, as well as an even more powerful 2 horse power motor.

To achieve maximum torque in the low speed range, there is one belt change of the US made Gates tooth belt, which transmits vibration free drive.

Features include:

• Head tilts left to right, calibrated to 45°
• 360° rotation on horizontal axis
• One shot lubrication system to slideways and leadscrews to ensure prolonged machine life
• R8 spindle taper
• Traditional design with elevating knee, supported on double dovetail vee ways to ensure positive alignment
• Metric leadscrews
• Tapered gibs to X, Y and Z axes
• Rack and pinion feed and calibrated fine feed to quill
• Locks to X, Y and Z axes
• Interlock belt guard
• Cabinet stand included
• Disengageable handwheels on longitudinal feeds
• Digital rev counter
• Powerful 1500w motor

Includes the following FREE accessories:

• LED low voltage lighting
• R8-3MT Reducer
• R8 B16 arbor and 1-13 keyless chuck
• Cabinet stand
• Drawbar
• Toolbox and maintenance tools
• Operation manual and spare parts list

The Warco VMC Vario

• This is an accurate, affordable milling machine, capable of intensive milling.
• Designed with the engineer in mind, each machine is truly built to last.
• Over the course of decades we've being supplying machines, we've built up a very comprehensive range of spare parts for all our machines including the VMC, should you ever need anything, as well as a large range of mill accessories and additional tools.
• Optional equipment includes wide coolant tray and power feeds.
• We've always prided ourselves on our after sales service - rest assured that you're in safe hands.
• Every milling machine we supply is fully checked and tested by a member of our qualified team, and is supplied with an individual accuracy test report.
• Fully guaranteed.
• Price includes UK mainland delivery.

Specification

	VMC Vario Milling Machine (Product code: 3001)
Product Dimensions:
Weight	415KG
width x Depth x Height	1075 X 940 X 1730mm
Stand only Width x Depth x Height	705 x 565 x 520mm
Base Width x Depth	400 x 560mm
Shipping Dimensions
Length x Width x Height	970 x 820 x 1800mm
Power/Motor
Motor size	1.5kw
Power Transfer (GH) gearbox or (VS) variable speed	VS
Voltage (240v single) (440v 3 Phase)	240V
Fitment (Plug connection type)	3 Pin Plug
Current	50hz 7.2A
Spindle speeds (No: and achievable speeds)	2 Speed, L =100-600 H =425-2500
Main Specifications
Table size	740 x 160 mm
Longitudinal travel (X)	360mm
Cross Table travel (Y)	135mm
Head Travel or Knee (Z)	310mm
Quill/Spindle stroke	85mm
Distance spindle to table	328mm
Throat (Spindle middle to Column)	168mm
Table height from base	440mm
Spindle Taper size and thread	R8 7/16 unf
Head tilt left to right and Head tilt front to back	90-90 (45-45 calibrated) & 45-45 ROTATION
Drilling capacity	16mm
Milling capacity	20mm
Spindle Bearing type	Taper Roller
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 mins
CE approved Certificate	Yes, available upon request
Additional products
Optional stand	Included
Optional power feed	3205A
Optional Digital Read Out Kit	8123 DRO
X axis scale (left to right)	400mm
Y axis scale (forward to back)	200mm
Z axis scale (head)	400mm
Tee Nut size and no of slots	3 Slots, 8013 Clamp set 12mm
Machine/Stand Hole positions	A=530 B=375 C=100 D=90mm
