Warco’s first ever CNC machine gives versatility to both the home user and education, making production of complex shapes easier than ever.

New Version out now.

Differences from this model are

1. Increased guard height with clear perspex interlocked doors

2. DDCS expert control, allowing editing, tool library and tool data handling, better visual control and positional data

3. optional plug in 4th axis rotary table cnc controlled 6318axis4

4. optional tool heigh setting probe, Set tool lengths 6318pr

Post processors are available within many CAM softwares including the list below, choose output as mach3/4 (Arcsoft)

It is the responsibility of the user to make sure these files generate code that is compliant with their machines. Warco does not guarantee these files are appropriate for any machine.

• Lazycam
• Autodesk Fusion 360
• SolidCam
• Mastercam
• RhinoCAM
• SharpCam

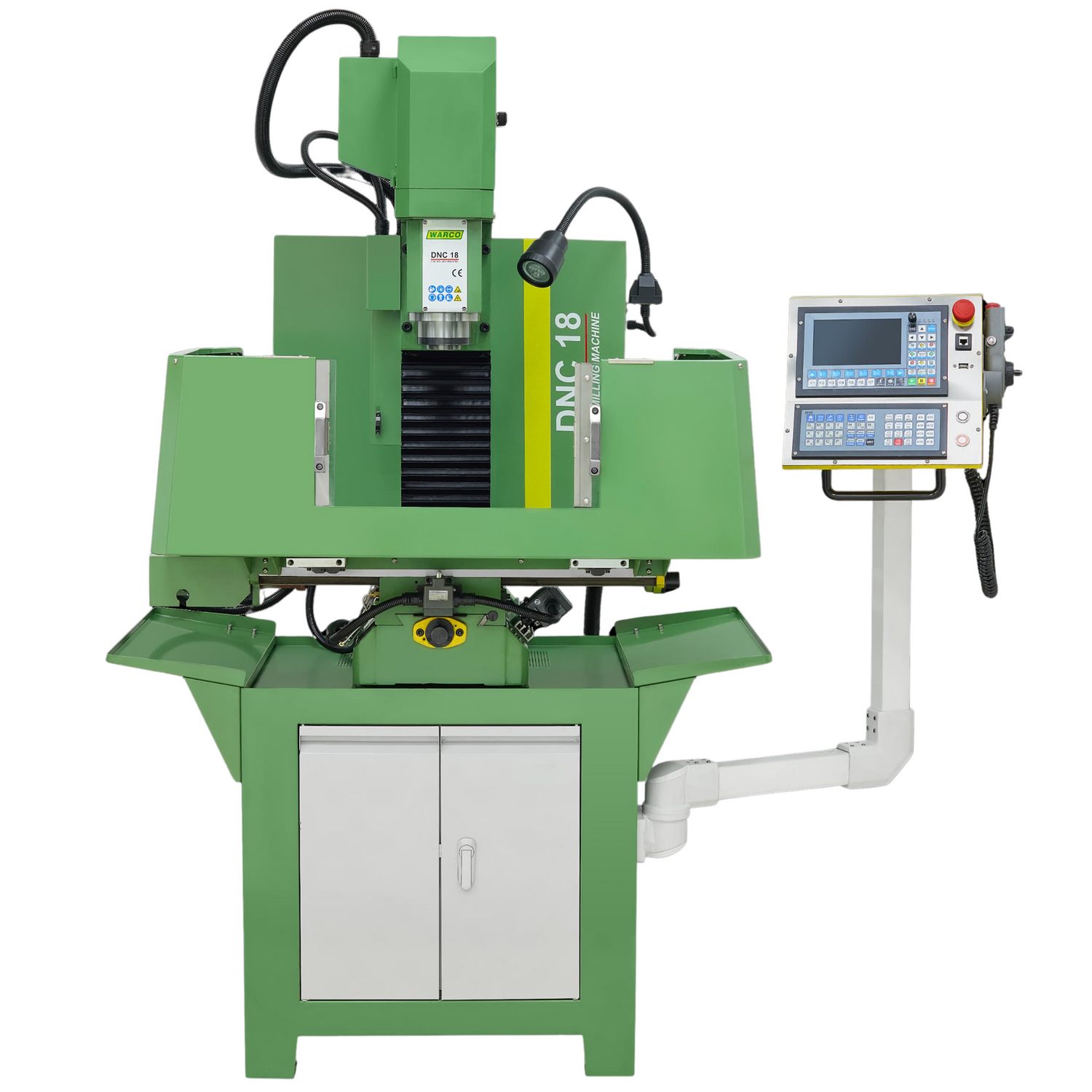

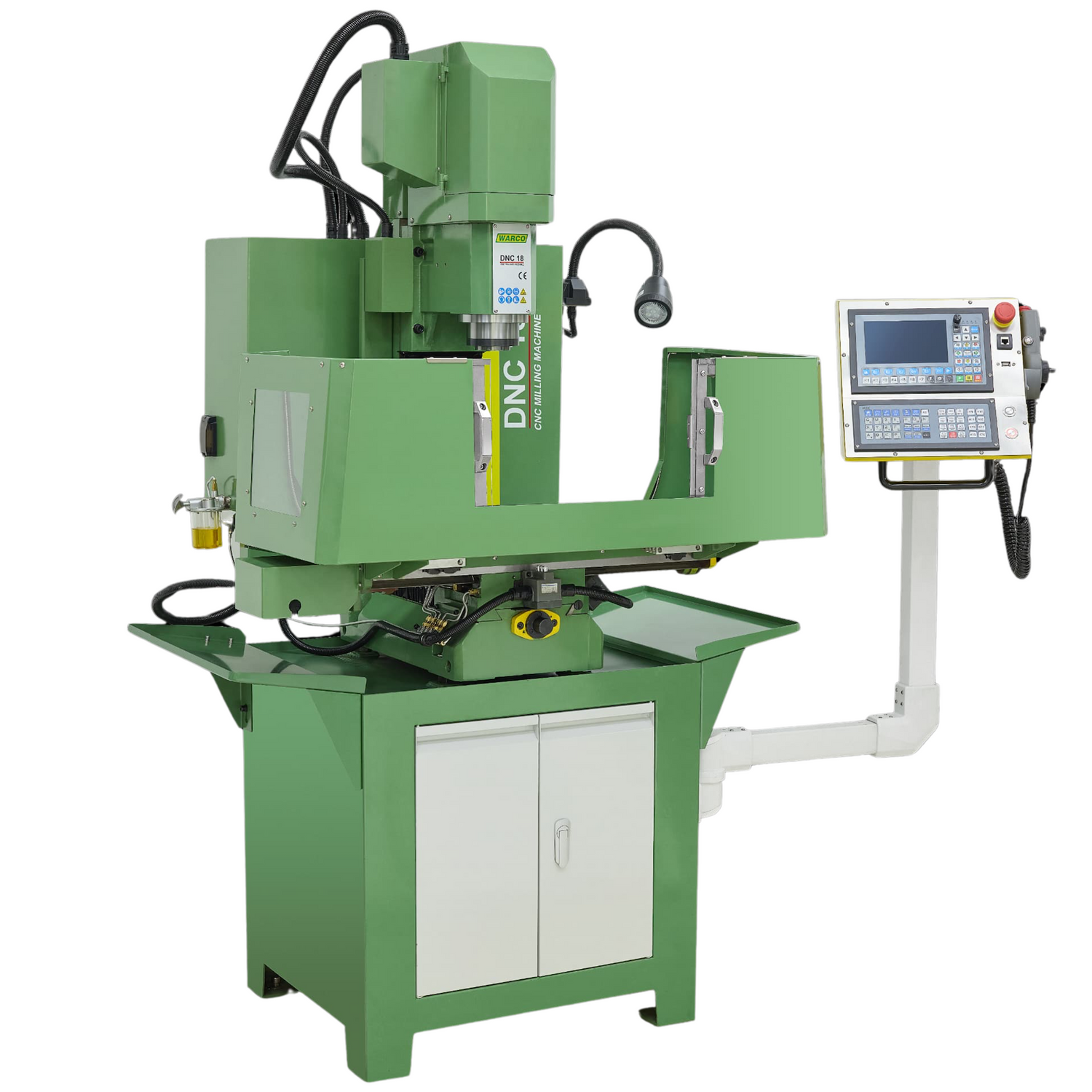

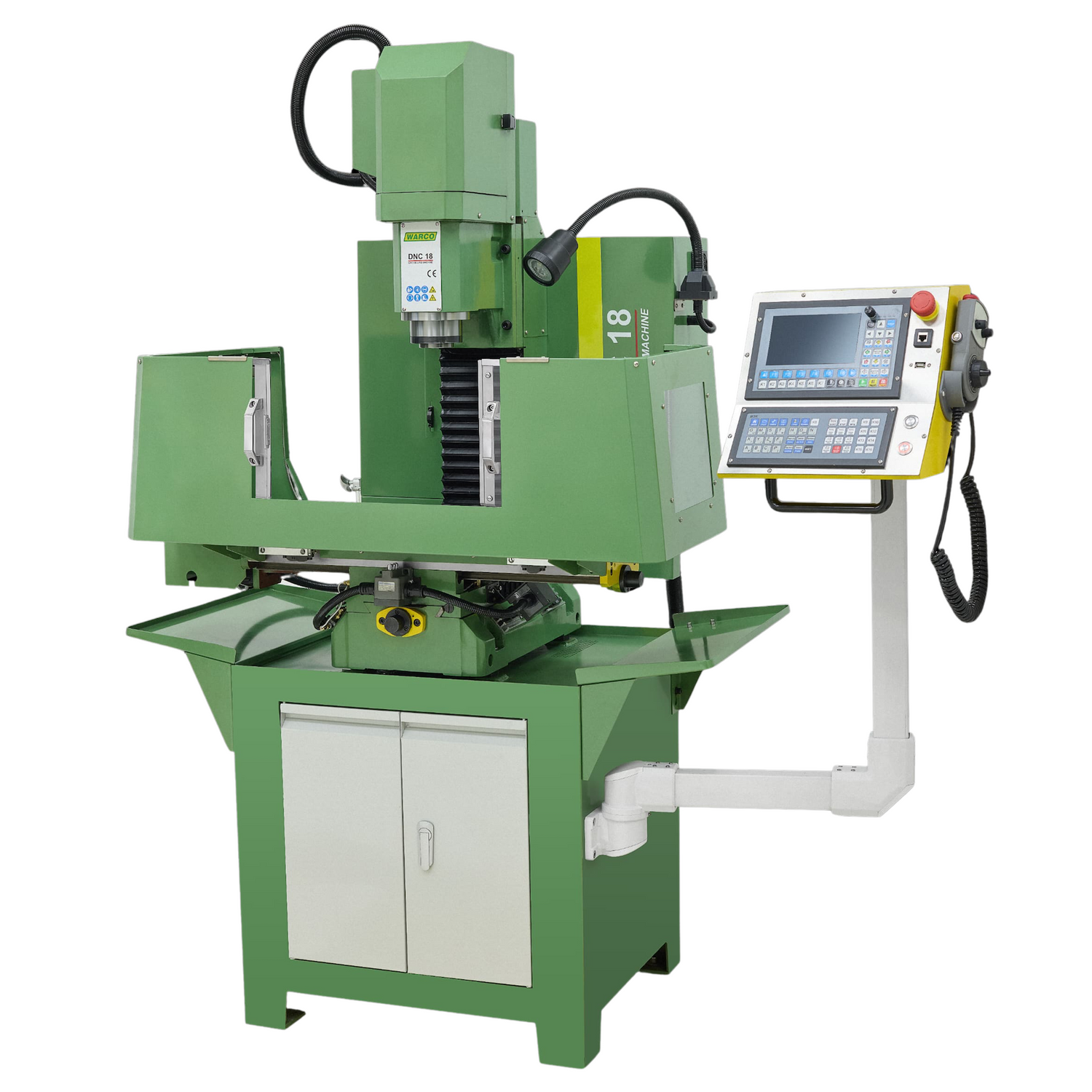

The Warco DNC18 CNC mill features a compact design suitable for small workshops and training with the simple to use DDCS V3. 1 control system. It can be programmed in iso gcode language, postprocessors from cam software using an output as Mach3 or Mach4 (Mach 3 or 4 software not supplied). Mach3-4 is not a requirement but useful to prove programs and edit.

MACH 3 SOFTWARE FROM THIS SUPPLIER

• 1.9kw powerful spindle servo motor and X/Y/Z-axis servo motors drive X/Y/Z-axis ball leadscrews
• Central lubrication for guide ways and ball screws
• Stable cast frame in rigid bed and column construction
• X/Y-axis manual operation is available on handwheels
• Work table cover with Interlock for safety as standard

Standard accessories

• Control panel
• Central lubrication
• Work table cover
• LED work lamp
• Tools and toolbox

Optional Extras

• Stand & oil tray for stand (Click here)

• coolant systems

Machine: DNC-18	6318
Product Dimensions:
Weight	300KG
Width x Depth x Heigh	1210 x 900 x 1720mm
Shipping Dimensions
Length x Width x Height	1300 x 920 x 1870mm
Power/Motor
Motor size	1.9kw
XYZ Server motors	0.75/0.75/1.0kw
Power Transfer (GH) gearbox or (VS) variable speed	VS/CNC
Voltage (240v single) (440v 3 Phase)	240V
Fitment (Plug connection type)	3Pin Plug
Current	3Kva
Spindle speeds (No: and achievable speeds)	0-4500 Rpm
Main Specifications
Table size	700 x 180mm
Longitudinal travel (X)	520mm
Cross Table travel (Y)	200mm
Head Travel or Knee (Z)	290mm
Quill/Spindle stroke	n/a
Distance spindle to table	210mm
Throat (Spindle middle to Column)	340mm
Spindle Taper size and thread	R8
Head tilt left to right and Head tilt front to back	n/a
Feeds Rapid	3000mm/min
Milling Feeds	2000mm/min
Other Specifications
Control system	DDC3 V3.1 (mach 3)
Country of origin	China
Warranty	12 Months
Additional products
Optional stand	Yes 6318ST
Optional power feed	no
Tee slot size and no of slots NO OF SLOTS	8013 12MM
