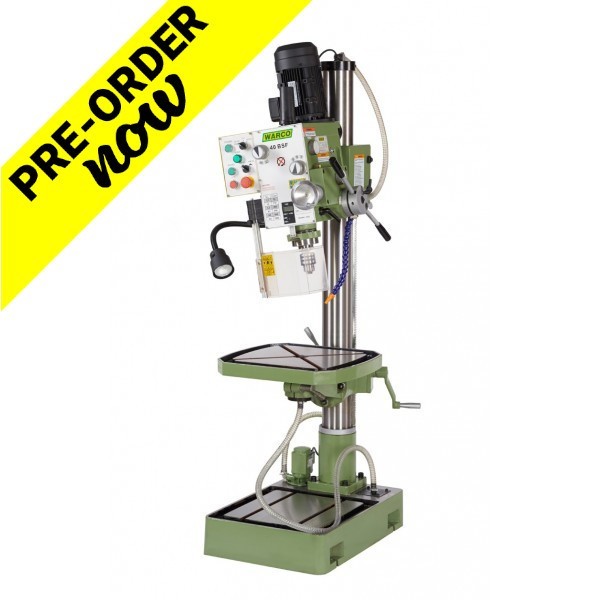

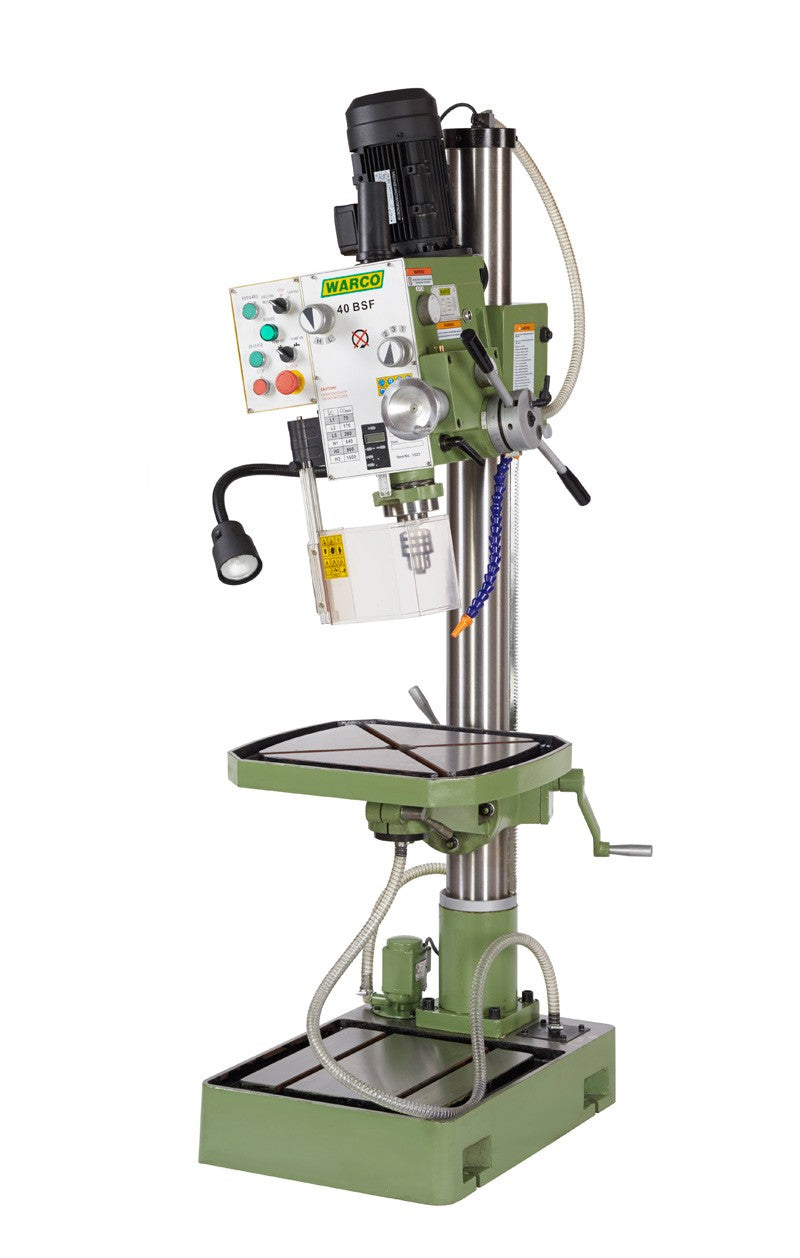

40 BSF Drilling Machine Pillar Drill (240V)

Heavy duty industrial quality 40 BSF drilling machine.

• With 4MT hardened spindle.
• Exceptionally quiet gearbox.
• Head rotates 360° in vertical plane
• Head tilts 45°- 0° - 45°

Features include

• Powered spindle feed with depth setting and auto return.
• Interlock chuck guard
• Coolant system (capacity 8 litres)
• Halogen low voltage lighting
• Tapping feature

Available in either single or three phase:

• 1 phase 240v (Item No. 1023A)
• 3 phase 440v (Item No. 1023)

Full Specification

	40BSF FLOOR DRILL (Product codes: 1023/1023A)
Product Dimensions:
Weight	350kg
Width x Depth x Height	600 x 807 x 2038mm
Base Width x depth	470 x 667mm
Shipping Dimensions
Length x Width x Height	725 x 755 x 1930mm
Package Type (Pallet or box)	PALLET
Power/Motor
Motor size	1.5KW
Drive (GH) gearbox (VS) variable speed or (B) Belt	GH
Voltage (240v single) (440v 3 Phase)	240v Single or 440v 3 phase
Fitment (Plug connection type)	3 pin plug or 4 wire
Spindle Bearing type	Radial ball Bearing

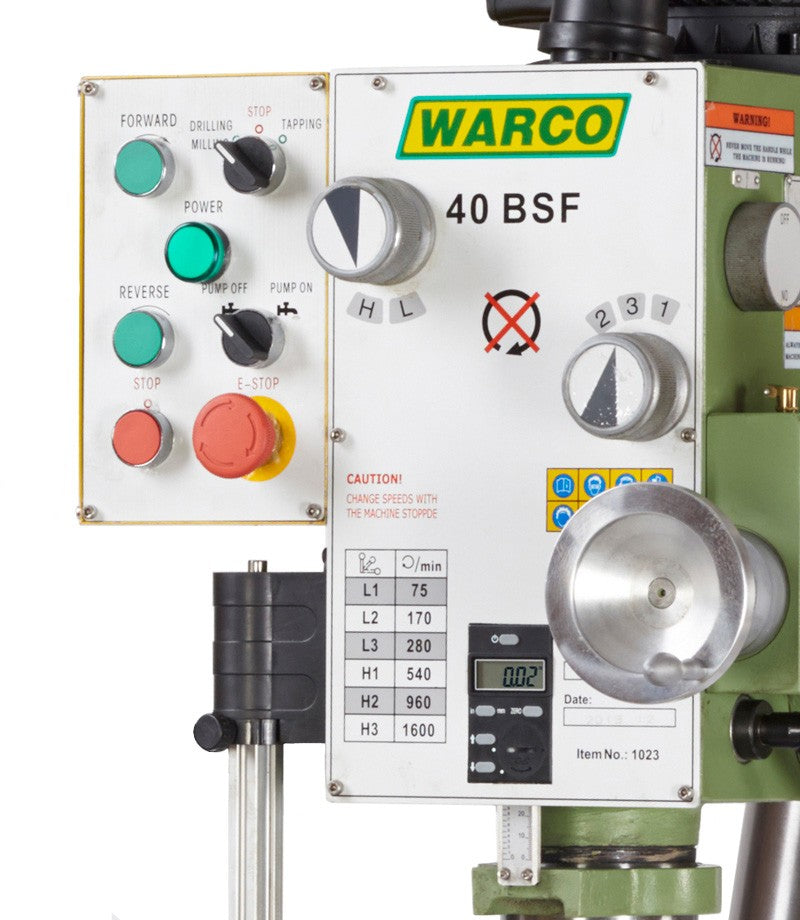

Spindle speeds (No: and achievable speeds)	6 Speed 75,170, 280, 540, 960, 1600 RPM
Main Specifications
Type (Bench top or floor)	Floor
Table size (Length x Width x Thickness)	500 x 460 x 45mm
Table Travel Vertical	665mm
Maximum size spindle to Table	775mm
Maximum size spindle to Base	1220mm
Throat (Spindle middle to Column face)	300mm
Column diameter	115mm
Spindle Taper size	4MT M14 thread
Head tilt left to right	45°- 0° - 45°
Table tilt	60°- 0° - 60°
Drill chuck capacity and recommended max drill	13mm & 40mm
Quill diameter	75mm
Quill/Spindle stroke	120mm
Features
Laser centre?	N
Work light?	Y
Digital speed counter?	N
Depth stop?	Y
Safety interlock guard?	Y
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 mins
CE approved Certificate	CE CERT NO.3
Tee slot size and no of slots (A-B-C-D) no: of slots	A=14 B=25 C=13 D=11mm 4 slots
