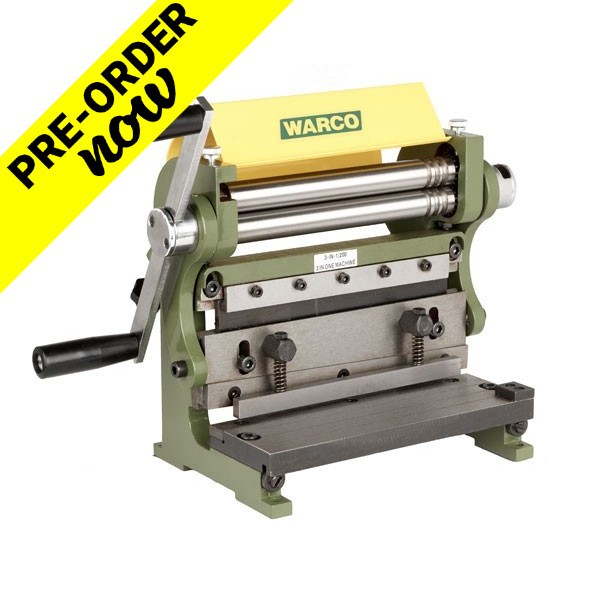

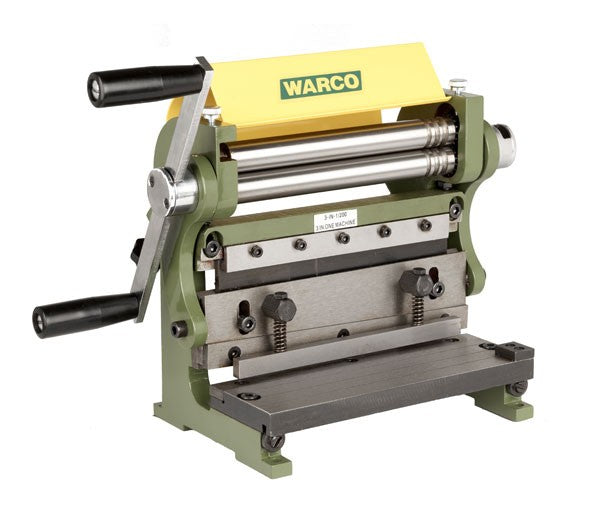

8" (200mm) Formit - Universal Sheet Metal Machine

Warco Mini Formit - Universal Sheet Metal Machine

Now one of our best selling sheet metal machines.

With all the features associated with larger sheet metal equipment in a very compact size.

This machine functions as a guillotine, roller and bender.

Ideal for bending cutting or rolling aluminium, copper, brass and mild steel.

Features

• 3 rolls including rear pinch roll and top slip out roll.

• Segmented press brake tooling for box and pan folding up to 90°.

• Hardened and ground reversible shear blade.

• Front squaring arm and rear back stop.

• Operating handle can be left or right side.

• With adjustable back stop.

Specification

Max. material width	200mm / 8"
Max. shearing capacity (thickness) for mild steel *	1mm / 20swg
Max. sharing capacity (thickness) for aluminium, soft brass, copper *	1.2mm / 18swg
Max. bending capacity	1mm
Bending angle	90°
Min. rolling diameter	29mm
Dimensions L x W x H (Excluding handle grips)	320 x 200 x 250mm
Weight	17.5kg

* Not suitable for stainless steel. Using stainless steel or exceeding the maximum recommended material thickness will invalidate your warranty

Price includes VAT at 20% and mainland UK delivery.

Also available

• Warco Formits in a range of larger sizes
