Box and Pan Folder - 40"

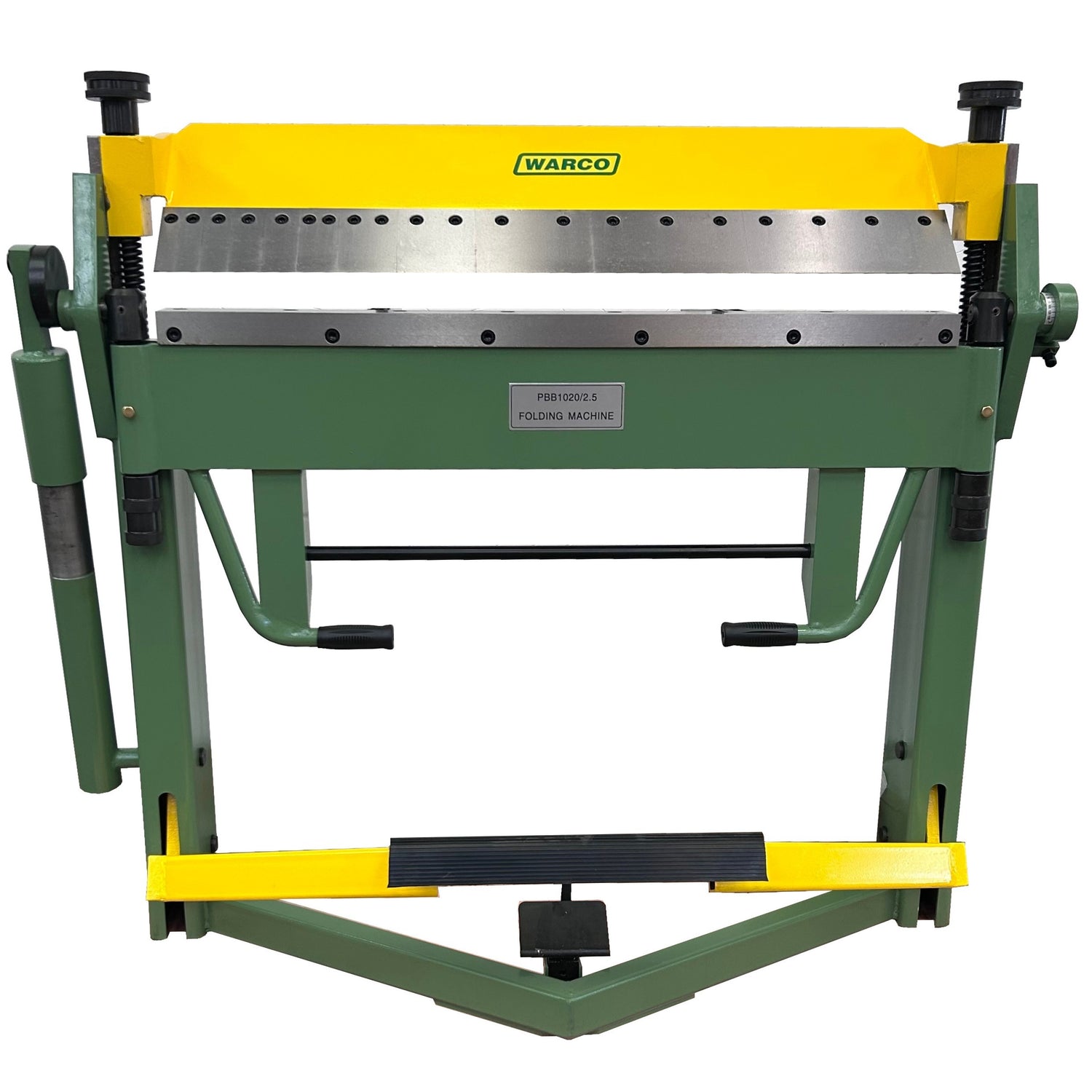

40" Box and Pan Folder - Sheet Metal Machine

High capacity sheet metal fabrication machine.

Features include

• Foot operated hold down.

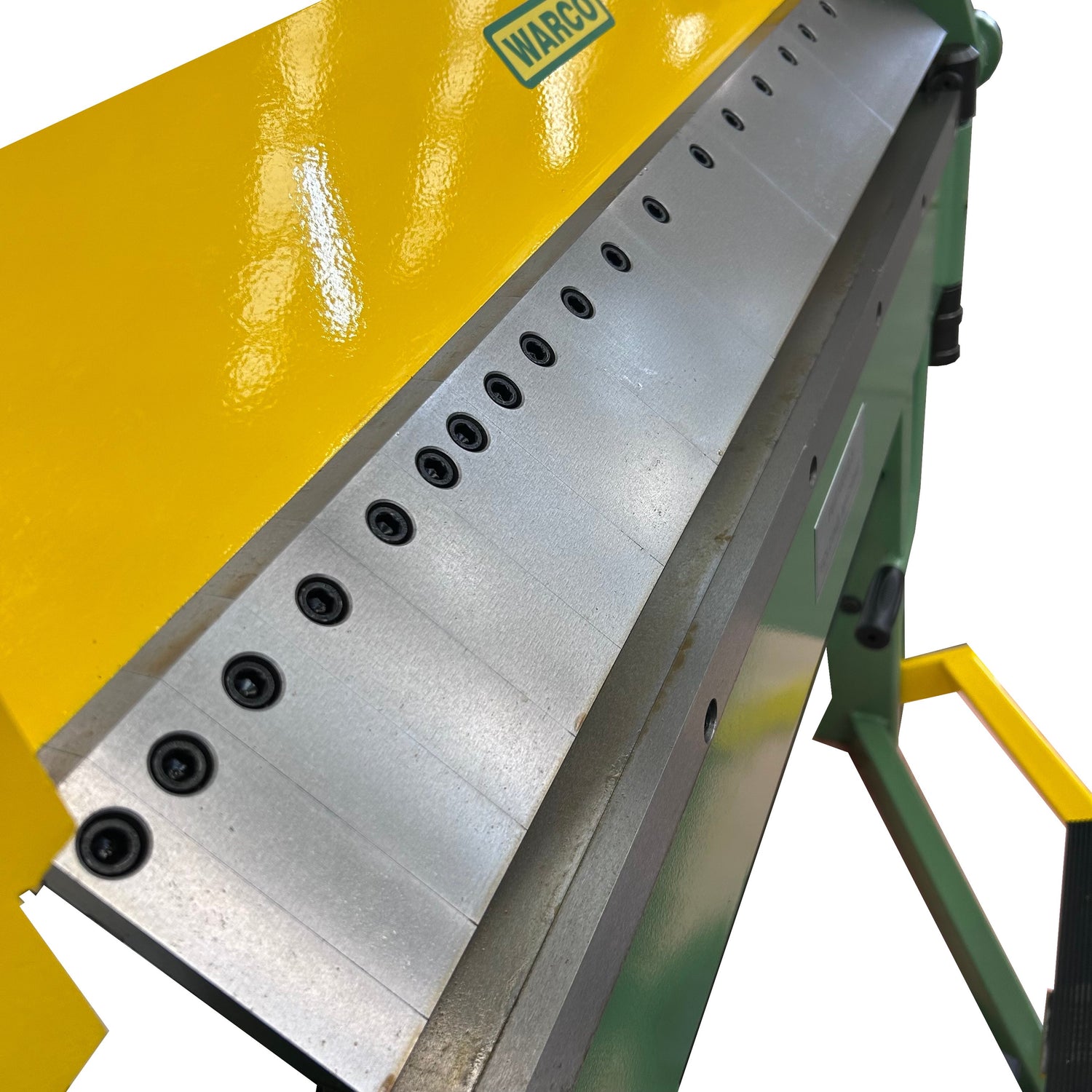

• Segmented top blade.

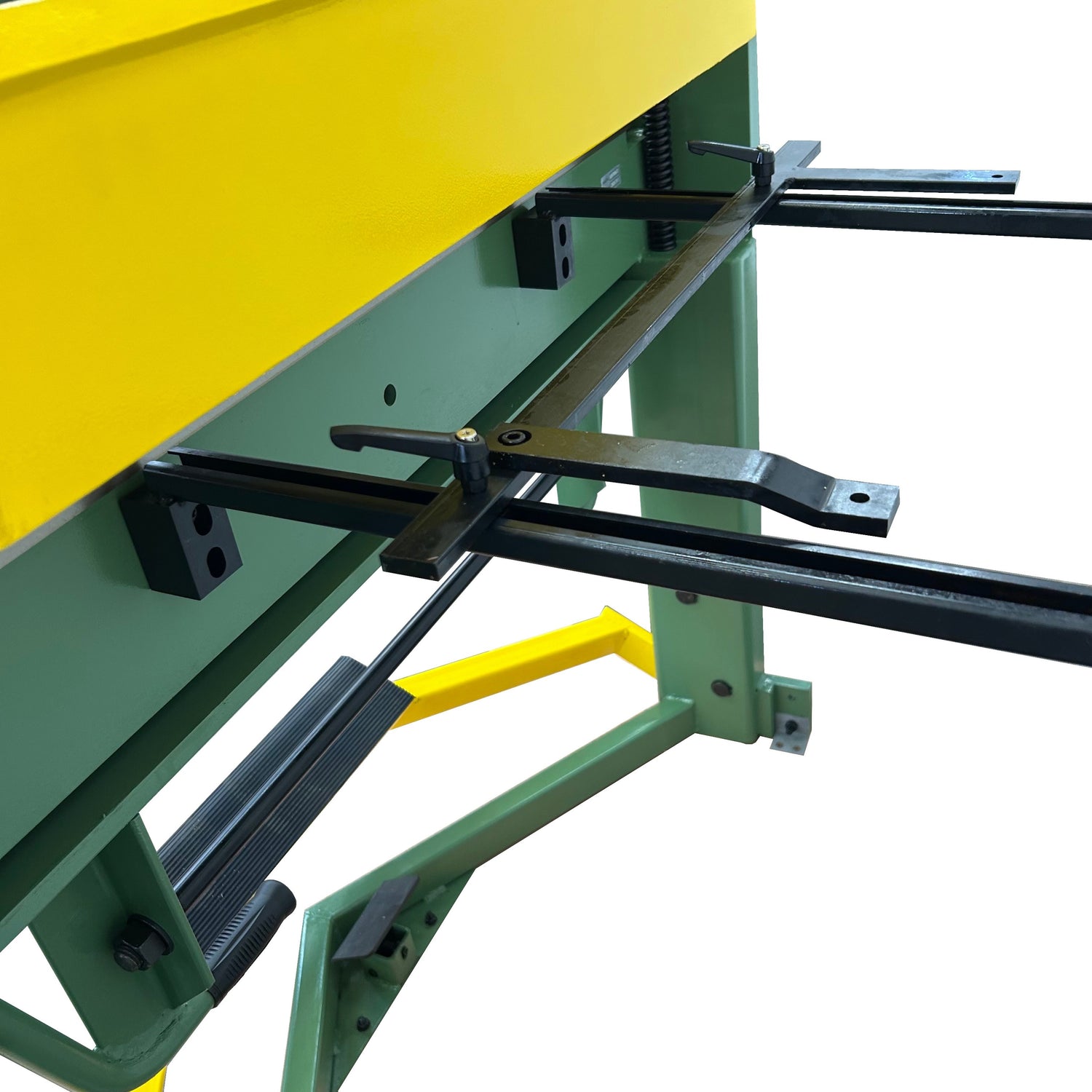

• Adjustable back stop.

• Angle gauge, settable angle stop, set to angle, move to stop.

• Compact dimensions.

• Folds metal from 0° up to 135°.

Capacity in mild steel

• Length - 1020mm

• Thickness - 2mm

• Maximum bending angle - 135°

Size of fingers (11 of)

• 25 / 30 / 35 / 40 / 45 / 50 / 75 / 100 / 150 / 200 / 270mm

Dimensions & weight

• Length - 1350mm

• Width - 1115mm

• Height - 1140mm

• Weight - 290kg
