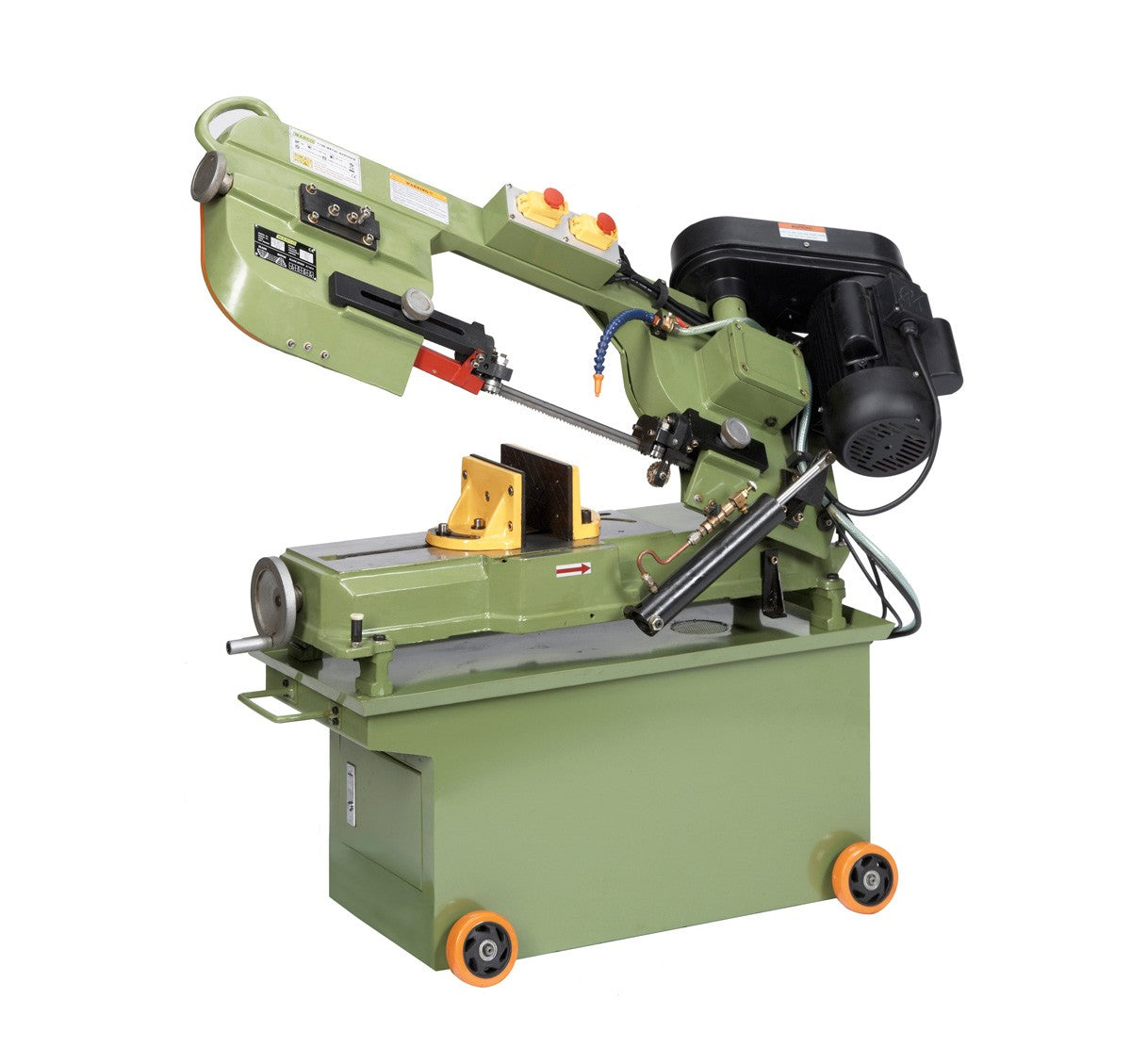

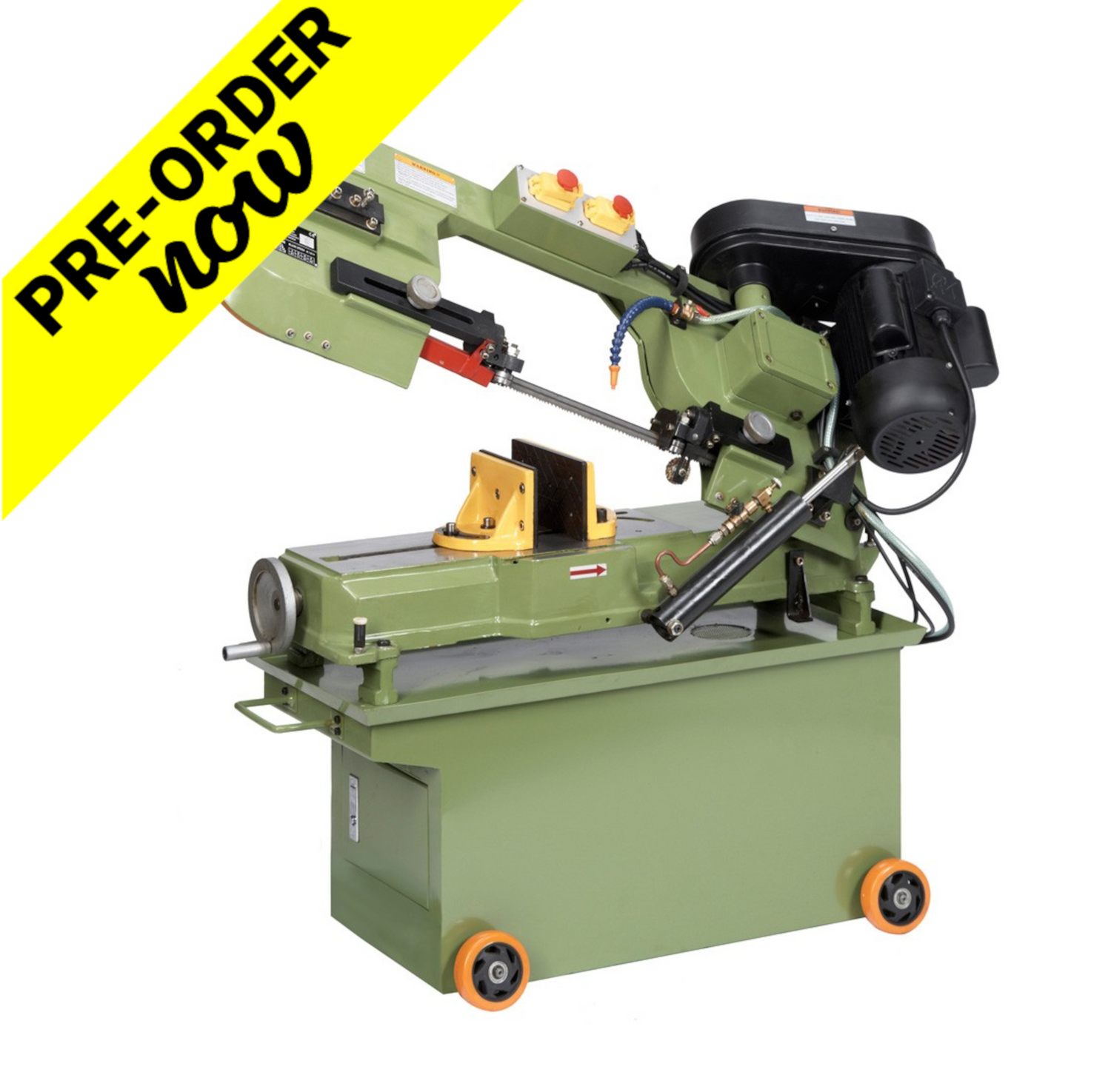

712B Bandsaw

712B Metal Cutting Bandsaw

Top quality metal cutting bandsaw.

Robust construction throughout,  for long term reliable use.

Ideal for the classroom and workshop alike.

Features include

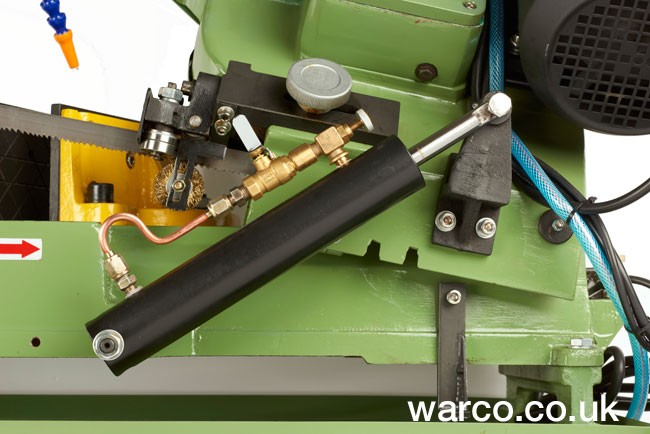

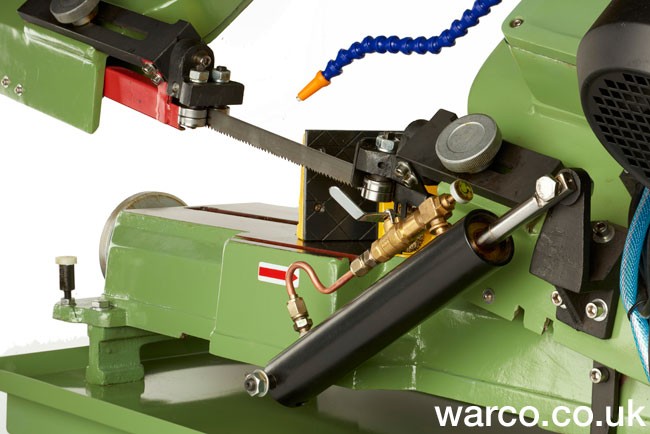

• Hydraulic feed - fully controllable, allows infinite descent rates.

• Coolant system.

• Three sealed bearings ensure accurate blade alignment.

• Wire brush ensures blade remains swarf free.

• Four blade speeds.

• Coolant system.

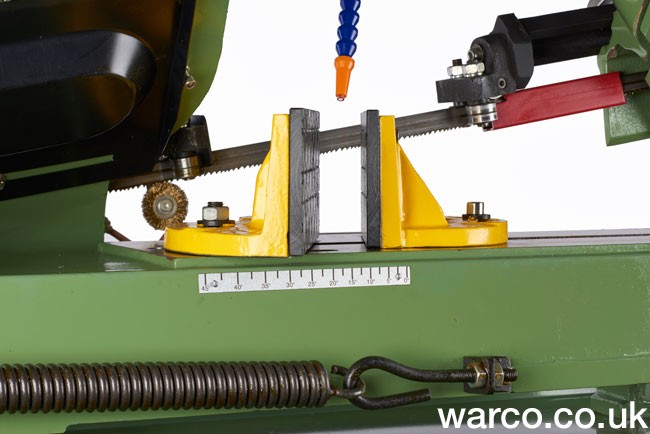

• Mitre vice enables angle cutting - up to 90°.

• Worm gear drive - hardened and ground gears.

• Wheel mounted for easy maneuverability.

• Supplied with 10 tpi flexible carbon general purpose blade (additional types available separately).

Specification

Item No.	6003
Cutting capacity 90°  O	180mm
Cutting capacity 90°  ▀	180 x 300mm
Cutting capacity 45°  O	110mm
Cutting capacity 45°  ▀	110 x 180mm
Blade speeds	34 / 41 / 59 / 98 m/min
Drive	Vee belt
Transmission	Sealed hardened ground worm gear
Hydraulic system capacity	9 litres
Blade size	2360 x 19mm
Motor	750w
Power	240v  (1 phase)
Dimensions L x W x H	1060 x 444 x 930mm
Floor to bed height (inc wheels)	560mm
Weight	145kg

Price includes VAT and mainland UK delivery.

Buy with confidence - we are now almost in our 5th decade of supplying quality machine tools for metalworking to industry and education.
