Digital Readout DRO Scales - Glass Optical Heavy Duty - DC10 - 550mm

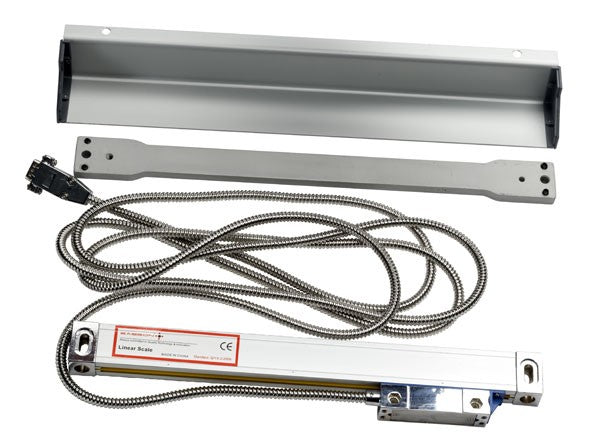

Heavy Duty Industrial Glass Optical DRO Scales

Fantastic quality glass optical scales digital readout scales.

The slide carrier of this series of scales uses a five bearing design for the optical grating linear transducer which has been proven as the most reliable system design in today's market.

• Ideally suited to the professional machinist.

• Highly precise.

• Fully coolant / swarf / water proof.

• Heavy duty industrial design, for medium to large sized lathes and milling machines.

• The glass grating slideways are lapped and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.

Designed to work in conjunction with:

• Warco DRO counters - 2 Axis / 3 Axis (Item No. 5102 / 5101)

• Other DRO counters including Easson branded type.

Wide variety of machine applications for these scales - both lathes and milling machines of all sizes. Range available runs from 100mm to 1500mm.

Sizes guide

Scale travel	Item No.
100mm	3409D
150mm	3407D
300mm	3421D
500mm	3411D
550mm	3400D
900mm	3417D
1000mm	3414D
1500mm	3415D

Notes

• For overall length of the scales, add 133mm to travel (measurement in the table above refers to scale travel - or measuring length).
• Scales are supplied for self fitting if bought online.
• These scales have a slightly larger section compared to the regular Warco DRO scales, so are more suited to larger machines.
• For small to medium sized lathes or mills, find narrow section alternative scales here.
• If you need advice about which size scale would be best for your Warco machine, get in touch.
• We are always happy to provide a price for DRO installation - please feel free to contact us for more details.
