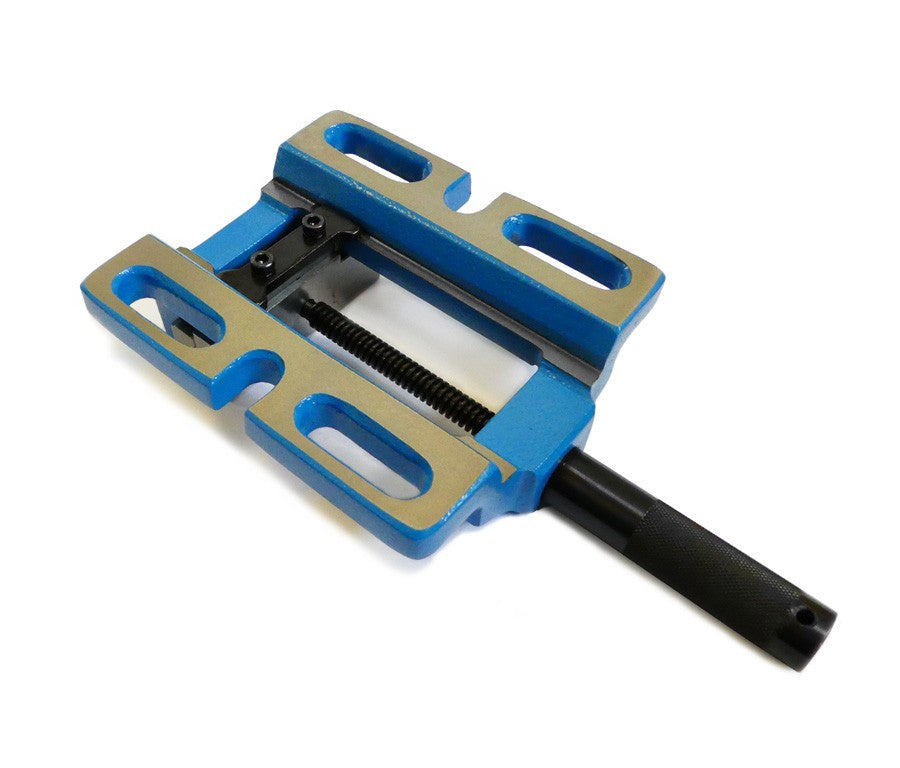

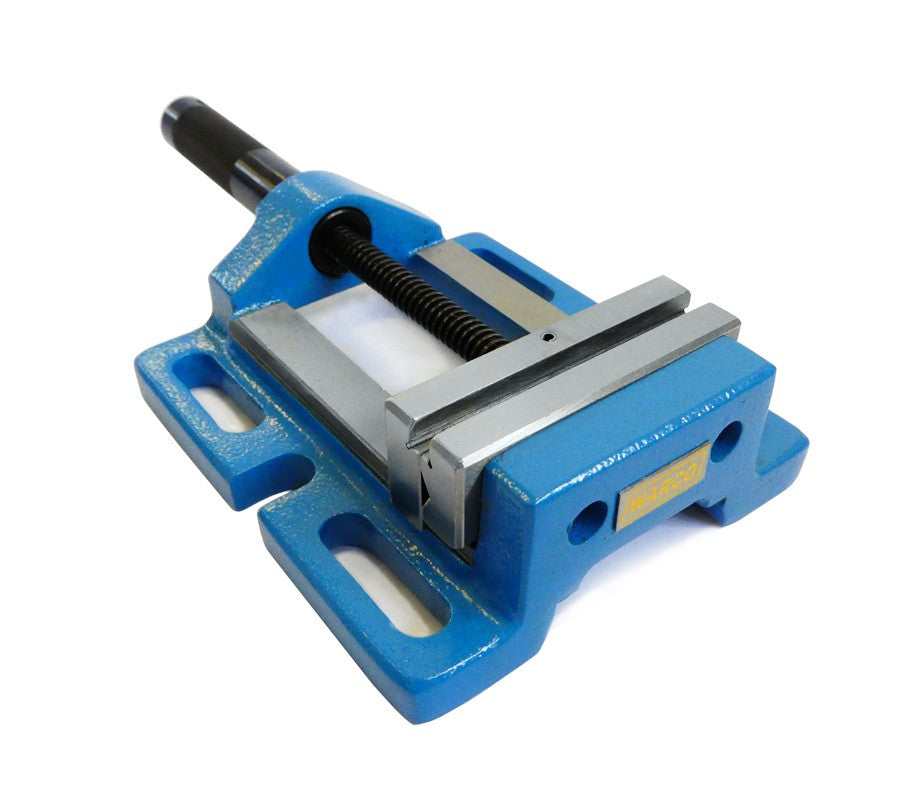

Drill Vice - 100mm

Drilling Machine Vices

High quality drill vice, very robust construction throughout.

• Manufactured from high grade cast iron.

• Jaws hardened and ground.

• Long mounting slots.

• Fixed jaw with vertical and horizontal vee.

• Both jaws have rebates.

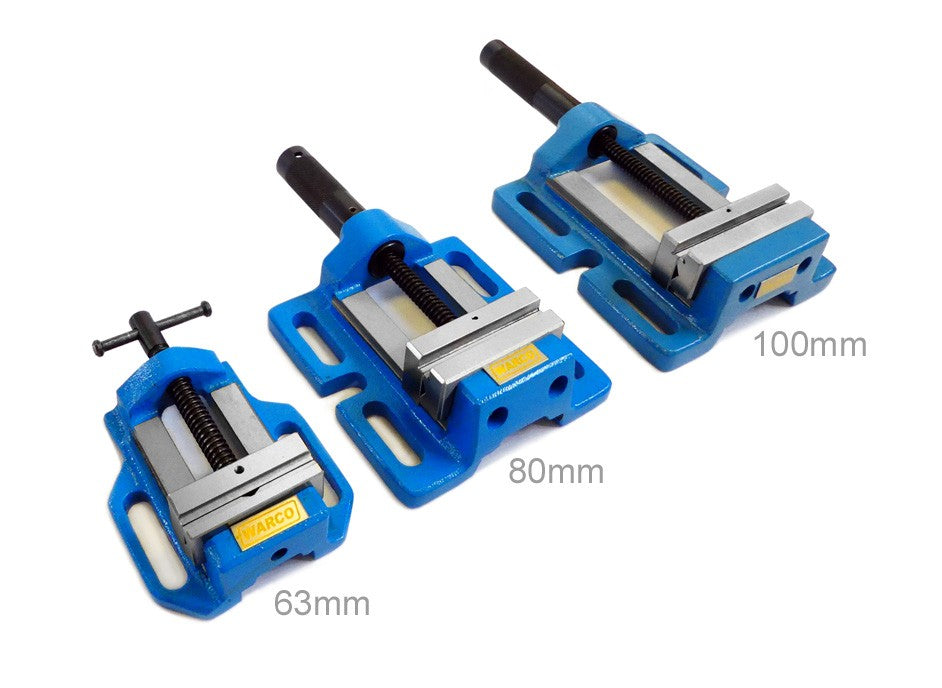

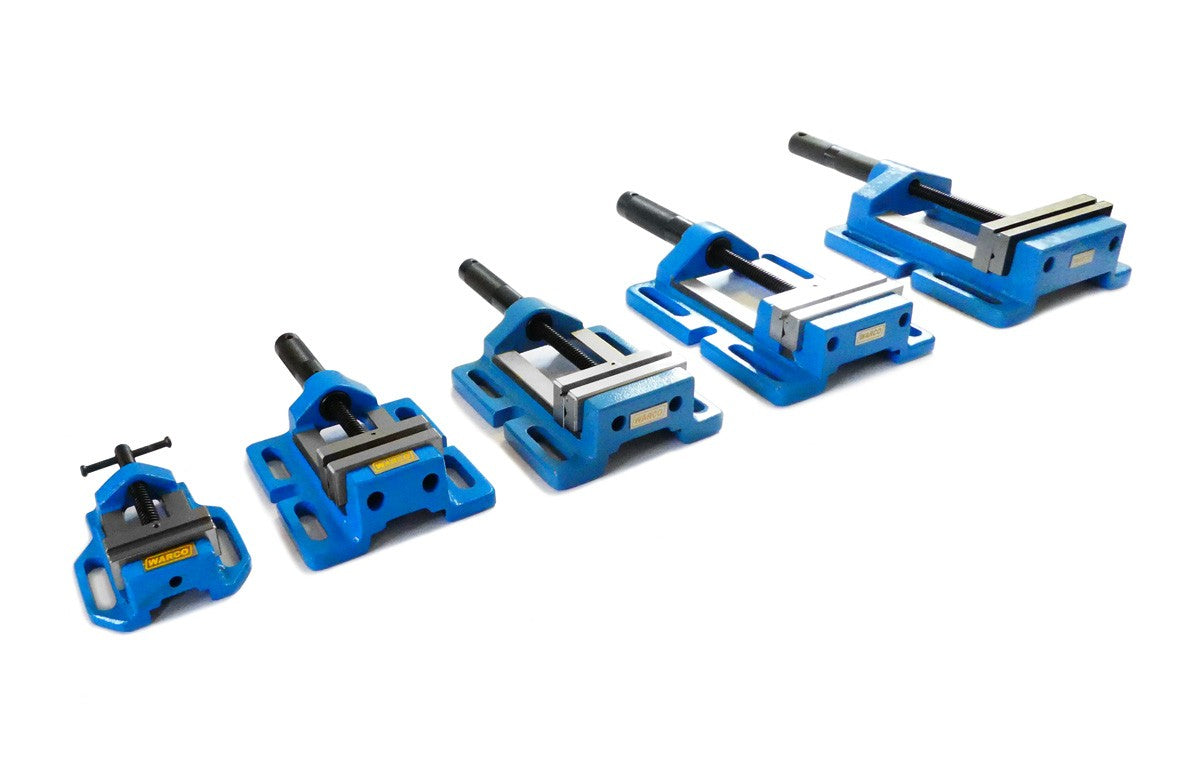

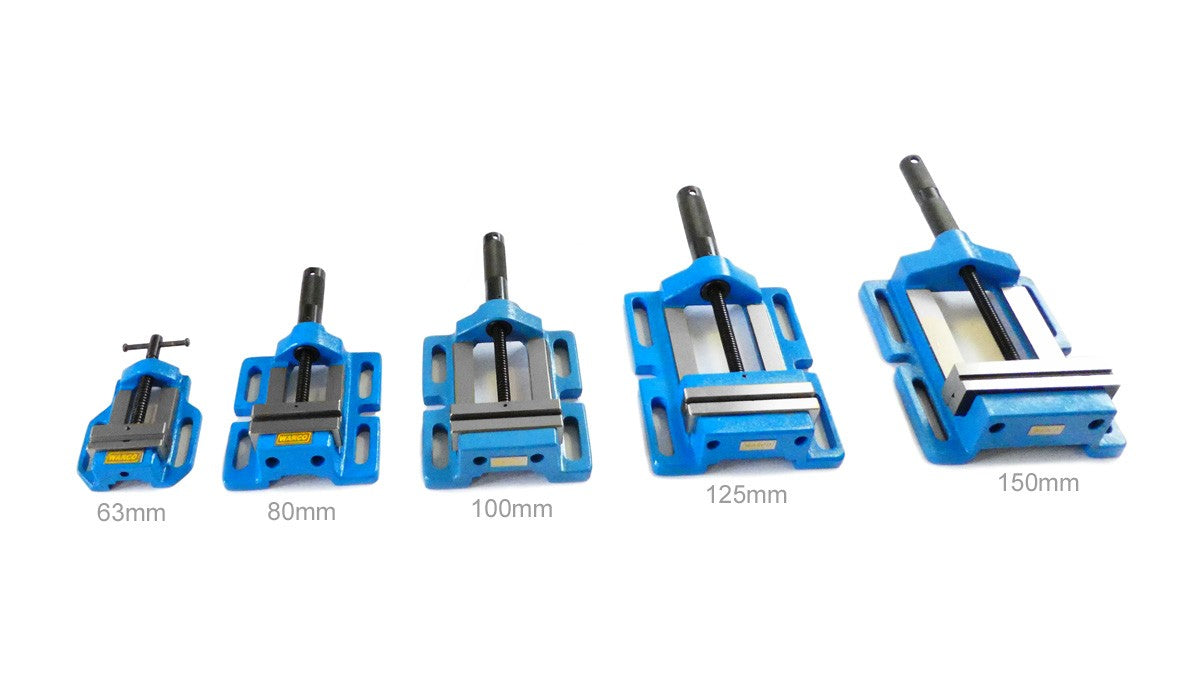

Available in a range of sizes to suit different sized drilling machines

Vice details

Item No.	9056.80	9056.100	9056.125
Jaw width	75mm	100mm	125mm
Jaw height	30mm	30mm	35mm
Jaw opening	80mm	100mm	110mm
Height	52mm	60mm	65mm
Width	145mm	170mm	180mm
Length open	230mm	280mm	345mm
Length closed	230mm	280mm	345mm
Hole Pitch	105mm	120mm	160mm
Weight	3.66kg	6.08kg	9.90kg

Please note

For mounting a vice to a drill table, fixing bolts & tee nuts are necessary  - these are sold separately.

We have a range of specially made fixing kits to suit all Warco drills. Full details below.

Vice & fixing kit guide for Warco drilling machines

Drill	Vice Item No.	Fixing kit (sold separately)
Hobby	9056.80	9548
2B5 / 2B12 / 2F	9056.125	9599
DT 16	9056.125	9599.16

Fixing kit notes

• These sets are specially designed to be directly compatible with the vice & matching drilling machine.

• Enable the vice to be securely mounted to the drill's table slots.

• Sold separately.

• Choice of kit available for all current Warco drills.

• See above table for a guide to vice and fixing kit compatibility.

• Fixing kit numbers in the table above are clickable links to the relevant product page.
