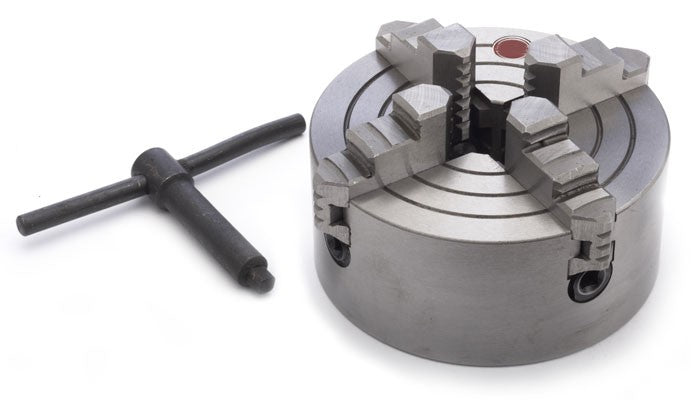

4 Jaw Independent Chuck & Reversible Jaws - 80mm Chuck

4 Jaw Independent Lathe Chucks with Reversible Jaws

Exceptionally high quality 4 jaw lathe chucks.

• Very well engineered throughout.

• Produced to DIN 6350 standard.

• With recess for back plate mounting.

• Complete with reversible jaws.

• Chuck key included

Sizes available

• 80mm (Item No. 8043)

• 100mm (Item No. 8044)

• 125mm (Item No. 8045)

• 160mm (Item No. 8046)

Dimensions

Table 1

Item No.	Dia (mm)	D1 (mm)	D2 (mm)	D3 (mm)	H (mm)	H1 (mm)
8043	80	55	66	22	58	42
8044	100	72	84	25	77	54
8045	125	95	108	30	78	56
8046	160	130	95	45	96.5	65

Table 2

Item No.	h (mm)	z-d	Weight (kg)	A-A1 (mm)	B-B1 (mm)
8043	3.5	4-M6	2	5-35	35-80
8044	4	4-M8	3.2	6-45	40-100
8045	4.5	4-M8	5	7-57	48-125
8046	5	4-M10	5.8	8-80	50-160
