SKU: 3222

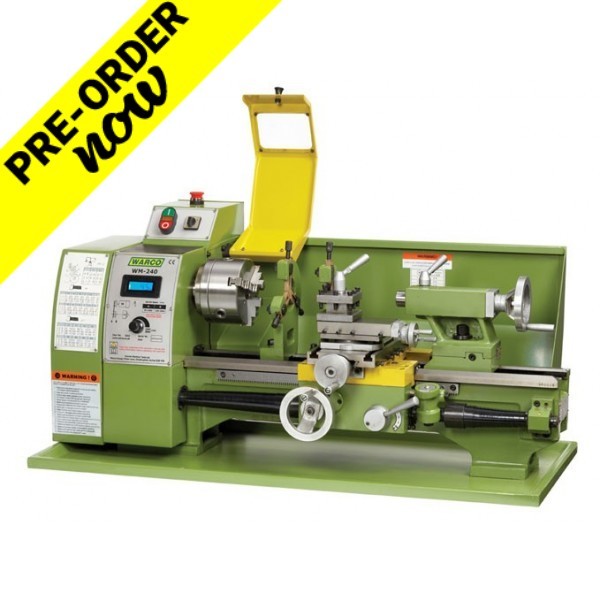

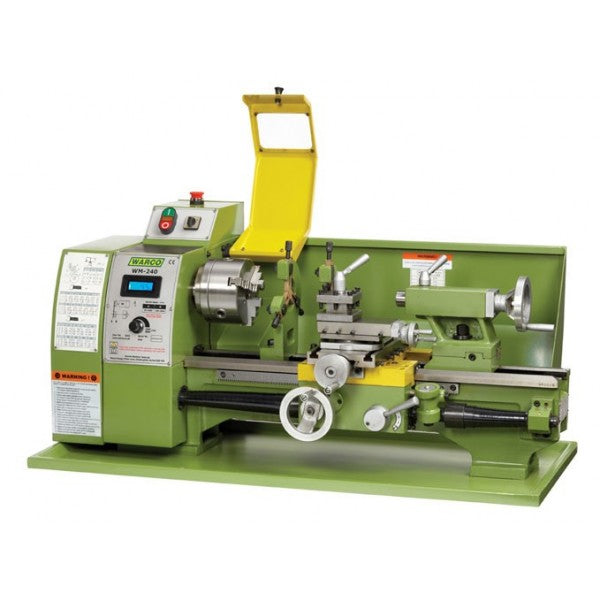

WM 240 Lathe Variable Speed

Regular price £2,095.00

Incl. VAT

Highly accurate, variable speed lathe
Bright & easy-to-read rev counter
Powerful brushless motor
Includes FREE Accessories
Tested for Accuracy - Report Supplied
Excellent Spare-Parts Availability
12-Month Warranty
Fast & FREE DELIVERY to UK mainland
Questions & Support on Tel: 01428 682929


Business/Education customer? Set up a free profile to build a quote

Contact our Technical Customer Support with any questions:

Description

Designed with reliable, long term performance in mind, this popular heavy-duty machine is packed with features and offers high levels of accuracy.

Features:

  • Extremely robust build quality
  • Two speed bands allow maximum torque in the lower speeds
  • Infinitely variable speed
  • Double vee bedway - hardened and ground
  • Adjustable gibs to slideways
  • Off set facility to tailstock
  • Large cross slide with two full length tee slots
  • Tailstock quill engraved metric and imperial
  • Reversible motor
  • Metric and imperial thread cutting
  • Thread dial indicator
  • Powerful 1.1kw motor
  • Brushless motor
  • Motor speed range 30-2350 rpm
  • No assembly required - simply plug in and go
  • Bare metal surfaces are protected by a thin layer of grease which is easily removed with a cloth

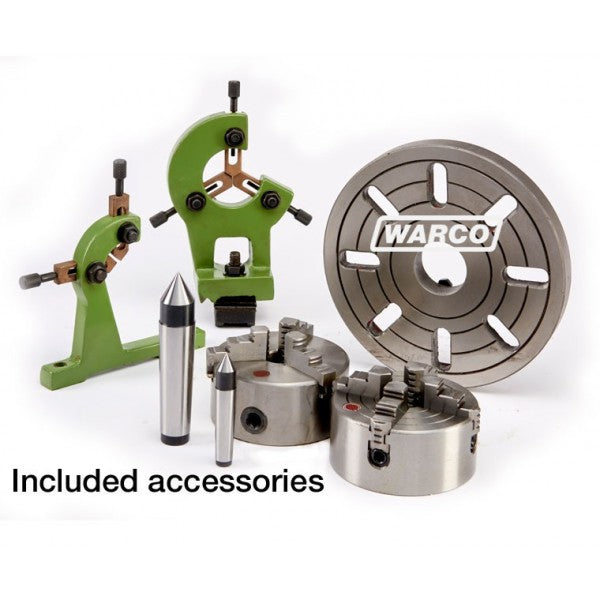

Includes the following FREE accessories:

  • Swarf tray
  • Read splash guard
  • Face plate
  • Three jaw 125mm self centre chuck with inside and outside jaws
  • Four jaw independent 125mm chuck
  • Fixed steady
  • Travelling steady
  • Two dead centres
  • Toolbox with tools

Full spec:

Machine: 3222 WM240
Product Dimensions:
Weight 158KG
Length x Width x Height 1100 X 530 X 490mm
Tray Length x Width 950 x 420mm
Shipping Dimensions
Length x Width x Height (no DRO) 1055 X 555 X 550mm
Power/Motor
Motor size 1.1kw
Power Transfer (GH) gearbox or (VS) variable speed VS
Spindle speeds (No: and achievable speeds) (2) 30-1150 / 85-2350rpm
Voltage (240v single) (440v 3 Phase) 240V
Fitment (Plug connection type) 3 Pin Plug
Current 50hz, 4.6A
Main Specifications
Maximum swing 240mm
Centre height 120mm
Distance between centre's 500mm
Longitudinal travel (Z) 270mm
Cross slide travel (X) 120mm
Top slide travel (fine Z) 80mm
Spindle taper MT3
Tailstock Taper MT2
Tailstock quill travel 60mm
Spindle Bore 21mm
Tool shank size recommended for C/L 12mm
Metric and imperial threads 0.4-3.5mm / 8-48tpi
Chuck mount Flange
Chuck mount sizes 52mm boss
Spindle Bearings /Drive Taper roller Bearings
Other Specifications
Country of origin China
Warranty 12 Months
Approximated assembly and setup time 30 Mins
CE approved Certificate Yes, available upon request
Additional products
Optional stand 3224DL
Optional Digital Read Out Kit 8123
X scale 5104 150mm
Z Scale 5108 350mm
Chuck mount sizes A=52 B=101 C=74.5 D=11
Base/tray fixing holes dimensions A-B-C-D A=12 B=615 C=210 D=115mm

Please note that DC motors do not run at full speed in reverse.
