Lathe Vertical Milling Slide for WM180/WM210G/D210EL

Vertical Milling Slide for Warco WM180/WM210G Lathes/D210EL

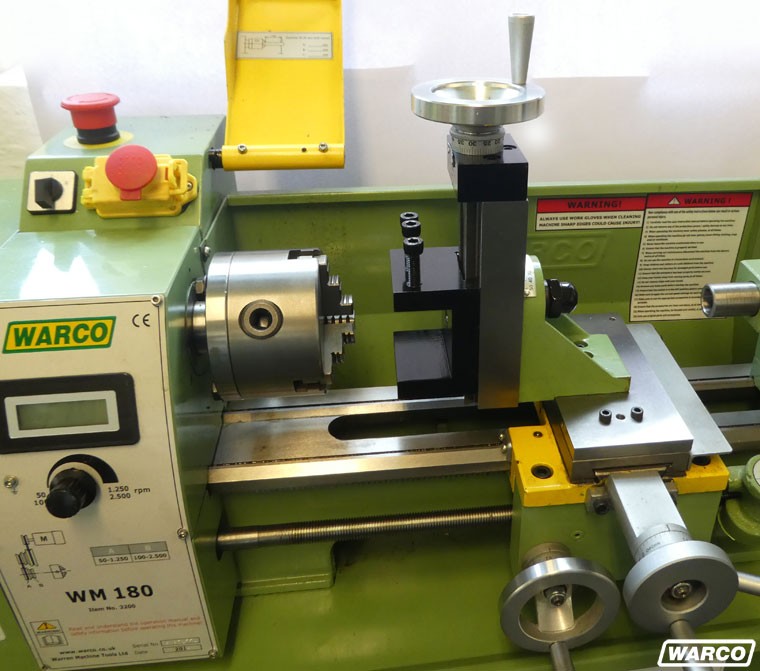

This attachment allows you to start milling on the Warco WM 180.

You will need to purchase 9607 and 9607fix to attach this to a WM180/WM210g

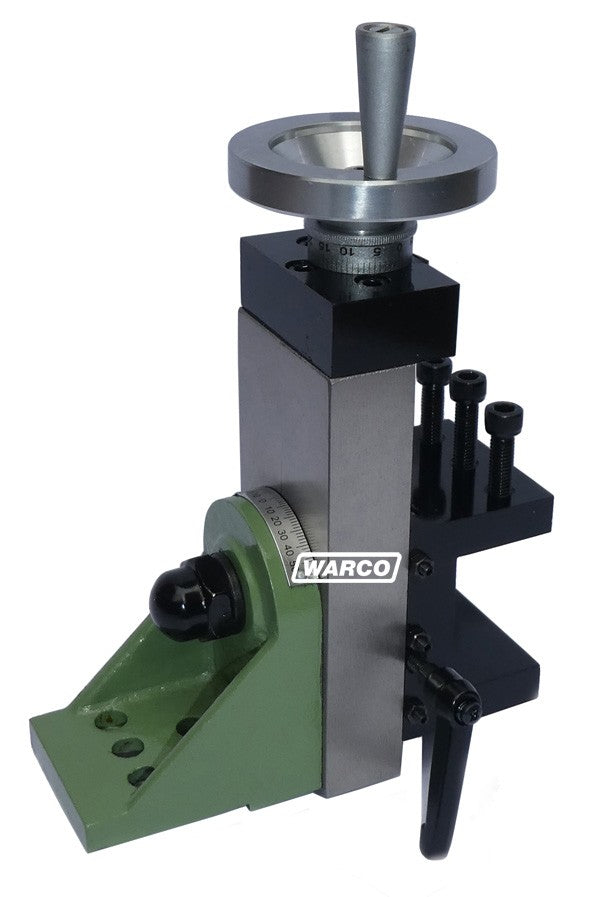

• A compact vertical slide

• for Milling Plate you will require item 9607 & 9607FIX, added at an extra cost.

• Machined to locate on the location boss on the top slide.

• Rebated to engage with the top slide for squareness.

• For absolute accuracy we recommend the use of a dial gauge using the chuck face as datum.

• With metric graduations.

• Tilts 45°, secured by locking nut.

• A well engineered device, built to last.

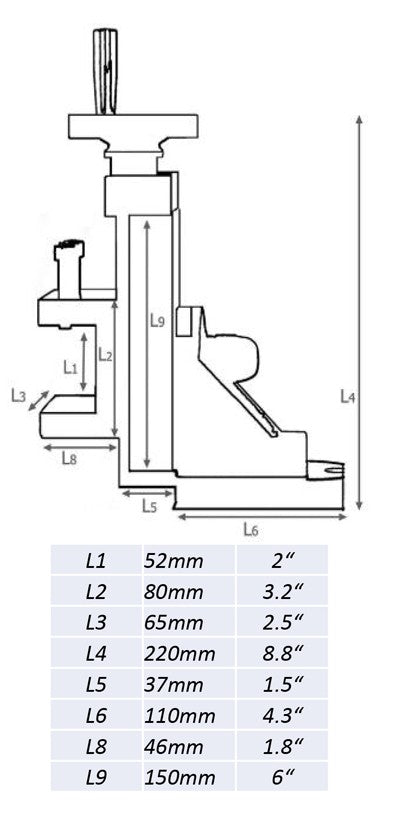

Vertical slide dimensions

• Height excluding handle - 220mm

• Base length - 110mm

• Overall length - 193mm
