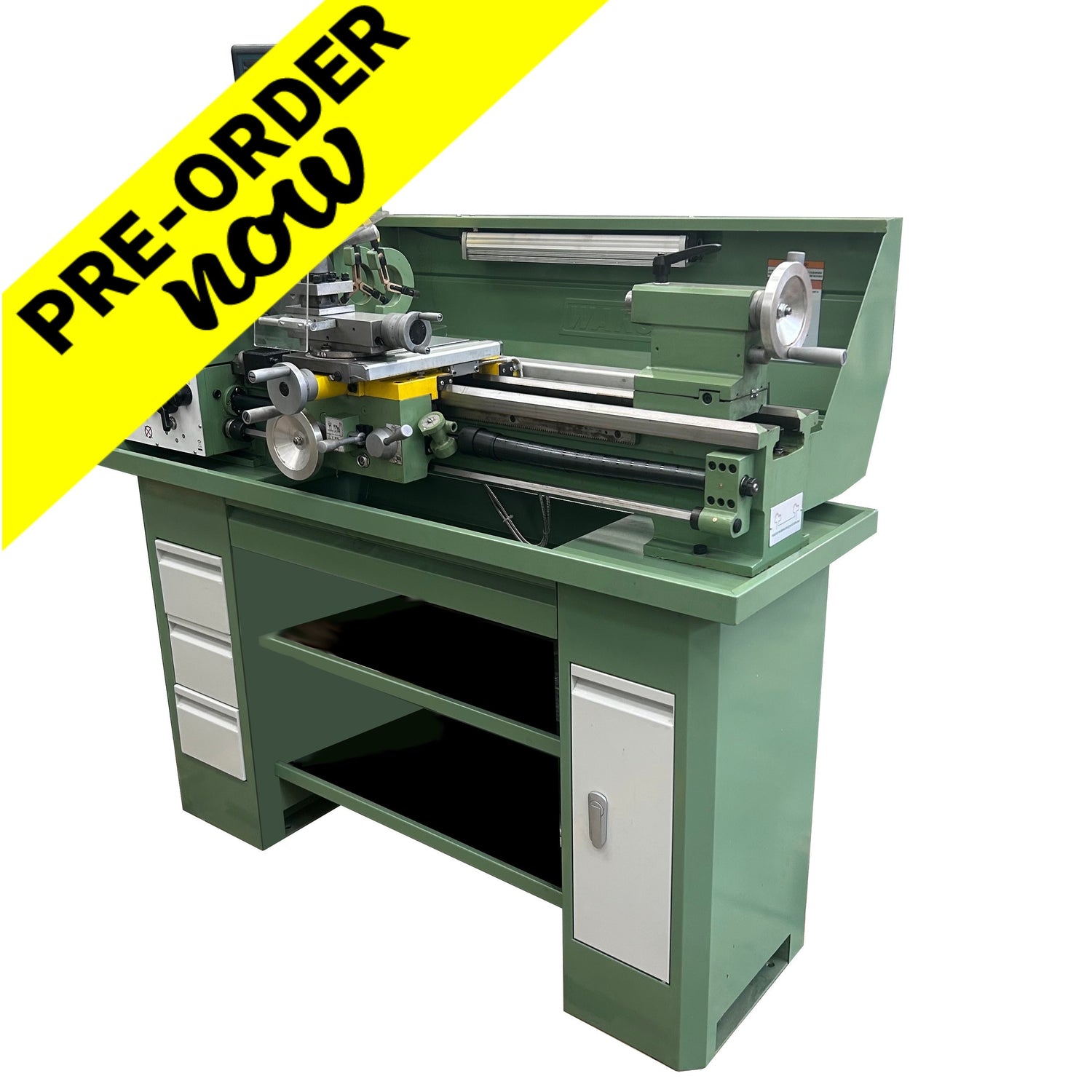

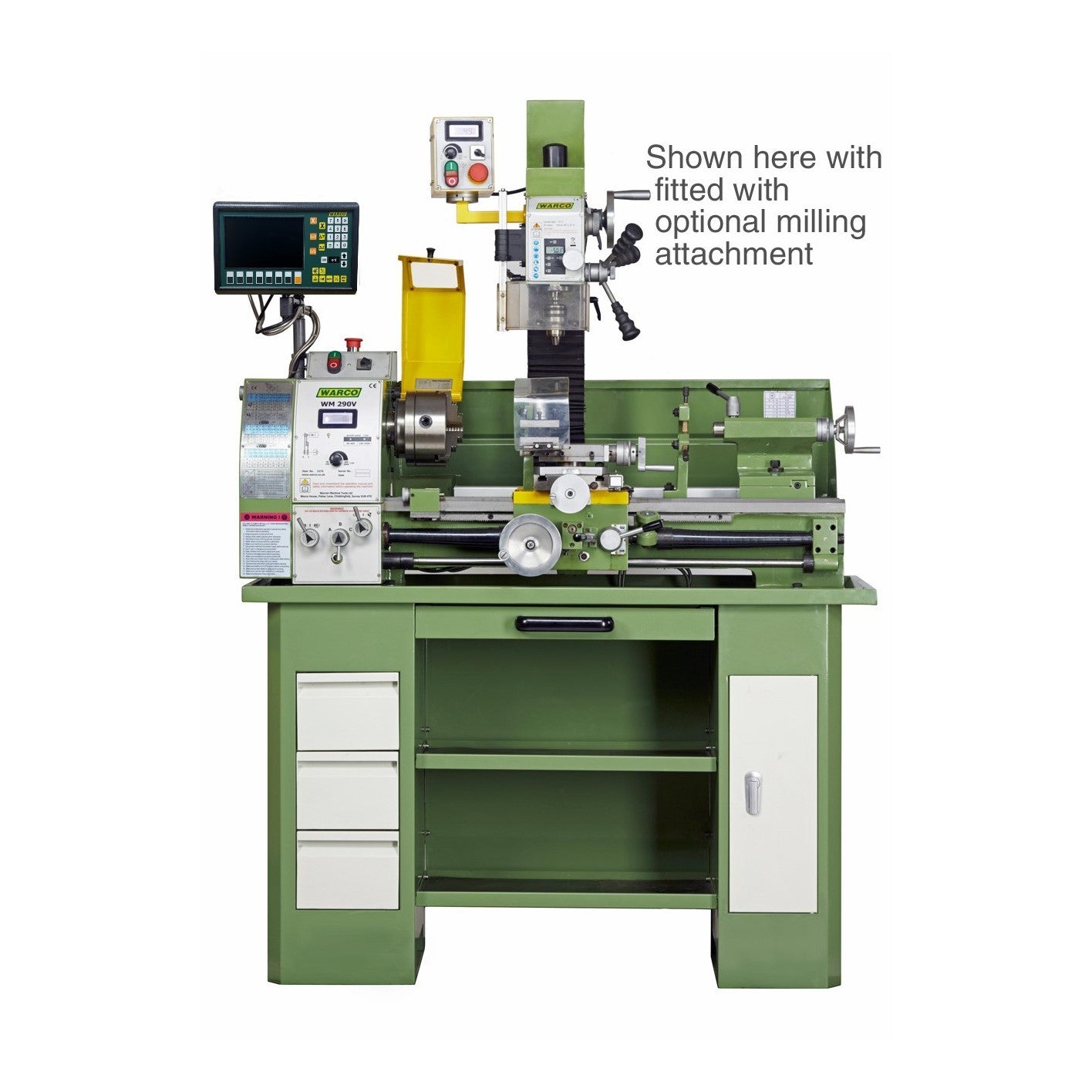

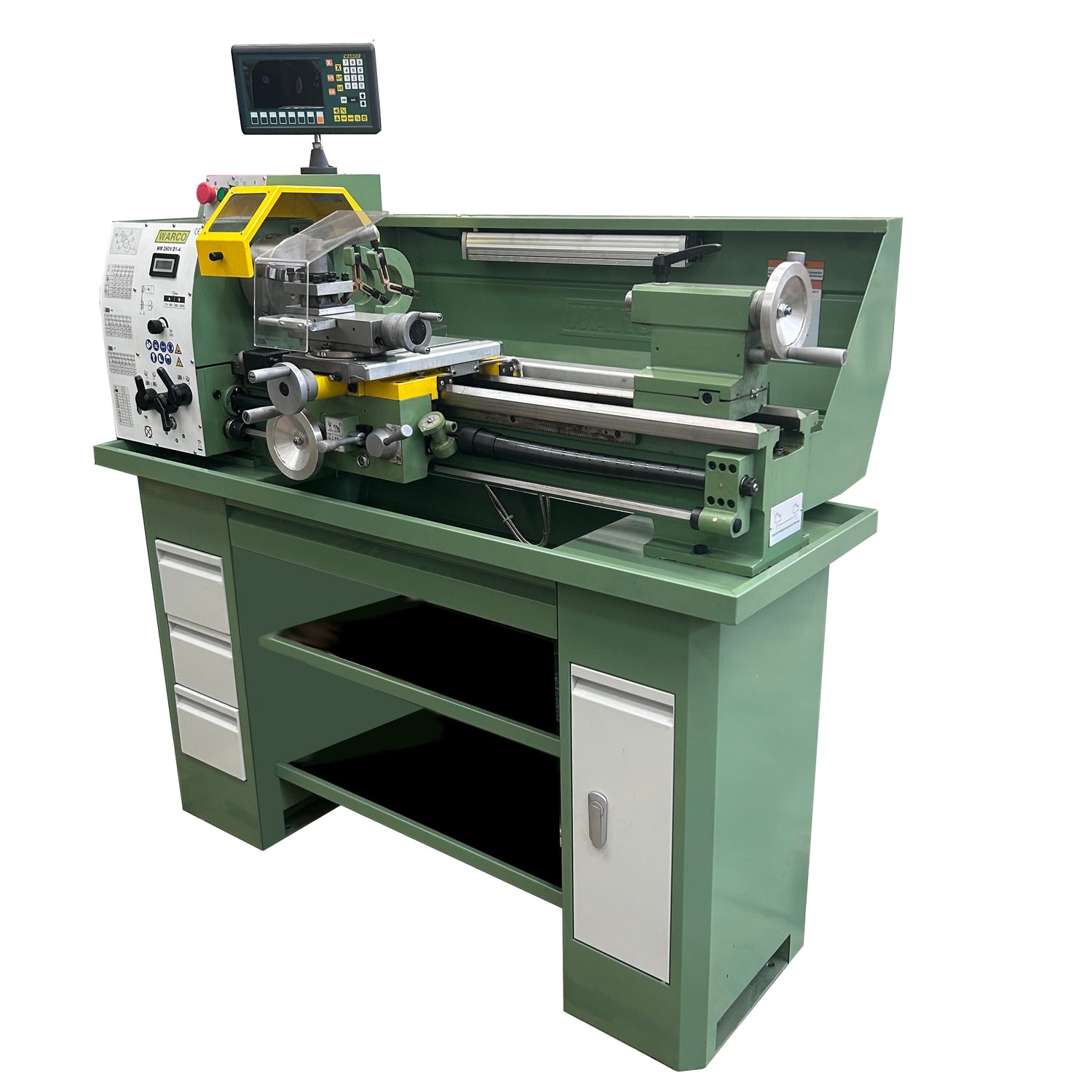

WM 290V Lathe Variable Speed (with stand and DRO)

Warco WM290V Variable Speed Lathe

AC Motor Inverter Drive

Our top of the range variable speed lathe, with power cross feed and digital readout system.

The Warco WM 290V has a Delta inverter drive with AC induction motor for ultra reliable long term performance, with the benefit of extremely quiet operation throughout.

Features include

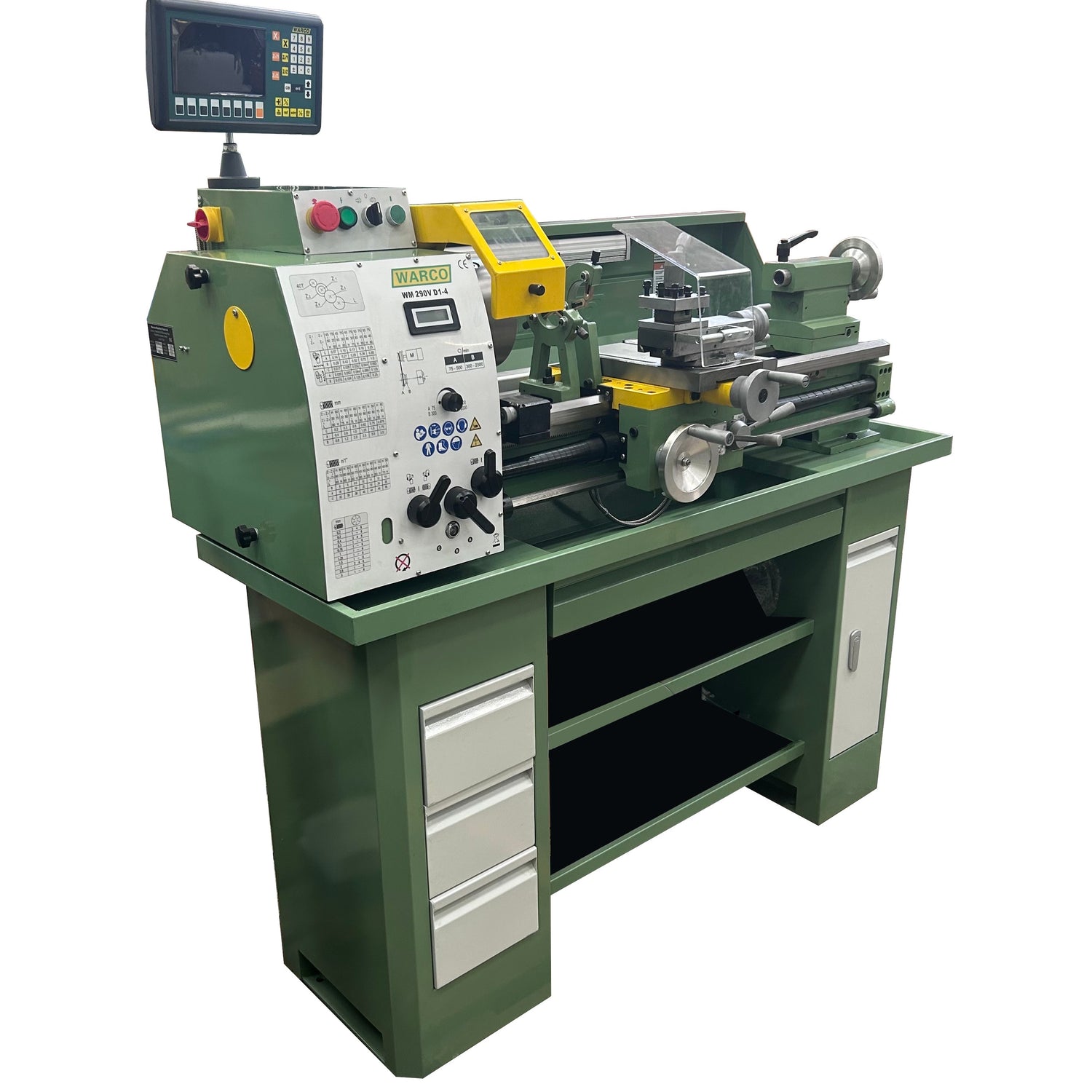

• Supplied with two axis DRO
• Powerful led strip light

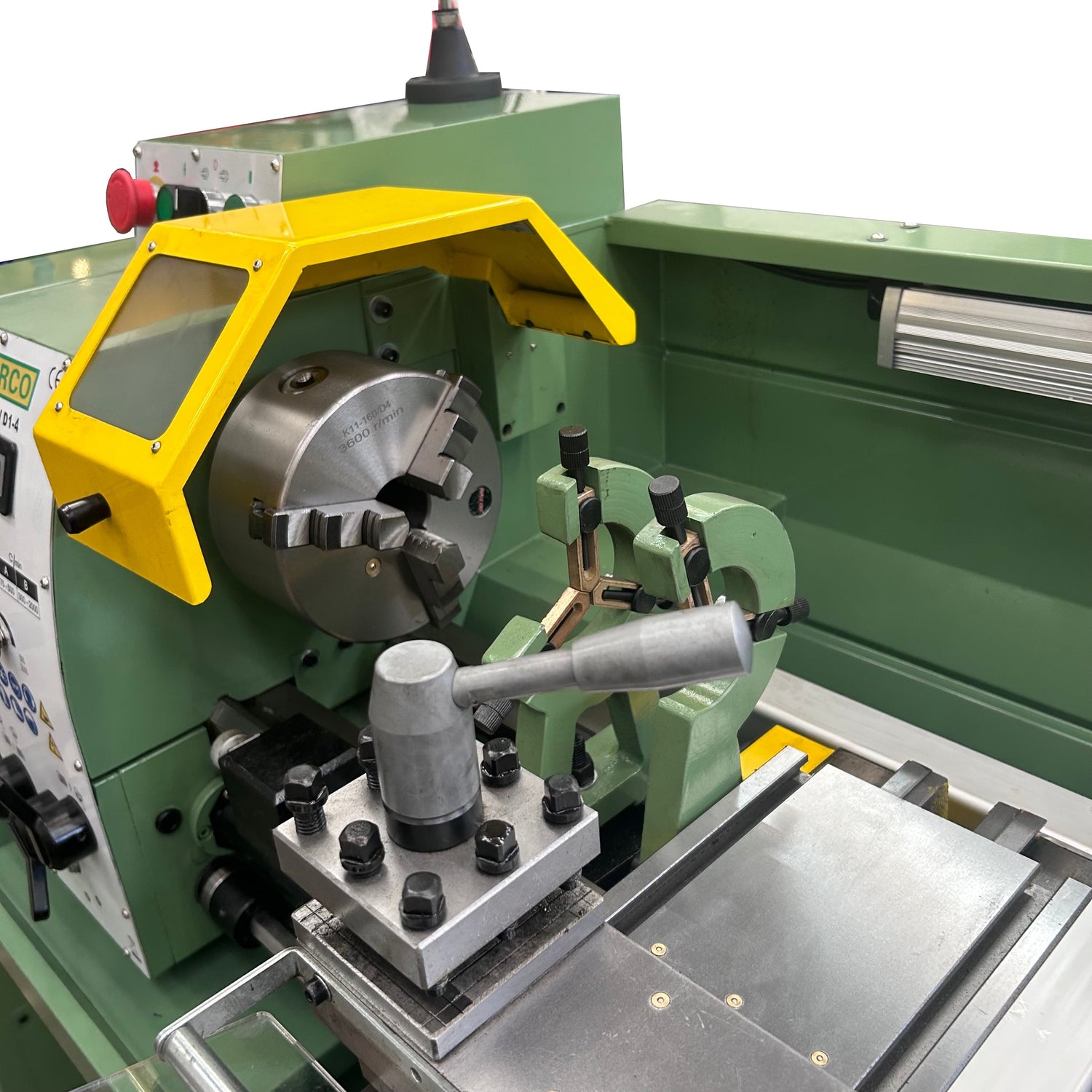

• Quick change toolpost now included (additional standard holder 4956A)
• Extremely quiet vibration free operation
• Full torque throughout the speed range
• Large 38mm spindle bore
• Dedicated feed shaft for longitudinal and cross feed
• Overload clutch to feed shaft
• Separate leadscrew for thread cutting functions
• Low 75 rpm speed ideally suited to thread cutting
• Wide double vee bedway - hardened and ground
• Adjustable gibs to slideways
• Off set tailstock facility
• Lever operated tailstock cam lock
• Large cross slide / milling table
• Micro adjustable bed stop
• Dependable Delta inverter drive with AC induction motor
• Metric and imperial thread cutting

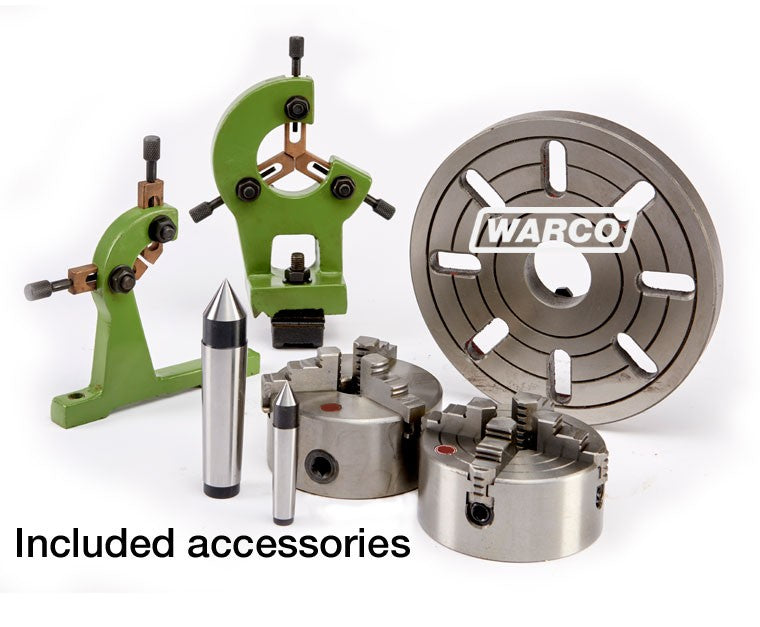

Supplied with a large range of tools and accessories, including

• Cabinet stand
• Chuck 3 Jaw 160mm self centre
• Chuck 4 Jaw 160mm independent
• Face plate
• Fixed steady
• Travelling steady
• Dead centres x2
• Thread dial indicator
• Rear splash guard
• Sward tray
• Tool box and maintenance tools.

Full lathe specification

Machine: 2900	WM290 D1-4
Product Dimensions:
Weight	345kg
Length x Width x Height	1450 x 750 x 1550mm
Tray Length x Width	1420 x 450mm
Shipping Dimensions
Length x Width x Height (DRO version)	140 x 700 x 1050mm
Power/Motor
Motor size	1.5kw
Power Transfer (GH) gearbox or (VS) variable speed	VS
Spindle speeds (No: and achievable speeds)	(2) 75-500 / 300-2000rpm
Voltage (240v single) (440v 3 Phase)	240v Single
Fitment (Plug connection type)	3 Pin Plug
Current	50Hz 6.4A
Main Specifications
Maximum swing	290mm
Centre height	145mm
Distance between centre’s	750mm
Longitudinal travel (Z)	590mm
Cross slide travel (X)	150mm
Top slide travel (fine Z)	95mm
Spindle taper	MT5
Tailstock Taper	MT3
Tailstock quill travel	85mm
Spindle Bore	38mm
Tool shank size recommended for C/L	12mm
Metric and imperial threads	0.2-3.5mm/8-56tpi
Chuck mount	D1-4
Spindle Bearings/Drive	Taper roller bearings
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	60 mins
CE approved Certificate	Yes, available upon request
Additional products
Optional stand	N/A
Optional Digital Read Out Kit	N/A
X scale	N/A
Z Scale	N/A
Chuck mount sizes	D1-4
Base/tray fixing holes dimensions A-B-C-D	A= 210 B= 260 C=800 D=20 mm E=210
