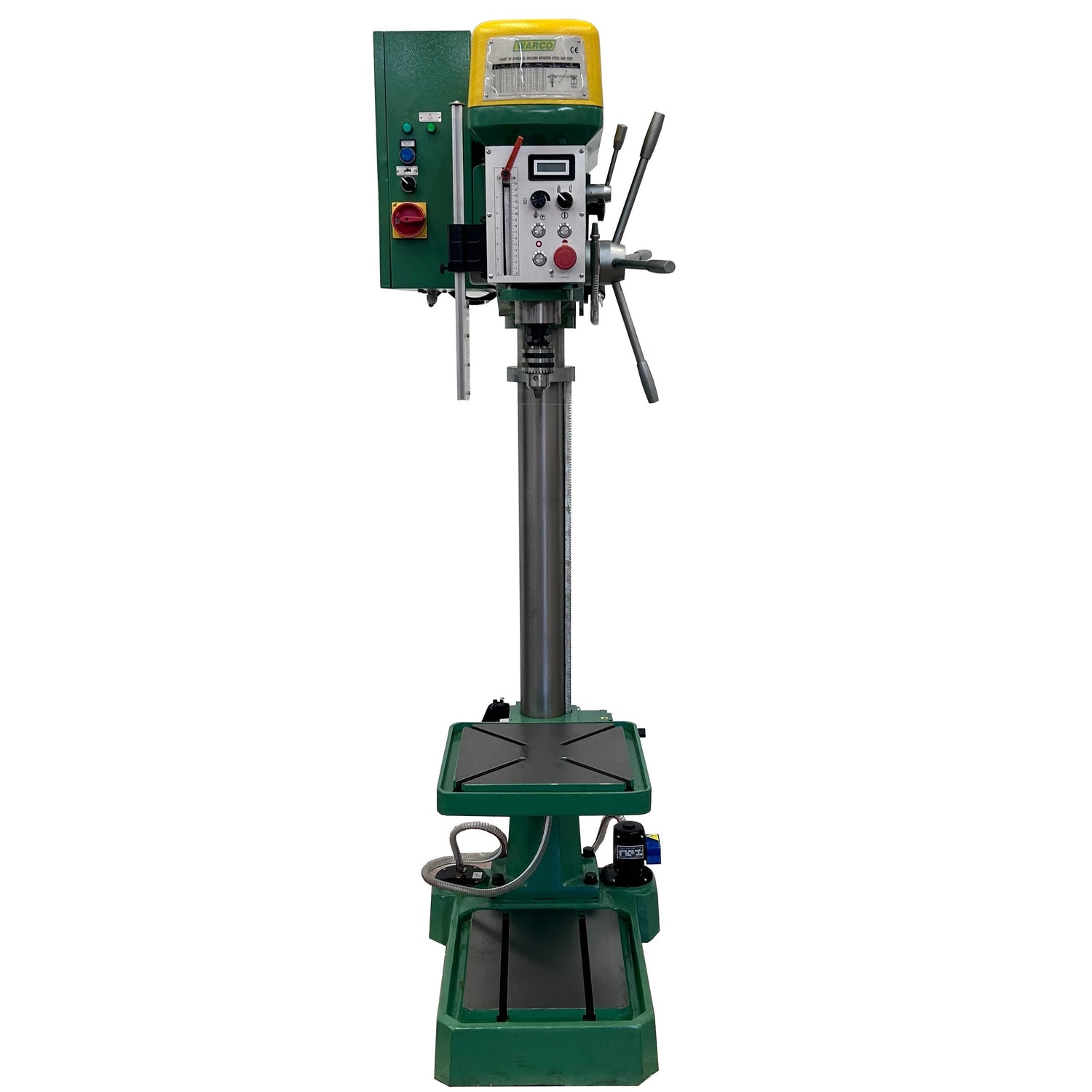

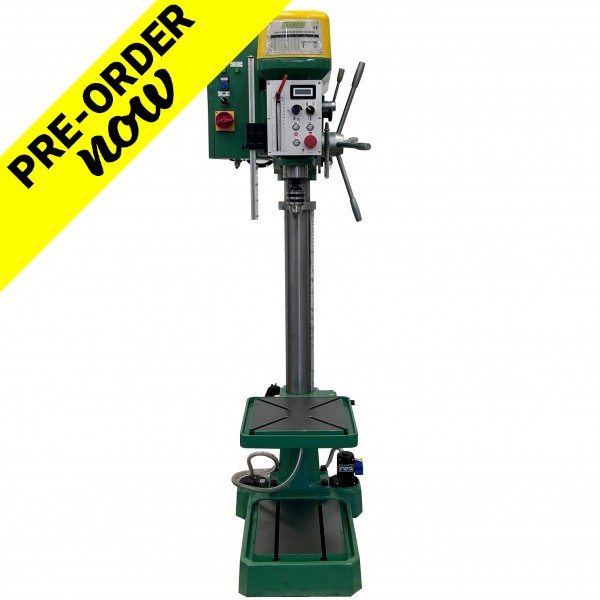

MSB-32 Vario Pillar Drill
Incl. VAT
- Robust floor-standing pillar drill
- Superbly engineered and built to last
- Ideal for Education, Training and Industry
- Tested for Accuracy - Report Supplied
- Excellent Spare-Parts Availability
- 12-Month Warranty
- Fast & FREE DELIVERY to UK mainland
- Questions & Support on Tel: 01428 682929
MSB-32 Vario Pillar Drill is backordered and will ship as soon as it is back in stock.
Business/Education customer? Set up a free profile to build a quote
Contact our Technical Customer Support with any questions:
Description
Description

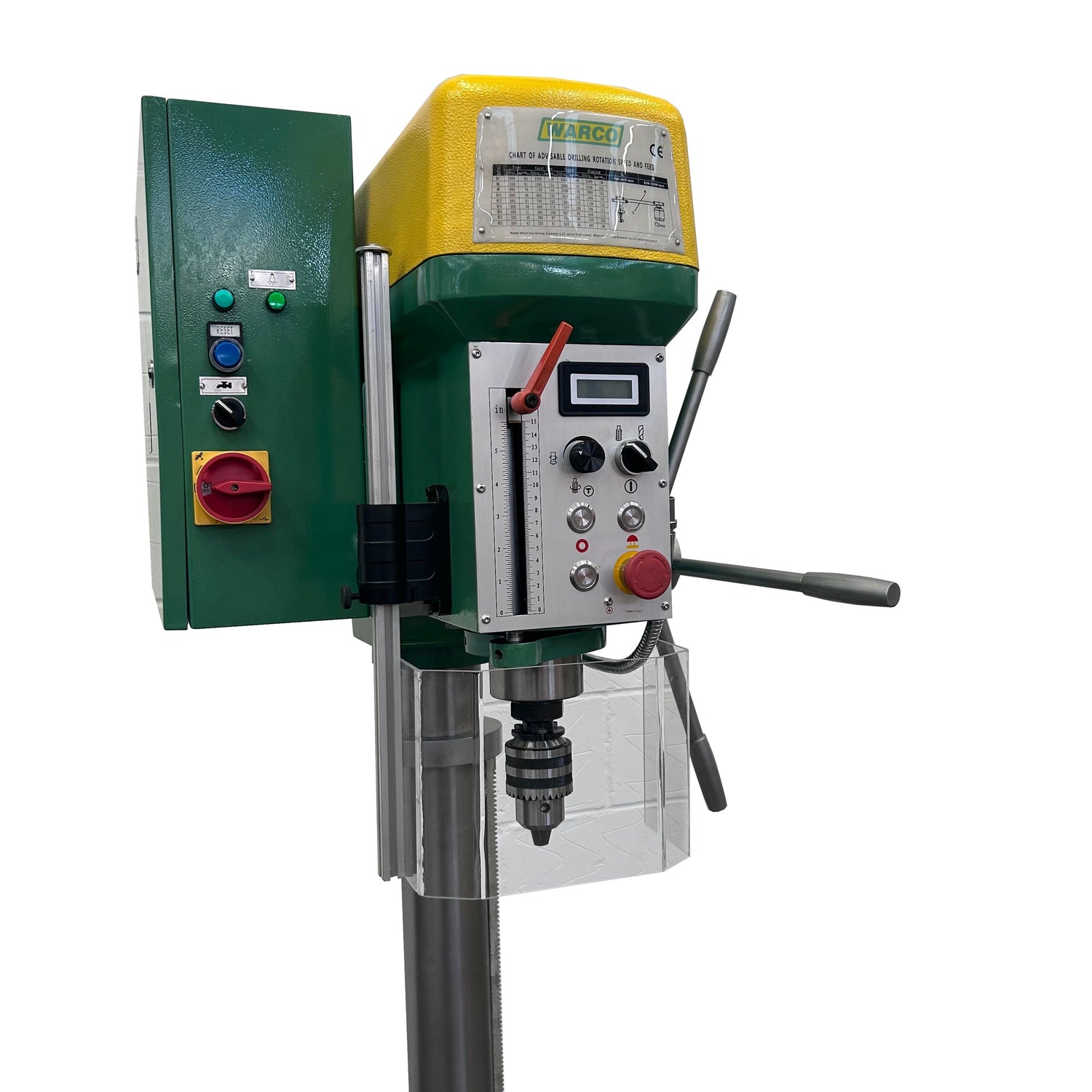

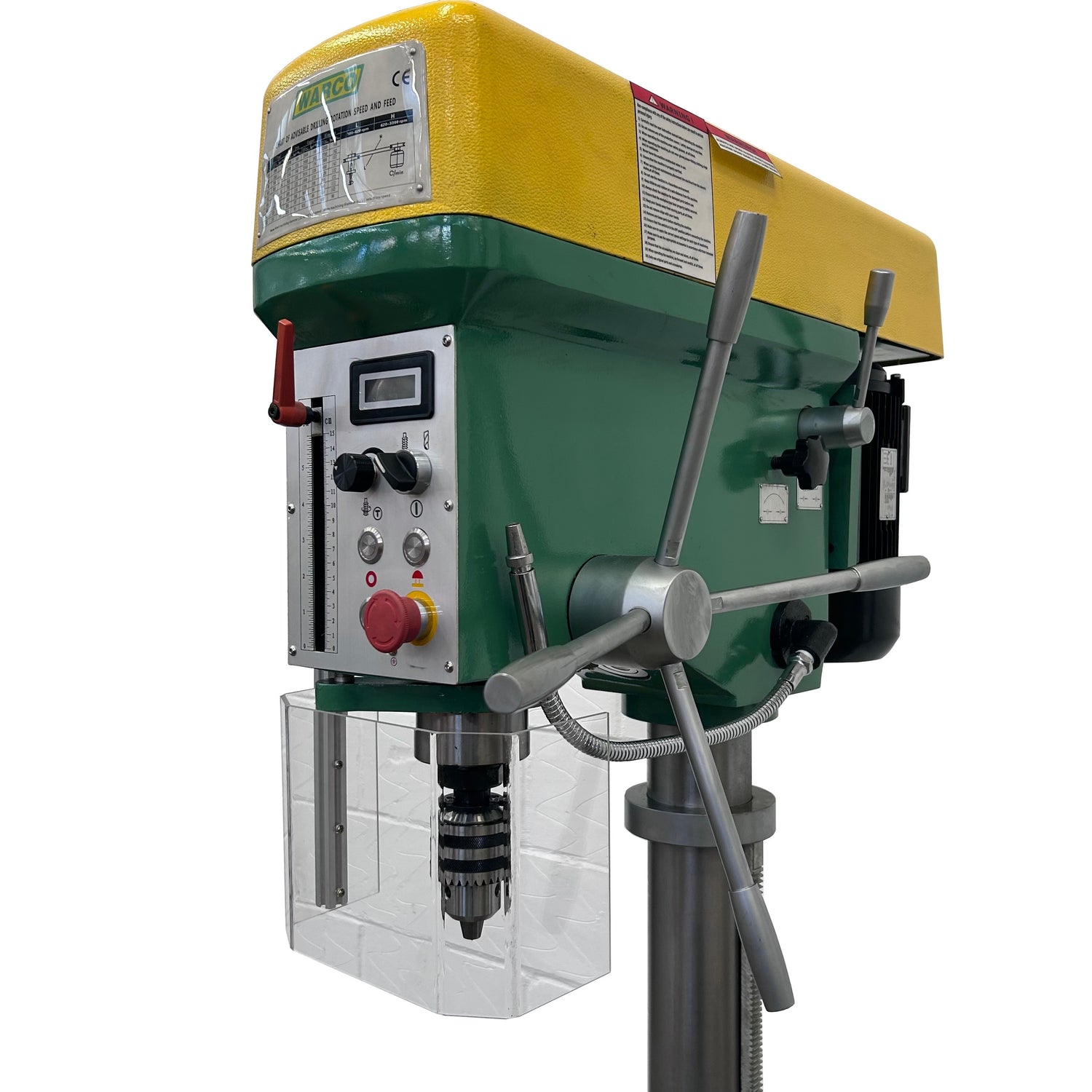

Machine features:
- Tapping function
- speed display
- Coolant system
- Precision chuck.
- Powerful 1.5kw motor.
- LED work lamp
- Safety chuck guard CE
Optional stop-switch on base. For education use, we recommend these and would be happy to quote for this addition.
Includes the following FREE accessories:
- B22-MT3 5mm-20mm chuck
- Wedge drift
Full Specification:

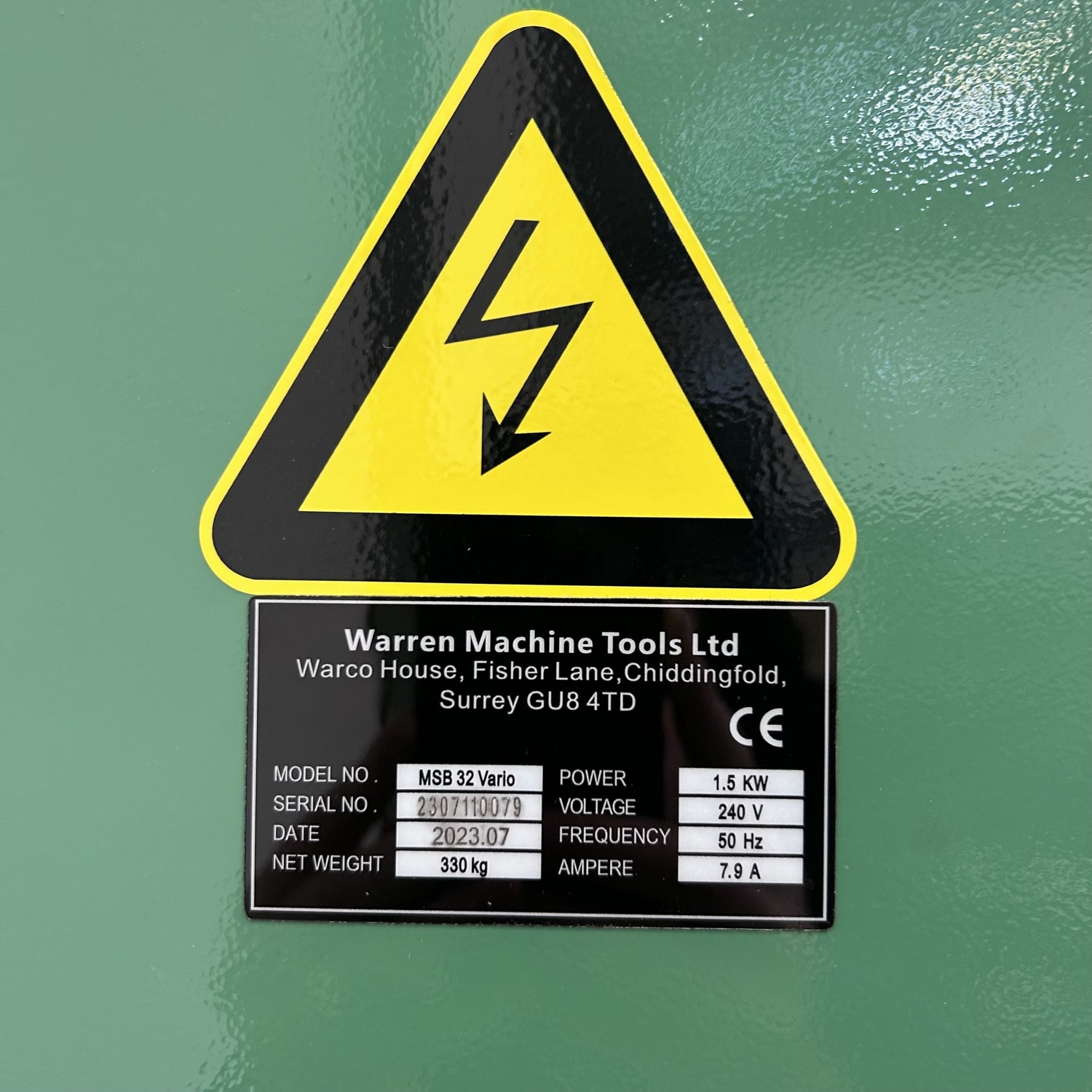

MSB32 Vario Drill(Product Code: 4230) |
|
Product Dimensions: |
|
| Weight | 330kg |
| Width x Depth x Height | 655 x 935 x 1905mm |
| Base Width x depth | 530 x 660mm |
| Shipping Dimensions | |
| Length x Width x Height | 1040 x 640 x 2050mm |
| Package Type (Pallet or box) | PALLET |
Power/Motor |
|
| Motor size | 1.5KW |
| Drive (GH) gearbox (VS) variable speed or (B) Belt | VS |
| Voltage (240v single) (440v 3 Phase) | 240v Single |
| Fitment (Plug connection type) | 3 pin plug, 50hz, 7.9A |
| Spindle Bearing type | Radial ball Bearing |

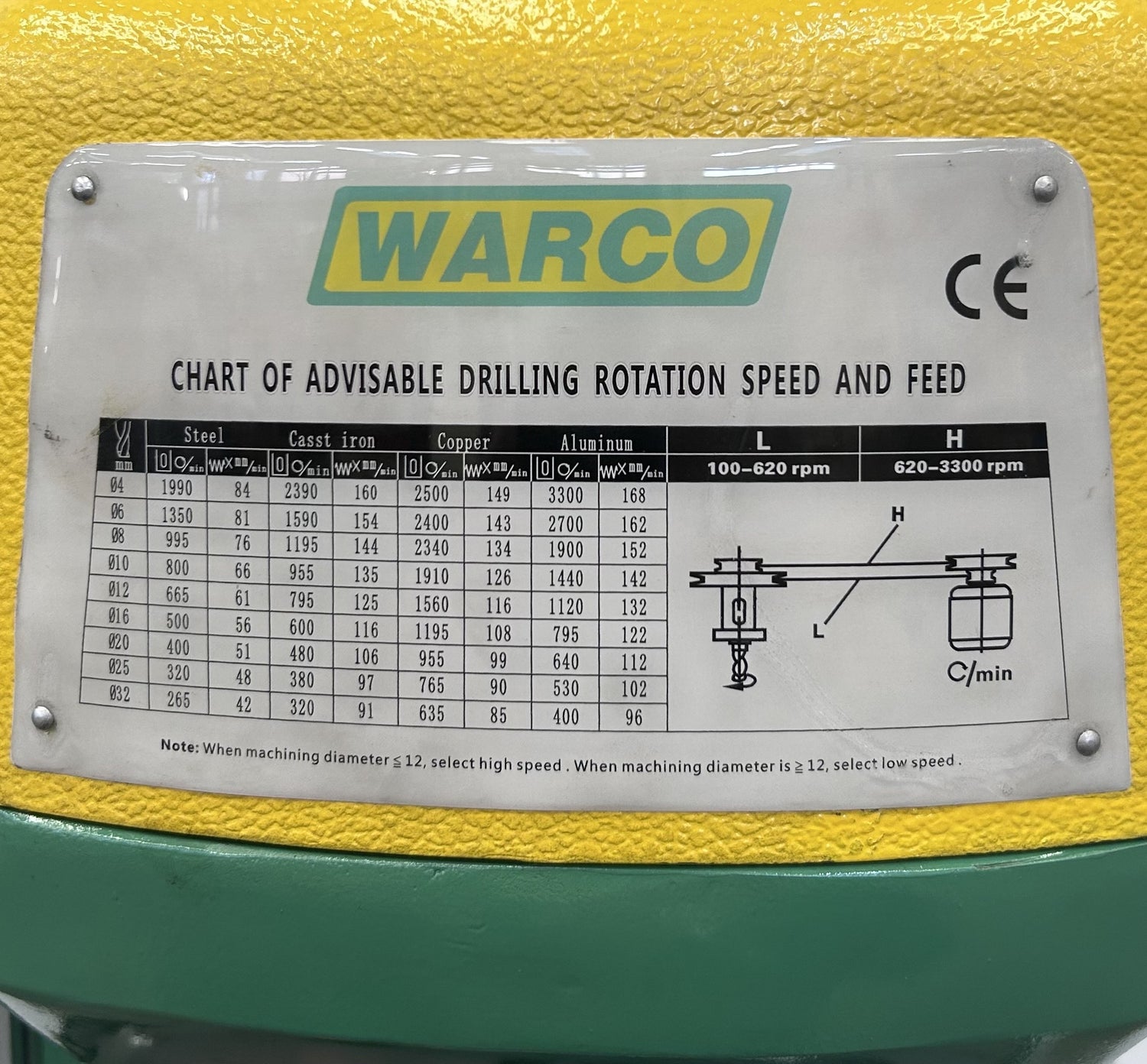

| Spindle speeds (No: and achievable speeds) | 2 x 100-620 AND 620-3300 RPM |
Main Specifications |
|
| Type (Bench top or floor) | FLOOR |
| Table size (Length x Width x Thickness) | 390 x 390 x 50mm |
| Table Travel Vertical | 670mm |
| Maximum size spindle to Table | 835mm |
| Maximum size spindle to Base | 1250mm |
| Throat (Spindle middle to Column face) | 260mm |
| Column diameter | 100mm |
| Spindle Taper size | 3MT |
| Head tilt left to right | n/a |
| Table tilt | N/A |
| Drill chuck capacity and recommended max drill | 20mm Chuck, 32mm Max |
| Quill diameter | 65mm |
| Quill/Spindle stroke | 150mm |
| Features | |
| Laser centre? | N |
| Work light? | Y |
| Digital speed counter? | Y |
| Depth stop? | Y |
| Safety interlock guard? | Y |
Other Specifications |
|
| Country of origin | China |
| Warranty | 12 Months |
| Approximated assembly and setup time | 30 mins |
| CE approved Certificate | |
| Tee slot size and no of slots (A-B-C-D) no: of slots | A=14.3 B=24.3 C=13 D=12mm 4 slots |
