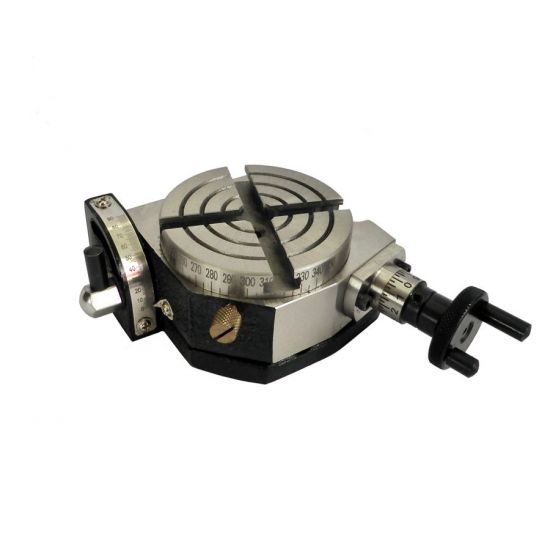

75mm (3") Tilting Rotary Table

Tilting Rotary Table - 75mm / 3"

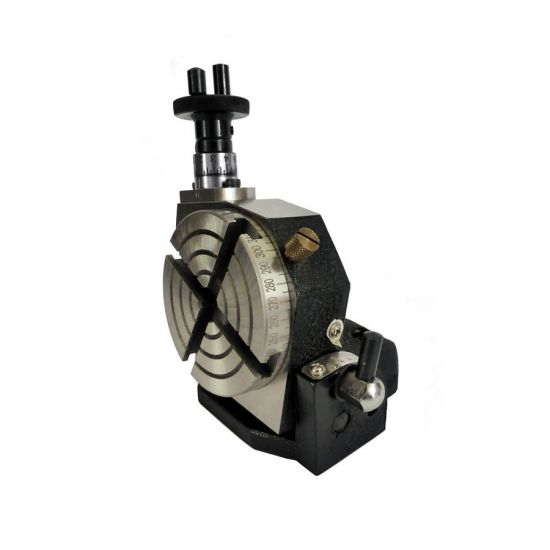

Small rotary table that can be used both horizontally or tilting at an angle of your choice.

• Super compact design ideal for the smaller vertical milling machine.

• High precision throughout.

• 4 slot device.

Specification

• Ratio - 36:1

• Fixing hole centres - 80mm

• Base size - 103 x 101mm

• Height horizontal - 53mm

• Tee slots - 8 x 9mm / tee - 14mm

• Worm gear - bronze

• Pinion - EN8 steel

• Gear mesh adjustment

• Zero dial is marked in 10 min. divisions

• Table scale is calibrated in 5° increments

• One rotation of the handwheel rotates the table 10°

Well suited to smaller milling machines including the Warco WM 12.

Also available - range of compatible accessories including chuck, tailstock, backplate and vice.
