Box and Pan Folder - 12"
Incl. VAT
- Sheet metal fabrication box & pan folder
- Ground steel fingers - easy to remove for box folding
- Cam action top beam securely clamps material to bed
- Distance between fingers and bed - 23mm
- Folds metal to an angle of up to 135°
Box and Pan Folder - 12" is backordered and will ship as soon as it is back in stock.
Business/Education customer? Set up a free profile to build a quote
Contact our Technical Customer Support with any questions:
Description
Description

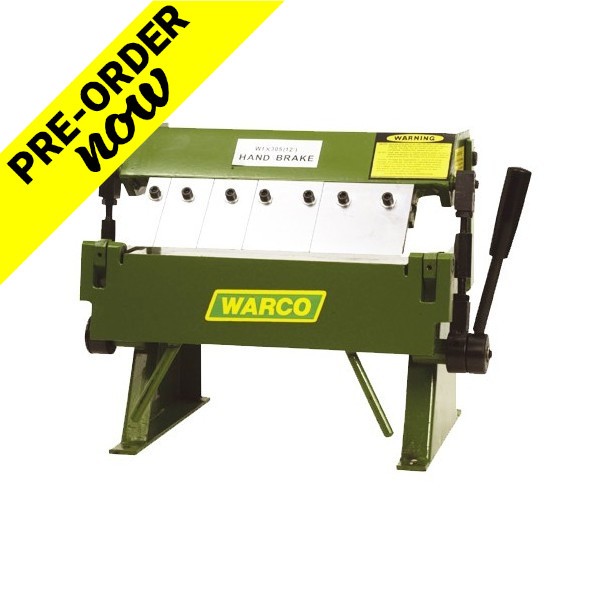

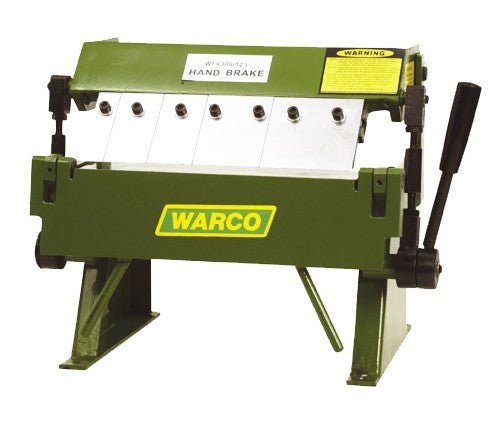

12" Box & Pan Folder
Sheet metal box and pan folding machine.
Features
- Ground steel fingers, easily removable for box folding.
- Cam-action top beam securely clamps material to the bed.
- Distance between fingers and bed - 23mm.
- Folds sheet metal to angles of up to 135°.
Specification
| Item No. | 7032 |
| Material length capacity | 305mm / 12" |
| Thickness capacity - mild steel | 1mm |
| Thickness capacity - aluminium | 1.5mm |
| Maximum depth | 50mm |
| Bending angle | 0° - 135° |
| Finger sizes | 25mm, 2 x 50mm, 80mm, 100mm |
| Overall Dimensions & Weight | |
| Length | 457mm |
| Width | 254mm |
| Height | 406mm |
| Weight | 26kg |
Price includes VAT and UK mainland delivery.
