Box and Pan Folder - 24"

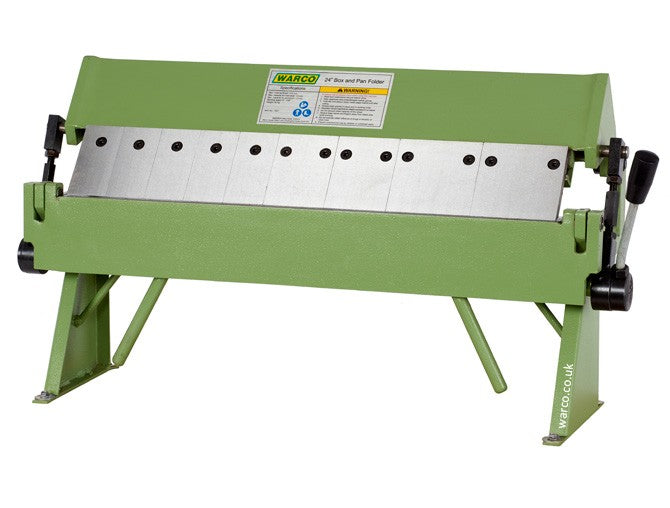

24" Box & Pan Folder

Great quality box and pan folding machine for sheet metalwork.

Features include

• Ground steel fingers - easy to remove for box folding.

• Cam action top beam securely clamps material to bed.

• Distance between fingers and bed - 23mm.

• Folds metal to an angle of up to 135°.

Specification

Item No.	7027
Material length capacity	610mm / 24"
Thickness capacity - mild steel	1mm
Thickness capacity - aluminium	1.5mm
Max. depth
Bending angle	0° - 135°
Finger sizes	5 x 50mm, 2 x 75mm, 2 x 100mm
Overall dimensions & weight
Length	750mm
Width	220mm
Height	410mm
Weight	42kg

Price includes VAT and UK mainland delivery.

Alternative sizes available

• Box & Pan folder 12"

• Box & Pan folder 40"

• Box & Pan folder 48"

• Box & Pan folder 48" heavy duty
