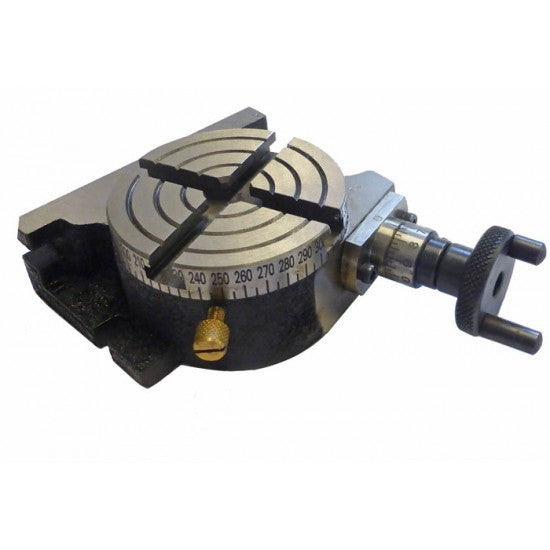

75mm (3") Small Rotary Table

Rotary Table - 75mm / 3"

Quality traditional style rotary table.

• Cast iron construction.

• Compact 3" size.

• Can be mounted in both vertical and horizontal positions.

• High precision 4 slot device.

Specification

• Ratio - 36:1

• Fixing hole centres - 92mm

• Base size - 105 x 85mm

• Height horizontal - 38mm

• Tee slot - 8 x 9mm / tee - 14mm

• Worm gear - bronze

• Pinion - EN8 steel

• Gear mesh adjustment

• Zero dial is marked in 10 min. divisions

• Table scale is calibrated in 5° increments.

• One rotation of the handwheel rotates the table 10°

Range of accessories available to use with this, including chuck, tailstock, backplate, vice and clamp kit.
