Backplate for Warco Lathes - WM240 / WM250V / WM280V - 125mm

Backplate for Warco Lathes

Backplates allow the mounting of collet chucks or alternative lathe chucks.

Available to fit a large range of Warco lathes both new and old - see the tables below for more details.

Back plate fitting

• Backplates are supplied machined to fit to the appropriate lathe spindle on one side, and unmachined on the front side.

• Backplate drilling and machining will be required on the plain front side to suit your particular application, ie whichever chuck you would like to use. This is a straightforward procedure.

• To ensure absolute accuracy, it is necessary to machine a suitable spigot on the backplate to match the register in the back of the chuck. Due to the various chuck PCDs, it is also necessary to drill and possibly tap the backplate to accept whichever chuck is being mounted.

Backplates for current Warco lathes

Lathe	Item No.	Diameter

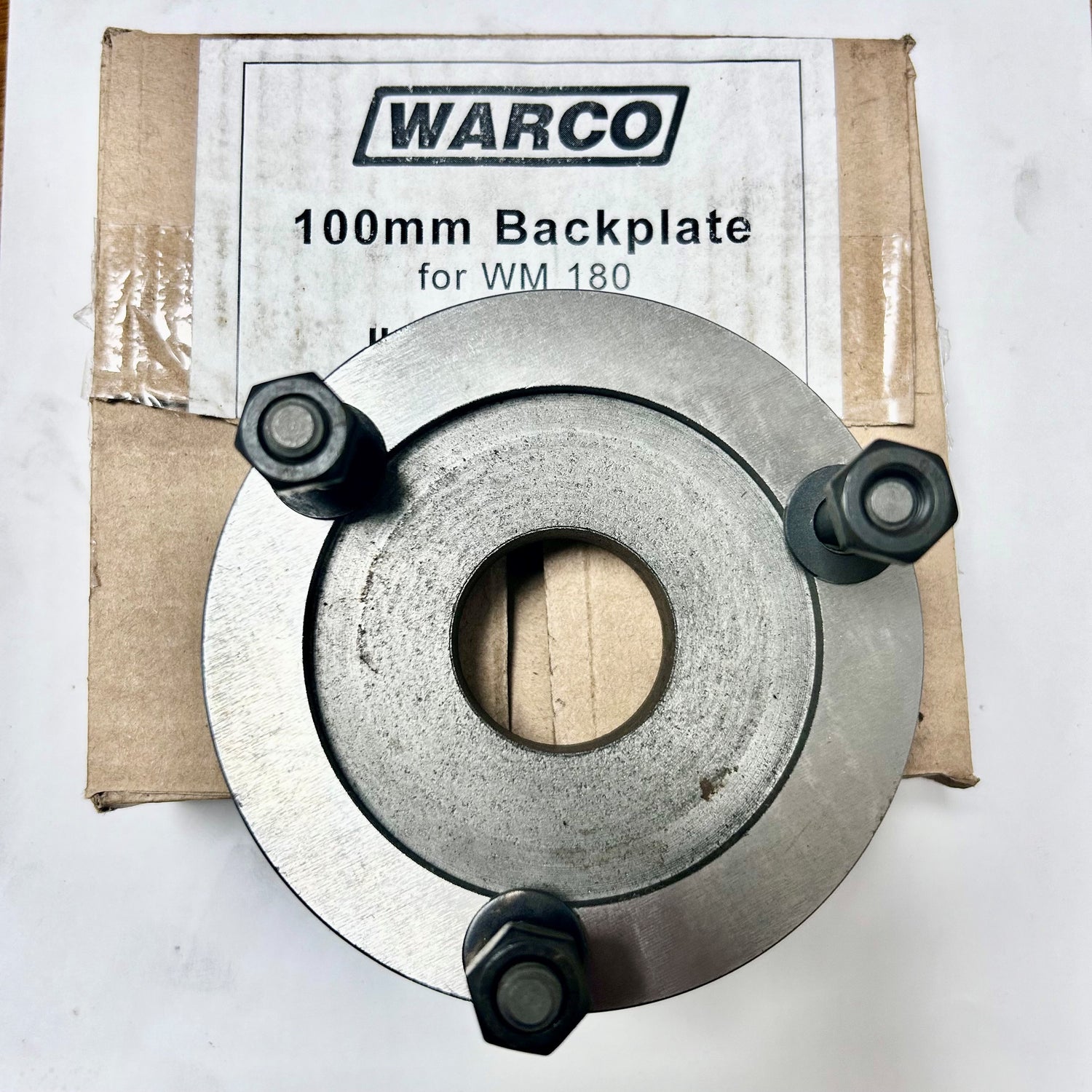

WM 180	5443	100mm
WM 240 / 240B / 250V / 280V	5444	125mm

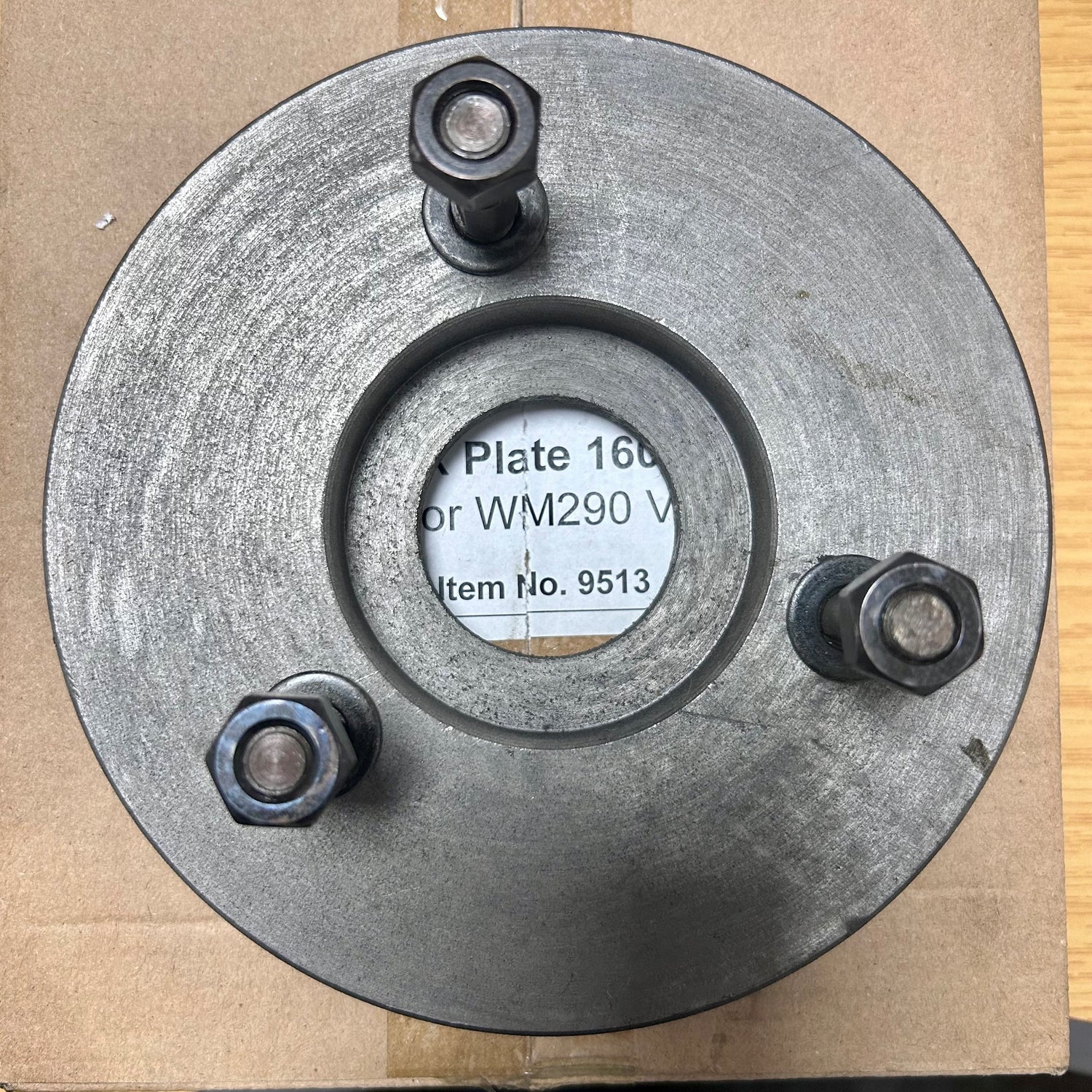

WM 290V (please see notes below)	9513	160mm

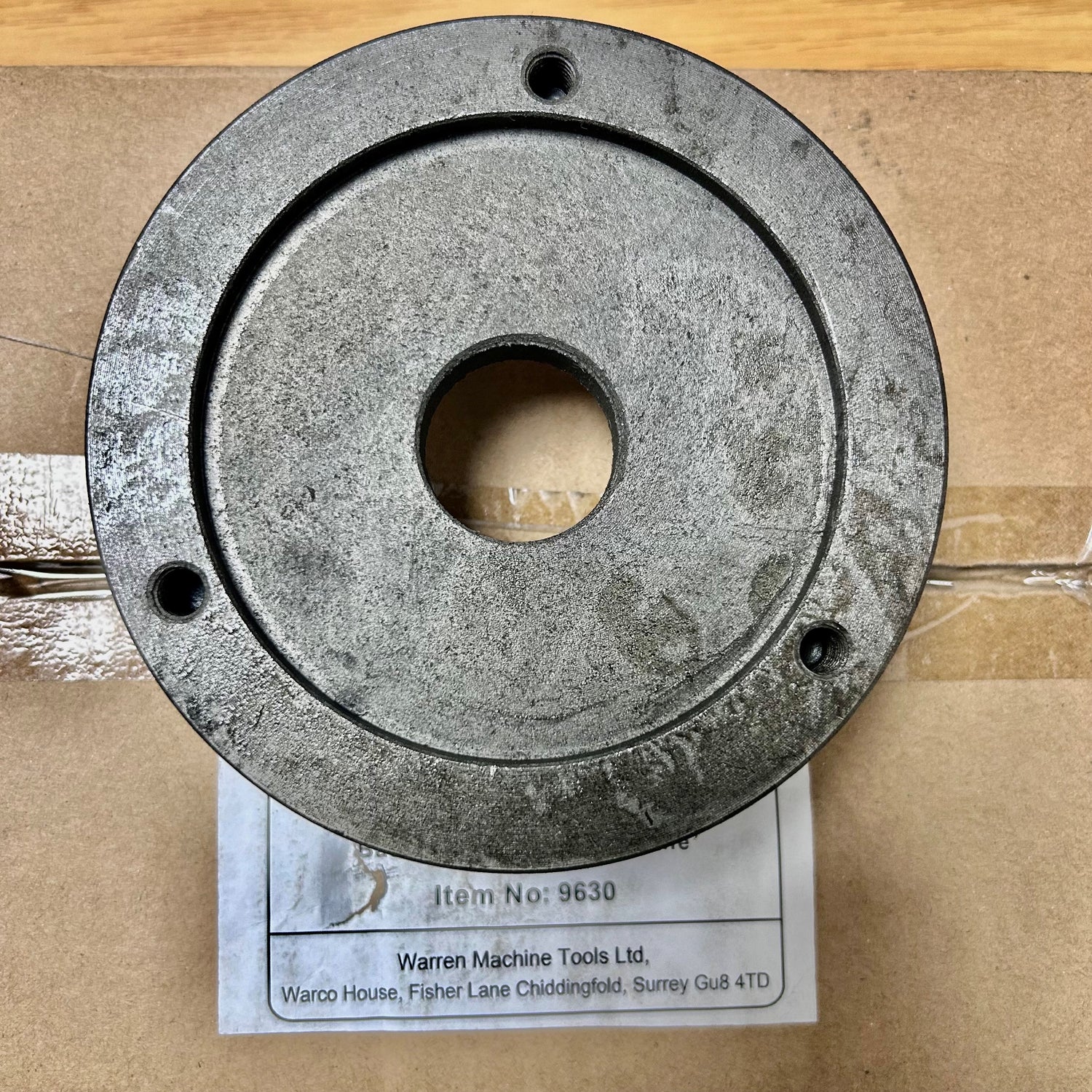

GH600 / D250EL	9630	125mm
Mini / Super Mini	Mini backplate page here
GH1230 / 1236 / 1322 / 1330 / 1440	D1-4 backplate page here
WM250 ONLY	5444A (125MM)

NOTE

5444 FOR WM250V, WM240, WM240B AND WM280

5444A FOR WM250 ONLY

Backplates for obsolete Warco lathes, available while stocks last

Lathe	Item No.	Diameter
918 Metric thread (38 x 4mm)	5424	100mm
918 Imperial thread (1.5" x 8 tpi)	5583	100mm
1016 / 1022	5426	125mm

9611 for GH550, 160mm

Note about the WM 290V

• There are two different versions of this lathe. The backplate on this page is compatible with lathe item number 2900. This applies to any WM 290V sold prior to 2022.

• For the newer version lathe with item number 2900D, compatible backplate can be found here.

Collet chucks

• Back plates are ideal for mounting a collet chuck to a lathe.

• Collet chucks available in ER25, ER32 or 5C sizes here.

Other backplates available

• To fit Warco Mini Lathes

• To fit D1-4 lathes

• To fit D1-3 lathes

• To fit Myford lathes

• To fit Boxford lathes
