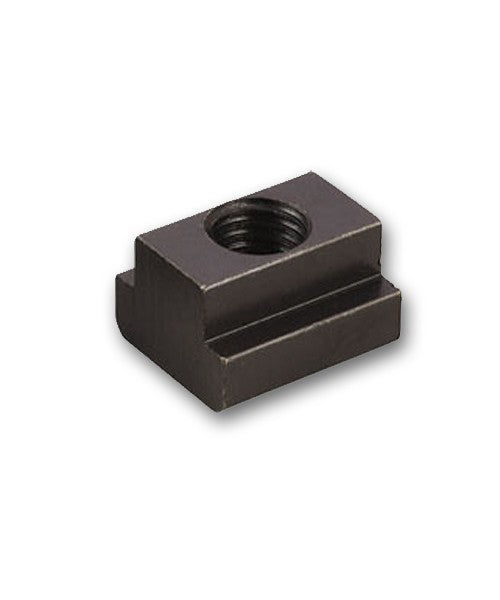

Tee Nuts - 17.2mm

Tee Nuts

These have many different applications including work holding and mounting on milling tables.

Choice of different sizes available.

Item No.	Tee slot width A	Tee width B	Length C	Length D	Thread
9528	7.9mm	12.9mm	4mm	5.9mm	6mm
9522	9.7mm	15mm	6mm	6mm	8mm
9523	11.6mm	19.8mm	5.5mm	6.5mm	10mm
9524	13.6mm	21.9mm	8mm	8mm	12mm
9529	17.2mm	27.5mm	9.9mm	9.5mm	14mm

Guide to milling machine compatibility

WM 12, WM 14, WM 14B

• Tee nut slot width - 9.5mm (Item No. 9522)

WM 16, WM 16B, WM 18, WM 18B, GH 18, Major, Major GH

• Tee nut slot width - 12mm (Item No. 9523)

GH Universal, Super Major, VMC, WM 20, 4VS, HV Universal

• Tee nut slot width - 13.7mm  (Item No. 9524)

WM 40

• Tee nut slot width - 17.2mm  (Item No. 9529)

Tip

• To select the correct size tee nut, order one sized a tad smaller than the tee measurement of your milling machine table.
• For example, the WM 14 mill table has a slot width of 10mm, so here we recommend the tee nut with slot width 9.5mm (Item No. 9522).
