WM250V Lathe Inverter Drive Variable Speed

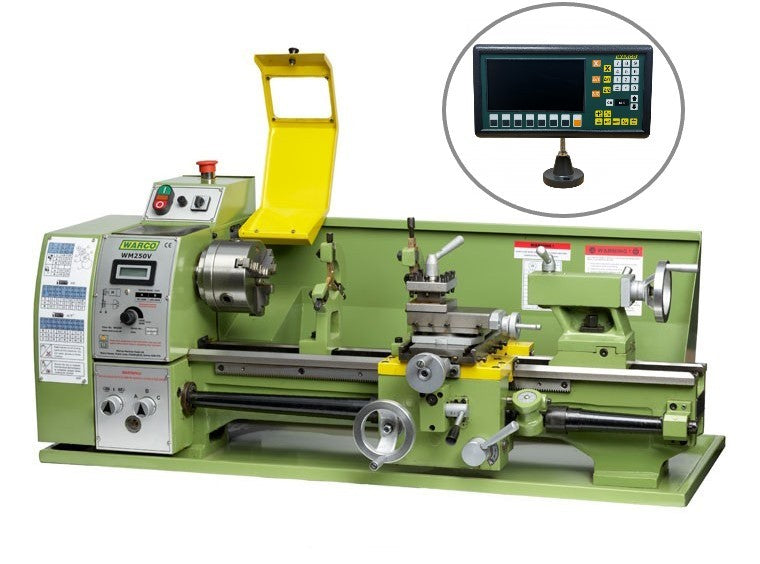

Warco WM250V Variable Speed Lathe

AC Motor Inverter Drive

The Warco WM250V is much improved throughout. The WM 250 series of lathes have been amongst our best selling machine since we first launched them, and this new machine is better than ever.

Now with Delta inverter drive with AC induction motor, benefiting from extremely quiet operation throughout and proven ultra reliable long term performance.

The AC motor means the WM 250V can be run at full speed in reverse and it now has the ability to go as low as 30 rpm - ideal for thread cutting, with excellent torque in the low speed range.

Equipped with all the features of its predecessor that made it a choice buy for hundreds of our customers - including thread dial indicator, digital rev counter and 550mm between centres, as well as power cross feed for maximum usability and convenience.

Types available

• Metric (Item No. 1034)

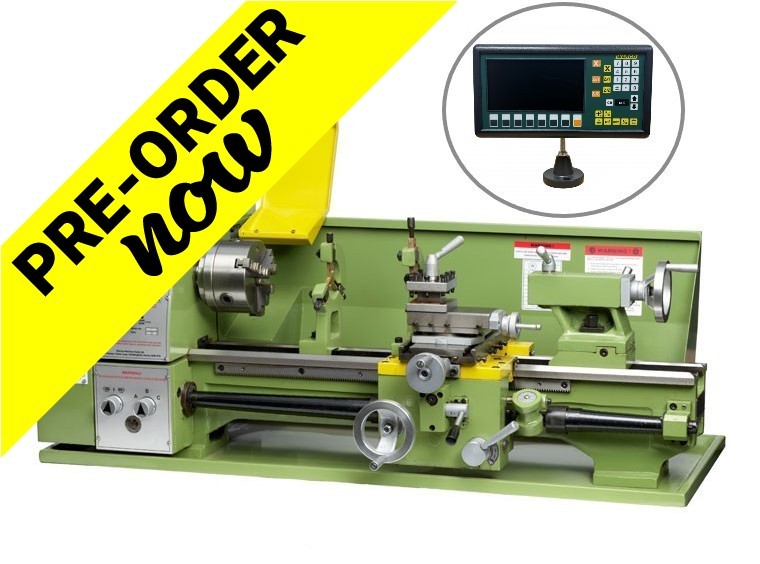

• Metric factory fitted with 2 axis DRO (Item No. 1034DRO)

Machine features include

• Two speed bands allow maximum torque in the lower speeds
• Infinitely variable from 30 to 2200 rpm
• Double vee bedway - hardened and ground
• Adjustable gibs to slideways
• Offset facility to tailstock
• Tailstock quill engraved metric and imperial
• Reversible motor
• Extremely quiet vibration free operation
• Metric and imperial thread cutting
• Reversible leadscrew for left hand threading
• Thread dial indicator
• Zero friction dials
• Huge torque in the low speed range.
• Fitted with powerful 1.1kw (1100w) reversible motor
• Low 30 rpm speed at the low range, ideally suited to thread cutting
• Dependable Delta inverter drive with AC induction motor

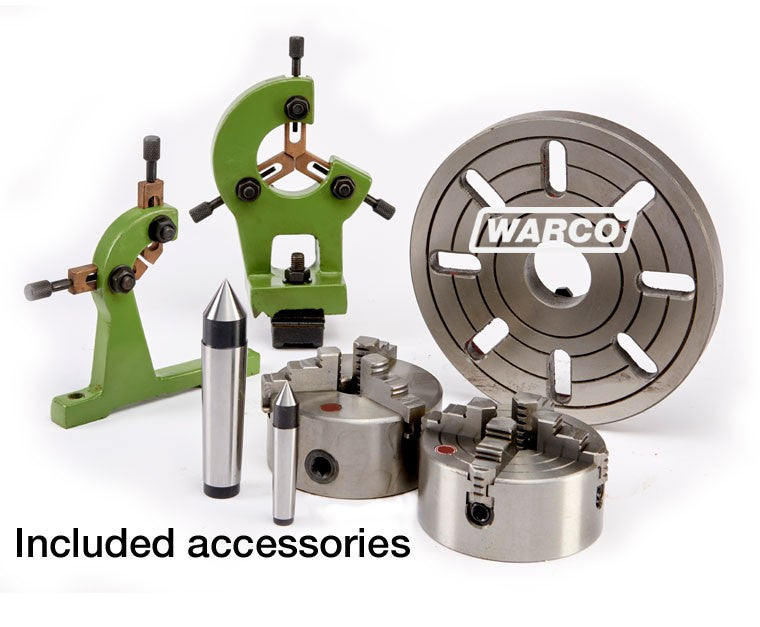

Supplied with a range of accessories and tools, including:

• Swarf tray
• Read splash guard
• Face plate
• Three jaw 125mm self centre chuck with inside and outside jaws
• Four jaw 125mm independent chuck
• Fixed steady
• Travelling steady
• Safe interlock chuck guard
• Two dead centres
• Thread dial indicator
• Toolbox with tools

Full specification

Machine: 1034/1034DRO	WM250V
Product Dimensions:
Weight	130kg
Length x Width x Height	1110 x 610 x 465mm
Tray Length x Width	1100 x 420mm
Shipping Dimensions
Length x Width x Height (no DRO)	1255 x 635 x 575mm
Length x Width x Height (DRO version)	1255 x 635 x 575mm
Power/Motor
Motor size	1.1kw
Power Transfer (GH) gearbox or (VS) variable speed	VS
Spindle speeds (No: and achievable speeds)	(2) 30-400 / 150-2200rpm
Voltage (240v single) (440v 3 Phase)	240v Single
Fitment (Plug connection type)	3 Pin Plug
Current	50Hz
Main Specifications
Maximum swing	250mm
Centre height	125mm
Distance between centre’s	545mm
Longitudinal travel (Z)	425mm
Cross slide travel (X)	110mm
Top slide travel (fine Z)	70mm
Spindle taper	MT4
Tailstock Taper	MT2
Tailstock quill travel	65mm
Spindle Bore	26mm
Tool shank size recommended for C/L	12mm
Metric and imperial threads	Yes
Chuck mount	Flange
Spindle Bearings /Drive	Taper roller bearings
Other Specifications
Country of origin	China
Warranty	12 Months
Approximated assembly and setup time	30 mins
CE approved Certificate	Yes, available upon request

Additional products
Optional stand	3212ND
Optional Digital Read Out Kit	8123
X scale	5104 - 150mm
Z Scale	5110 - 450mm
Chuck mount sizes	A= 52 Taper B=102 C=74.5 D=11mm
Base/tray fixing holes dimensions A-B-C-D	A= 120 B= 765 C=210 D=8 mm

Buy this machine securely online, or feel free to call us on 01428 682929.

Buy with confidence, with unbeatable experience we've been supplying lathes to engineers since 1975.

Buying the WM 250V

• A high quality machine, very robust and accurate, truly is ready to take on a wide range of metal working and turning tasks for the long term.
• Buy with confidence from Warco - we've been selling lathes just like this for four decades now, and have always prided ourselves on our after sales service.
• We also have a hugely comprehensive range of spare parts available should you ever need them. For complete peace of mind, each machine has a 12 months warranty.
• Each lathe iS tested by our team before leaving our premises, and is supplied with an individual accuracy test report.
• All new machine with inverter drive and power cross feed.
• As with all the machinery we supply, the Warco WM 250V is supplied fully assembled and ready to go - once it arrives via our free delivery service, simply plug in and enjoy your new lathe.
