Surface Grinder

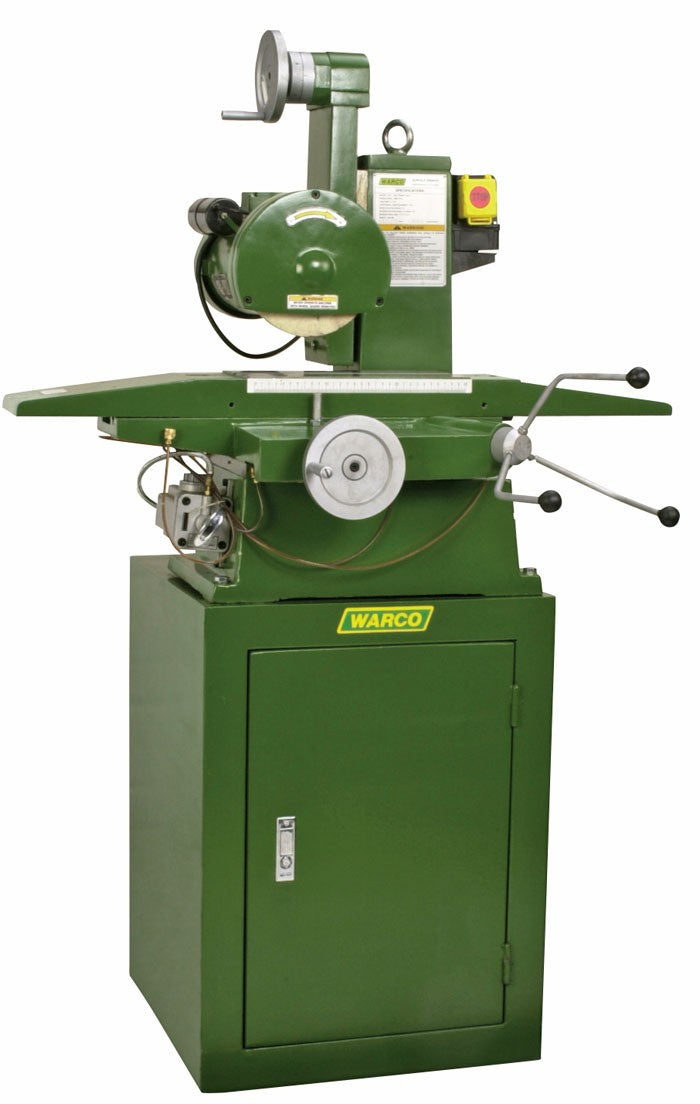

Warco Surface Grinder & Stand

white Fused Alumnia, 3700max rpm 60 grit

• Fitted with a one shot centralised lubrication system to slideways and leadscrews.

• Single phase electrics.

• Complete with cabinet stand.

Accessories included (not pictured)

• Magnetic chuck (300 x 150mm)

• Diamond wheel dresser

Specification

Item No.	2013YZ
Table surface area	305 x 152mm
Table traverse	320mm
Table cross traverse	170mm
Grinding wheel size	178 x 31.7 x 12.7mm
Max. distance wheel centre - table	280mm
Min. distance wheel centre - table	89mm
Vertical feed per spindle revolution	0.04 / 0.08 / 0.14
Spindle speed	3600 rpm
Spindle motor	560w
Power	240v (1 phase)
Floor space	440 x 430mm
Magnetic chuck dimensions	300 x 150 x 45mm
Overall dimensions with stand L x W x H	930 x 780 x 1430mm
Weight	226kg
